Features:

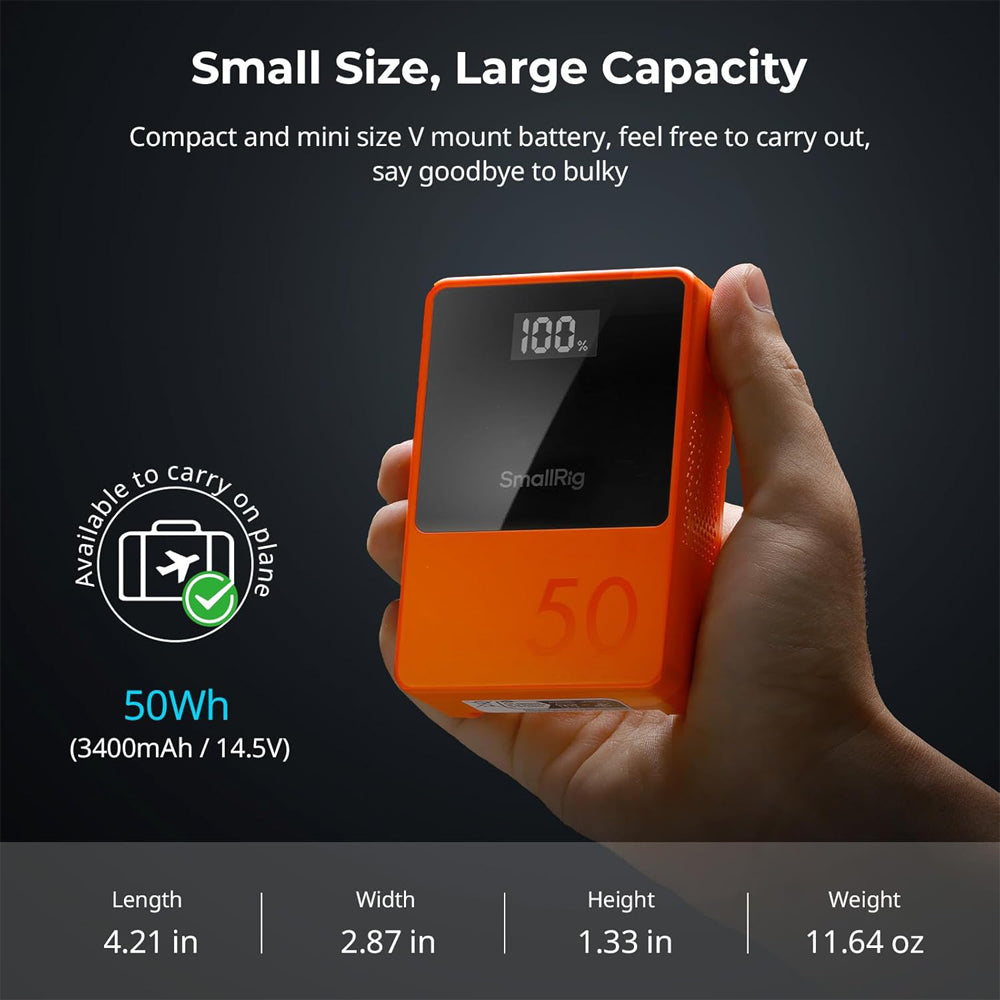

- Compact and lightweight to be carried around: Designed to lighten the burden of the film industry, the VB series is approximately 30% smaller than traditional V-mount batteries!

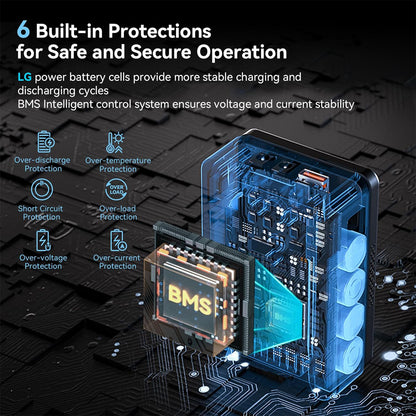

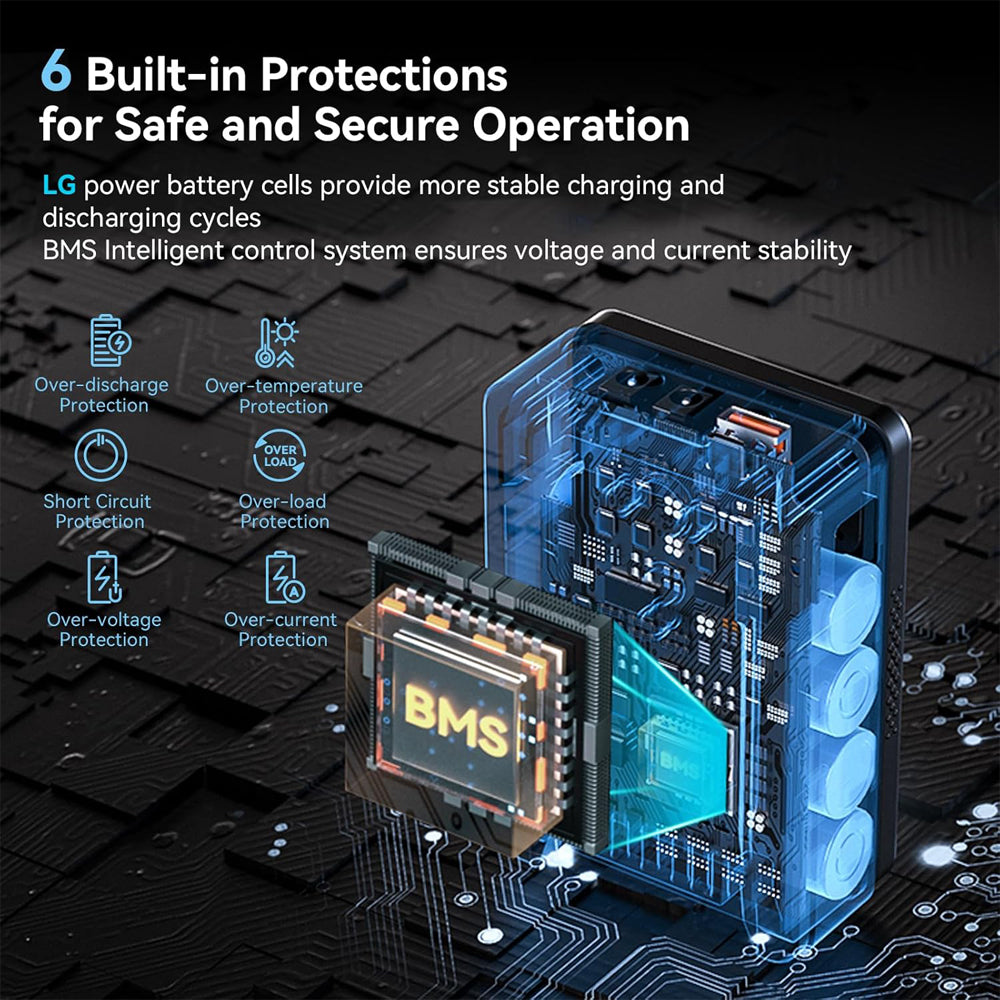

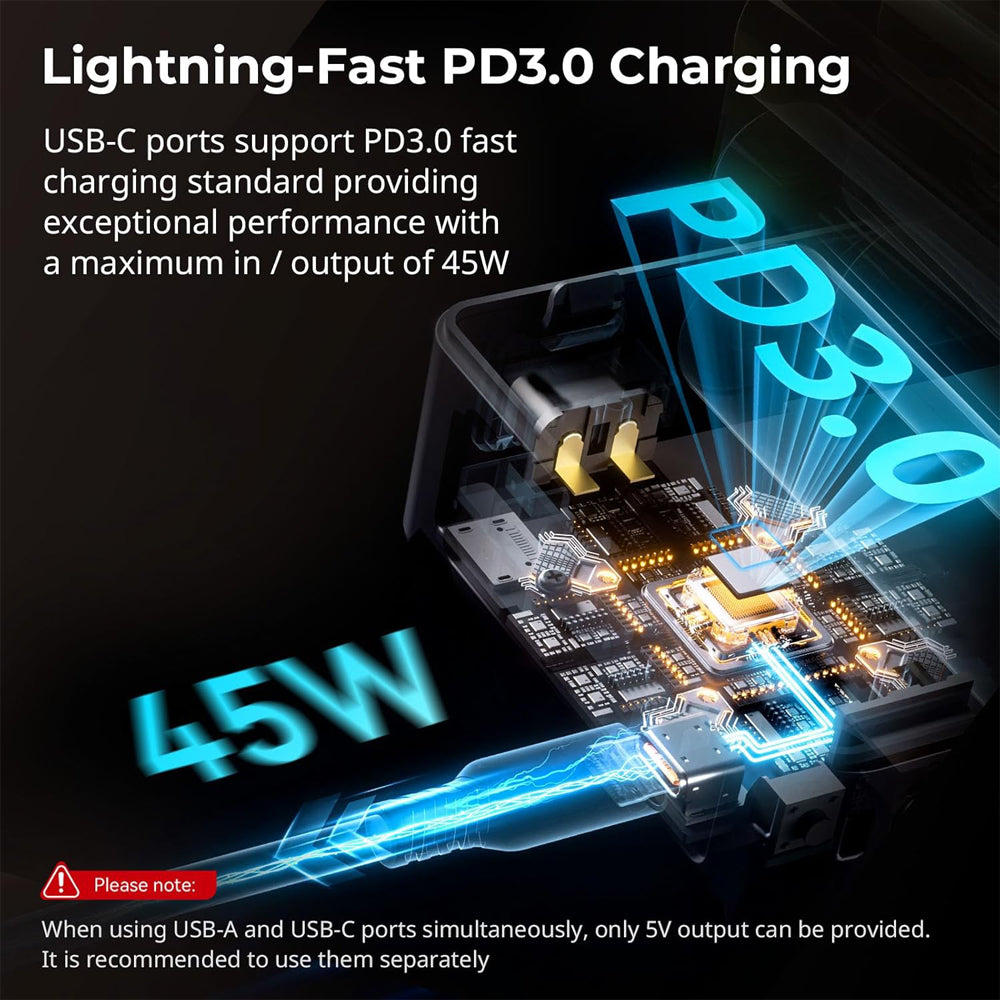

- Intelligent BMS chip for efficient and safe use: A built-in highly integrated BMS chip takes up less space while supporting varied fast-charging protocols and bi-directional 45W (Max) USB-C PD fast charging!

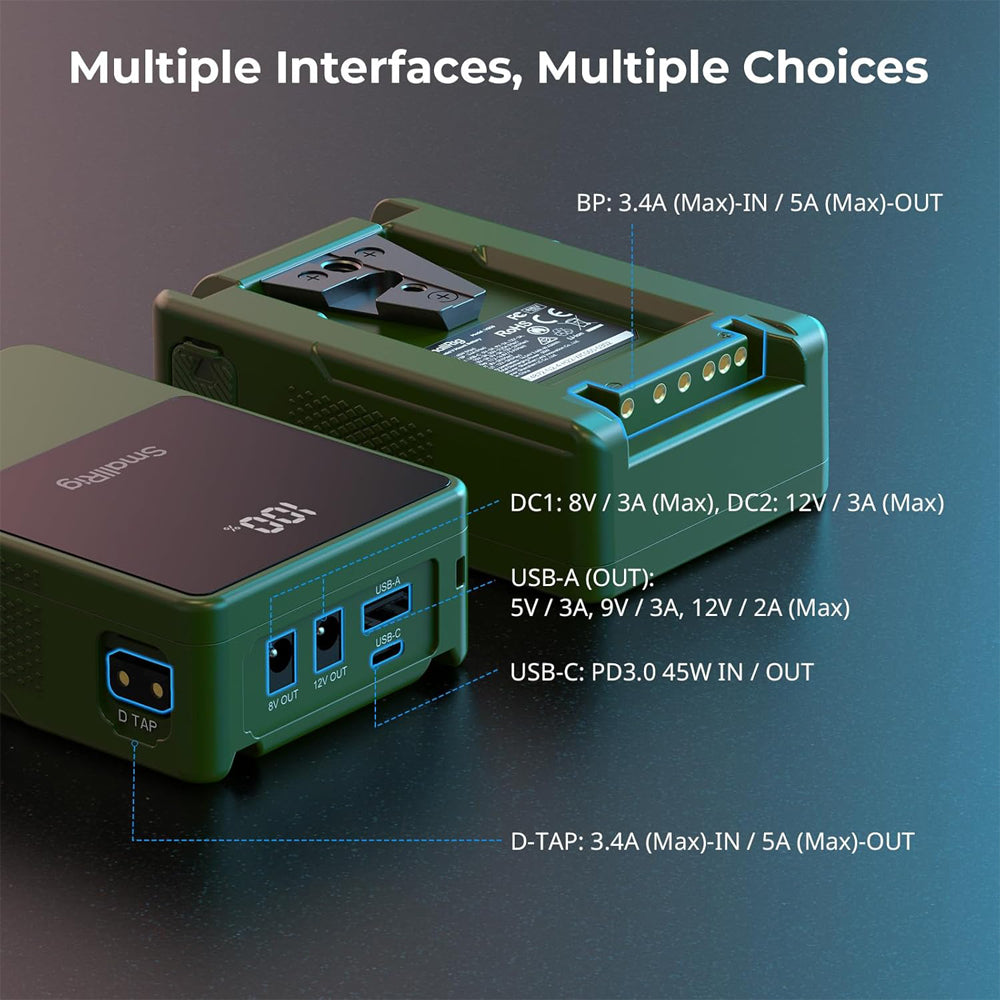

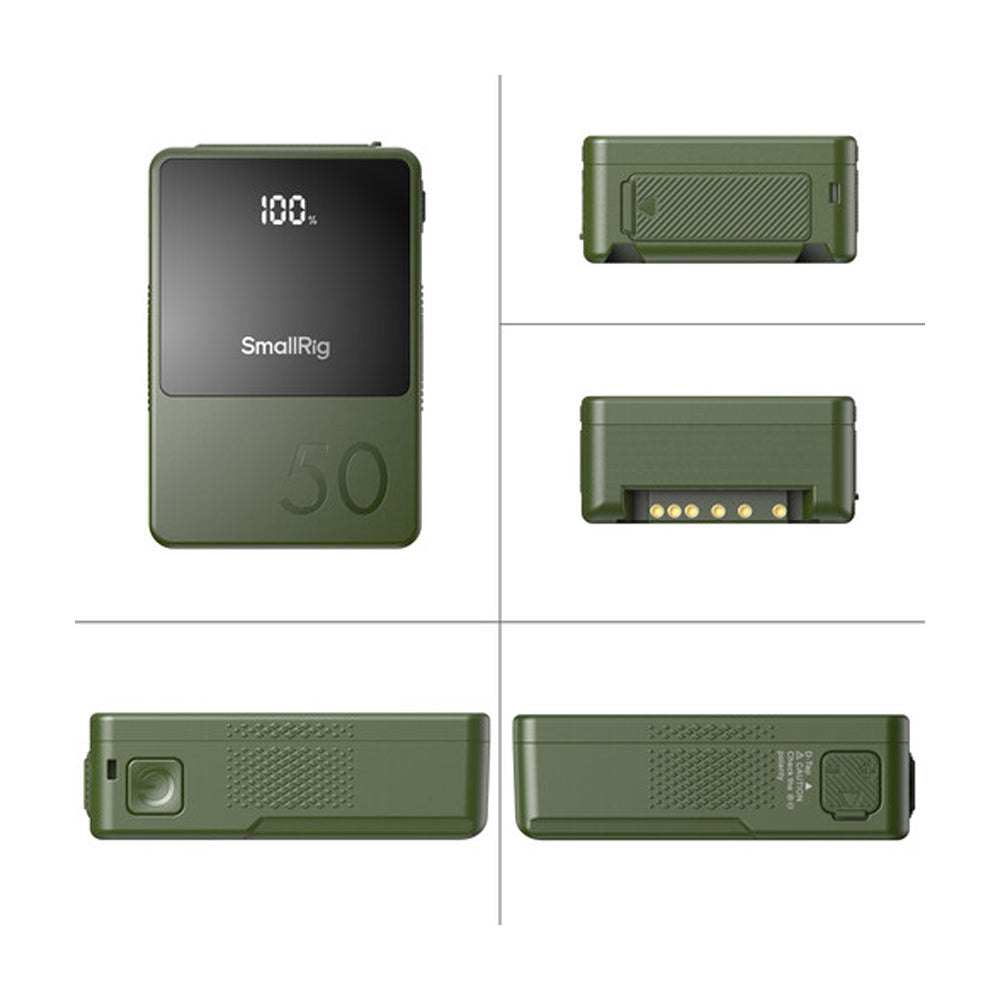

- Various interfaces for high compatibility: Compatible with camera/camcorder/monitor / wireless video transmitter/video light, etc.

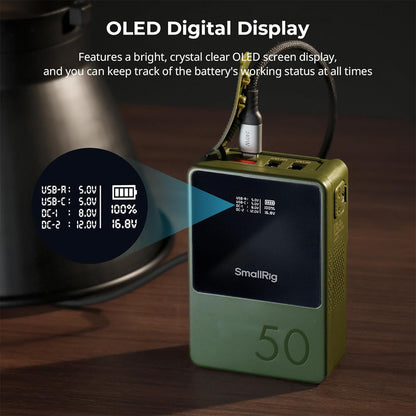

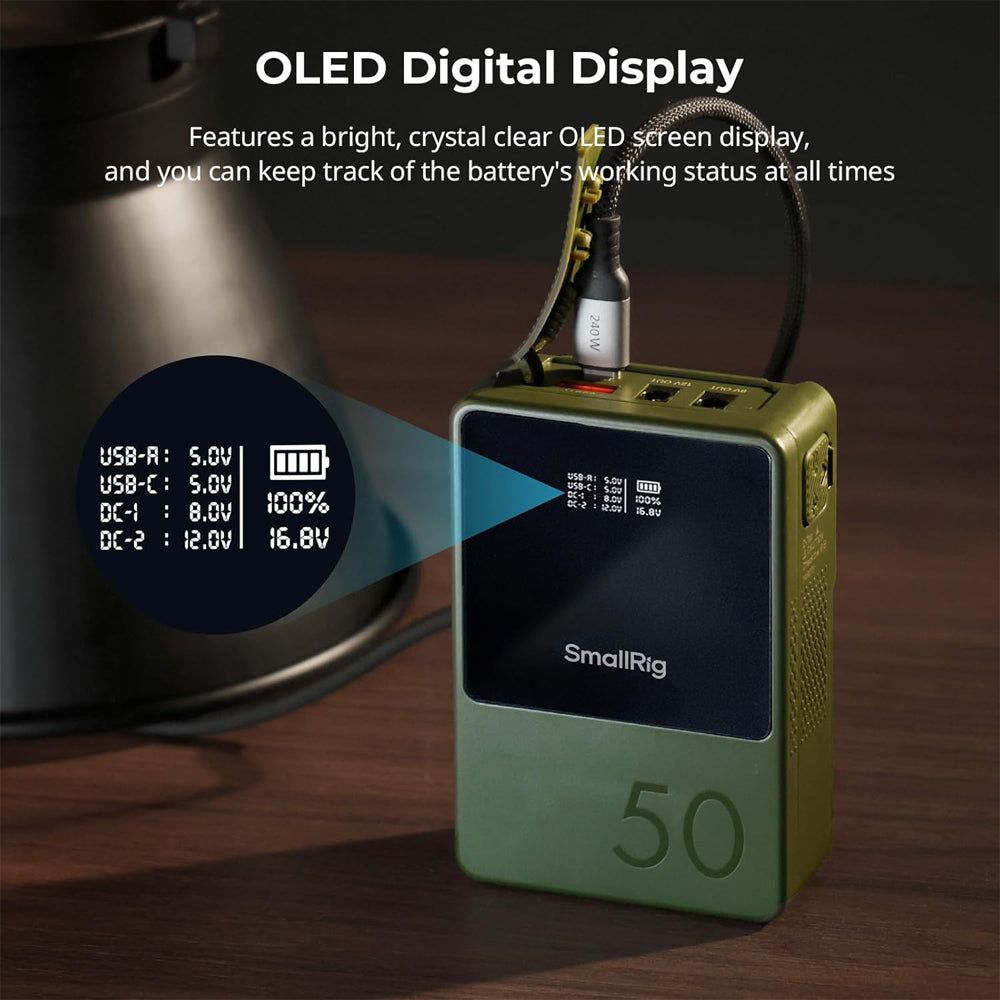

- Practical OLED display for precise control: Keeps track of the battery's working status at all times!
- Premium li-battery with guaranteed quality and safety: Built-in high-capacity premium li-battery, a double guarantee of quality and performance!
Specifications
• Material: Fireproof PC Material

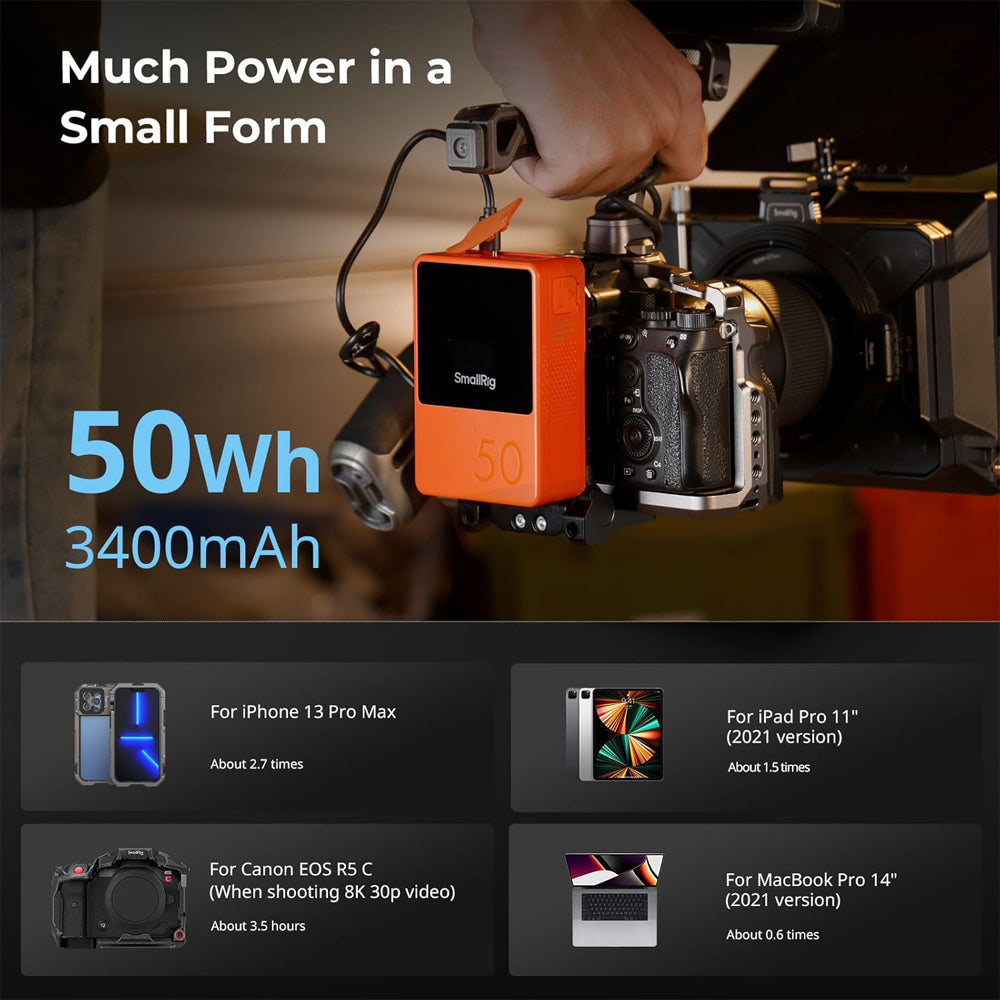

• Capacity: 14.8V 3.4Ah 50Wh
• Rated Total Power: Discharge: 50W / Charge:45W
• V Mount / D-TAP Input: 5A (Max)
• V Mount / D-TAP Output: 14.8V/ 12A(Max)
• USB-A Output (Support QC2.0/QC3.0/AFC/FCP/SCP/DCP-1.5A/APPLE-2.4A): QC2.0 / AFC / FCP: 5V / 3A, 9V / 3A,12V / 2A | QC3.0: 4.2-9V / 3A, 9-12V / 2A | SCP: 4.5V / 5A, 5V / 4.5A DCP-1.5A: 5V / 1.5A | APPLE-2.4A: 5V / 2.4A
• USB-C Input/output (Supports PD3.0/QC2.0/QC3.0/PPS/AFC/FCP/SCP/DCP-1.5A/APPLE-2.4A): PD3.0: 5V / 3A, 9V / 3A, 12V / 3A, 15V / 3A, 20V / 2.25A | QC2.0 / AFC / FCP: 5V / 3A, 9V / 3A, 12V / 2A | QC3.0: 4.2-9V / 2A, 9-12V / 2A | SCP: 4.5V / 5A, 5V / 4.5A | DCP-1.5A: 5V / 1.5A | PPS: 3.3-16V / 3A | APPLE-2.4A: 5V / 2.4A
• DC1 Output: 8.0V / Max3A
• DC2 Output: 12V / Max3A
• Discharge Cut-Off Voltage: 11V
• Optional Charging Methods: 16.8V D-TAP charger, USB-C charger such as GaN charger with PD fast charging tech
(up to 45W)
• Product Dimension: 107.0×73.0×34.0 mm
• Package Dimension: 147.0×114.0×57.0 mm
• Product Weight: 330 g±10g
• Package Weight: 490 g±10g

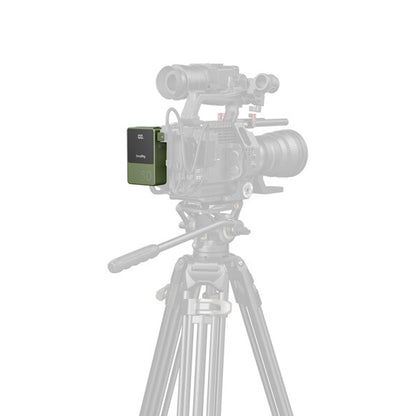

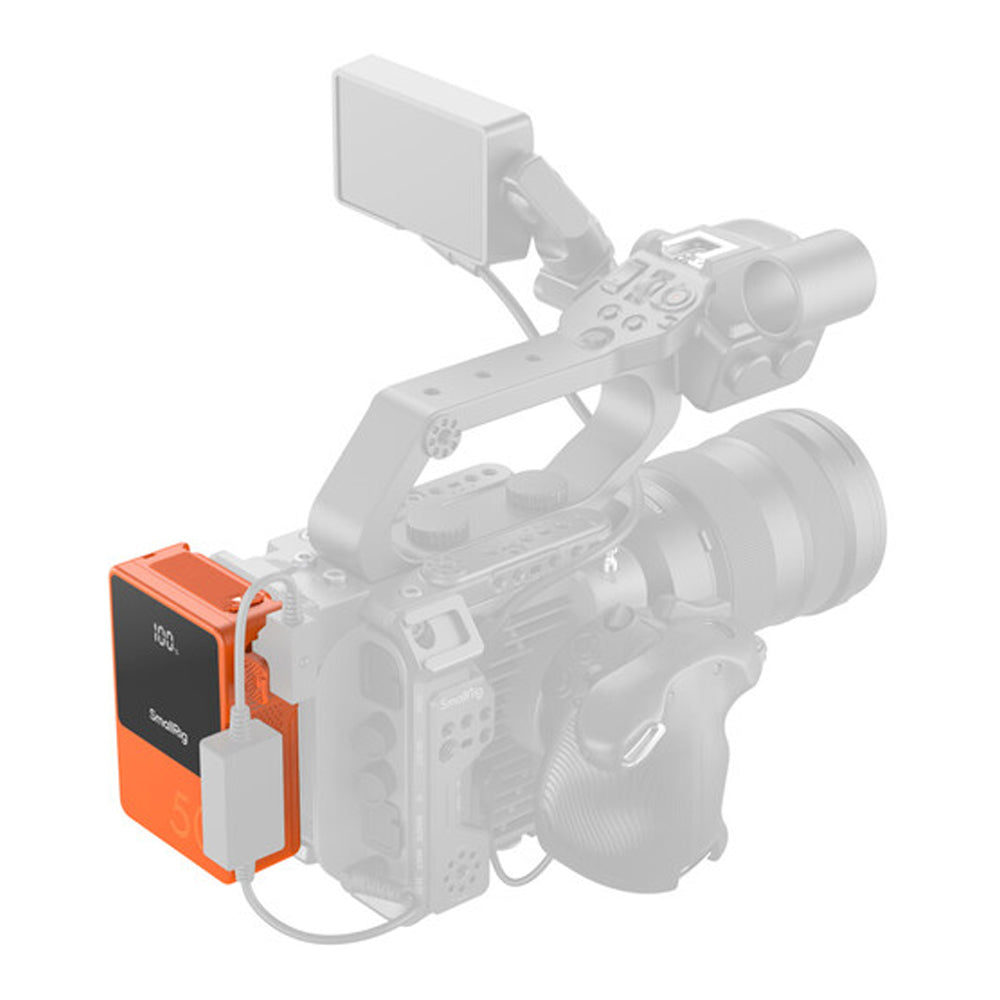

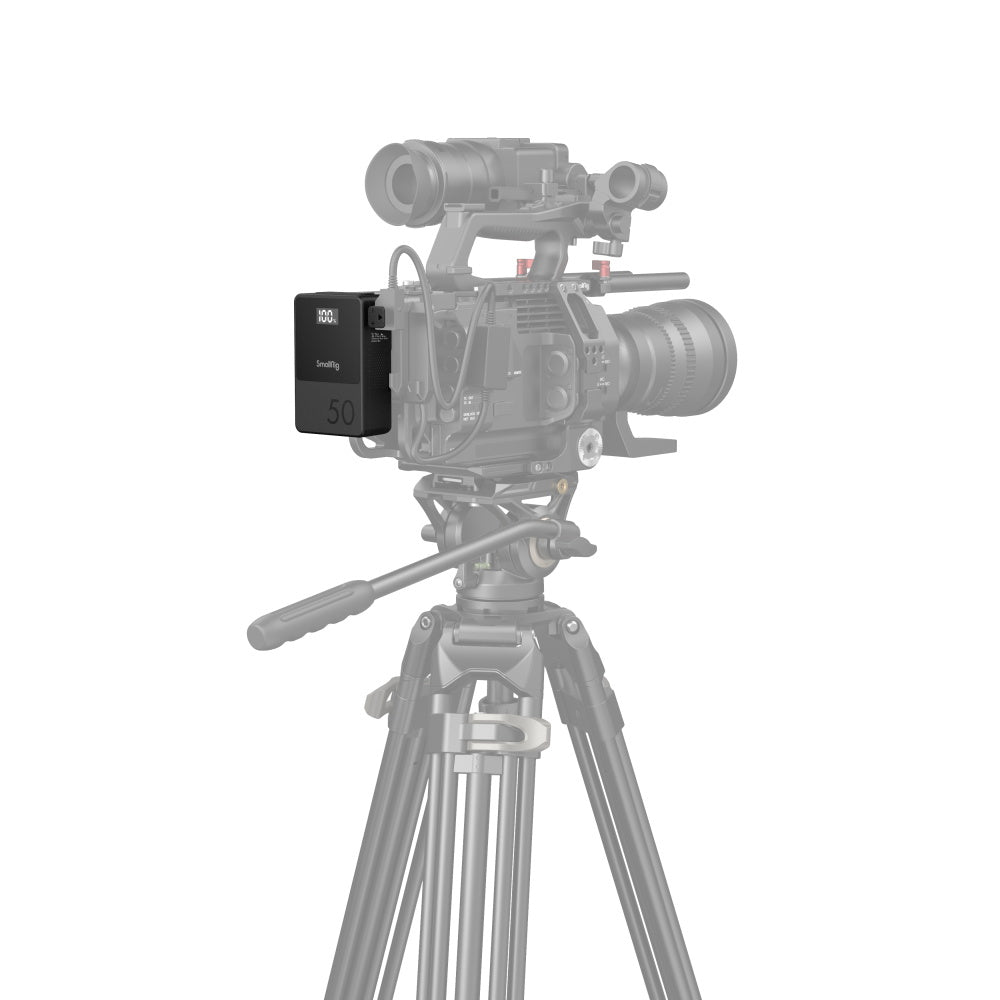

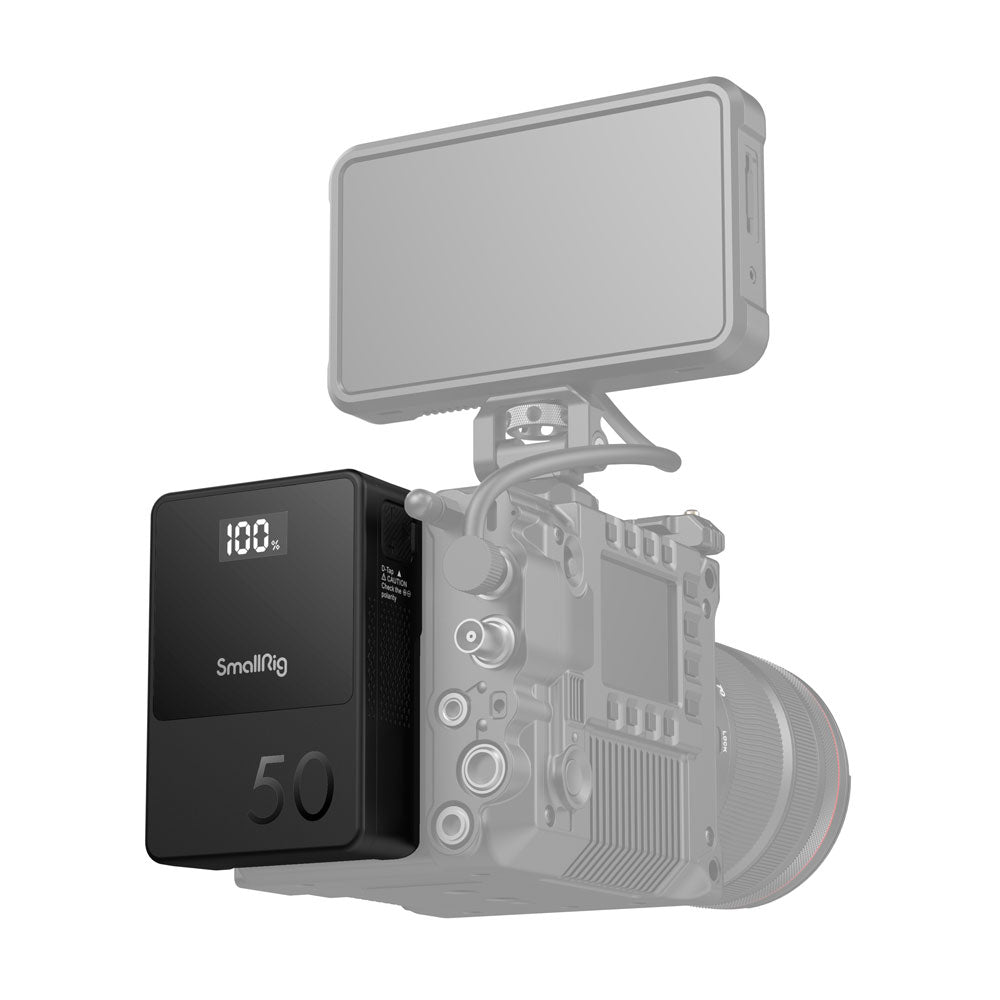

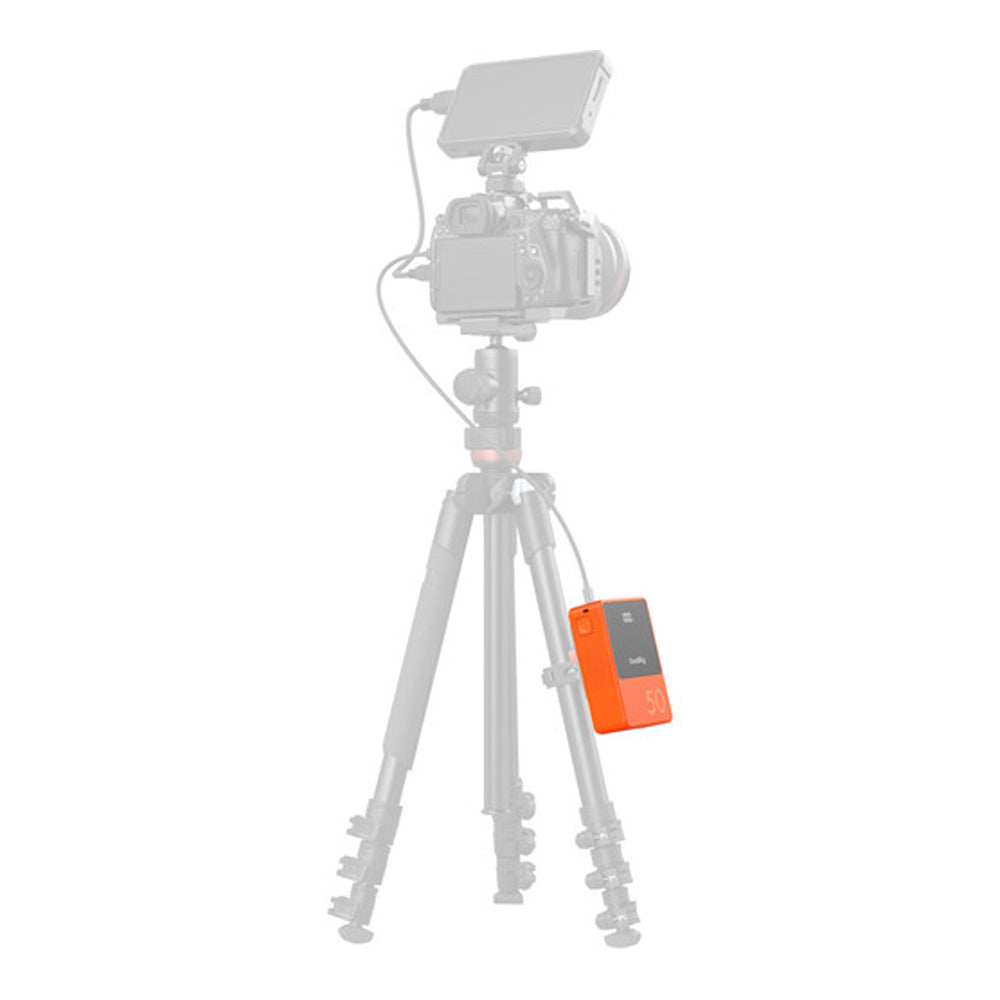

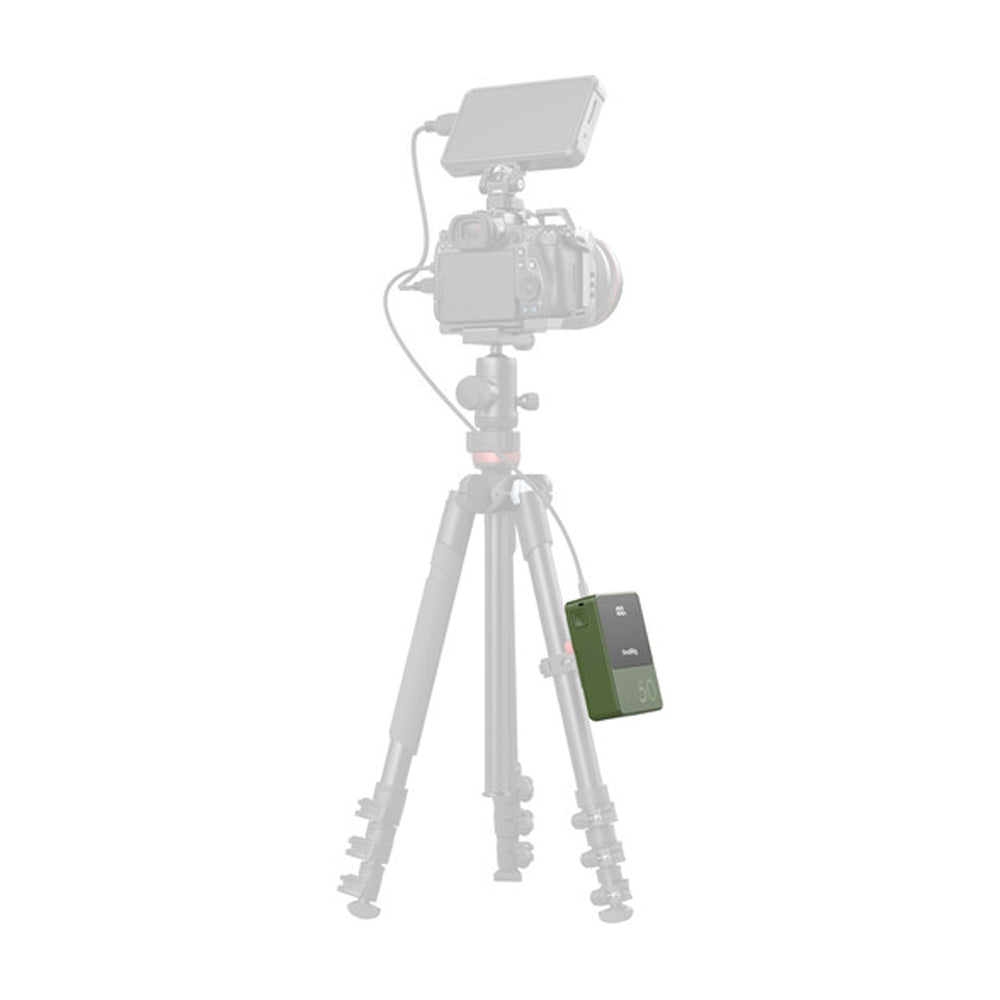

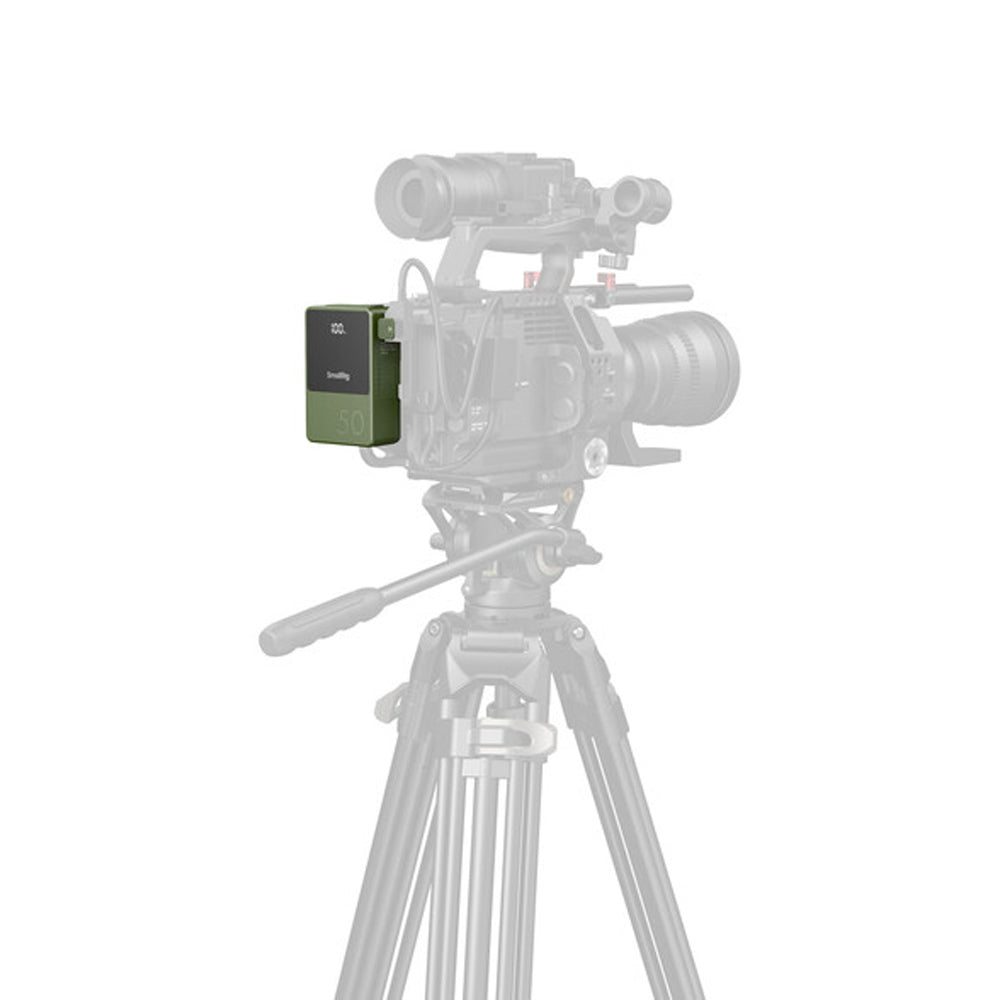

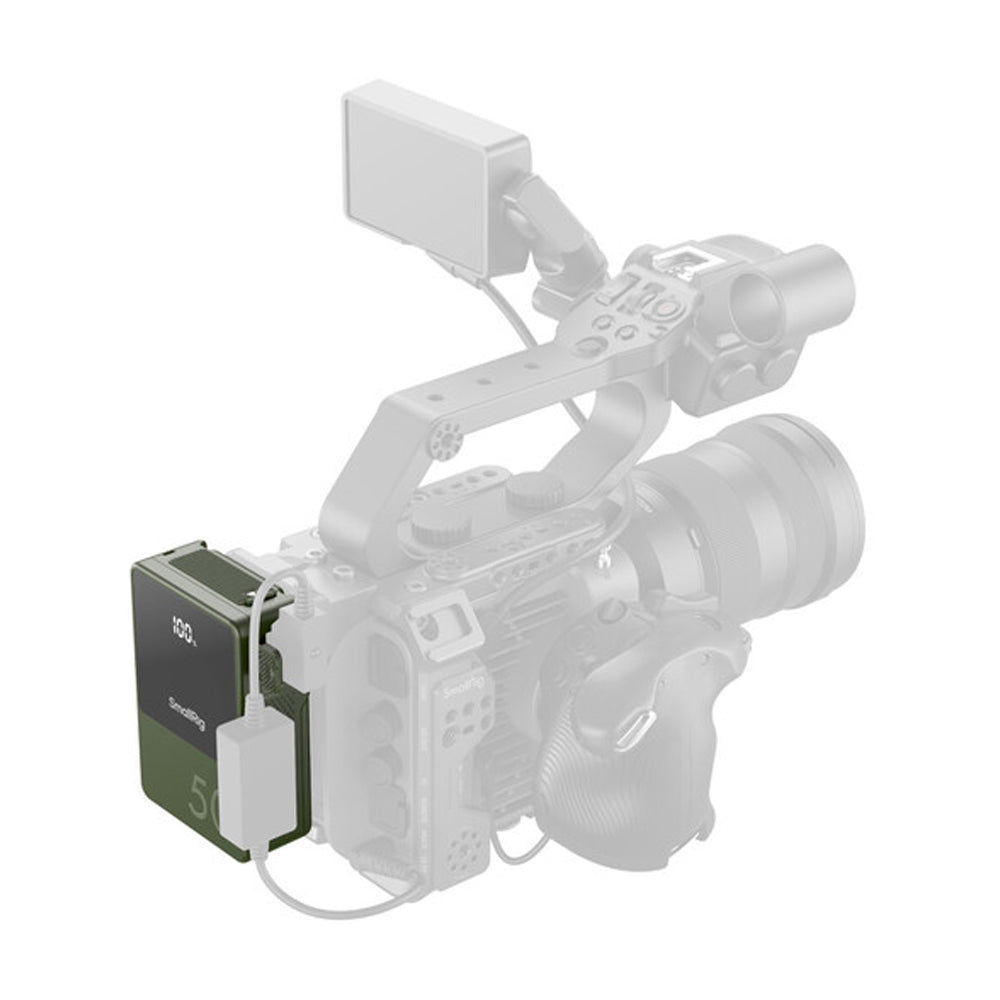

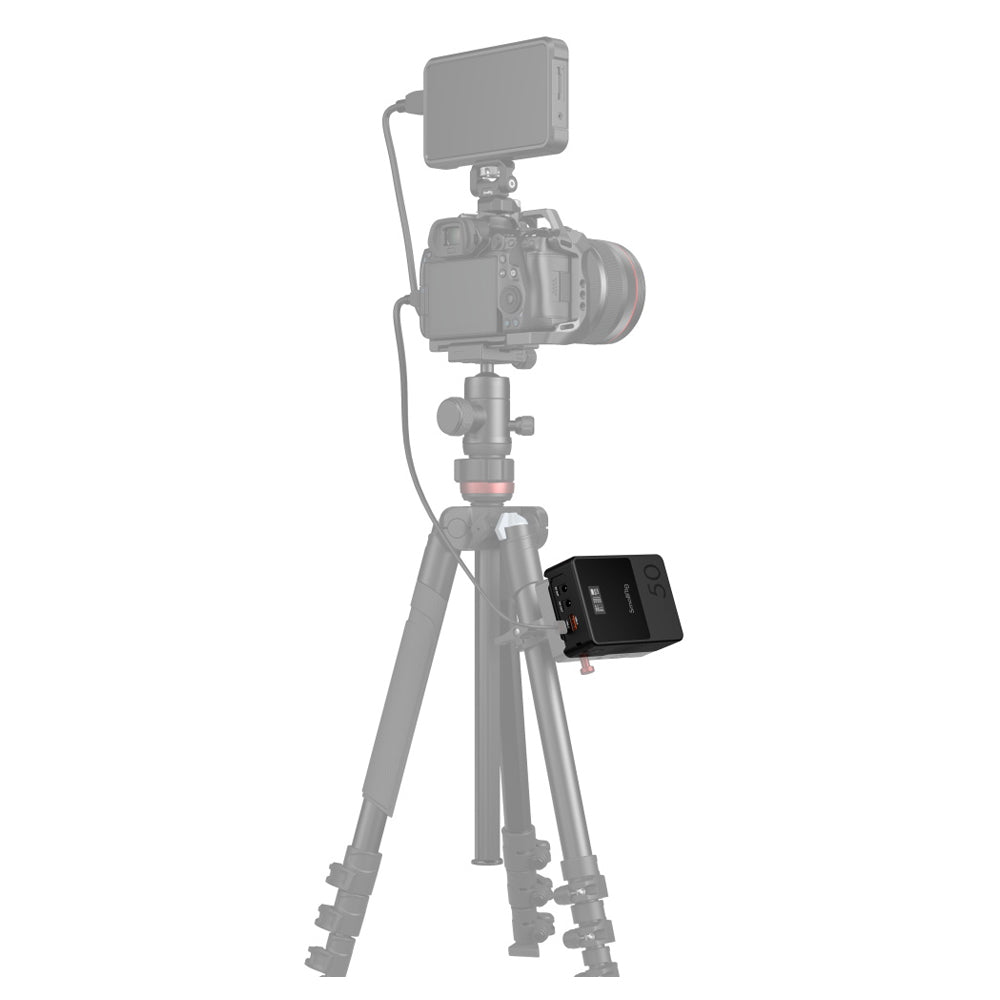

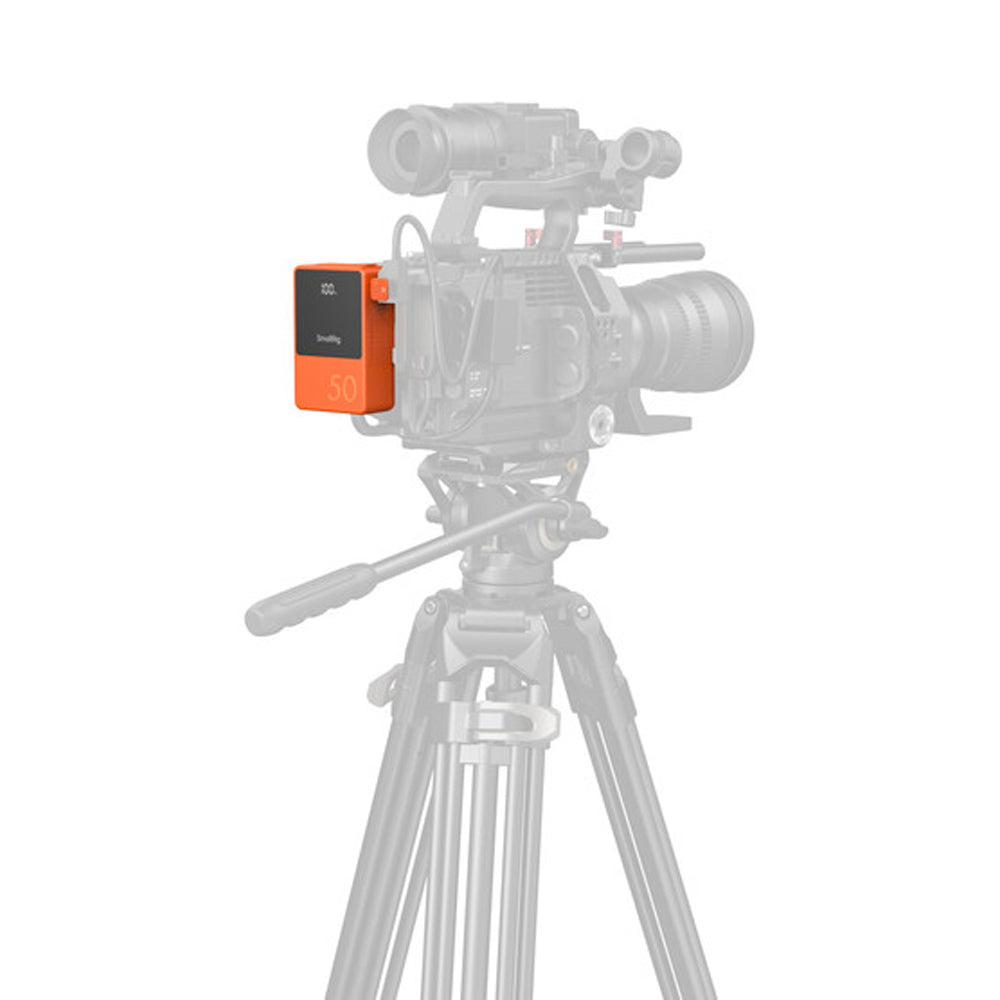

Sample in Use
What's in the Box:
-

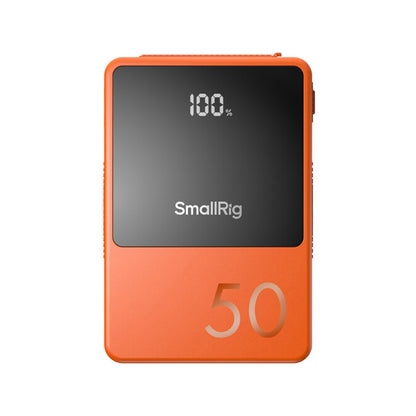

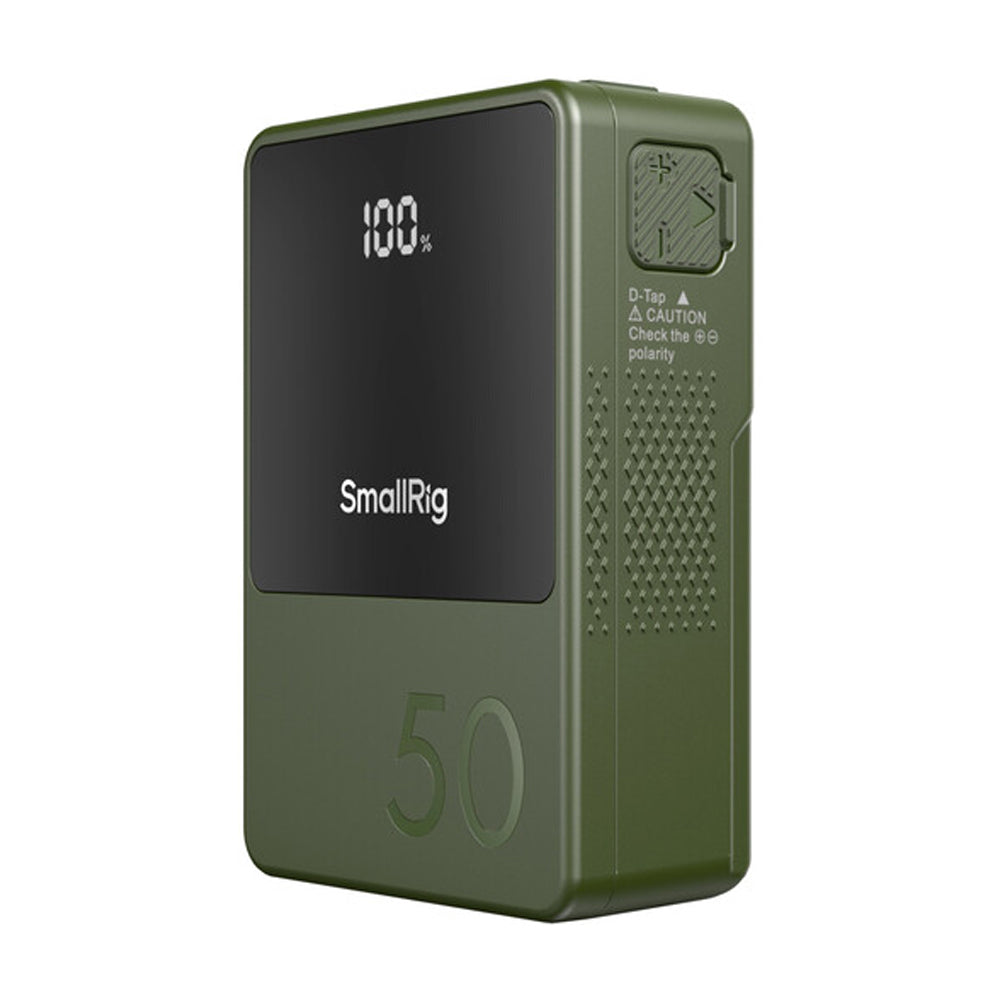

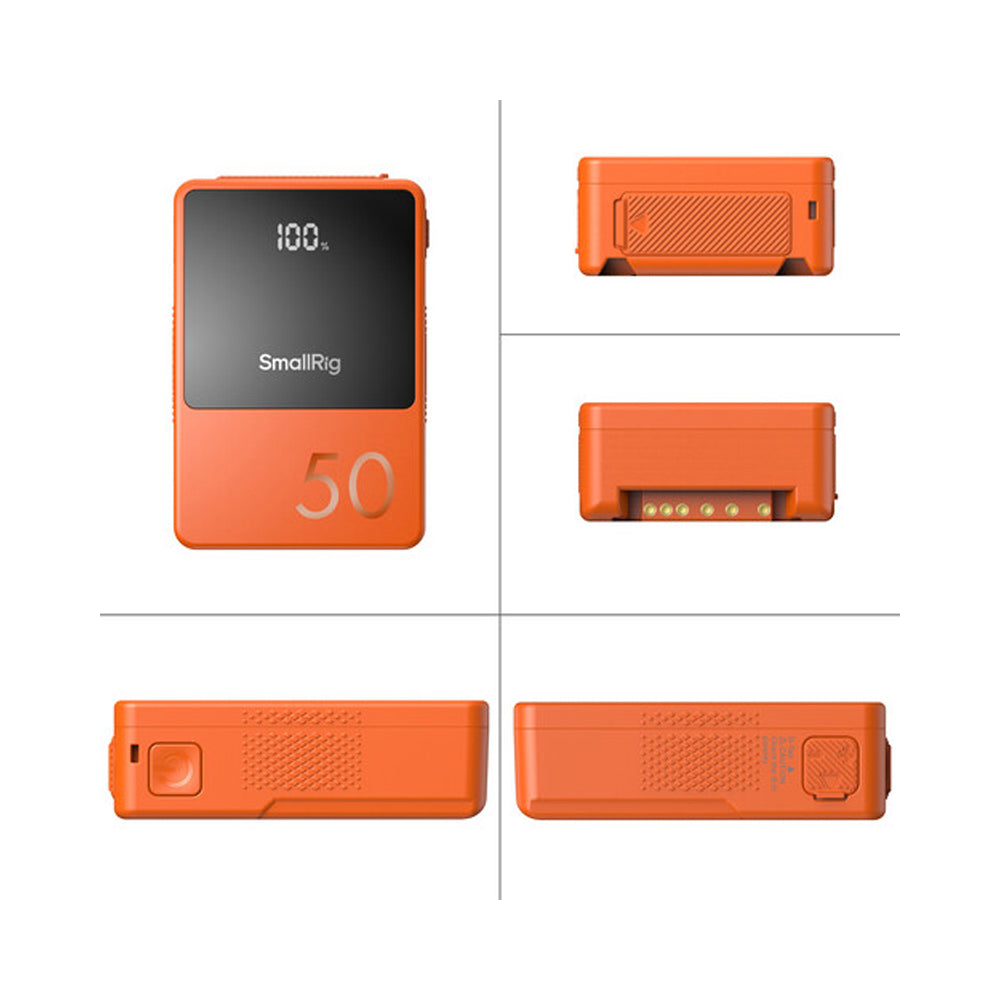

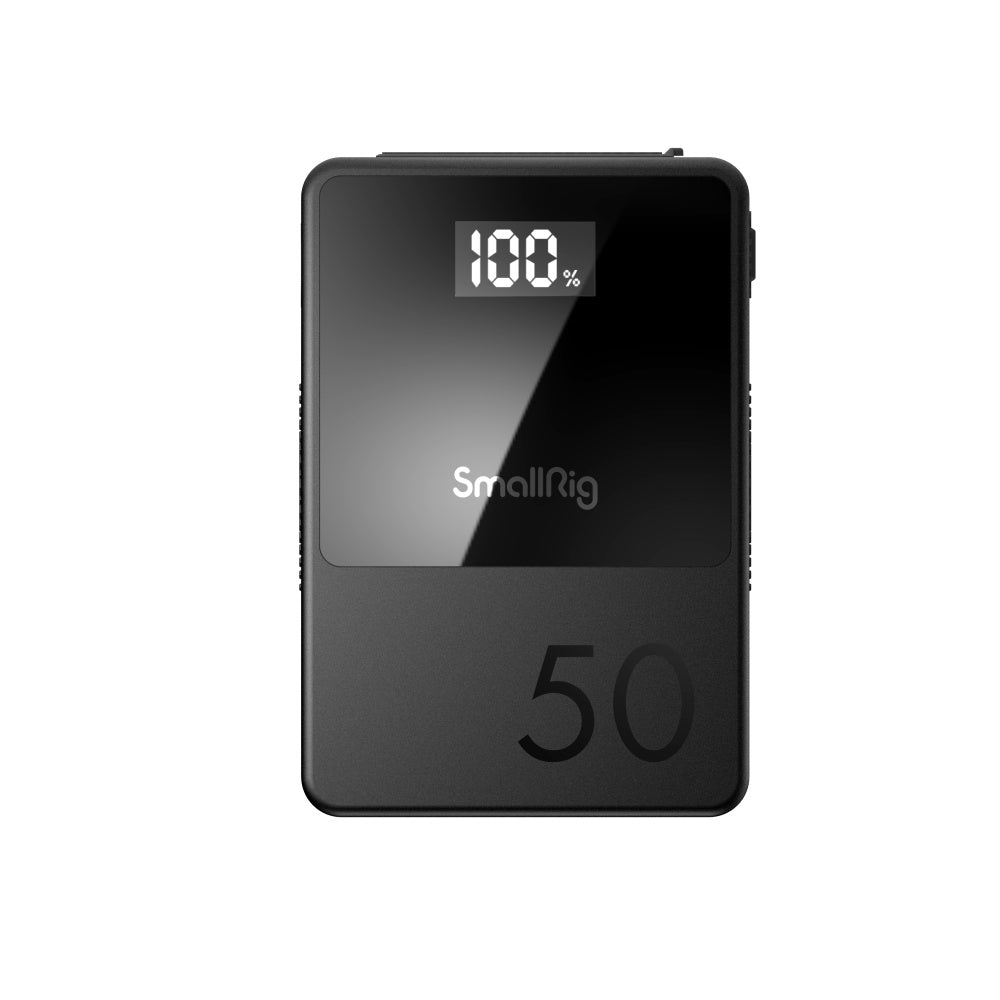

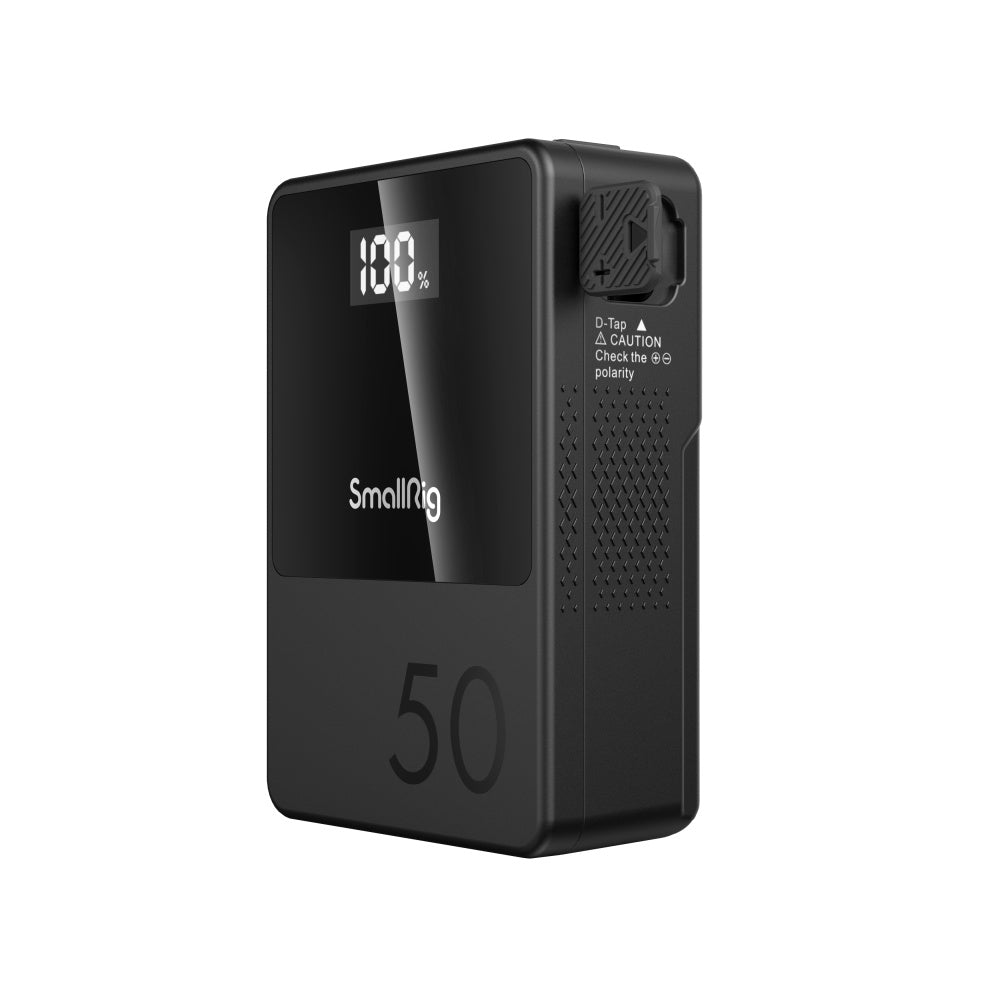

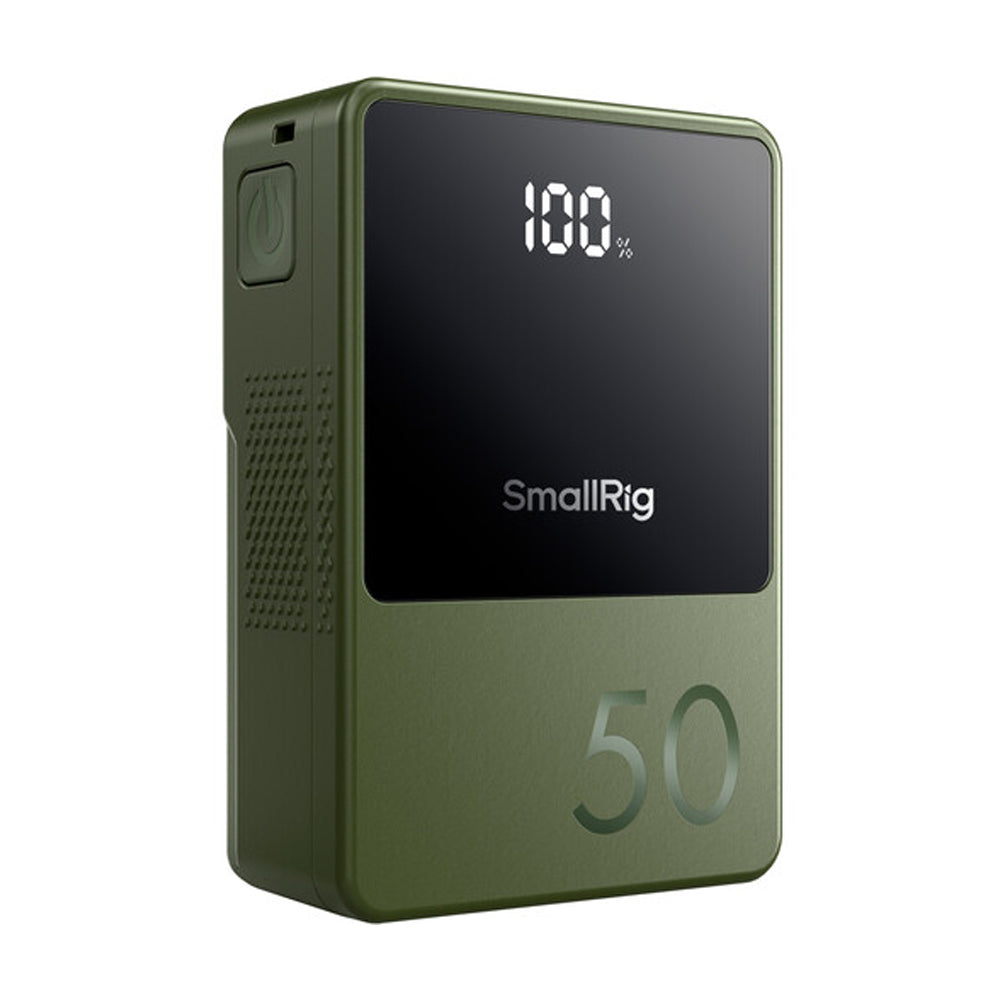

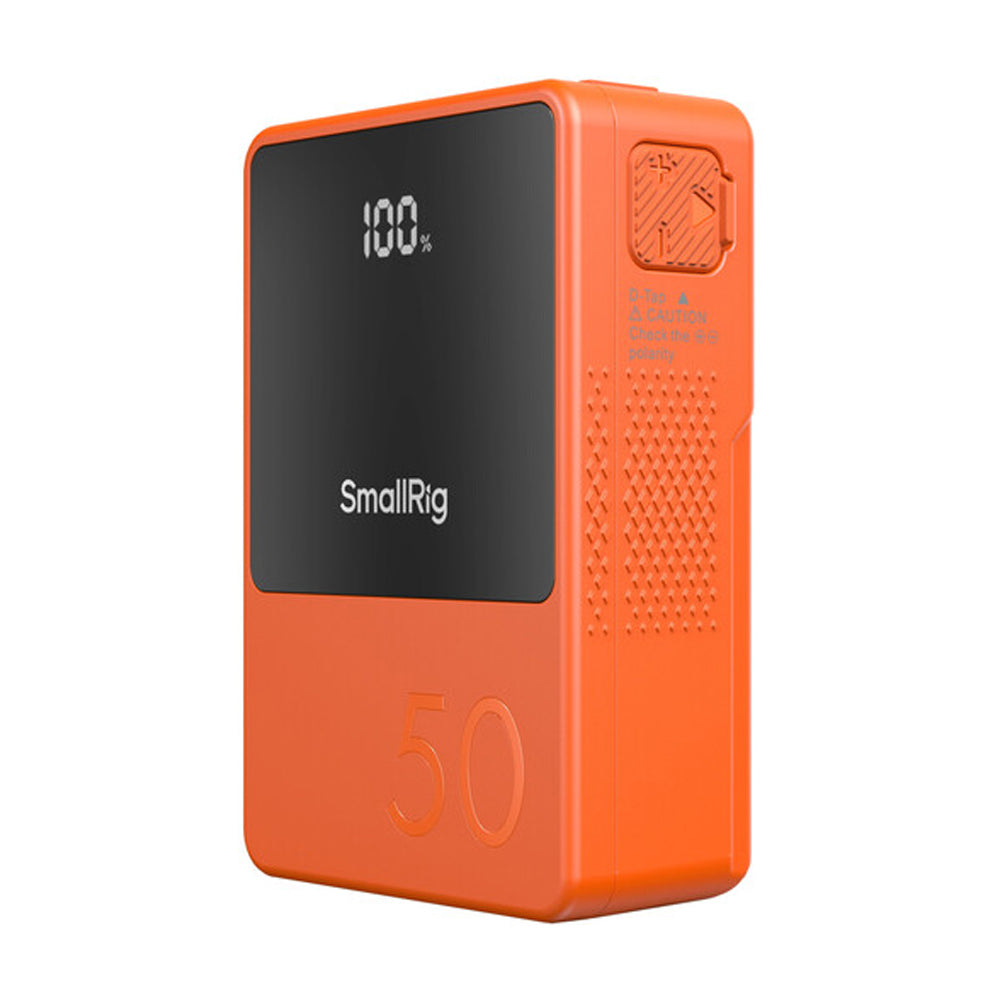

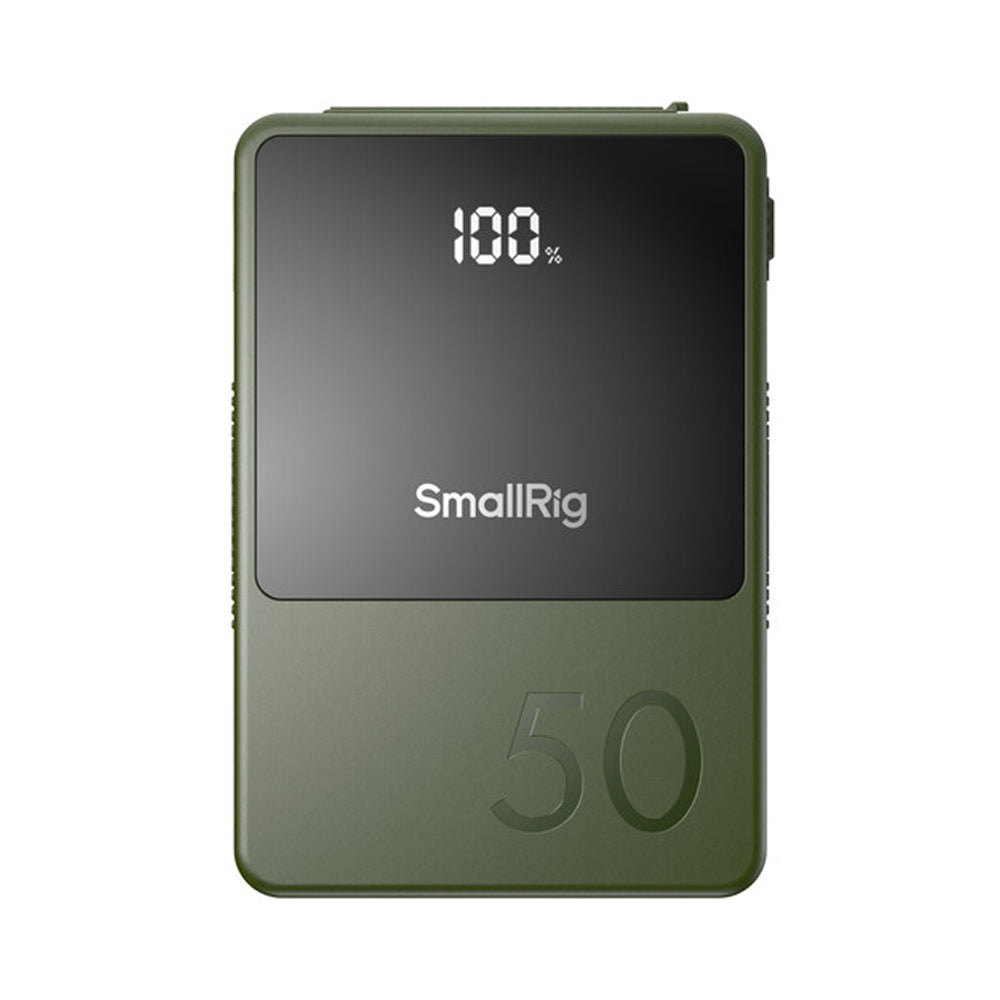

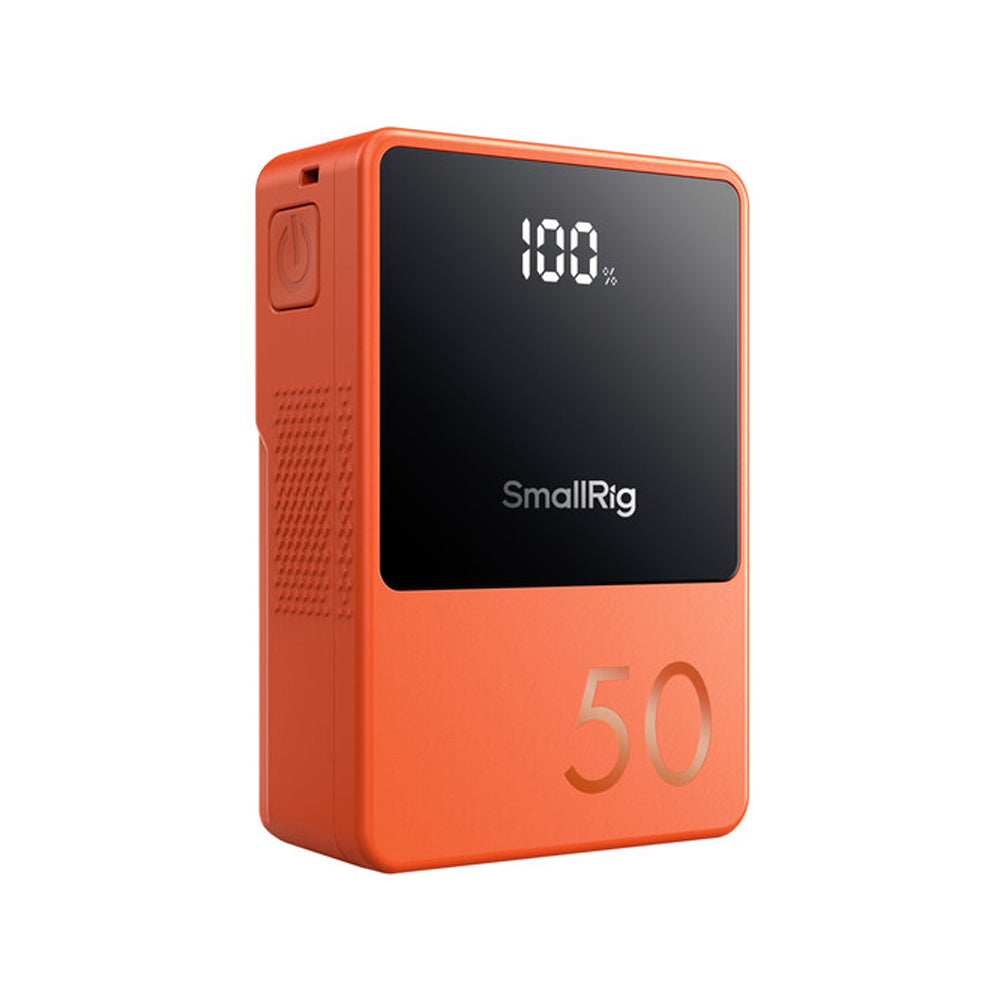

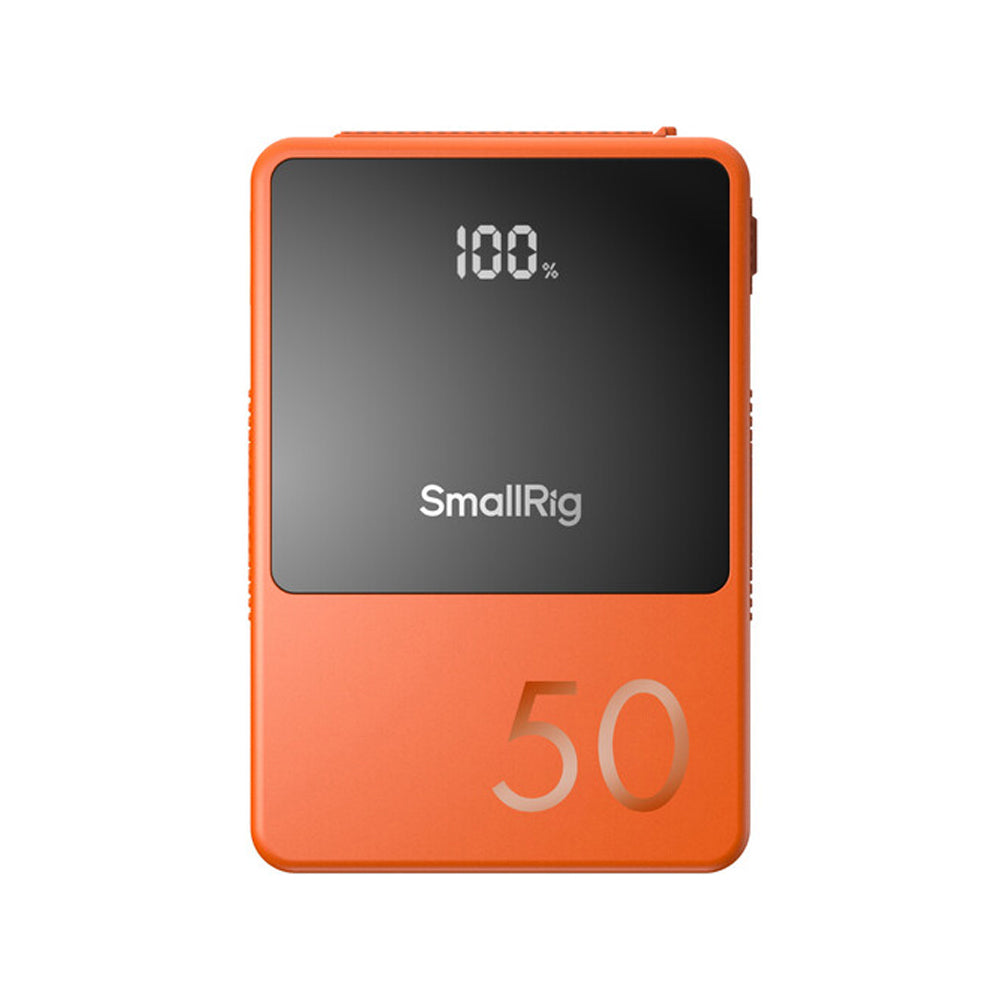

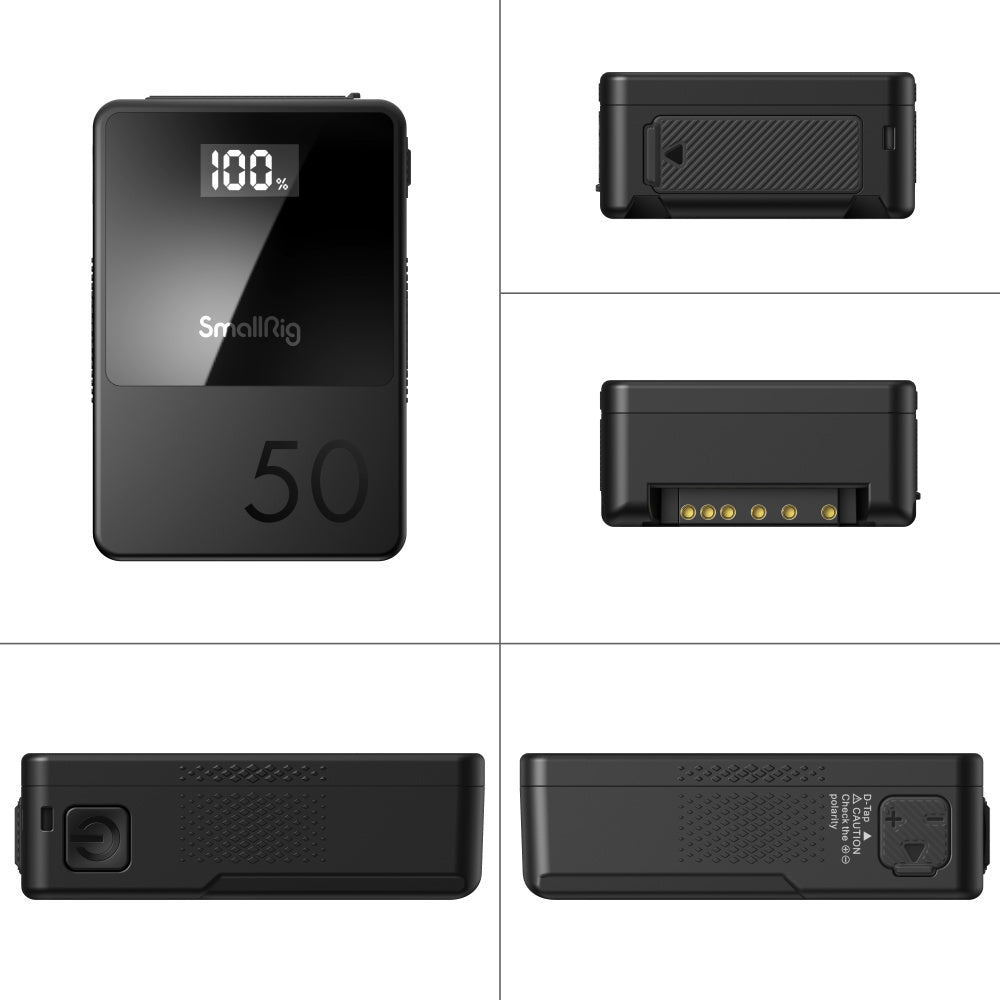

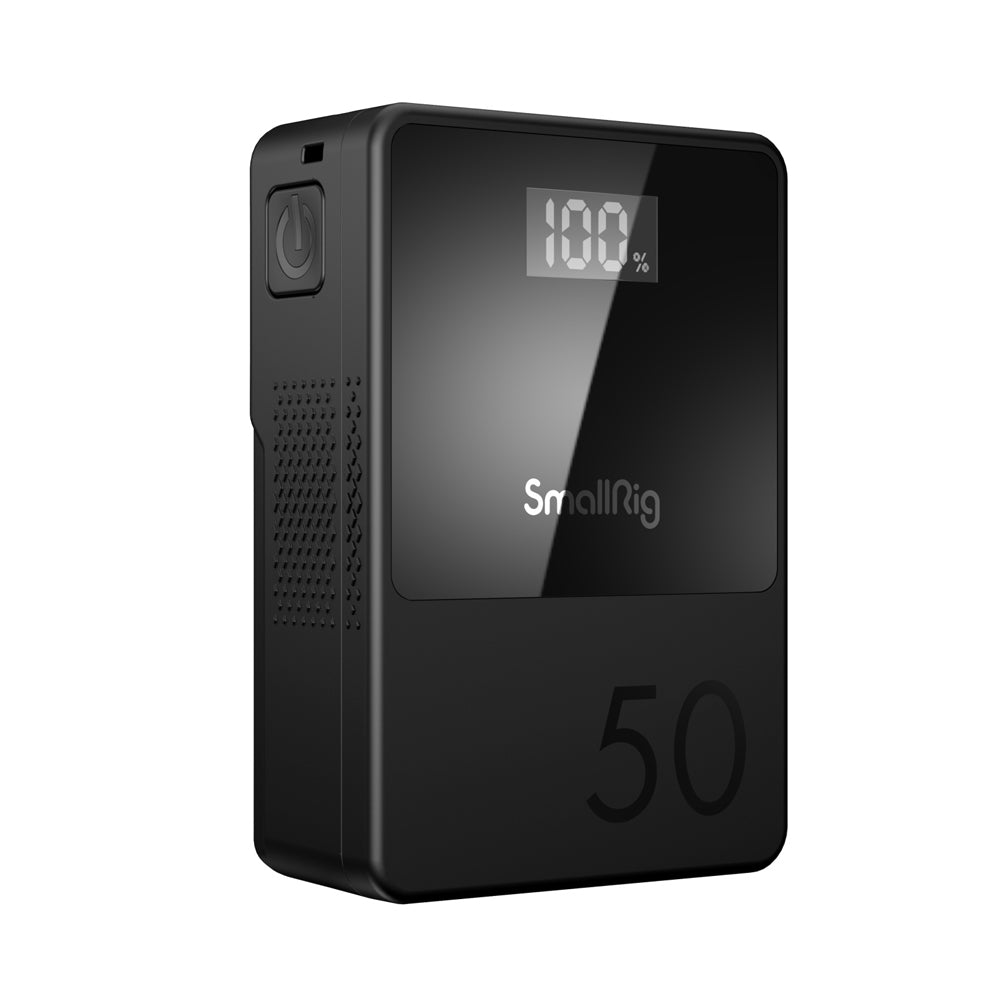

1x VB50 Mini V-Mount Battery
-
1x SmallRig Custom Sticker Set
