Specifications and Details:

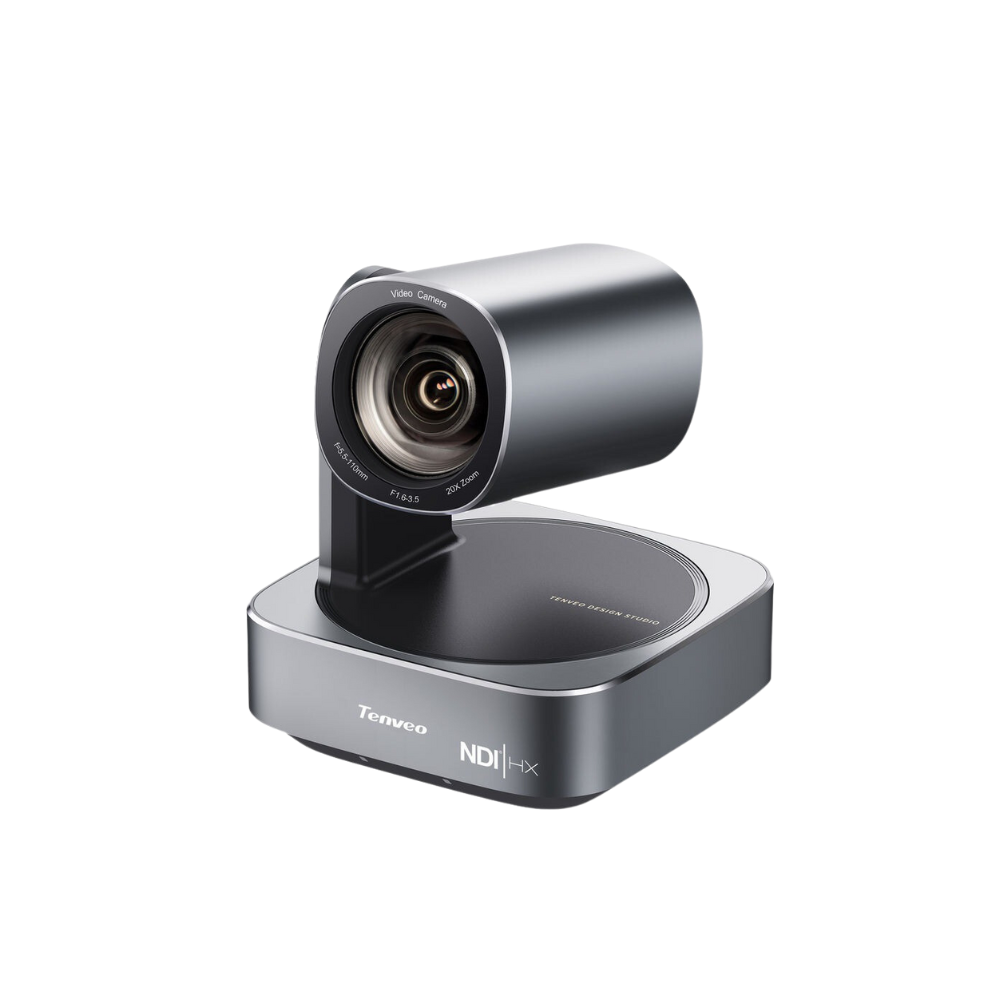

Brand: TENVEO

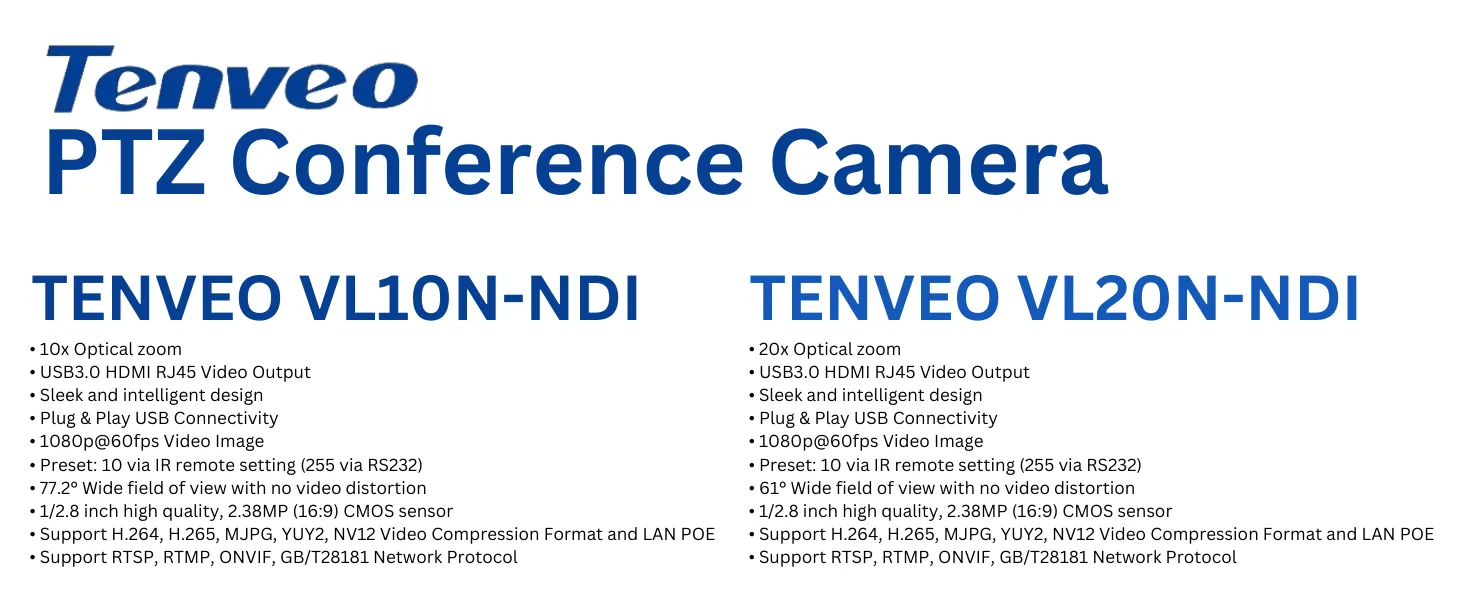

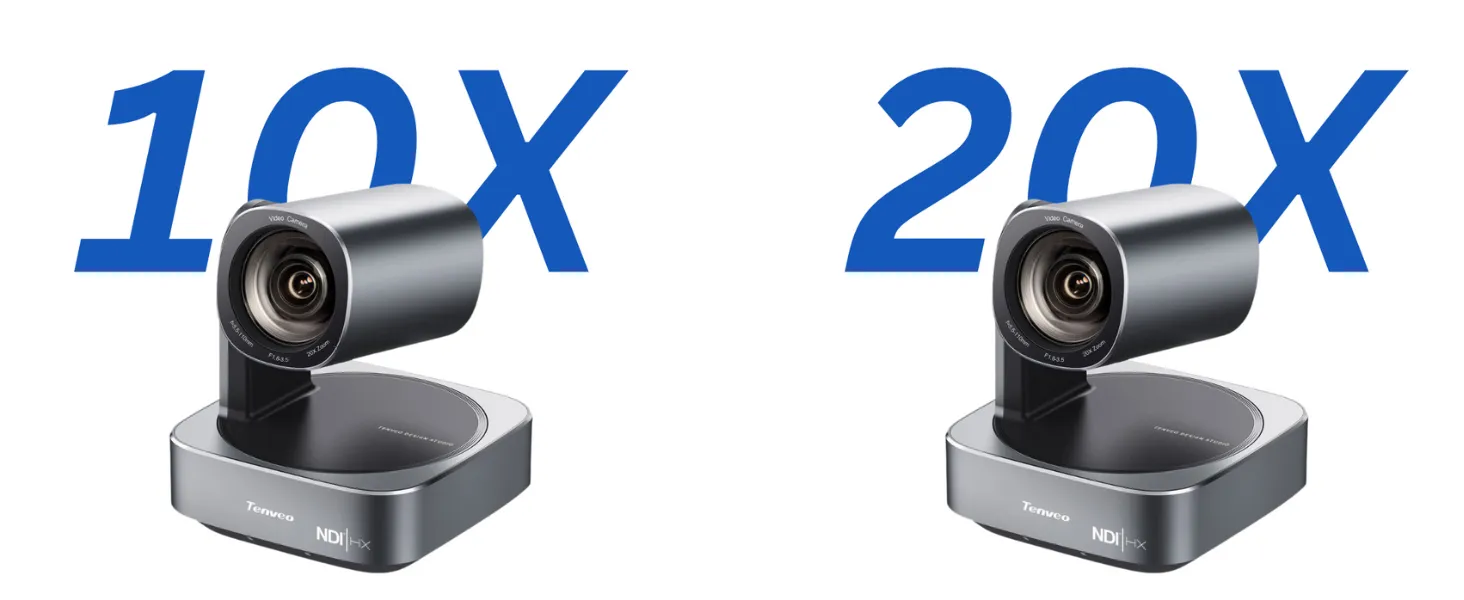

Model: VL10N-NDI / VL20N-NDI
TEVO-VL10N-NDI / TEVO-VL20N-NDI
Image Sensor: Sony IMX415 1/2.8'' CMOS
Effective Pixels: 2.38MP, 16:9
Lens: f=4.34mm-35.17mm
Aperture: F1.6 - F2.8
Control Protocol
VISCA/Pelco-D/Pelco-P; Baud Rate: 9600/4800/38400/2400
Control Interface: RS232 (input & output), RS485, TYPE-C(UVC1.1)
PTZ Parameter
Pan/Tilt Rotation: ±175°,-90° - +90°
Pan Control Speed: 0.1 -80°/sec
Tilt Control Speed: 0.1-60°/sec
Preset Number: 255 presets by Pelco-D, 32 presets by Pelco-P, 7 presets by Visca (10 presets by remote controller)
General Parameter
Operation Systems: Windows 7, Windows 8.1, Windows 10; macOS™ 10.10 or higher, Linux (Require to support UVC.)
Input Voltage: 12V
Input Current: 1A (Max.)
Power Consumption: 12W/5W (Max.)
Store Temperature: -10℃ - +60℃
Store Humidity: 20 - 90 %
Working Temperature: -10℃ - +50℃
Working Humidity: 20 - 80 %

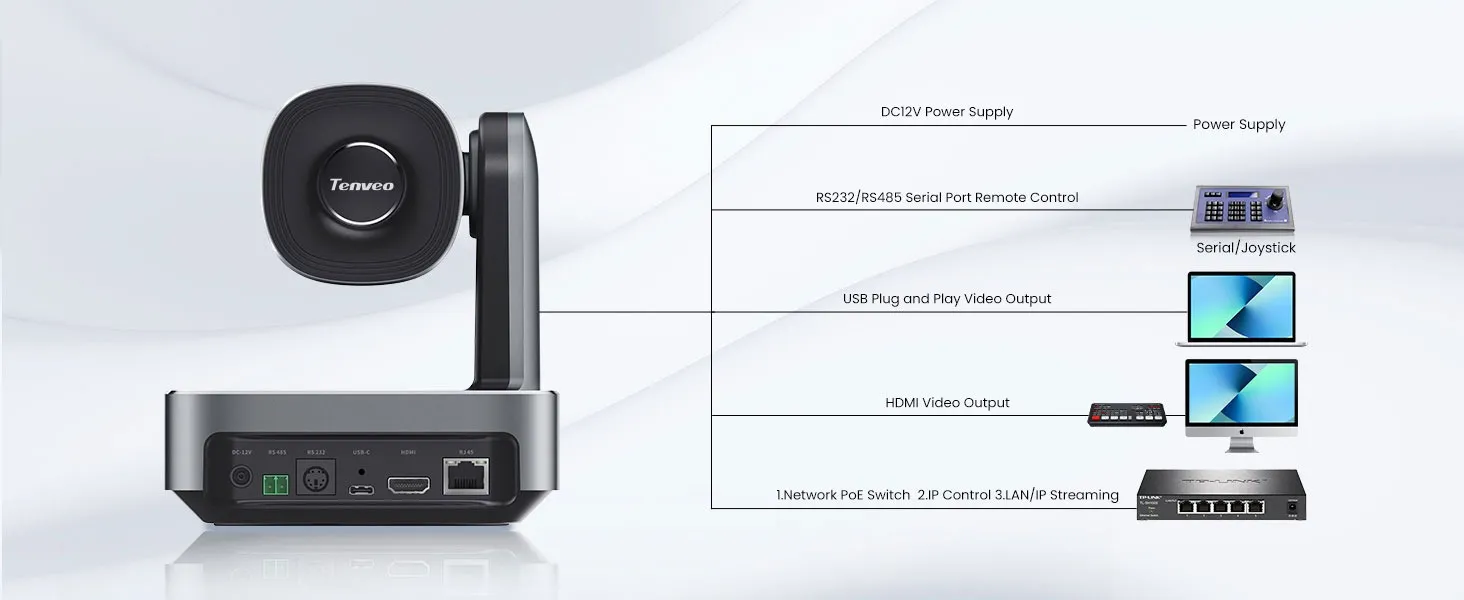

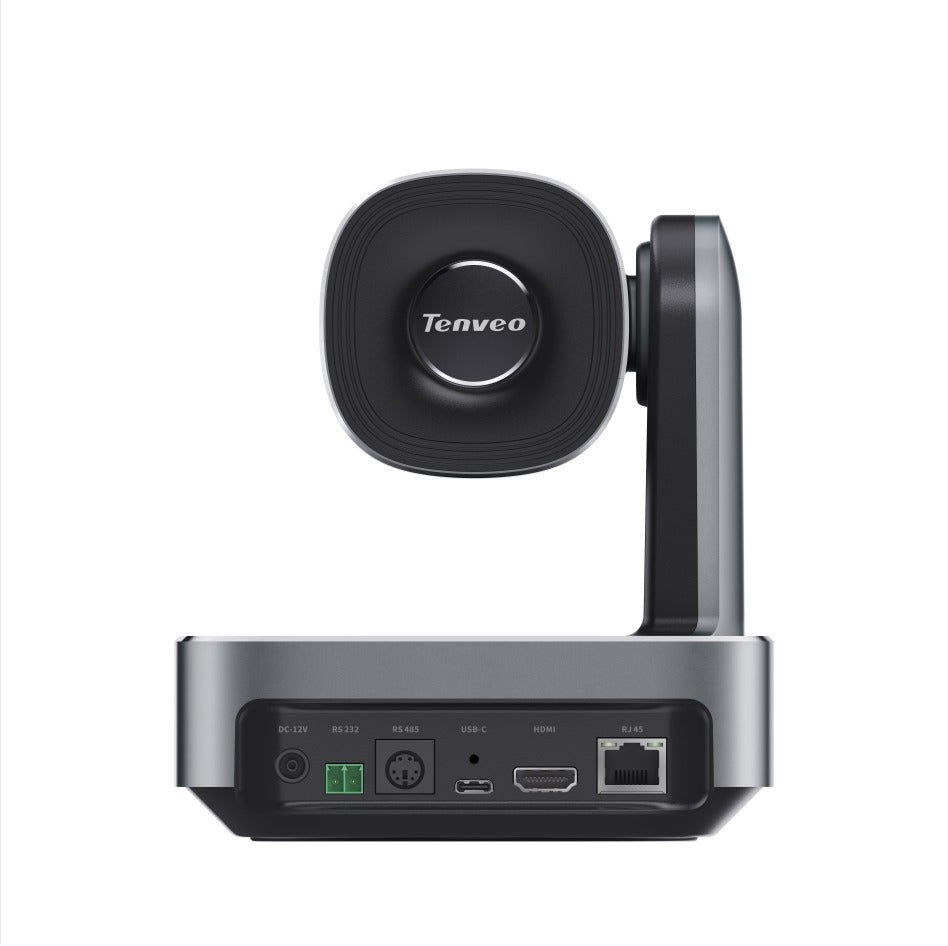

Interface
DC 12V
RS485
RS232
USB-C
HDMI
RJ45
