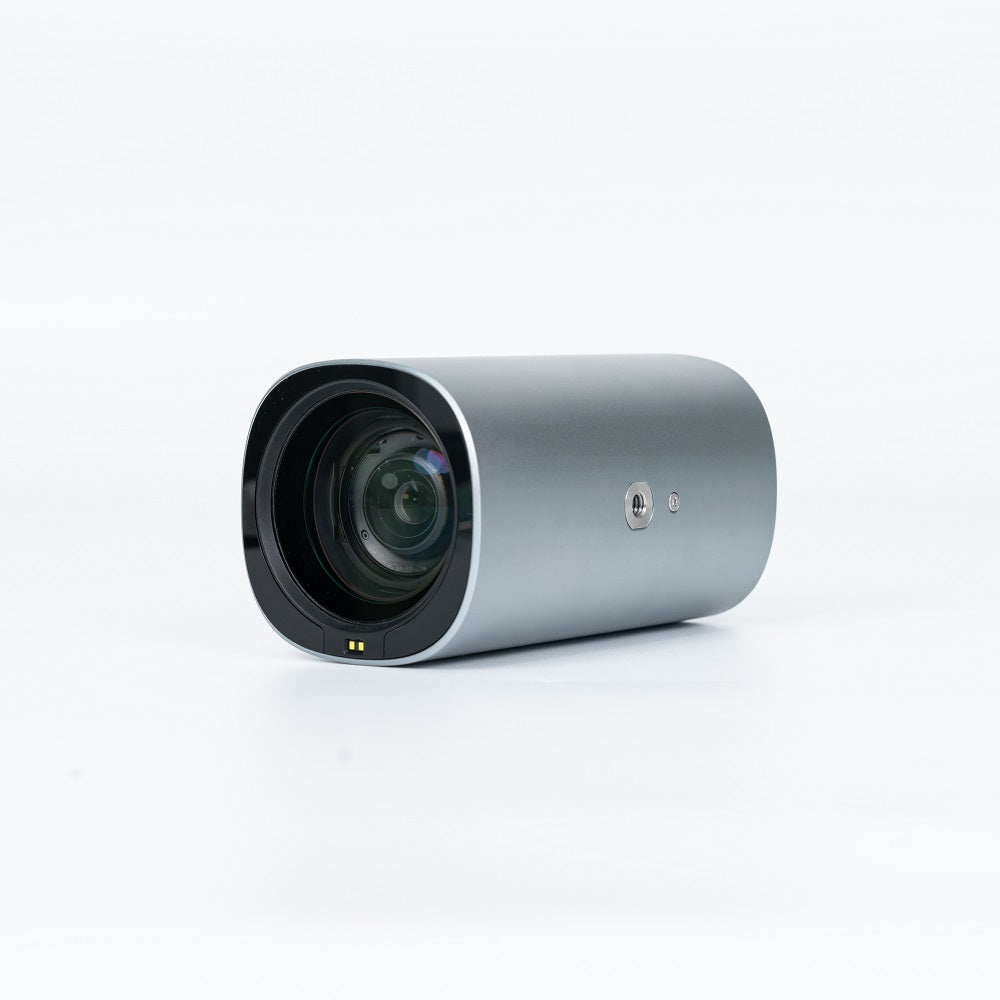

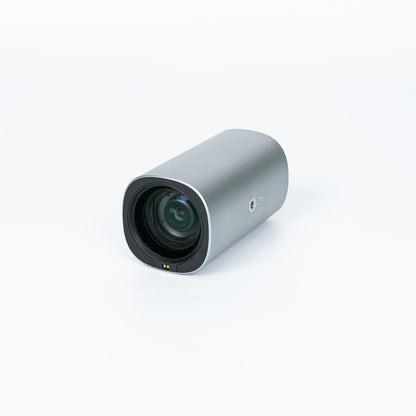

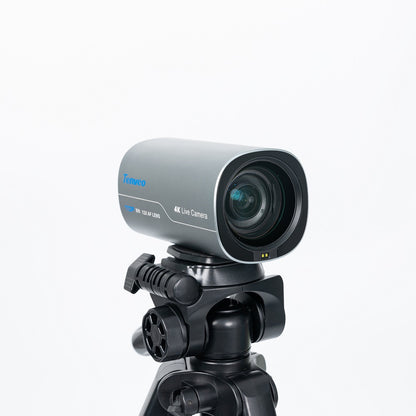

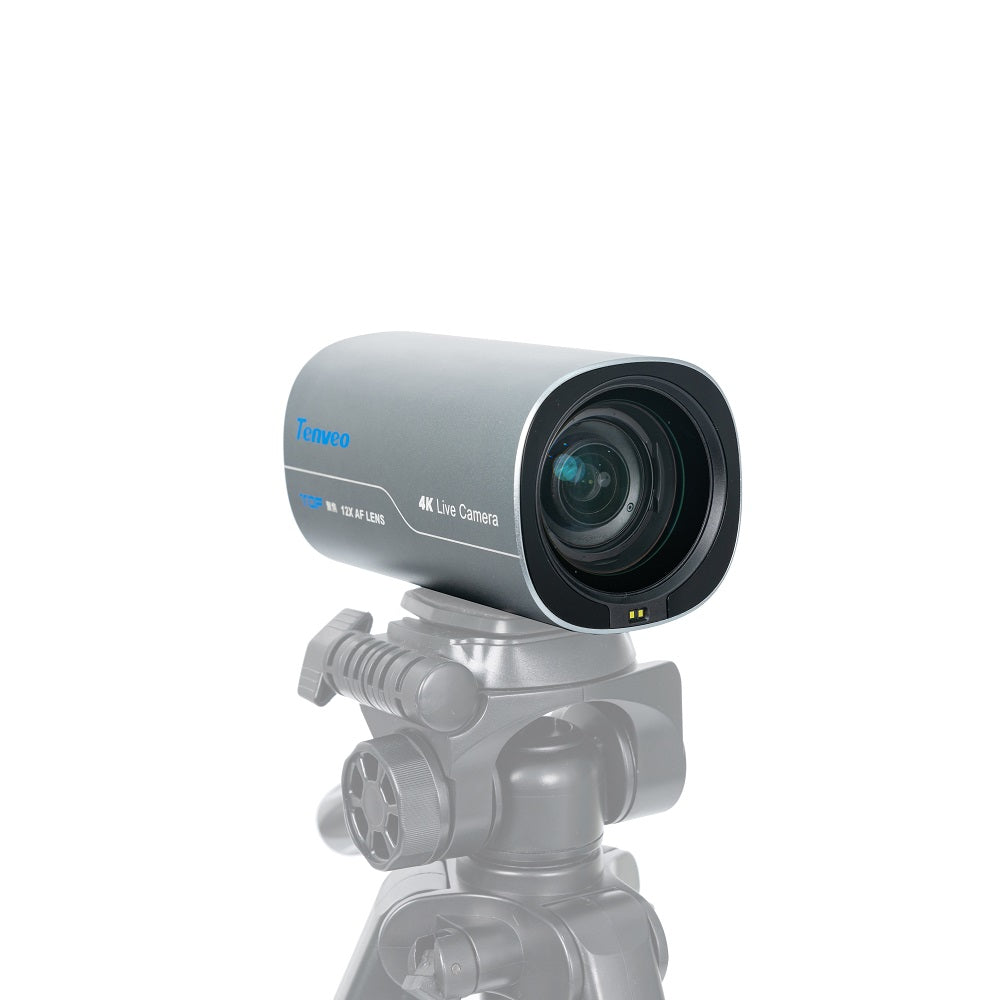

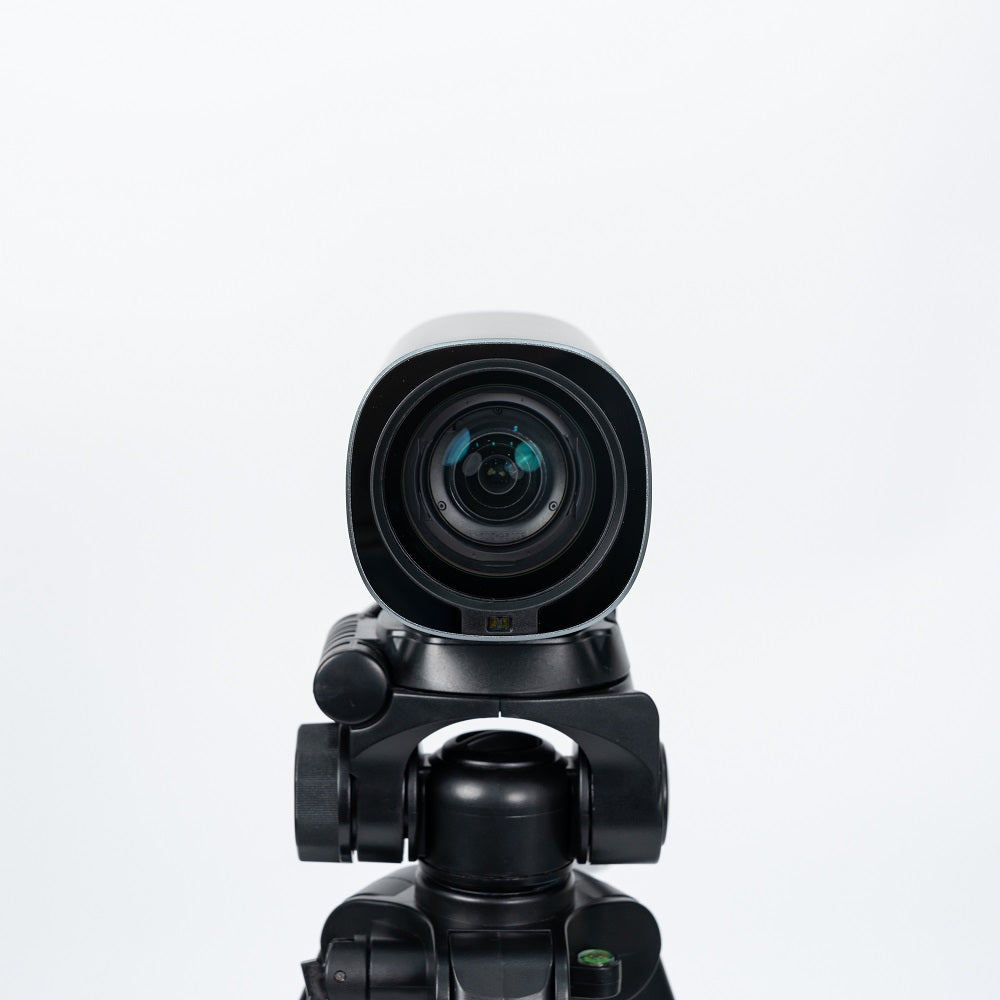

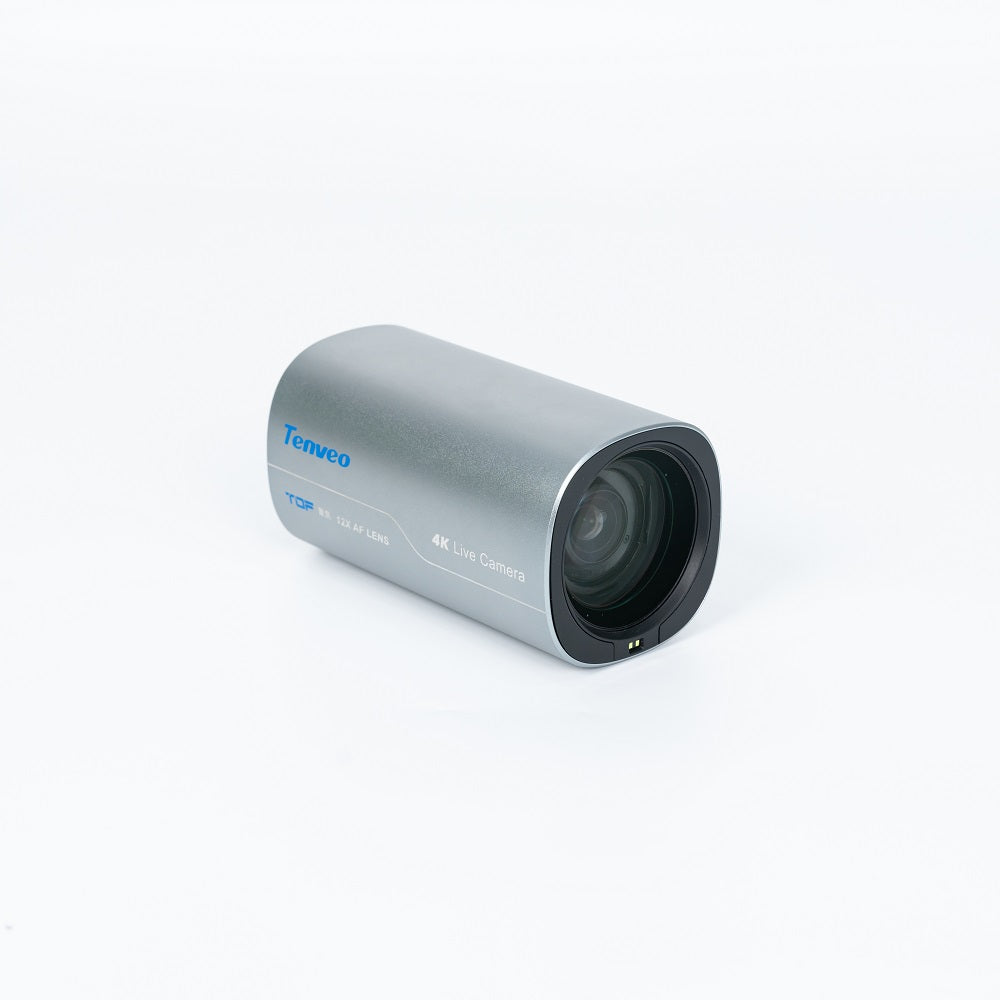

Tenveo TEVO LC600 12X Zoom
TOF LIve Streaming Camera
Specifications:
• Model No: LC600
• Sensor: 1/2.8''SONY CMOS
• Effective Pixels: 8.29mega pixel
• Video Signals: 4K@30/25fps,1080p@60/50/30/25fps, 720p@60/50/30/25fps
• Zoom: 12x optical zoom
• Lens: f=3.42-40.02mm
• Aperture: F1.88-3.77
• Horizontal Angle: 80.56(W)-7.89°(T)
• Vertical Angle: 49.61°(W)-4.46°(T)
• Diagonal Angle: 89.51°(W)-9.04°(T)

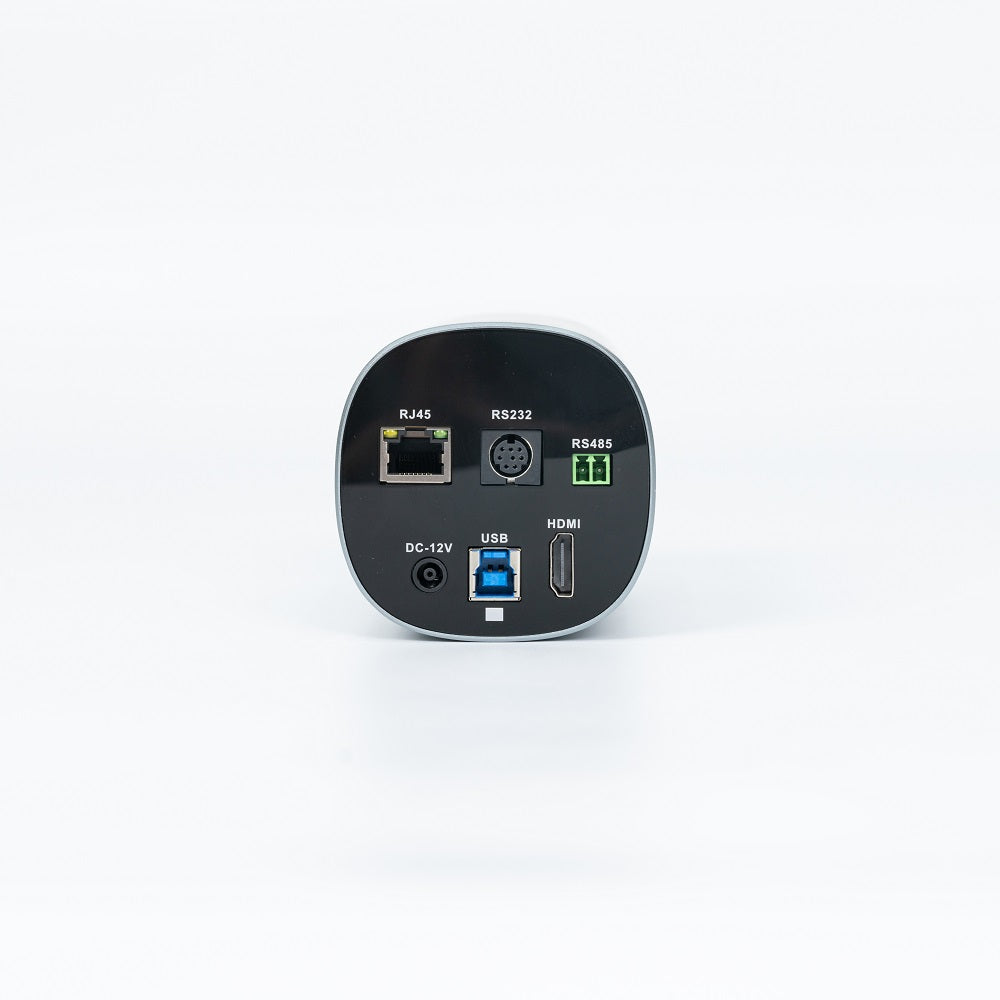

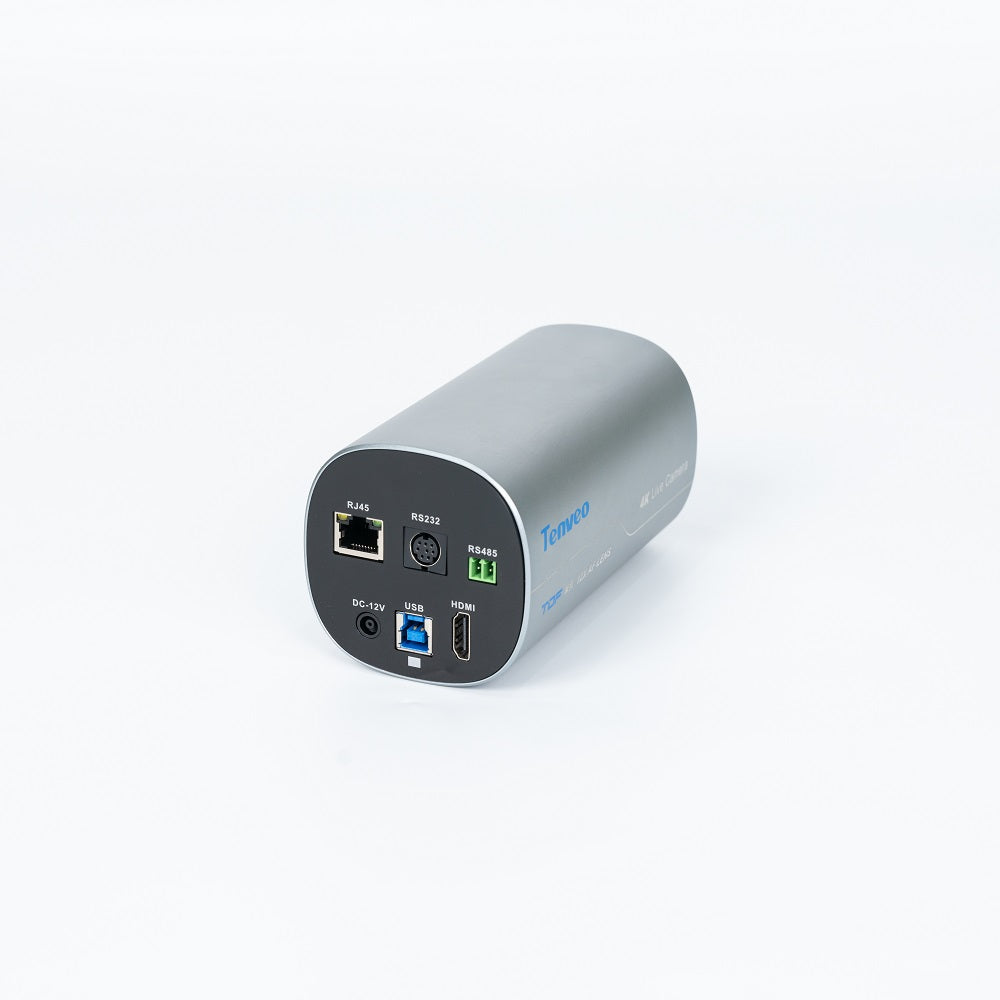

• Video Output: USB 3.0, HDMI,RJ45
• LAN: 10M/100M adaptive Ethernet port;
• Network Protocol: RTSP, RTMP, ONVIF, Support VISCA Over IP and POE Support
• Video Encoding Format: H.264, H.265, MJPG, YUY2
• Video Resolution: 4K(3840*2160) etc
• Signal Standard: NTSC/PAL
• Preset Position: User can set up to 255 presets (10 presets by IR remote)
• Control Interface: RS-232 (input only), RS-485, USB，LAN
• Shutter: 1/30s-1/10000s, auto
• Baud Rate: 2400/4800/9600/38400bps
• Control Protocol: VISCA, PELCO-D, PELCO-P(RS-232, RS-485)
• USB Protocol: UVC1.1
• Minimal Illumination: 0.1Lux
• SNR: ≥50dB
• Power Supply: DC 12V/2A
• Power Consumption: 12W
• Work Temperature : 0°~+50°
• Work Humidity: 0~95% RH
• Product Size: 136*73.8*73.8mm/215*185*100mm(before / after packing)
• Product Weight: 0.8kg/ 1.1kg (Net/ Gross weight)
Features:
● 12x Optical zoom TOF Auto Focus Live Streaming Camera
● USB3.0 HDMI RJ45 Video OutputStart in Vertical Screen mode immediately after booting, When the TF focus logo is moved to the left, then you can achieve Horizontal Screen mode.
● 4K@30fps Ultra HD and 1080p@60fps Video Image
● Preset: 10 via IR remote setting (255 via RS232)
● 89.51° Wide field of view with no video distortion
● 1/2.8''SONY CMOS, 8.29 mega pixel
● Support H.264, H.265, MJPG, YUY2Video Compression Format
● Support RTSP, RTMP, ONVIF, GB/T28181 Network Protocol, Support VISCA Over IP and POE Support 2D and 3D NR for best video quality in different lighting conditions
● Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control
● Compatible with most leading video conferencing software: Zoom, Skype, Webex. Teams, Google meet and LIve Streaming software: vMix, OBS, Facebook Live, YouTube Live, Vimeo Live, Twitch, Wirecast, Livestream Studio, MimoLive, Tricaster, etc.
● Utilizing belt drive technology the PTZ is ultra-quiet and fast, while being very smooth
What's in the box:
1x Live Streaming Camera
1x AC/DC Adapter
1x Remote
1x User Manual
