Specifications and Details:
● Brand: Tenveo
● TENVEO VHD10N-NDI - 10X Zoom No AI Tracking
● TENVEO VHD620A-NDI - 20X Zoom AI Tracking
● TENVEO VHD630A-NDI - 30X zoom AI Tracking
● Model:TEVO-VHD1 NDI 10X/20X/30X
● Optical Zoom: 10X / 20X/ 30X
● Image Sensor: 1/2.8 inch HD SONY CMOS
● Effective pixel: 2.38 mega pixel（16:9）
● Horizontal Resolution: 1080P 60/50/30/25, 720P60/50/30/25
● Signal standard: NTSC/PAL
● Focal length: F=f=5.5-110mm F1.6～3.5
● Horizontal Angle: 58.6°(W)-3.6°(T)
● Vertical angle: 54.7°(W)-3.3°(T)
● Diagonal angle: 60.2°(W)-3.7°(T)
● SNR ratio: ≥50dB
● Shutter speed: auto/manu/ 1/1s～1/30,000s
Preset position
-
IR remote control supports 10 presets
-
PELCO Protocol supports 255 presets
-
Pan/Tilt movement range: Pan: 350°（±175°）0.1°/s～100°/s, Tilt: 180°（±90°）0.1°/s～80°s
-
Control terminal: RS-232, RS-485
-
Control Protocol: Onvif, VISCA, PELCO-D, PELCO-P(RS-232, RS485)
-

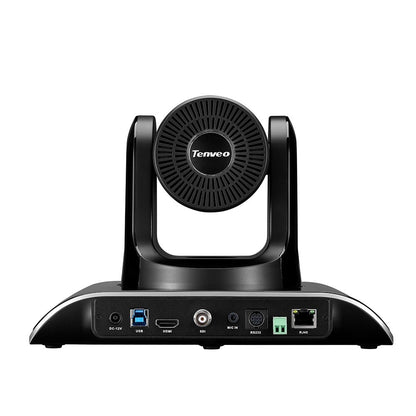

Video output: RJ45, USB, HDMI, SDI
-
Noise Reduction: 2D/3D
-
Work temperature: 0°C~50°C
-
Work humidity: 0~95% RH
-
Baud rate: 9600/38400bps
Minimal Illumination:
-
0.01 lux(F1.5 AGCON color)
-
0.001 lux(F1.5, AGCON Black & White)
-
Video encoding format: MJPEG/YUY2/H.264/H.265
-
Installation: Support desktop, Tripod, Wall mount and Ceiling mount
-
Power supply: DC12 V/ 2A
-
Power consumption: 12 W
-
Net weight/Gross weight: 1.3kg/2.05kg(net / gross weight)
-
Dimension(LXWXH): 260*175*180 mm /296*225*218mm(before / after packing)
-
Accessories: DC 12V Power adaptor, IR remote control, Manual, USB cable, Wall Mount brackets & screws.
What's in the Box?
- 1 x HD Conference Camera
- 1 x Wall Mount 1 set Mounting Screws
- 1 x DC 12V Power Supply
- 1 x Remote Control
- 1 x User Manual
