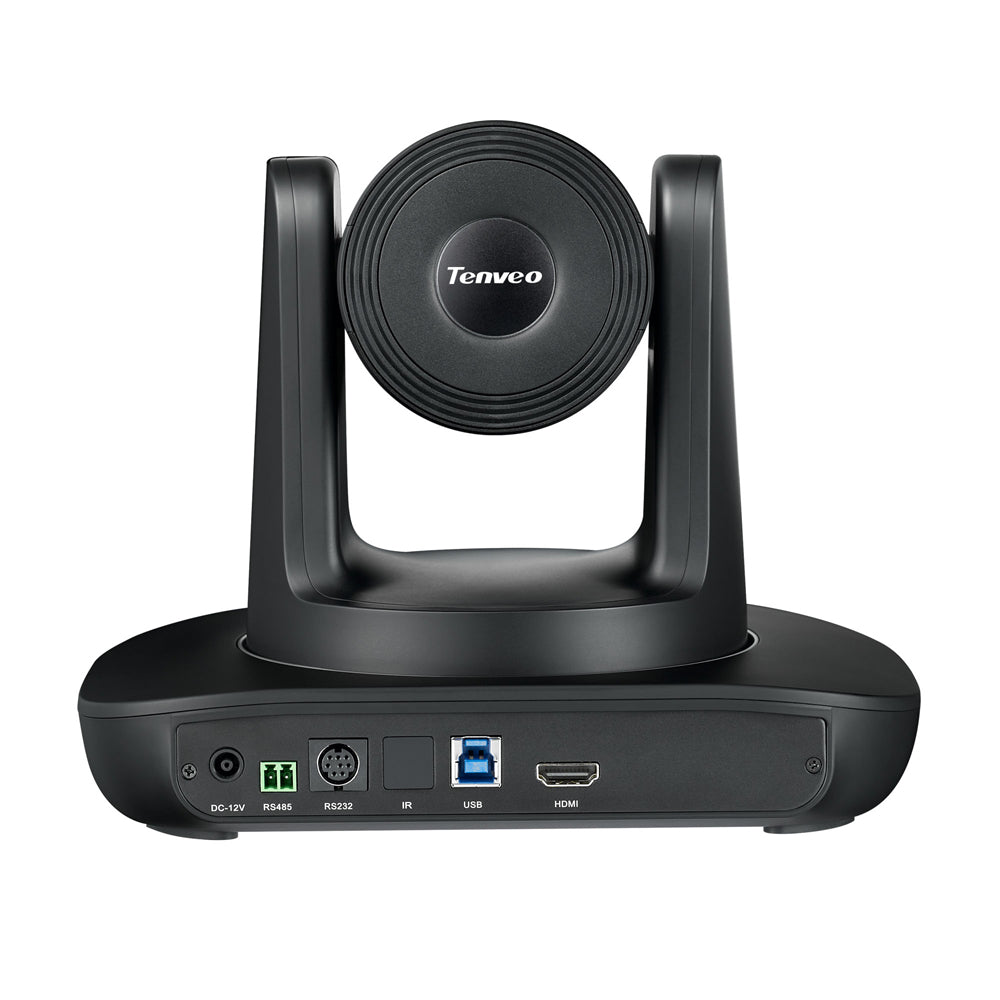

TEVO-UHDPRO 4K 12X ZOOM
PTZ Video Conference Camera
Unleash the power of seamless communication with the Tenveo UHDPRO12U-4k, a state-of-the-art video conferencing camera designed for unparalleled performance. With a remarkable 12x optical zoom, sleek design, and Plug & Play USB3.0 connectivity, this camera ensures a professional and immersive video conferencing experience. Upgrade your virtual meetings with the UHDPRO12U-4k, where cutting-edge technology meets user-friendly design.
TENVEO TEVO-UHDPRO 12X ZOOM-4K
Features:
-
12x optical zoom
-
Sleek and intelligent design
-
Plug & Play USB3.0 Connectivity and HDMI Output
-
Crystal clear UHD4K@30fps and HD1080P@60fps image quality
-
Accurate, smooth and silent PTZ Movement
-
Preset: 10 via IR remote setting (255 via RS232)
-
Superior quality with Full Glass Lens Material
-
90° wide field of view with no video distortion
-
1/2.8 inch high quality, 8.29 MEGA PIXEL (16:9) CMOS sensor
-
Support ceiling mount, wall mount and tripod mount (Reverse mountable)
-
2D and 3D NR for best video quality in different lighting conditions
-
Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control
-
Compatible with most leading video conferencing software and platfom
-
Brand: Tenveo
-
Model No. UHDPRO12U-4k
-
Sensor: 1/2.8''SONY CMOS
-
Effective Pixels: 8.29mega pixel
-
Video Signals: 4K@25/30, 1080p@60/50/30/25fps, 720p@60/50/30/25fps
-
Zoom: 12x optical zoom
-
Lens: f=3.42-40.02mm
-
Aperture: F1.88-3.77
-
Horizontal Angle: 80.56(W)-7.89°(T)
-
Vertical Angle: 49.61°(W)-4.46°(T)
-
Diagonal Angle: 89.51°(W)-9.04°(T)
-
Video Output: USB 3.0, HDMI
-
LAN: No
-
Network Protocol: No
-
Video Encoding Format: H.264, H.265, MJPG, YUY2
-
Video Resolution: 4K（4096*2160), 1080P (1920 *1080) etc
-
Signal Standard: NTSC/PAL
-
Preset Position: User can set up to 255 presets (10 presets by IR remote)
-
Control Interface: RS-232 (input only), RS-485, USB
-
Shutter: 1/30s-1/10000s, auto
-
Baud Rate: 2400/4800/9600/38400bps
-
Control Protocol: VISCA, PELCO-D, PELCO-P(RS-232, RS-485)
-
USB Protocol: UVC1.1
-
Minimal Illumination: 0.1Lux
-
SNR: ≥50dB
-
Horizontal Rotation: 350° (±175°) 0.1°/s～100°/s
-
Vertical Rotation: 180° (±90°)0.1°/s～80°s
-
Power Supply: DC 12V/2A
-
Power Consumption: 12W
-
Work Temperature: 0°~+50°
-
Work Humidity: 0~95% RH
-
Product Size: 212*152*170mm/285*217*197mm(before / after packing)
-
Product Weight: 1.2kg/2.3kg (net / gross weight)
What's in the Box?
-
1 x Camera
-
1 x DC/12V power adaptor
-
1 x IR remote control
-
1 x Manual
-
1 x USB3.0 cable
-
1 x Wall Mount Brackets & screws
-
1 x Warranty
-
1 x Certificate of qualification
