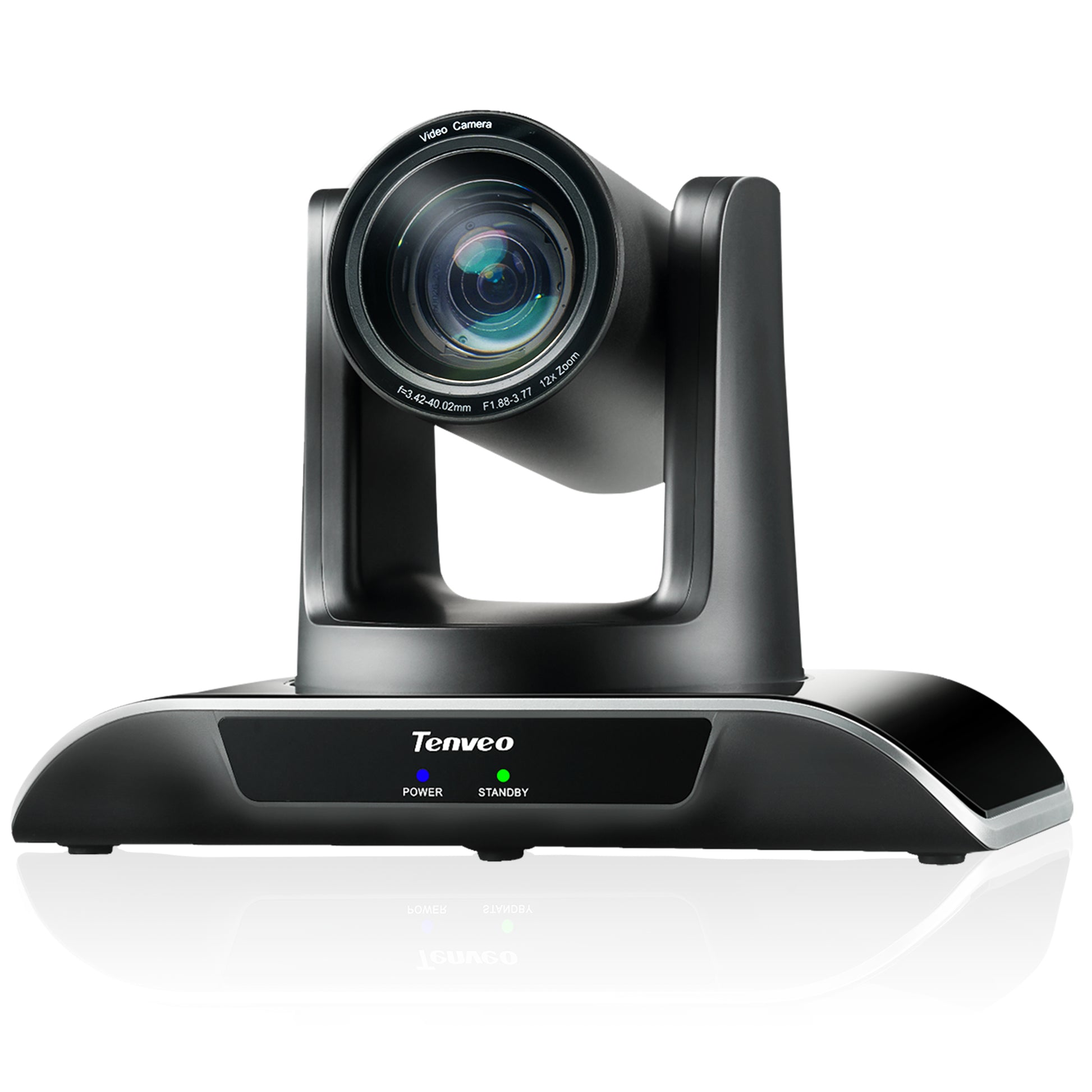

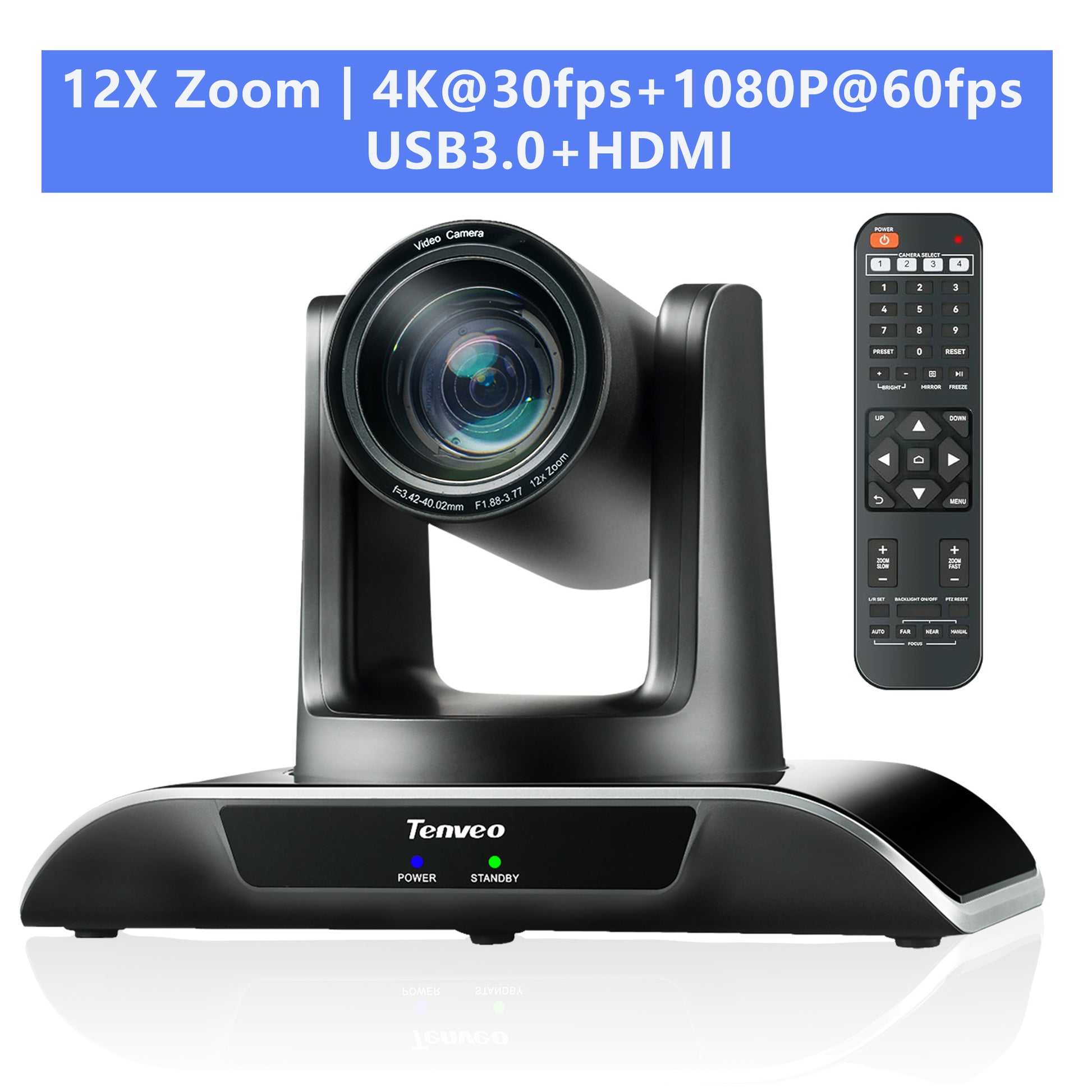

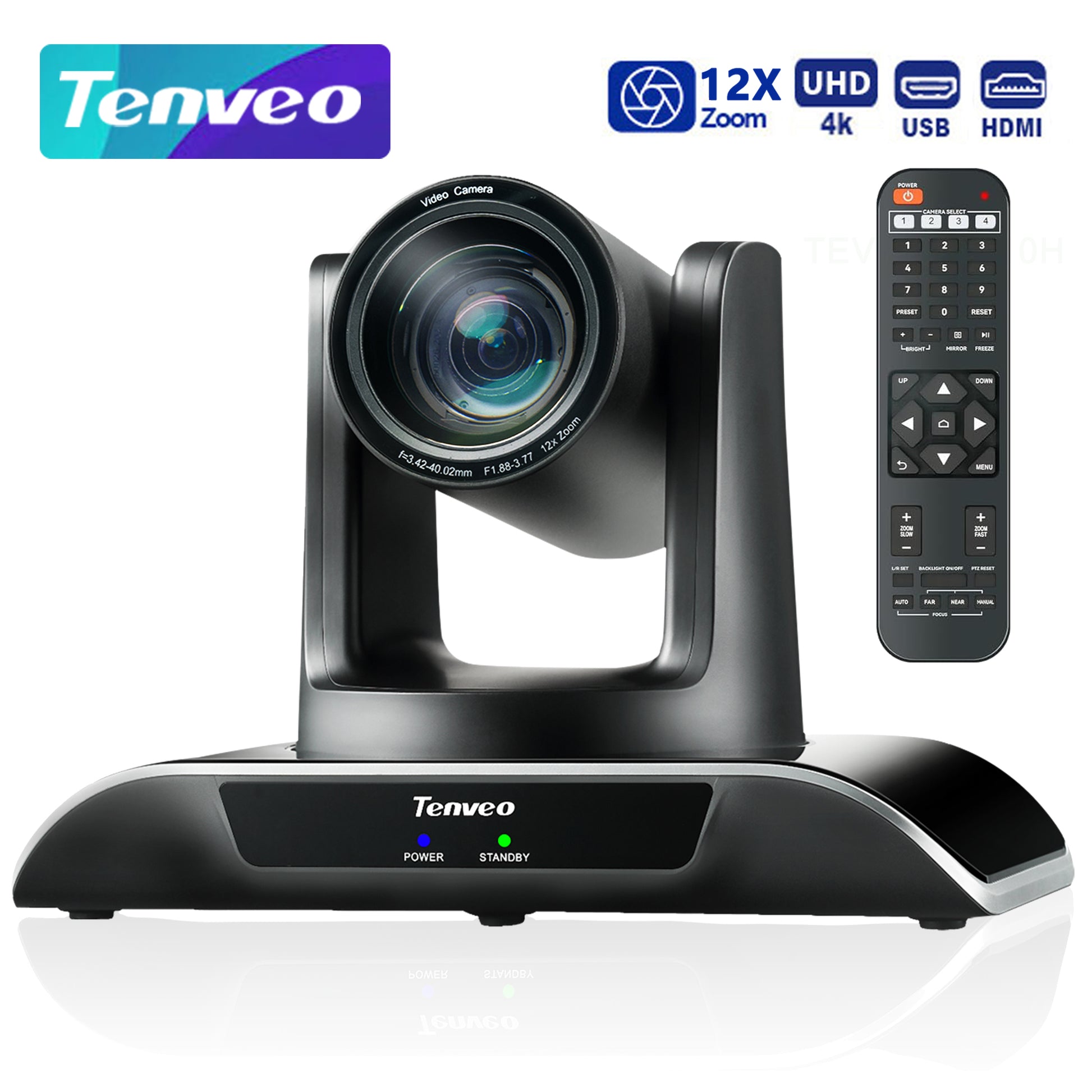

TEVO-VHDPRO12U-4K PTZ Video Conference Camera
Features:
- 12X optical zoom
- Sleek and intelligent design

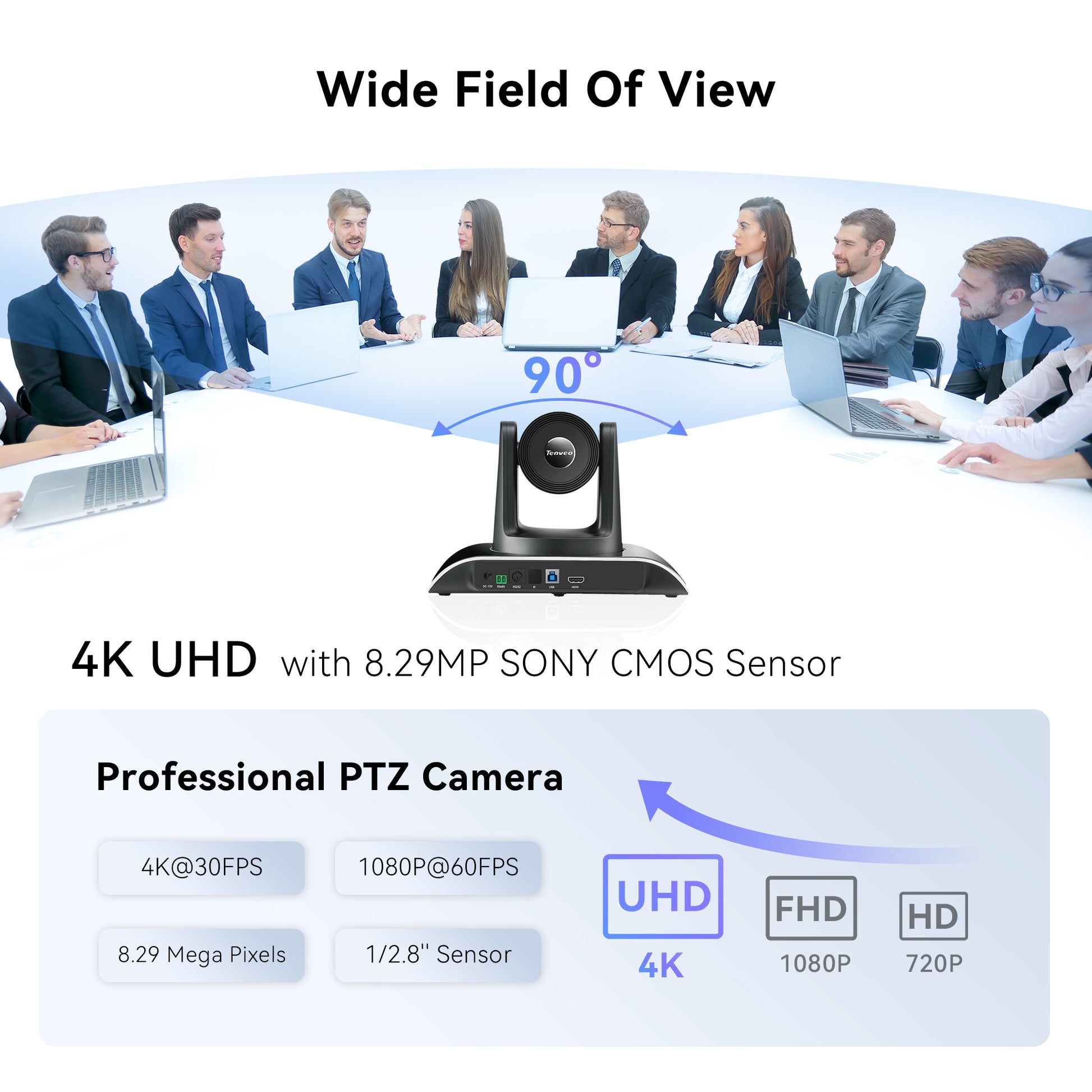

- 4K video resolution
- Preset: 10 via IR remote setting (255 via PELCO-P/D/64 via VISCA)
- USB, HDMI
- 2.8" inch high quality, 8.29MP (16:9)CMOS sensor
Specifications:
-
Model: TEVO-VHD12U-4k
-
Sensor: 1/2.8''SONY CMOS
-
Effective pixel: 8.29mega pixel
-
Video output pixel: 4K@25/30,1080p@60/50/30/25fps, 720p@60/50/30/25fps
-

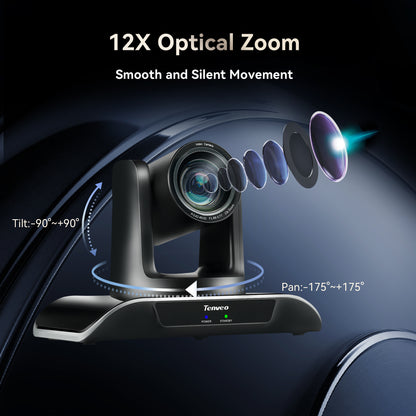

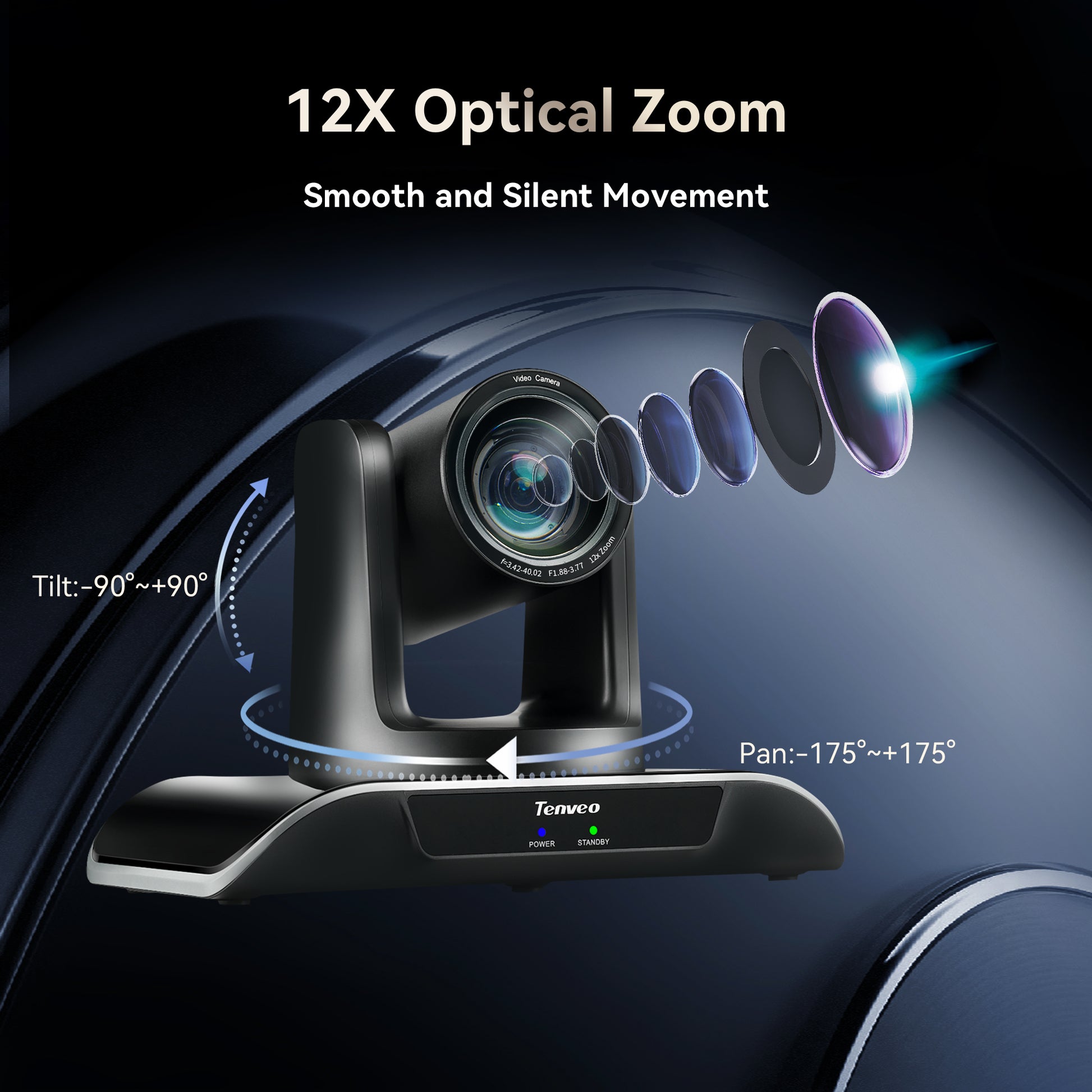

Zoom: 12x optical zoom
-
Lens: f=3.42-40.02mm
-
Aperture: F1.88-3.77
-
Horizontal angle: 49.61°(W)-4.46°(T)
-
Video output: USB, HDMI
-
Video resolution: 1080P (1920 *1080)
-
Siginal standard: NTSC/PAL
-
Preset position: 64
-
Control temernal RS-232,RS485
-
Shutter: 1/30s～1/10000s, auto
-
Baud Rate: 38400/9600bps
-

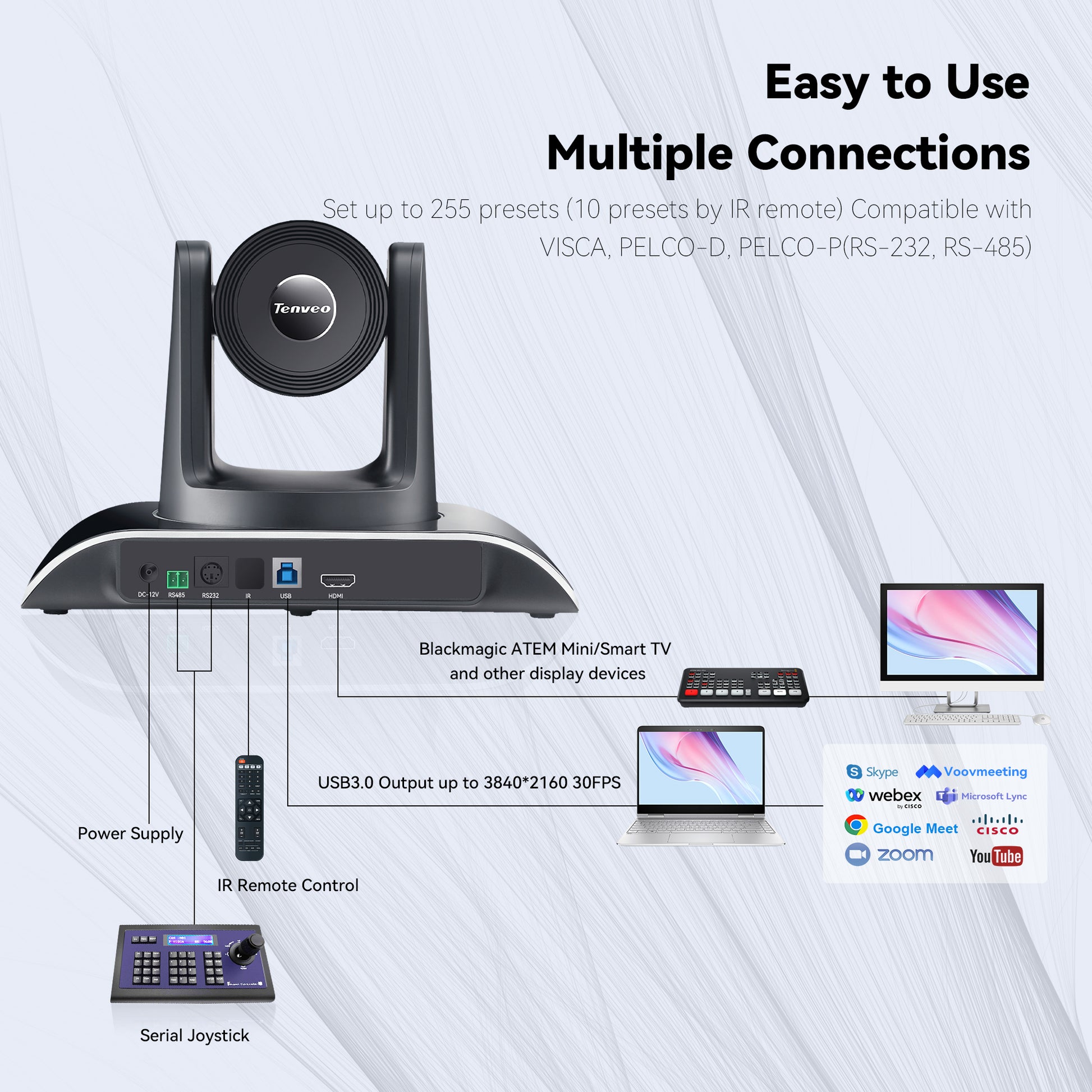

Control protocol: VISCA, PELCO-D, PELCO-P(RS-232, RS485)
-
USB protocol UVC1.1
-
Minimal Illumination: 0.1Lux
-
SNR ≥50dB
-
Video encoding format: H.264, MJPEG, YUV
-
Horizontal Rotation: 350°（±175°）0.1°/s～100°/s
-
Vertical Rotation: 90°（±45°）0.1°/s～80°s
-
Power supply: DC 12V/2A
-
Power comsumption: 12W

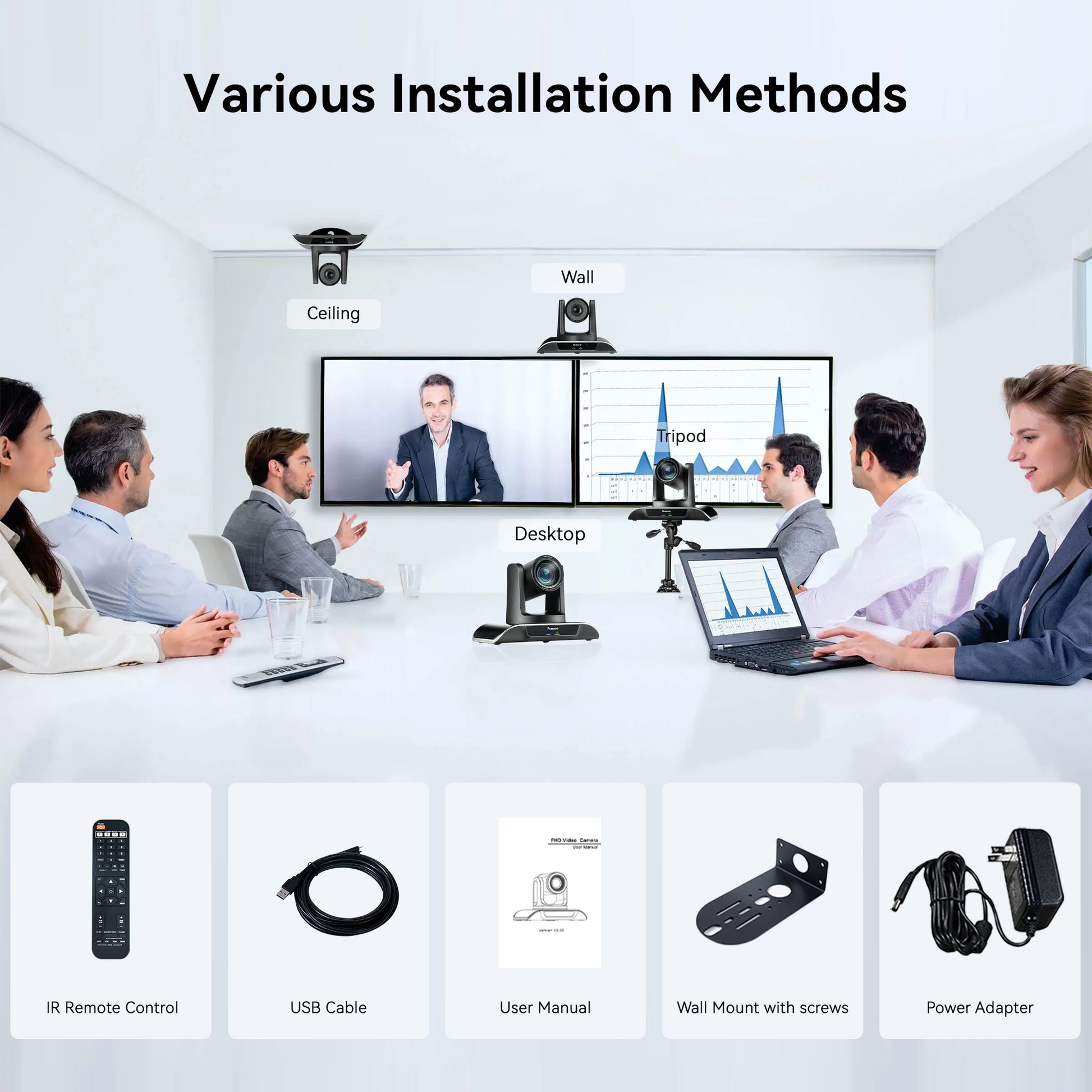

What's inside the box?
- 1 x User Manual
- 1 x HD Conference Camera
- 1 x DC 12 Votls Power Supply
- 1 x Wall Mount
- 1 x Remote Control
- 1 x Usb Cable 3.0
- 5 x Mounting Screws
