OVERVIEW:

20X Optical Zoom Video Conference Camera- NV3H PTZ USB HDMI Camera features a 1/2.8-inch CMOS sensor with 2.38 mega pixel that delivers lifelike H.264/H.265-format high-motion images in up to 1080p resolution, brilliant colors, and crystal-clear video. The professional 30x optical zoom streaming camera is equipped with 113.9° FOV wide angle lens. Precise and stable autofocus with free control to bring objects closer or farther away, allowing you to experience the best image results.

Silent PTZ Pan/Tilt Motion- The 1080p webcam can be smoothly and silently rotated 350° (±175°) horizontally and 180° vertically by remote control. The video conferencing camera can be set up to 255 presets (10 presets can be set via IR remote control) via USB cable or joystick, RS485 or RS232. Easily move to preset positions for close-up shots. Supports Visca and Pelco P/D control protocols.

Ease to Setup- USB3.0 Plug and Play, easy to connect, no additional drivers required.USB and HDMI outputs to connect to laptops, desktops, PCs, smart TVs, big screens, projectors, etc. With built-in OSD menu, you can easily set up the screen you want.

Wide Compatibility- It is compatible with most video conferencing applications including Zoom, Skype, Teams, Facetime, OBS, YouTube, Facebook Messenger, Polycom, Microsoft Lync, Cisco, WebEx, BlueJeans, GoToMeeting, etc. Supports Windows 7, Windows 8.1, Windows 10 and Mac OS 10.10 or later. Ideal for video conferencing, online learning, telemedicine, lecture capture, distance education, webcasting, church live services.

SPECIFICATIONS:

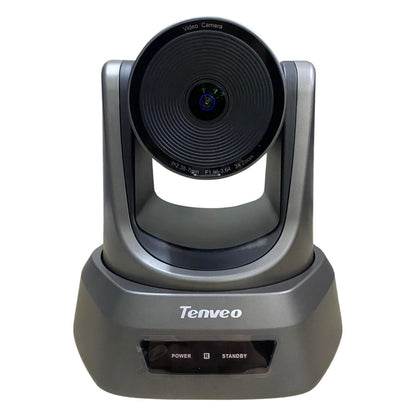

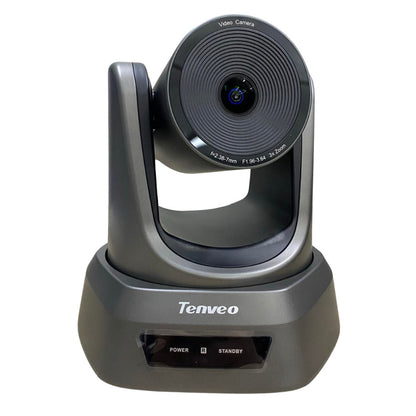

Model: NV3H

• Sensor: 1/2.8" Sony CMOS

• Megapixel: 2.38MP
  Video Signals:
  - 1080p @ 60 / 50 / 30 / 25fps
  - 720p @ 60 / 50 / 30 / 25fps

• Zoom: 3x Optical Zoom

• Lens: f = 2.38 -7mm

• Aperture: f/1.96 - 3.64

• Horizontal Angle: 103.69° (W)  - 42.12° (Tilt)

• Vertical Angle: 67.14° (W)  - 24.87° (T)

• Video Output: USB 3.0, HDMI

• Video Encoding Format: H.264, H.265, MJPG, YUY2

• Video Resolution: 1080p (1920*1080)

• Signal Standard: NTSC / PAL

• Preset Position: User can set up to 255 presets (10 presets by IR Remote)

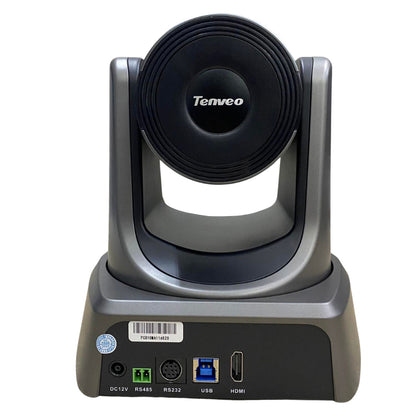

• Control Interface: RS-232 (input only), RS-485, USB

• Shutter: 1/30s-1/10000s, Auto

• Baud Rate: 2400 / 4800 / 9600 / 38400bps

• Control Protocol: VISCA, PELCO-D, PELCO-P (RS-232, RS-485)

• USB Protocol: UVC1.1

• Minimal Illumination: 0.1Lux

• SNR:  50dB

• Horizontal Rotation: 350°  (175°) 0.1 /s  ~  100°/s

• Vertical Rotation: 180° (90°) 0.1°/s ~ 80°s

• Power Supply: DC 12V/2A

• Power Consumption: 12W

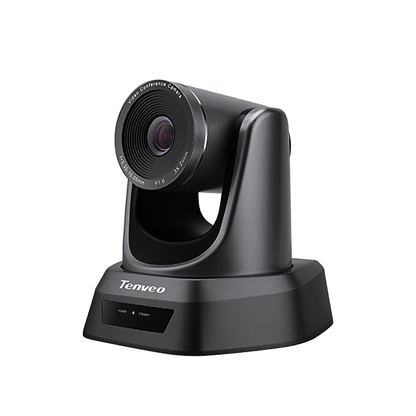

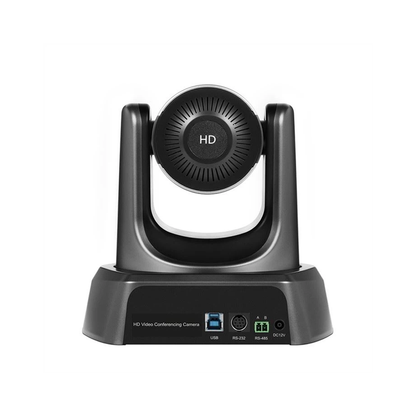

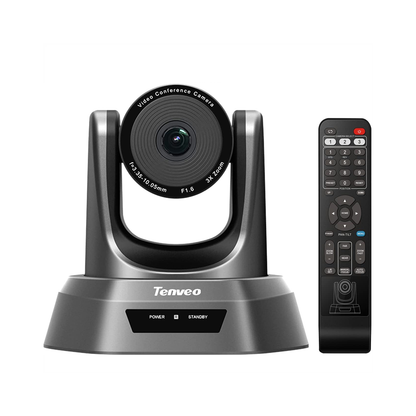

Model: TEVO-NV3U

• 3x optical zoom

• Sleek and intelligent design

• Plug & Play USB Connectivity

• Crystal clear HD1 080P image quality

• Accurate, smooth and silent PTZ Movement

• Preset: 9 via IR remote setting (255 via RS232)

• Superior quality with Full Glass Lens Material

• 128° wide field of view with no video distortion

• Video Compression Format supports YUV, MJPG, H.264

• 1/2.7 inch high quality, 2.1 MP (1 6:9) CMOS sensor

• 2D and 3D NR for best video quality in different lighting conditions

• Support ceiling mount, wall mount and tripod mount (Reverse mountable)

• Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control
