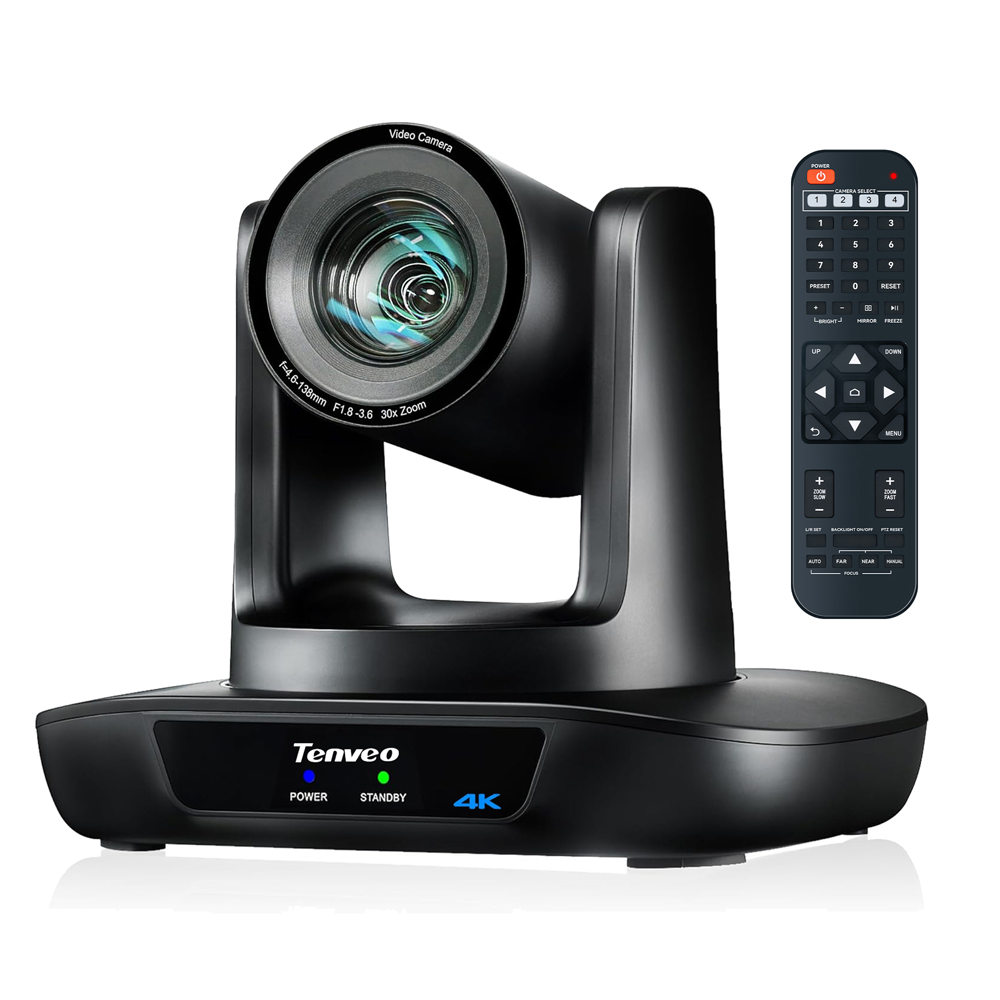

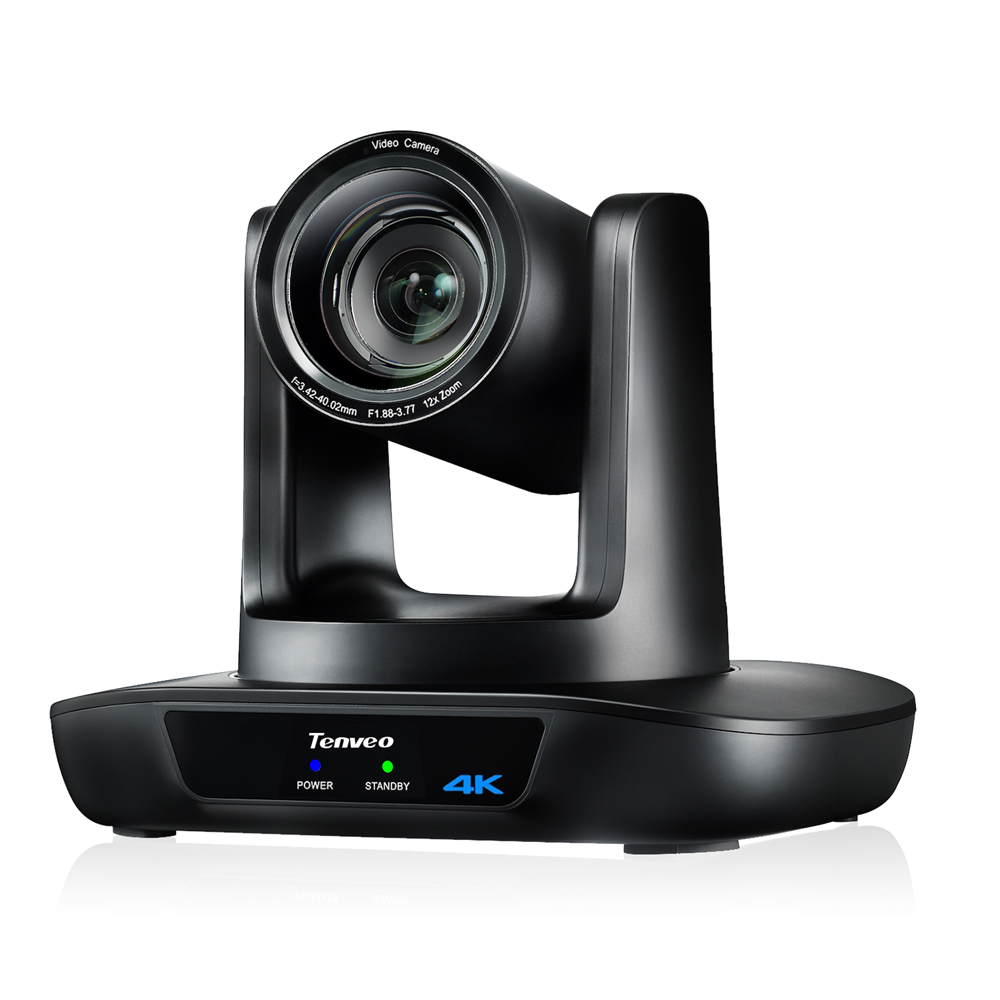

Tenveo Tevo 4K@30fps | 12x / 20x / 30x Zoom
PTZ Video Conference Camera
Experience the next level of video clarity and control with the Tenveo UHD 4K PTZ Camera series, engineered for professionals who demand precision, power, and performance. Whether you're streaming, video conferencing, or capturing live events, this advanced camera solution delivers 4K ultra high-definition quality, intelligent auto-tracking, and seamless connectivity across multiple platforms.
Features:
-
12X / 20X / 30X Optical Zoom
-
Smart AI Auto Tracking
-
Built-in Gravity Sensor, the image flips automatically
-
Sleek and intelligent design
-

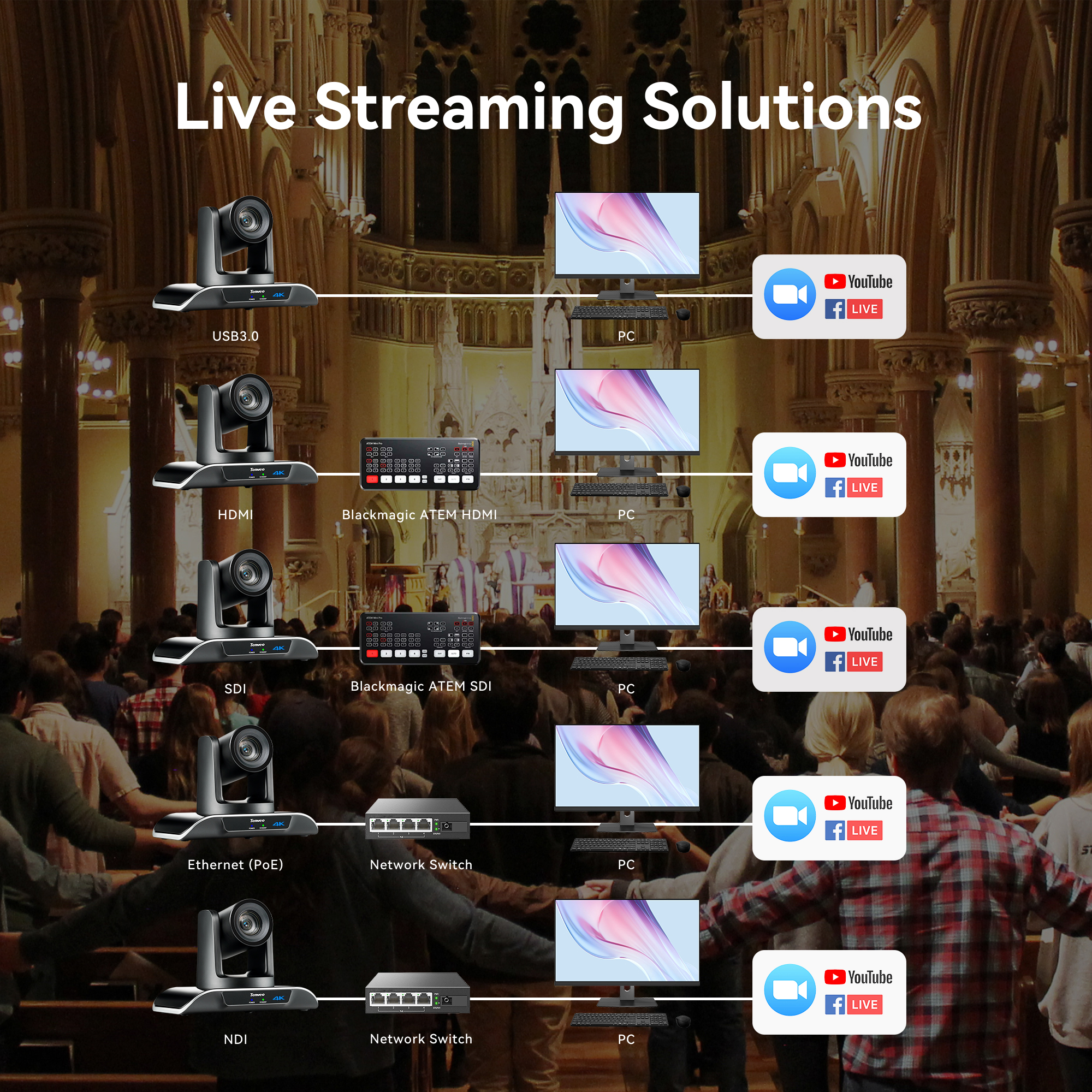

3G-SDI, HDMI, USB and LAN(IP)Video Output, Line in/Line out and Support POE
-
Crystal clear 4K 30fps image quality
-
Accurate, smooth and silent PTZ Movement
-
Preset: 10 via IR remote setting (255 via RS232)
-
Superior quality with Full Glass Lens Material
-
90° wide field of view with no video distortion
-
1/2.8 inch high quality, 8.29 MEGA PIXEL (16:9) CMOS sensor
-

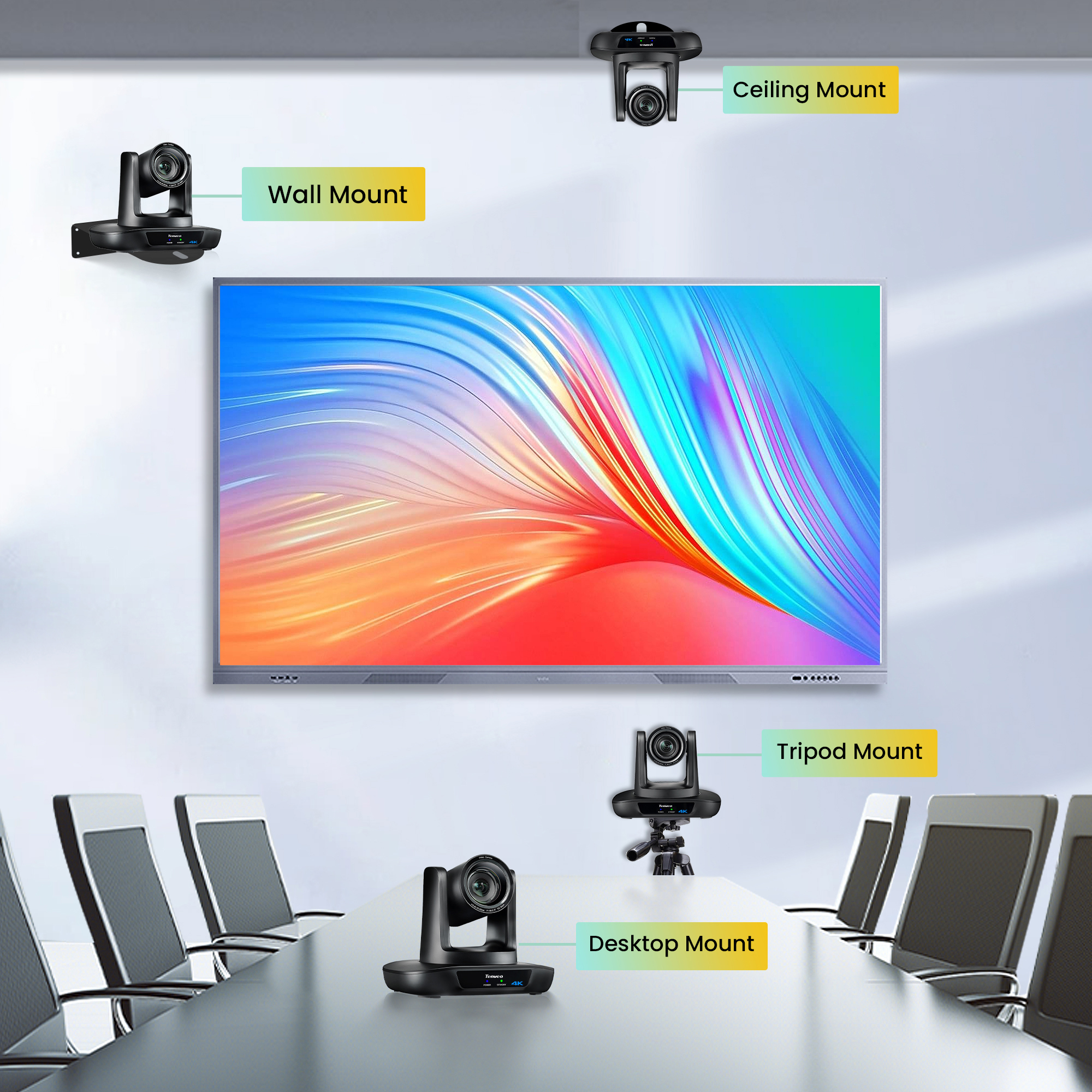

Support ceiling mount, wall mount and tripod mount (Reverse mountable)
-
2D and 3D NR for best video quality in different lighting conditions
-
Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control
-
Compatible with most leading video conferencing software and platfom
Specifications:
-
Brand: Tenveo
-
Model: UHD 4K
-

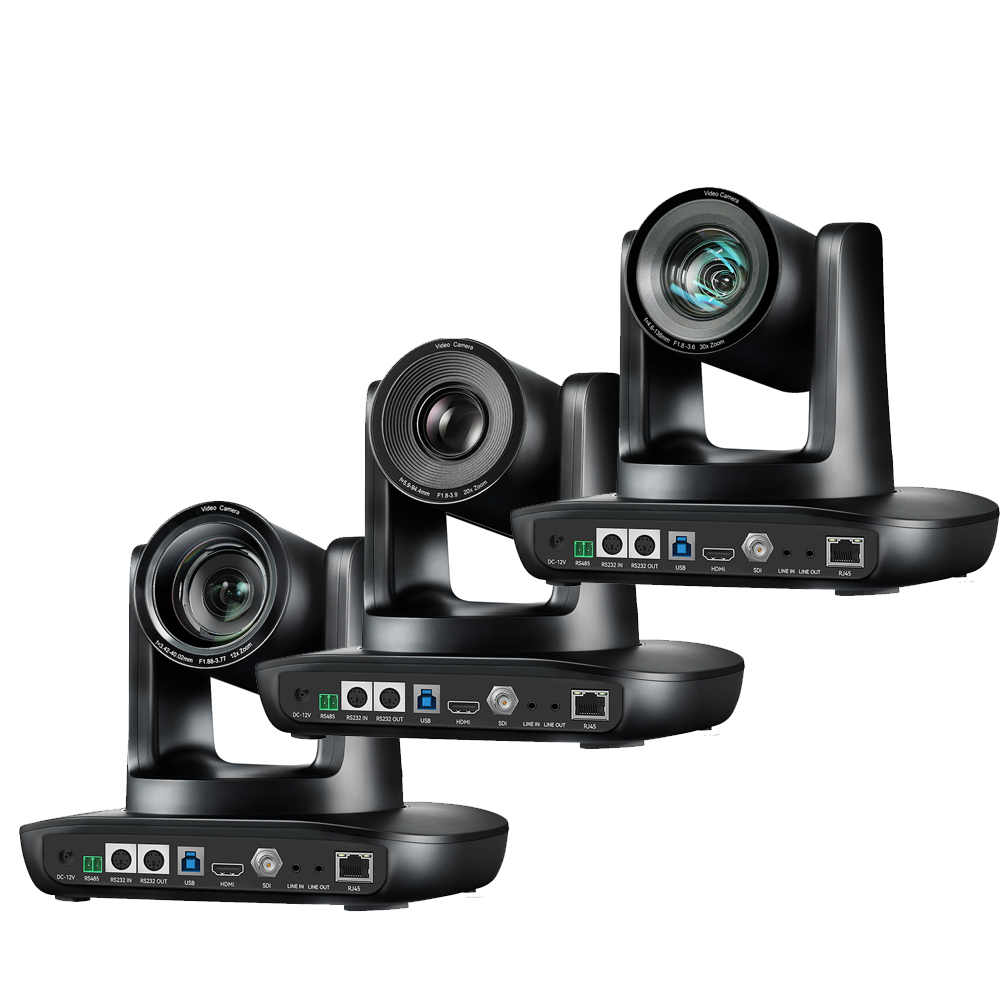

SKU(s): TEVO-UHD612A-4K, TEVO-UHD620A-4K, TEVO-UHD630A-4K
-
Sensor: 1/2.8"" Sony CMOS
-
Effective Pixels: 8.29MP
-
Video Resolution: 4K 30fps, 1080p 60fps, 1080 50fps, 1080p 30fps, 1080 25fps, 720 60 fps, 720 50fps
-
Zoom: 12x / 20x / 30x Optical Zoom
-
Lens: F = 4.2mm ~ 50.4mm | F = 4.6mm ~ 92mm | F = 4.6mm - 138mm
-
Aperture: f/1.8 ~ f/2.8 | f/1.8 ~ f/3.6 | f/1.8 ~ f/3.6
-
Horizontal Angle: 70.2° ~ 6.52° | 62.3° ~ 3.46° | 62.3° - 2.31°
-
Vertical Angle: 42.6° ~ 3.76° | 36.1° ~ 1.92° | 36.1° - 1.29°
-
Diagonal Angle: 77.5° ~ 7.53° | 69.5° ~ 3.86° | 69.5° - 2.63°
-
Digital Zoom: 8x
-
Video Output: USB 3.0, HDMI, RJ45, SDI
-
Signal Standard: NTSC / PAL
-
Control Interface: RS232, RS485, USB, NET
-
Shutter: 1/30s ~ 1/1000s
-
White Balance: Auto, Indoor, Outdoor, One Push, Manual, VAR
-
Backlight Compensation: Support
-
Digital Noise Reduction: 2D & 3D Digital Noise Reduction
-
Baud Rate: 2400 / 4800 / 9600 / 19200 / 38400
-
Control Protocol: VISCA, Pelco-D, Pelco-P
-
USB Protocol: UVC 1.1
-
Minimal Illumination: 0.5 LUX @ (f/1.8, AGC ON)
-
SNR: ≥50dB
-
Horizontal Rotation: 350° (±175°) 0.1°/s ~ 100°/s
-
Vertical Rotation: 180° (±90°) 0.1°/s ~ 80°/s
-
H &V Flip: Supported
-
Image Freeze: Supported
-
PoE: Support
-
Number of Presets: 255
-
Preset Accuracy: 0.1°
-
IPC Features:
-
Video Encoding Format: H.264 / H.265 / MJPG
-
Video Stream: Main Stream, Sub Stream
-
Main Stream Resolution: 1920 x 1080, 1280 x 720, 1024 x 576, 940 x 540
-
Sub Stream Resolution: 1280 x 720, 1024 x 576, 720 x 480, 720 x 408
-
Video Bit Rate: 32Kbps ~ 1024000Kbps
-
Bit Rate Type: Variable Rate, Fixed Rate
-
Frame Rate: 50Hz: 1fps ~ 50fps, 60Hz: 1fps ~ 60fps
-
Audio Compression: AAC
-
Audio Bit Rate: 96Kbps, 128Kbps, 256Kbps
-
Network Protocol: NDI | HX2, SRT, TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast
-

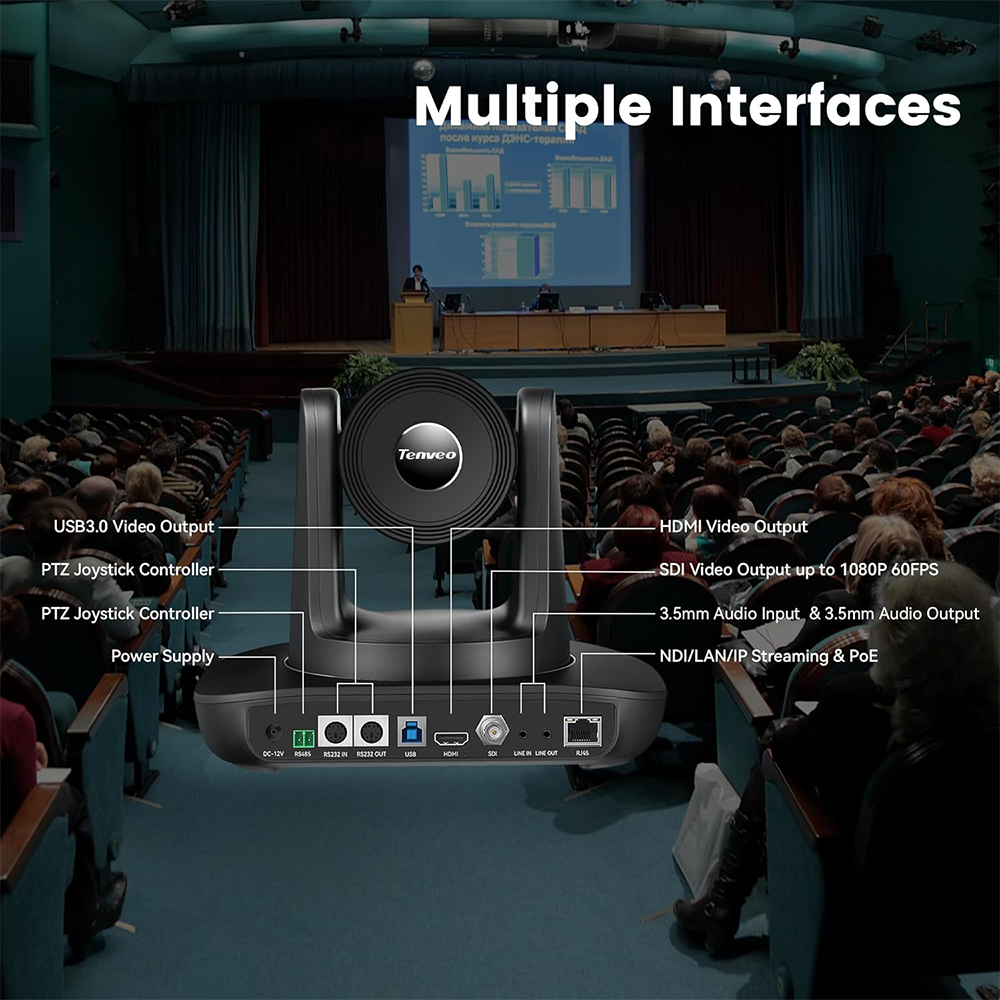

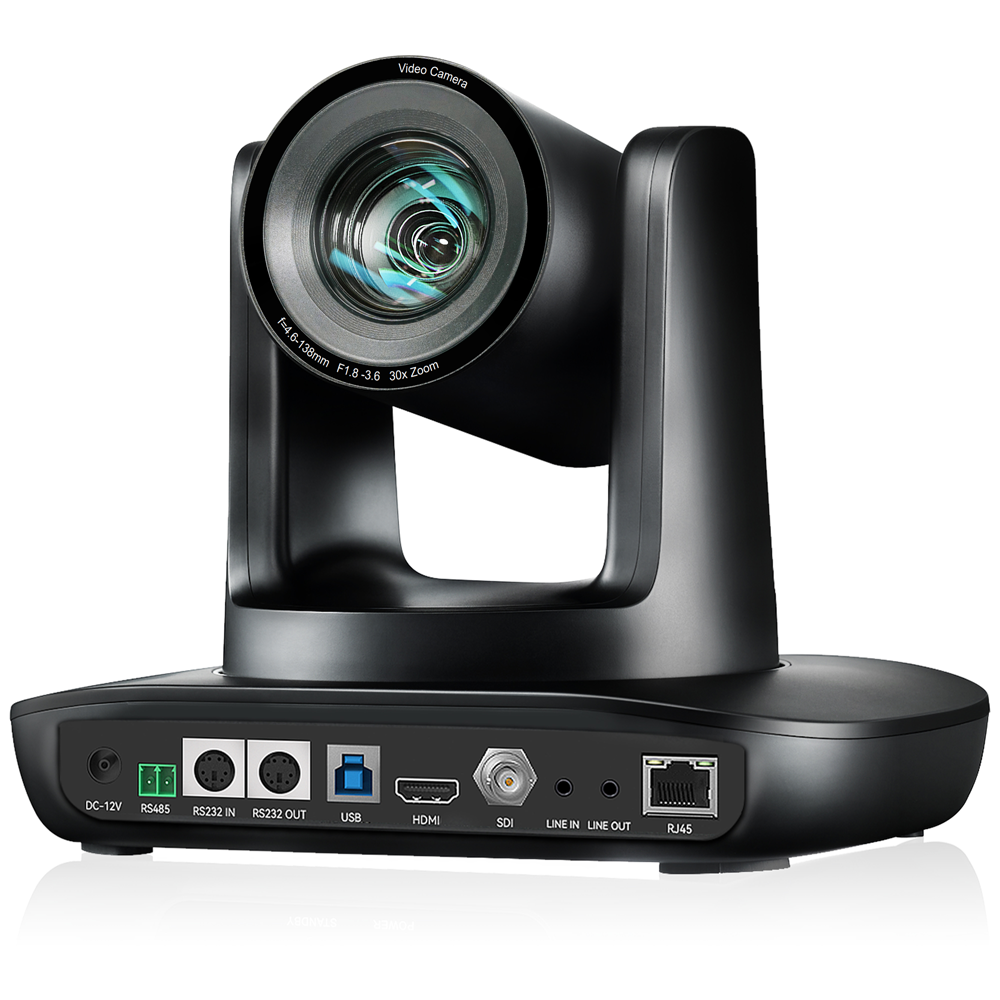

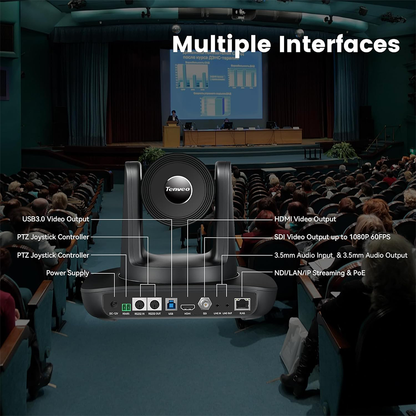

Input / Output Interface:
-
HD Output: HDMI, 3G-SDI:
-
LAN: RJ45
-
Audio Interface: 3.5mm Line In / Line Out
-
USB: 3.0 Type B Female Jack
-
Communication Interface: RS232 8 pin In, RS232 8 pin Out, RS465 2 Pin
-
Power Jack: JEITA type
-
Generic Specifications:
-
Power Supply: DC 12V/2A
-
Power Consumption: 12W

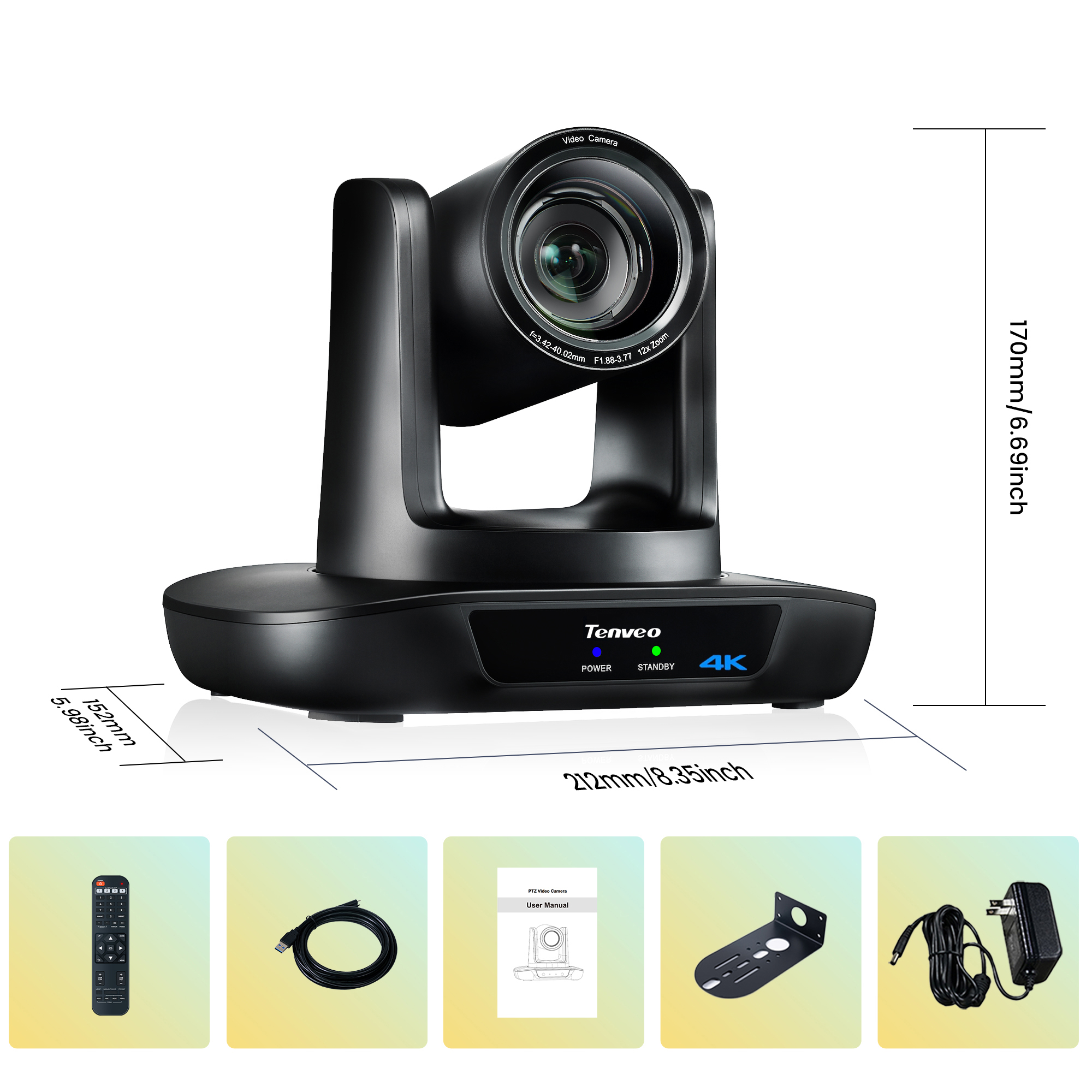

What's inside the box?
-
PTZ Camera
-
DC 12V power adaptor
-
IR remote control
-
User Manual
-
USB3.0 Cable
-
Bracket & screws
