Key Features
Standard 4K
● 20X optical zoom with smart AI auto tracking, auto framing, and presenter tracking
● Sleek and intelligent design with crystal clear 4K@30fps video quality
● 1/2.8-inch 8.29MP CMOS sensor with full glass lens for superior image quality
● Wide field of view with no video distortion
● HDMI, USB, and LAN (IP) video output
● Supports RTSP, RTMP, VISCA over IP, ONVIF, and SRT protocols
● 10 presets via IR remote and up to 255 via RS232 control
● Supports VISCA, Pelco-P, and Pelco-D with RS232/RS485 camera control
● Supports ceiling, wall, and tripod mounting with reverse installation
● 2D and 3D noise reduction for clear video in different lighting conditions
● Compatible with most video conferencing software and platforms
● Ultra-quiet, fast, and smooth PTZ movement with belt drive technology
Specification:
Standard 4K
Brand: TENVEO
Model: UV20U-4K
Image Sensor: Sony 1/2.8" CMOS, 8.29MP
Video Resolution: Up to 4K@30fps (HDMI/USB 3.0)
Optical Zoom: 20x optical zoom, 8x digital zoom
Lens Aperture: F1.7–F3.7, f=4.95mm–99mm
PTZ Rotation: Pan ±175°, Tilt ±90°
AI Features: Auto tracking, single & multi-person tracking
Video Output: HDMI, USB 3.0, RJ45 (IP streaming)
Video Encoding: H.264, H.265, MJPG, YUY2
Control Protocol: VISCA, Pelco-D, Pelco-P, ONVIF, RTSP, RTMP, SRT
Preset Positions: 10 (IR remote), up to 255 (RS232)
Low Light Performance: 0.1 lux, 2D & 3D DNR
Audio/Control Ports: RS232, RS485, USB, RJ45
Power Supply: DC 12V, Max 24W
Operating System: Windows, macOS, Android, Linux
Dimensions: 166 × 165 × 170 mm
Weight: 1.6 kg (net)
What's in the box?
● 1 x 4K UHD AI Auto Tracking PTZ Camera
● Power Supply
● Wall Mount
● Mounting Screws
● User Manual
● Remote Control
● USB Cable
Key Features
● 20X optical zoom
● Smart AI auto tracking with auto framing and presenter tracking
● Sleek and intelligent design
● 4K@30fps crystal clear video quality
● 1/2.8"" 8.29MP CMOS sensor
● Full glass lens for superior image quality
● Wide field of view with no distortion
● HDMI, USB, and LAN (IP) output
● Supports RTSP, RTMP, VISCA over IP, ONVIF, SRT
● 10 presets via IR remote, 255 via RS232
● Supports VISCA, Pelco-P, Pelco-D, RS232/RS485 control
● Supports ceiling, wall, and tripod mounting
● Reverse mount supported
● 2D and 3D noise reduction
● Ultra-quiet, smooth PTZ movement
● Compatible with most video conferencing platforms
Specification:
4K with NDI HX2
Brand: TENVEO

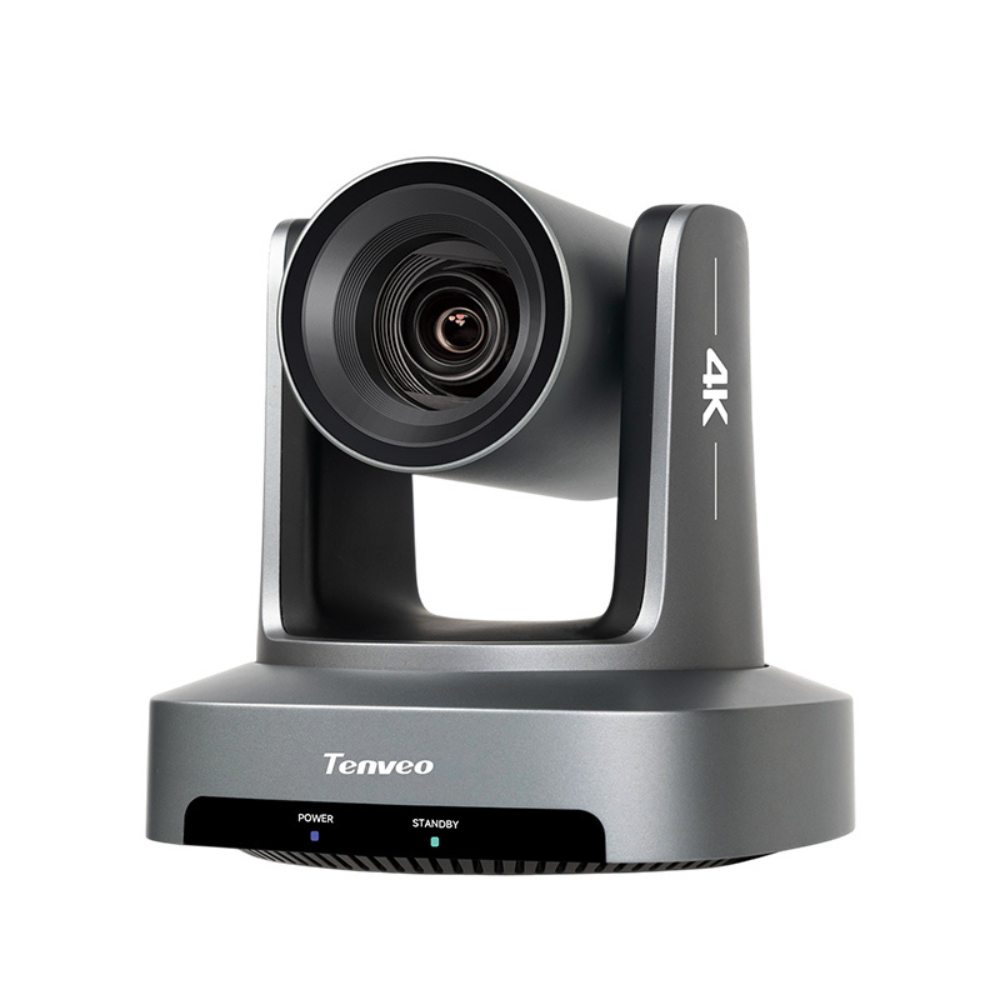

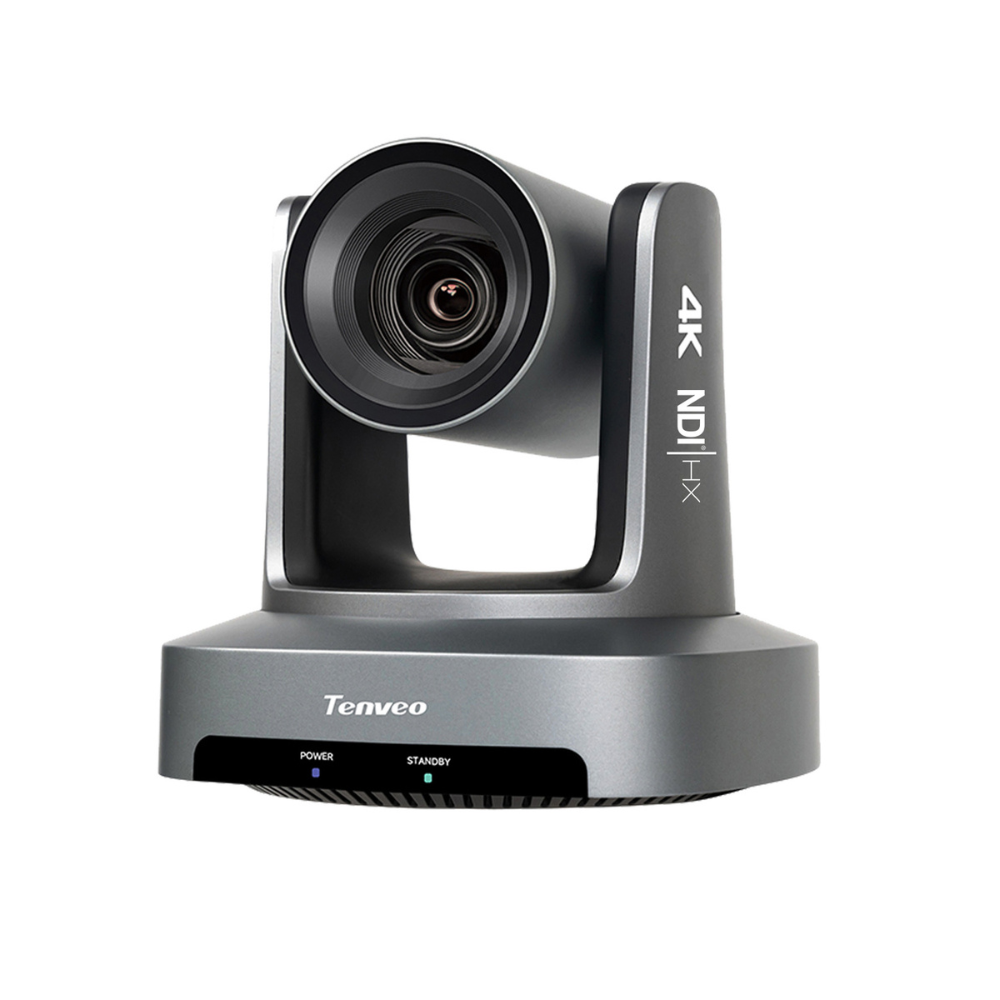

Model: UV20U-4K-NDI
Image Sensor: Sony 1/2.8" CMOS, 8.29MP
Video Resolution: Up to 4K@30fps (HDMI, USB 3.0, NDI|HX2)
Optical Zoom: 20x optical zoom, 8x digital zoom
Lens Aperture: F1.7–F3.7, f=4.95mm–99mm
PTZ Rotation: Pan ±175°, Tilt ±90°
AI Features: Auto tracking, single & multi-person tracking
Video Output: HDMI, USB 3.0, RJ45 (IP & NDI streaming)
Video Encoding: H.264, H.265, MJPG, YUY2
Network Protocol: RTSP, RTMP, VISCA over IP, ONVIF, SRT, NDI|HX2
Preset Positions: 10 (IR remote), up to 255 (RS232)
Low Light Performance: 0.1 lux, 2D & 3D DNR
Control Interface: RS232, RS485, USB, RJ45
Power Supply: DC 12V, Max 24W, PoE supported
Operating System: Windows, macOS, Android, Linux
Dimensions: 166 × 165 × 170 mm
Weight: 1.6 kg (net)
What's in the box?
● 4K UHD AI Auto Tracking PTZ Camera
● Power Supply
● Wall Mount
● Mounting Screws
● User Manual
● Remote Control
● USB Cable
