Tenveo Video Conference Camera
With the Tenveo video conference camera, you can easily have video conferences with your team from any location and connect with clients in full HD face-to-face. It can be used extensively for video conferences, remote learning, telemedicine, teleconferencing, distance training, remote interviews, classroom cameras, church cameras, and other applications.

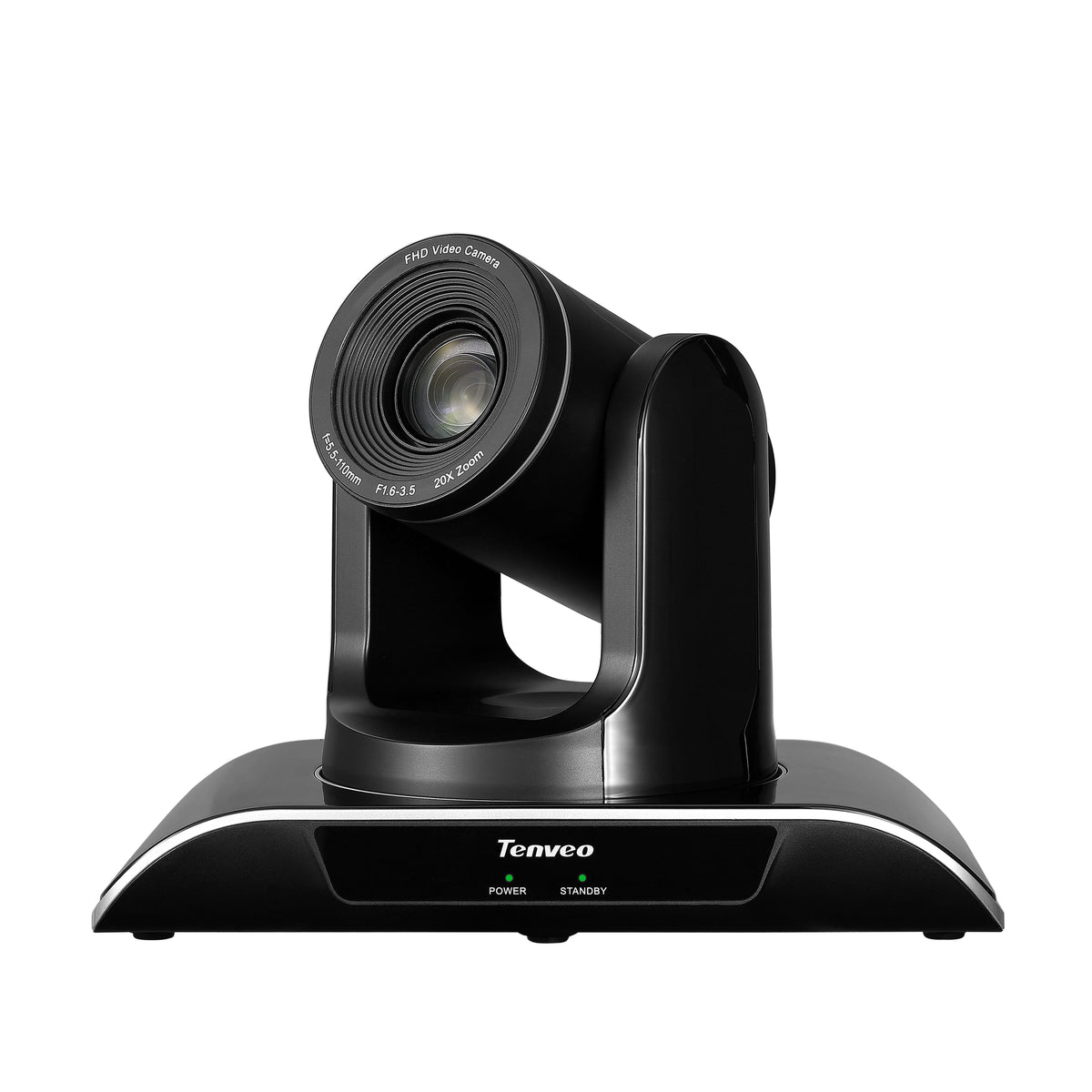

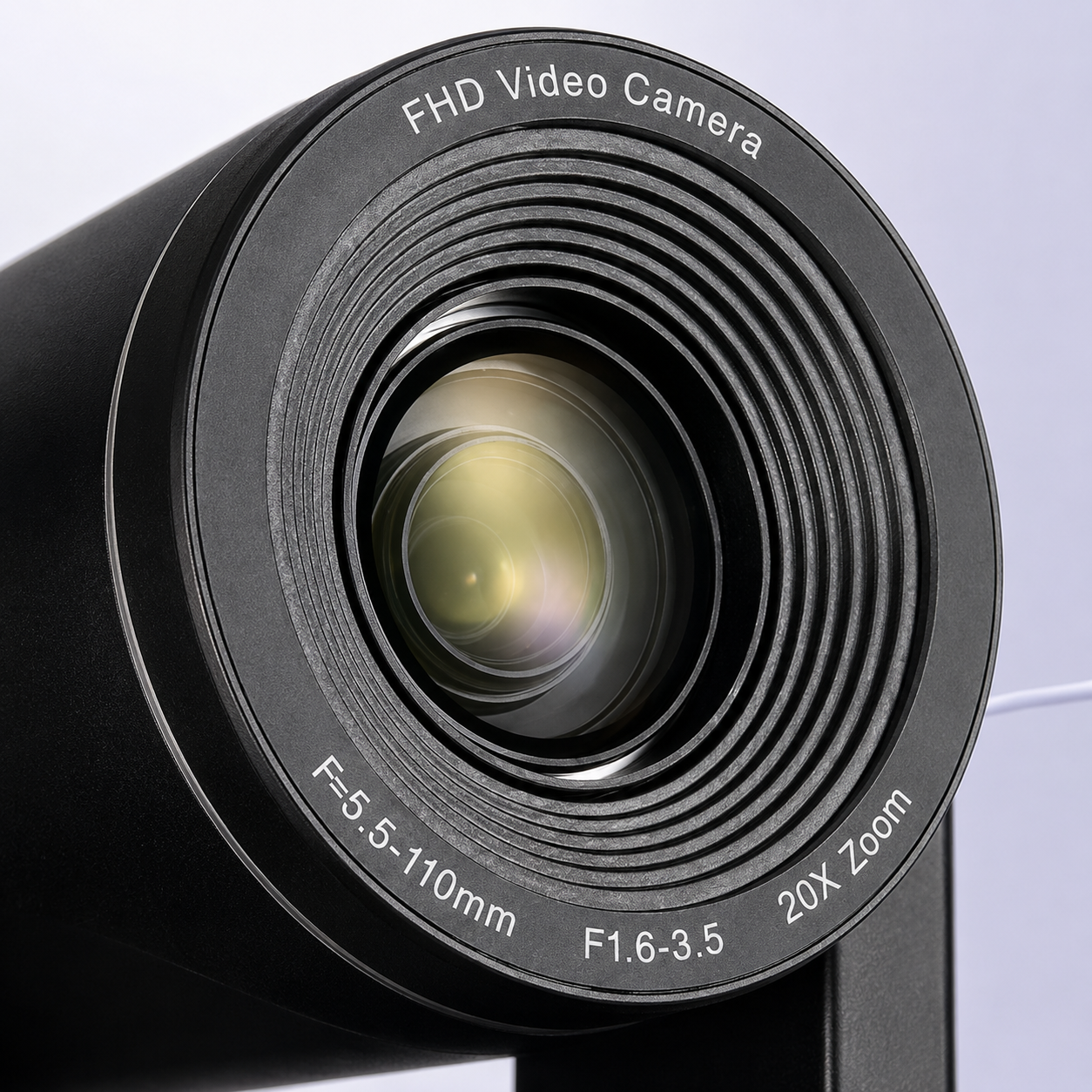

20x Optical Zoom HD Camera

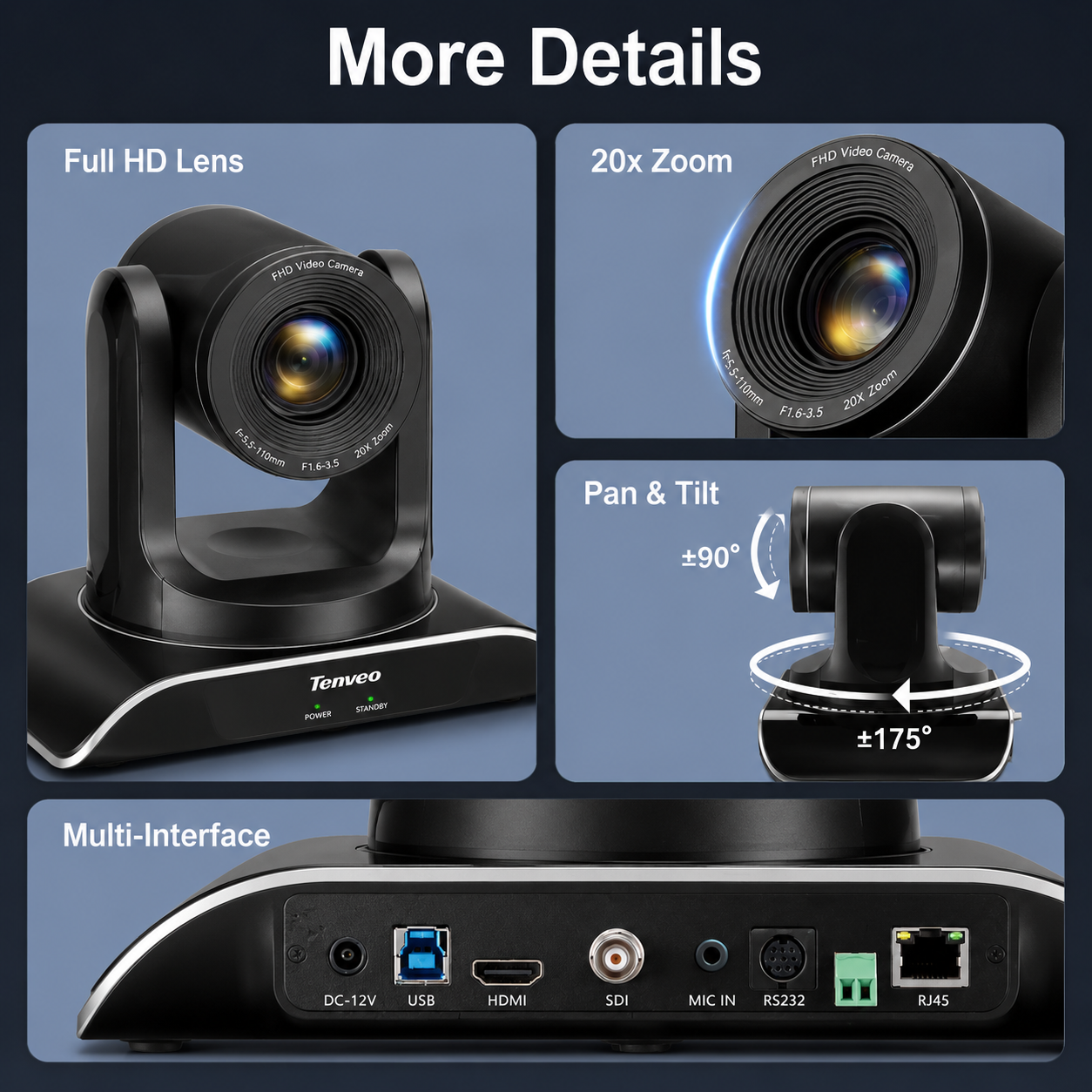

The angle of rotation is +/-175° for the horizontal and +/-90° for the vertical.
FOV: 58.6°3.6, f=5.5-110mm
You can enjoy a great image with 20x optical zoom and HD 1080P 30 frames per second video output.
Universal Compatibility
Compatible with Zoom, Skype for business, Microsoft Lync(Teams), Voovmeeting, CISCO WebEx, and other conferencing software.
Easy Preset Settings
The presets in the meetings allowed for easy control of the 20x PTZ Camera to the focused points. Collaboration during discussions is very efficient.
Share Live Streaming Online Anytime with IP Streaming
Facebook/YouTube RTMP/RTSP through H.264
Works well with Mac OS 10.10 and higher, Windows 7/8.1, and 10.
Specifications:
Model No.: TEVO-VHD20N
Image Sensor: 1/3" HD CMOS
Effective pixel: 2.38 mega pixel（16：9）
Video output: 1080P60/30/25/ 720P 60/50
Signal standard: NTSC/PAL
Zoom: 20x Zoom
Focus length: F=4.7-94.0mm
Horizontal view angle: 55.5°(N)～3.0°(F)
M.O.D: 1.0mm
Minimum illumination: 0.25Lx（on）
Gain control: Auto/manual
Focus: Auto/manual
SNR ratio: ≥50dB
Shutter speed: 8 to1/10000s，Auto
Preset position: Remote-controller support 9 presets；PELCO Control Protocol support 256 presets
Pan/Tilt movement range: Pan: 340°(Max Speed 80°/S)； Tilt: 0°～120°(Max Speed 60°/S)
Pan/Tilt movement speed: 100°/S；80°/S
Control terminal: RS-232，RS485，RS-422
Control Protocol: VISCA，PELCO-D，PELCO-P（RS-232，RS485）

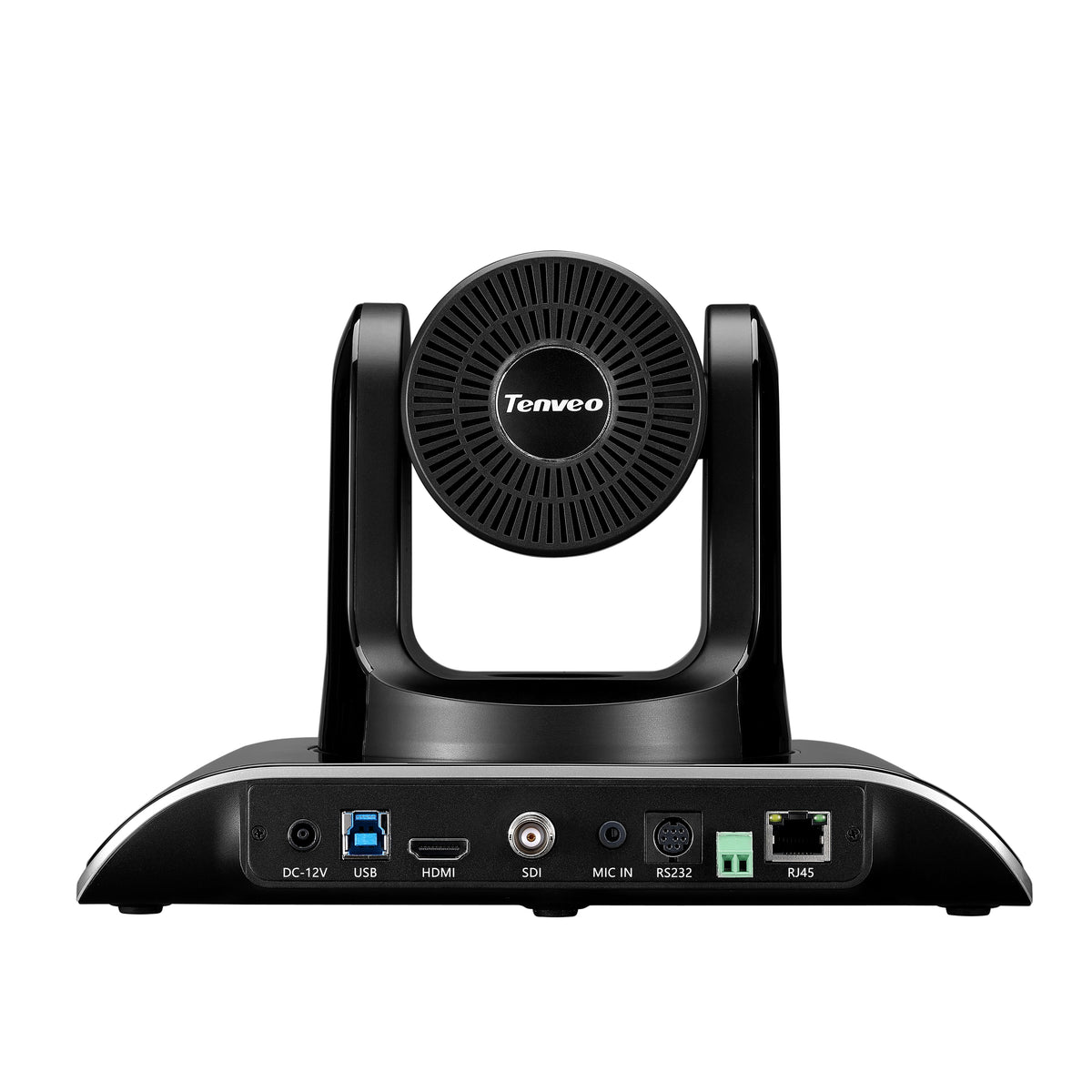

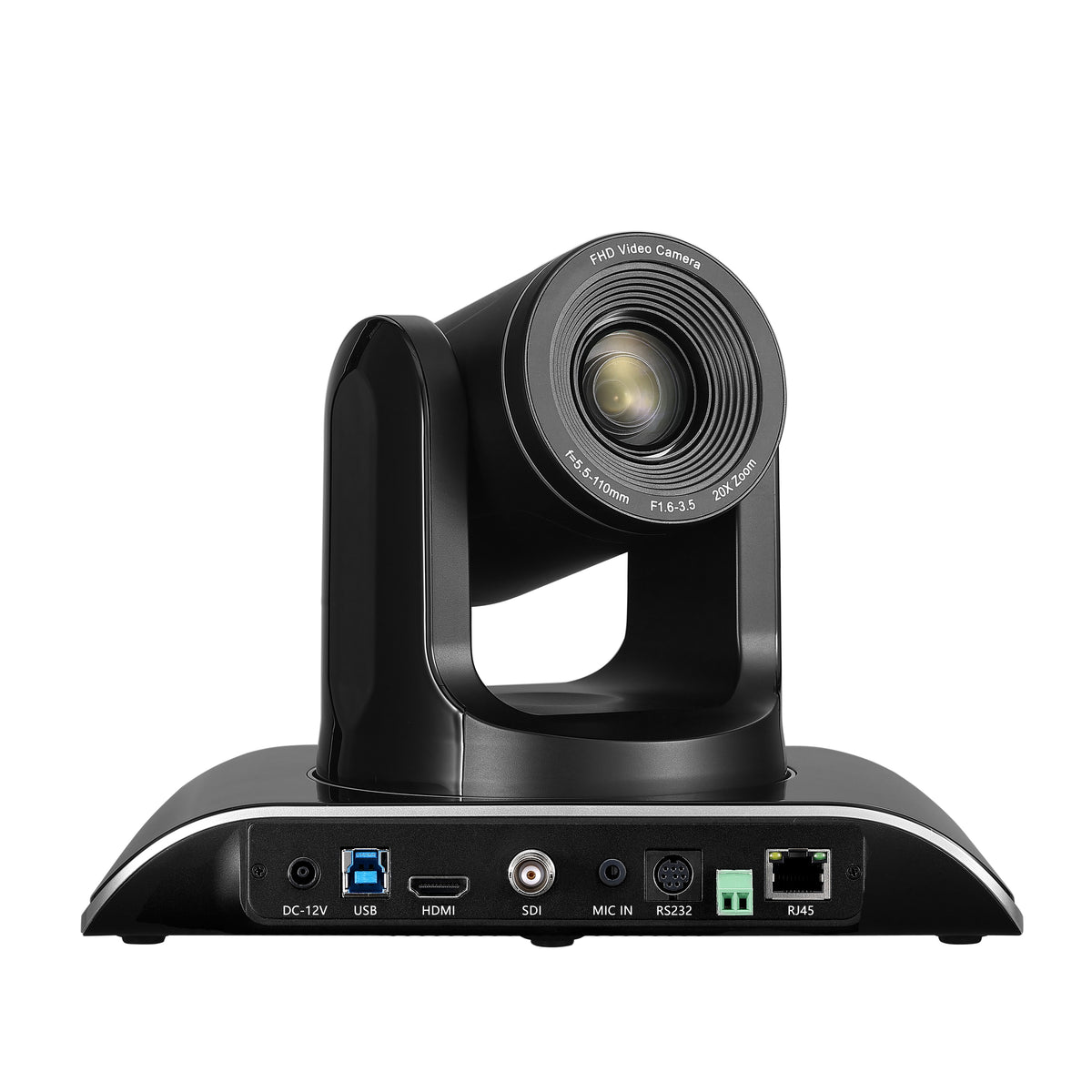

Video output: 3G-SDI, HDMI
Work Temperature: -10°～50°
Work Humidity: -20°～60°
Baud rate: 2400/4800/9600/19200bps
Decoder: Built-in
Address Settings: 1~256
Installation: Desktop, Ceiling, mounting installation
Power Supply: DC12V/2A
Power: 12W
