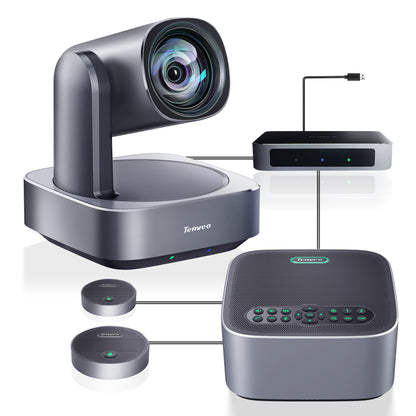

Video Conference System
General Specifications:
- Item Name: TEVO-VA610GROUP
- Operation Systems: Windows 7 or higher; Android, Mac OS™ 10.10 or higher, Linux (Required to support UVC.)
- Application Support: Compatible with Zoom, MS Teams, Skype and etc.
- Input Voltage: DC 12V
- Input Current: 2.0A(Max)
- Store Temperature: -20°C to 60°C
- Store Humidity: 20%～90% RH
- Working Temperature: 0℃ to 40°C
- Working Humidity: 20%～80% RH
HD Conference Camera:
- Optical Zoom: 10x zoom
- Image Sensor: Sony IMX327 1/2.8"" CMOS
- Effective Pixels: 2.07MP
- Lens: f=4.32-40.9mm
- Aperture: F1.76～F3.0
- Video Format; 1080p@60/50/30/25fps, 720p@60/50/30/25fps,640*480P@30fps,320*240P@30fps;YUY2/NV12/H.264/H.265//H.264, H.265, MJPG, YUY2, NV12
- Horizontal Angle: 67.5°(W)-8.8°(T)
- Focus: Auto / Manual
- Digital Noise Reduction: 2D & 3D Noise Reduction
- Exposure: Auto / Manual
- Video Interfaces: HDMI, DP
- Video Compression Format: H.264, H.265, MJPG, YUY2
- Control Protocol: VISCA/Pelco-D/Pelco-P
- Baud Rate: 38400/9600/4800/2400
- Control Interface: RS232 (input only), RS485, UVC1.1
- Pan/Tilt Rotation: ±175°, -90°～+90°
- Pan Control Speed: 0.1 -80°/sec
- Tilt Control Speed: 0.1-60°/sec
- Preset Number: User can set up to 255 presets (10 presets by IR remote)
Speakerphone:
- Acoustic Echo Cancellation(AEC): ＞65dB
- Speaker Power: 5W
- Speaker Volume: 110dB
- Response: 100Hz-20KHz
- Pickup Range: 6m(Radius)
- Microphone Sensitivity: -38dB
- SNR(Signal to Noise Ratio): 62dB
- Interface: DP interface；2x3.5mm Jack（for Expansion Mics）
Hub:
- Interface: DP*2; Power interface*1; USB Type-C*1
- Power Supply: DC 12V
- USB Cable: 3m USB cable*1
- Connection Cable: 5m DP cable*2
