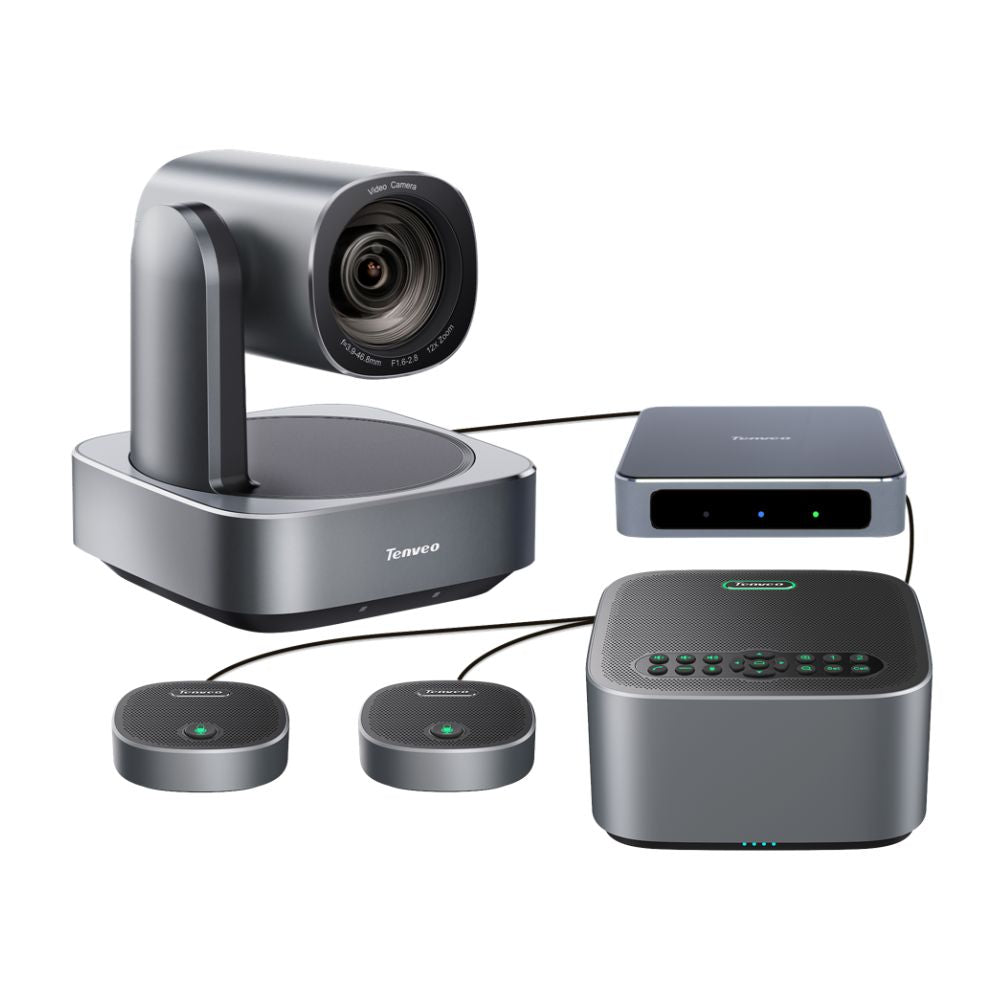

Tenveo VA612 Video Conferencing System Set
TENVEO-VA612 (without Expansion Mic)

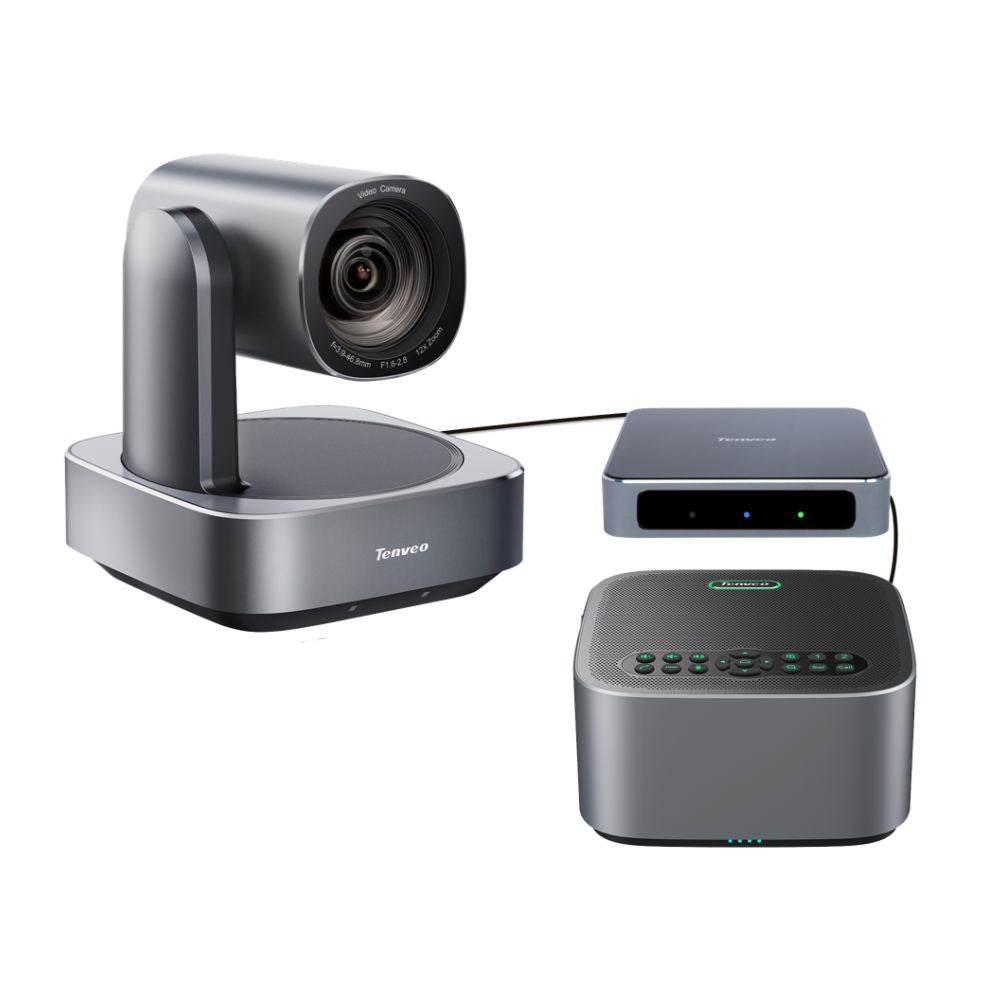

All-in-One Conference Camera & Speakerphone System
What's in the box:
● 1x HD Camera
● 1x Speakerphone
● 1x Hub
● 1x Remote Control
● 2x 5M DP Cable
● 1x User Manual
● 1x 3M USB Cable
● 1x Power Adaptor
● 1x Wall Mount Bracket
TENVEO-VA612 (with Expansion Mic)
All-in-One Conference Camera & Speakerphone System with Extended Microphone
What's in the box:
● 1x HD Camera
● 1x Speakerphone
● 2x Expansion Microphone*
● 2x 3.5mm Audio Cable*
● 1x Hub
● 1x Remote Control
● 2x 5M DP Cable
● 1x User Manual
● 1x 3M USB Cable
● 1x Power Adaptor
● 1x Wall Mount Bracket
Technical Specifications
TEVO-VA612 Conference Camera

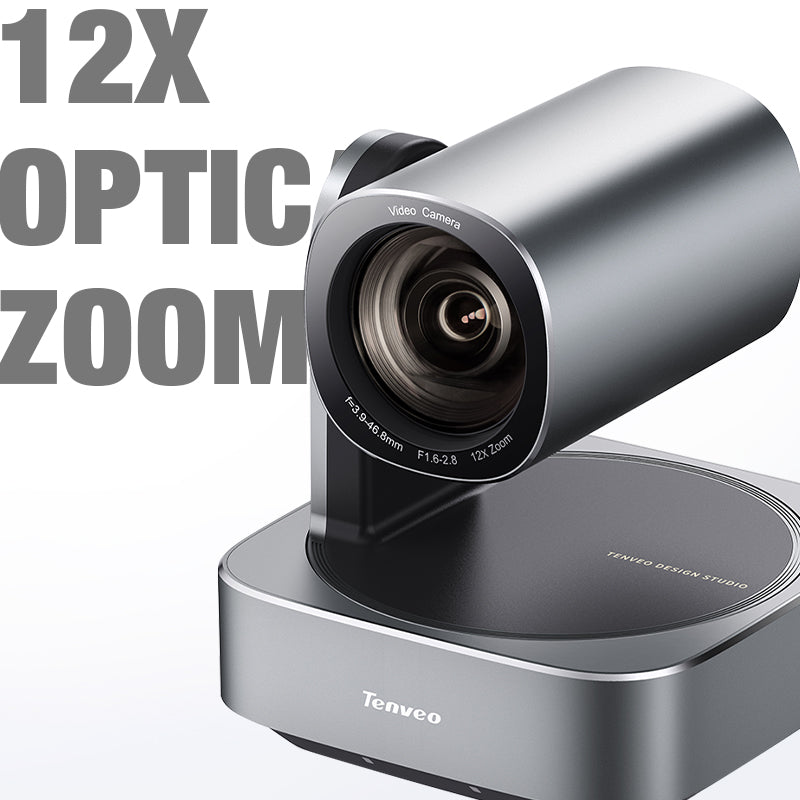

● Optical Zoom: 12x zoom

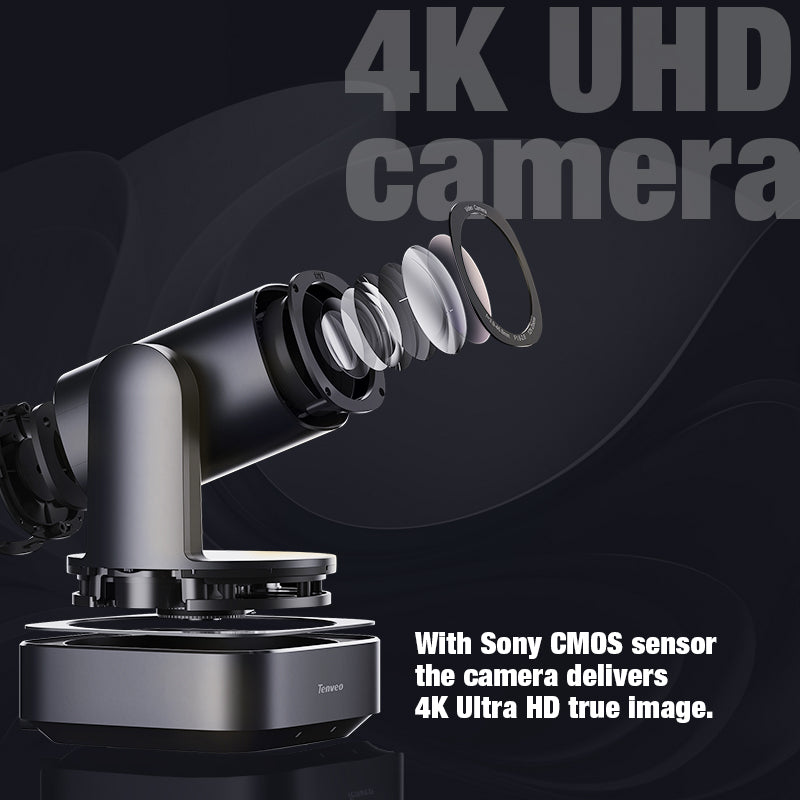

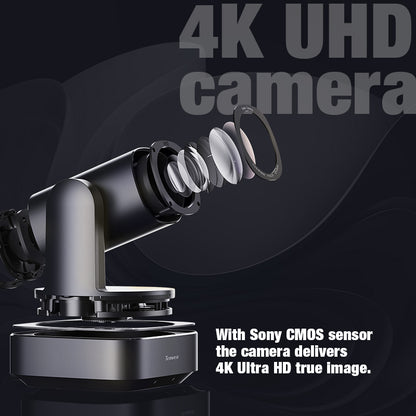

● Image Sensor: 1/2.8" SONY CMOS
● Effective Pixels: 8.29MP
● Lens: f=3.9mm-46.8mm
● Aperture: F1.6-2.8
● Video Format: 4KP@30fps,1080P@60/50/30/25fps, 720P@60/50/30/25fps
● H.264, H.265, MJPG, YUY2, NV12
● Horizontal Angle: 70.82°(W)-6.48°(T)
● Focus: Auto / Manual
● Digital Noise Reduction: 2D & 3D Noise Reduction
● Exposure: Auto / Manual

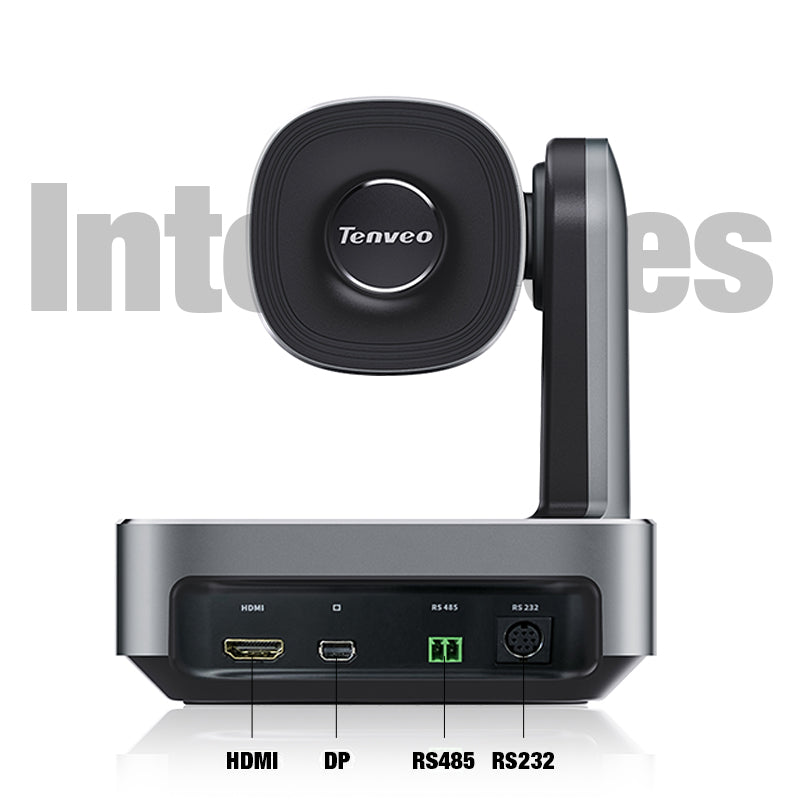

● Video Interfaces: HDMI, DP
● Video Compression Format: H.264, H.265, MJPG, YUY2
● Control Protocol: VISCA/Pelco-D/Pelco-P
● Baud Rate: 38400/9600/4800/2400
● Control Interface: RS232 (input only), RS485, UVC1.1
● Pan/Tilt Rotation: ±175°, -90°～+90°
● Pan Control Speed: 0.1 -80°/sec
● Tilt Control Speed: 0.1-60°/sec
● Preset Number: User can set up to 255 presets (10 presets by IR remote)

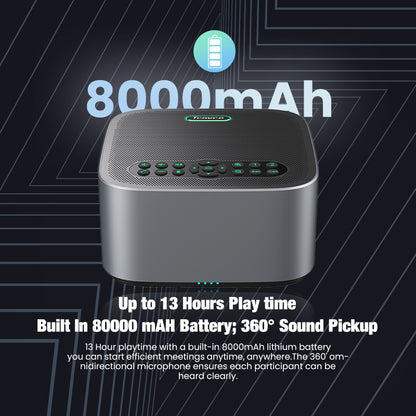

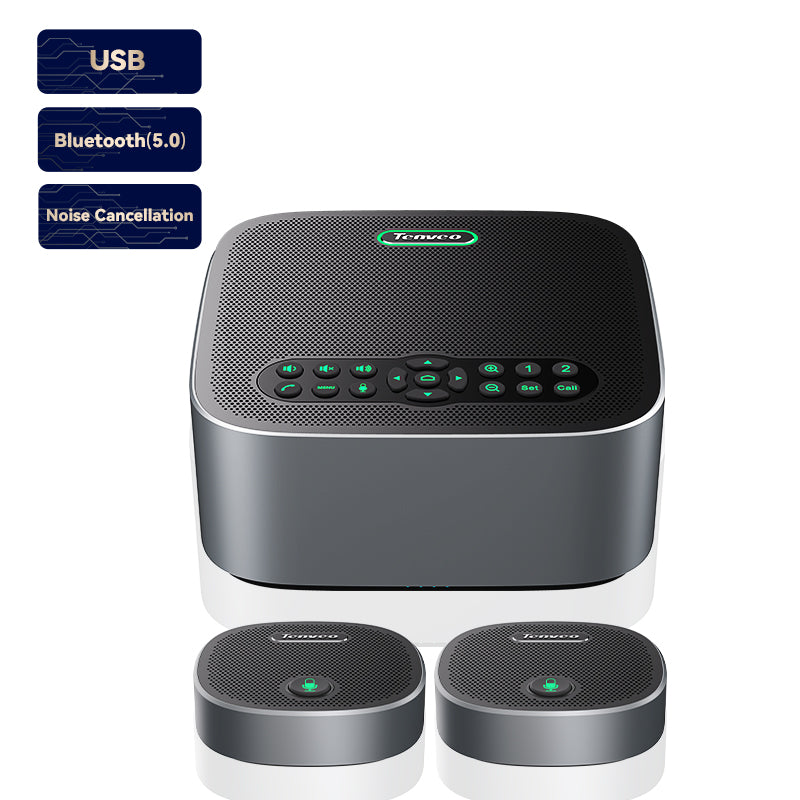

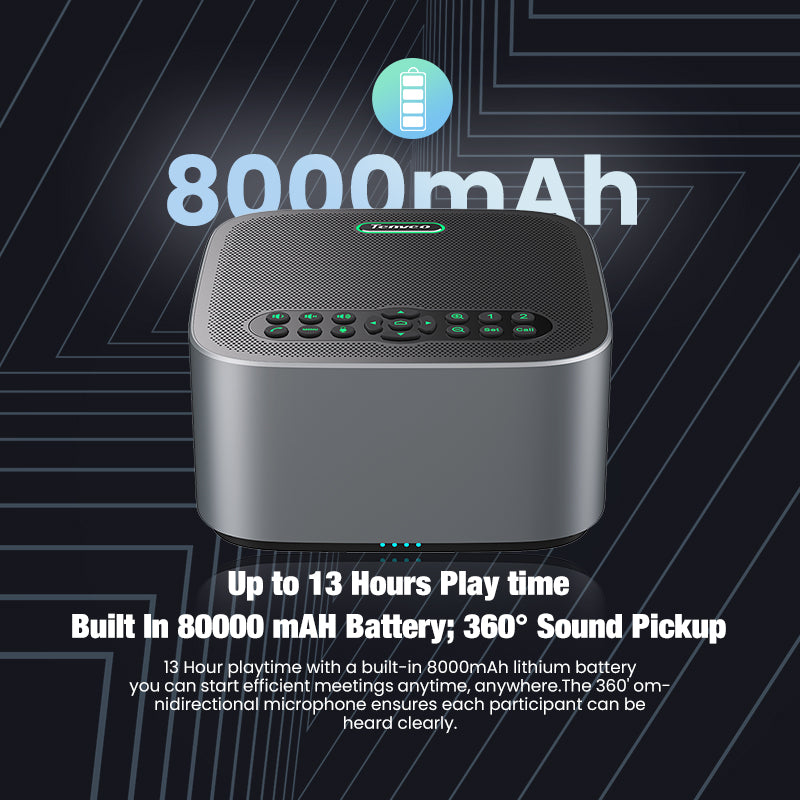

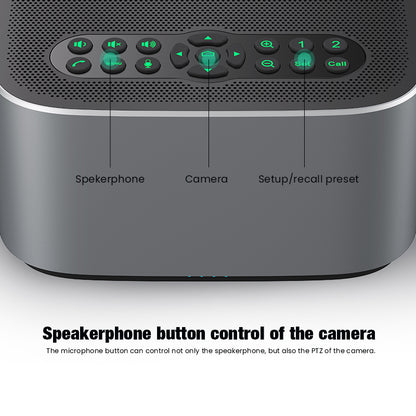

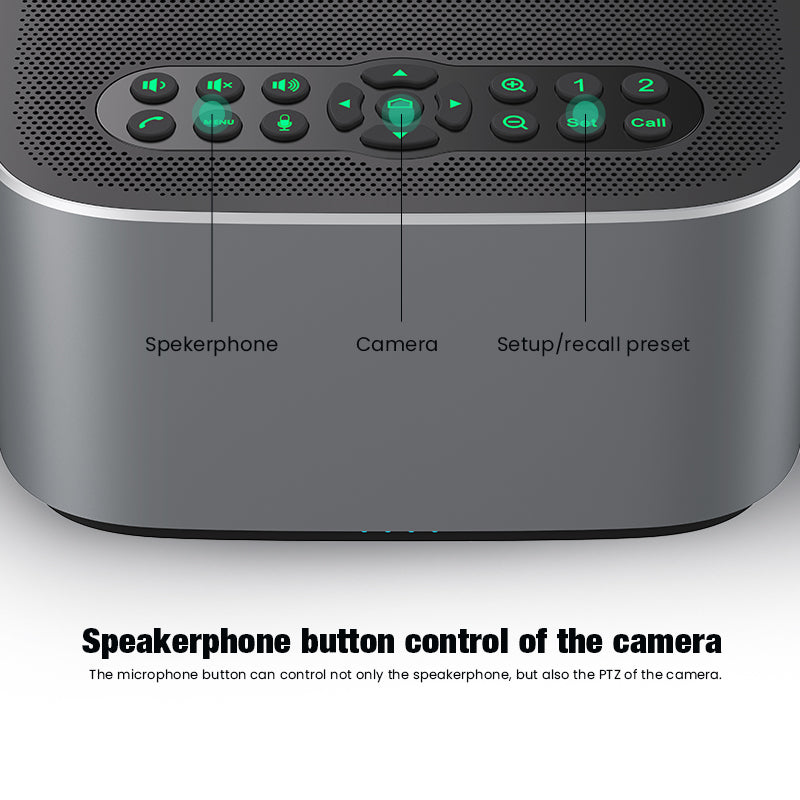

Speakerphone
● Acoustic Echo Cancellation(AEC):＞65dB
● Speaker Power: 5W
● Speaker Volume: 110dB
● Response: 100Hz-20KHz
● Pickup Range: 6m(Radius)
● Microphone Sensitivity: -38dBFS
● SNR(Signal to Noise Ratio): 62dB
● Interface: DP interface;2x3.5mm Jack

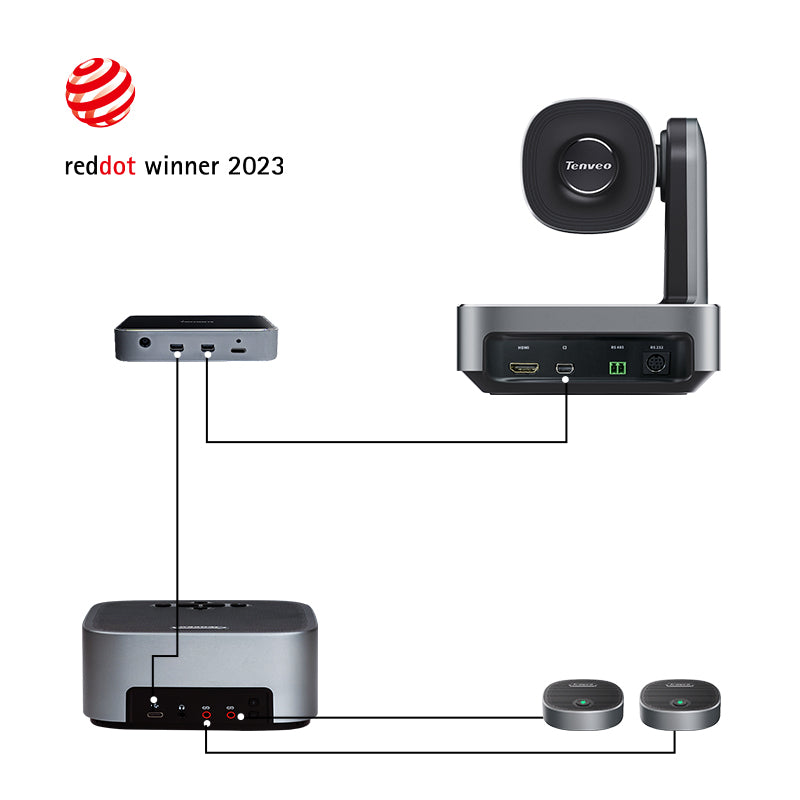

Hub
● Interface: DP*2; Power interface*1; USB Type-C*1
● Power Supply: DC 12V
● USB Cable: 3m USB cable*1
● Connection Cable: 5m DP cable*2
General Parameter
● Operation Systems: Windows 7 or higher; Android, Mac OS™ 10.10 or higher, Linux (Required to support UVC.)
● Application Support: Compatible with Zoom, MS Teams, Skype and etc.
● Input Voltage: DC 12V
● Input Current: 2.0A (Max)
● Store Temperature: -10℃～+60℃
● Store Humidity: 20%～90%
● Working Temperature: -10℃～+50℃
● Working Humidity: 20%～80%
● Dimension(W*H*D): Camera: 171.6*192.6*171.6mm; Speakerphone: 143mm*143mm*75mm; Hub: 98*98*20mm; Expansion mics: 73.7*74*20mm
● N.W. / G.W: 2.77kg/4kg(net / gross weight)
