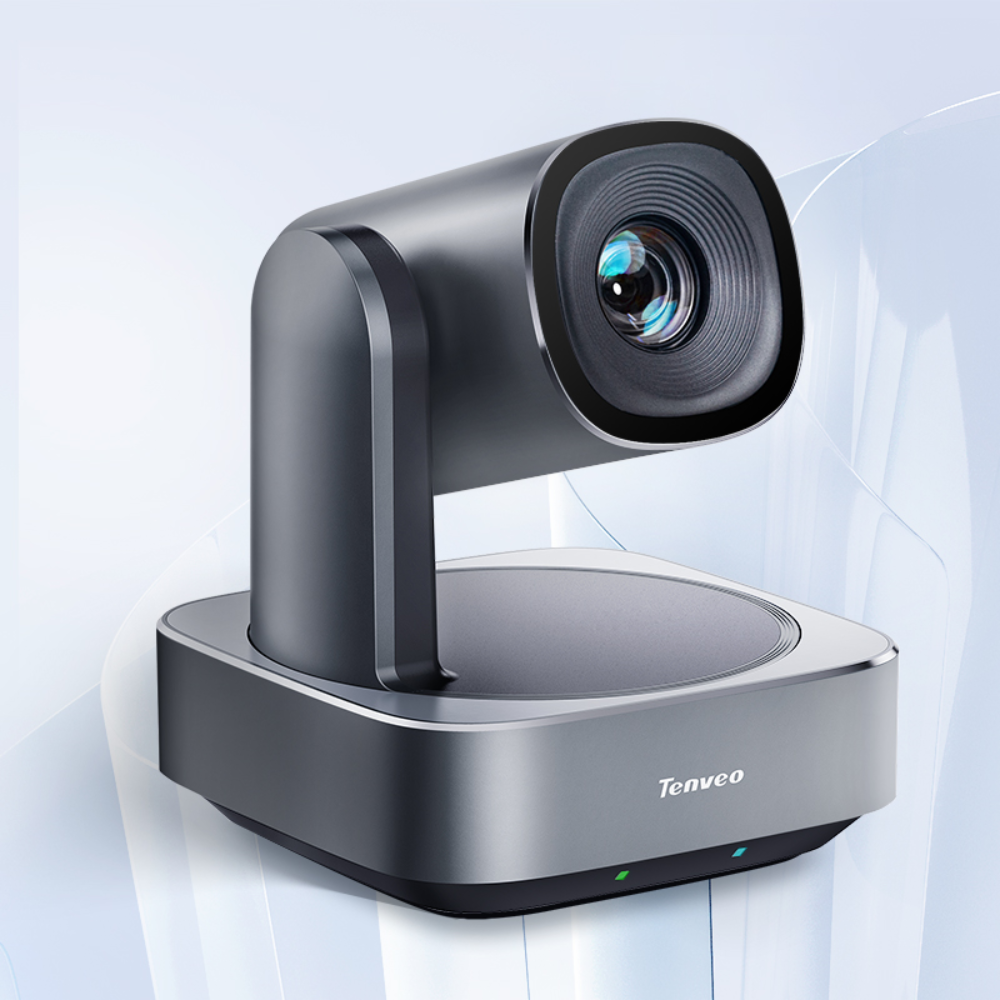

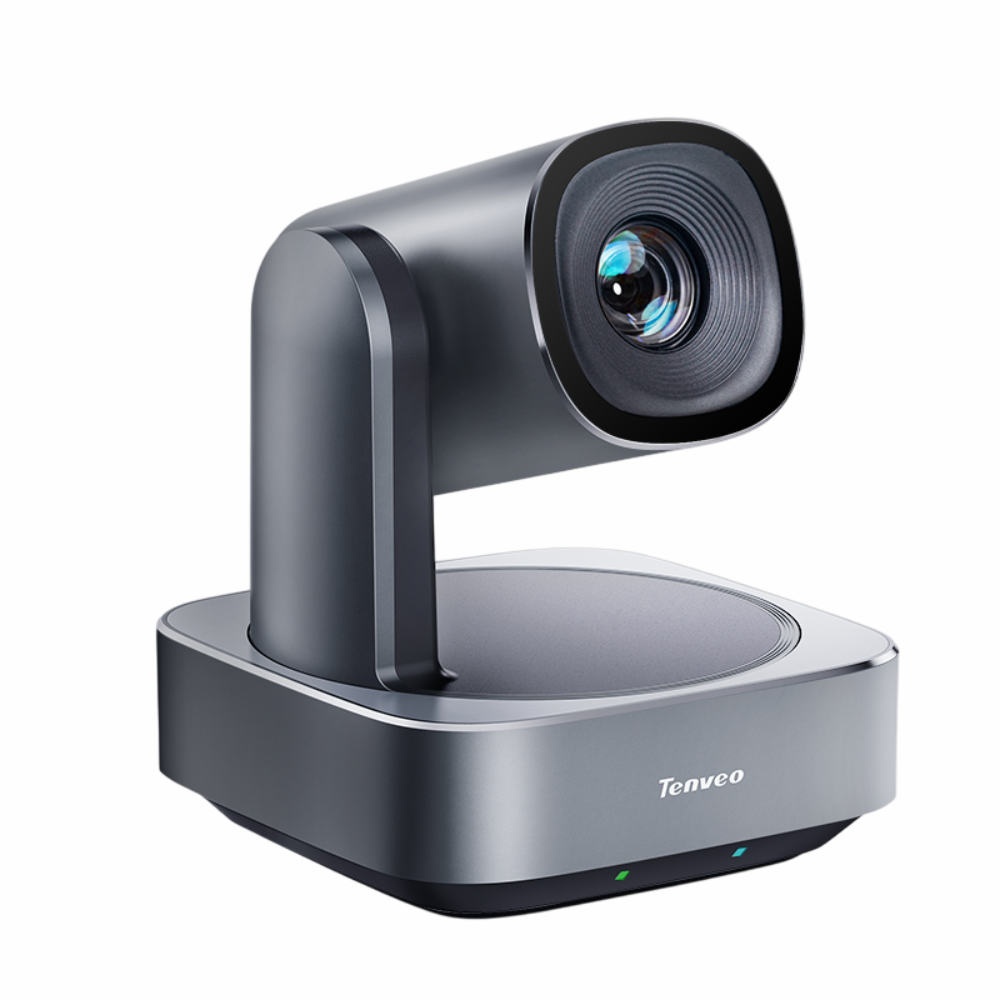

Tenveo VL 11x / 20x Optical Zoom PTZ Conference Camera
Features:
● Clear Imaging:
○ 2.38MP Sony CMOS sensor for high-definition video.
● Powerful Zoom:
○ 20x optical zoom (5.9-94.4mm lens)
○ 11 x optical zoom (5.76-46.09mm lens)
● Wide Viewing Angles:
○ Pan: ±175°, Tilt: -90° to +90°, with wide and telephoto angle options.
● Backlight Compensation:
○ Improves image quality in strong backlighting.
● Noise Reduction:
○ 2D & 3D noise reduction for clear video in low light.
● Focus Options:
○ Auto or manual focus for precise image control.
● Efficient Video Compression:
○ Supports H.264, H.265, MJPG, and YUY2 formats.
● Multiple Control Protocols:
○ Works with VISCA, Pelco-D, and Pelco-P for easy control.
Specifications:
● Model: VL20H/ VL11H
● Image Sensor: 1/2.8" SONY CMOS
● Effective Pixels: 2.38MP, 16:9
● Lens:
○ (20x Zoom) f=5.9-94.4mm
○ (11x Zoom) f=5.76-46.09mm
● Zoom: 11x / 20x optical zoom

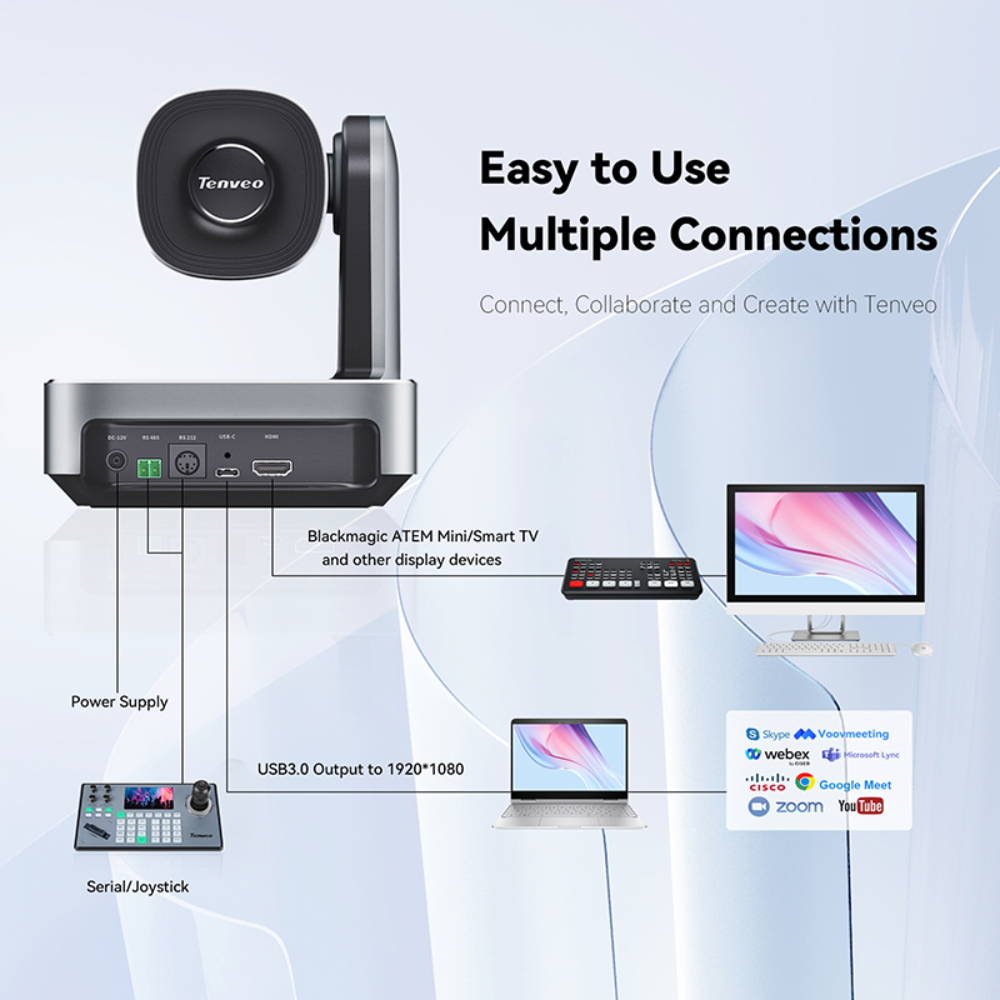

● Video Interfaces: HDMI, USB 3.0
● Pan/Tilt Rotation: ±175°, -90°~+90°
● Viewing Angles:
● (20x Zoom)
○ Horizontal: 52.1° (W) - 3.4° (T)
○ Vertical: 29.3° (W) - 1.9° (T)
○ Diagonal: 59.8° (W) - 3.9° (T)
● (11x Zoom)
○ Horizontal: 54.7° (W) - 6.8° (T)
○ Vertical: 30.8° (W) - 3.8° (T)
○ Diagonal: 62.8° (W) - 7.8° (T)
● Backlight Compensation: Supported
● Video Format: 1080p@60/50/30/25fps, 720p@60/50/30/25fps, 640x480p@30fps, 320x240p@30fps
● SNR: >50dB
● Focus: Auto / Manual
● Digital Noise Reduction: 2D & 3D Noise Reduction
● Exposure: Auto / Manual
● Video Compression Format: H.264, H.265, MJPG, YUY2
● Control Protocol: VISCA/Pelco-D/Pelco-P
● Baud Rate: 9600/4800/38400/2400
● Control Interface: RS232 (input only), RS485, USB3.0 C (UVC 1.1)
What's in the box:

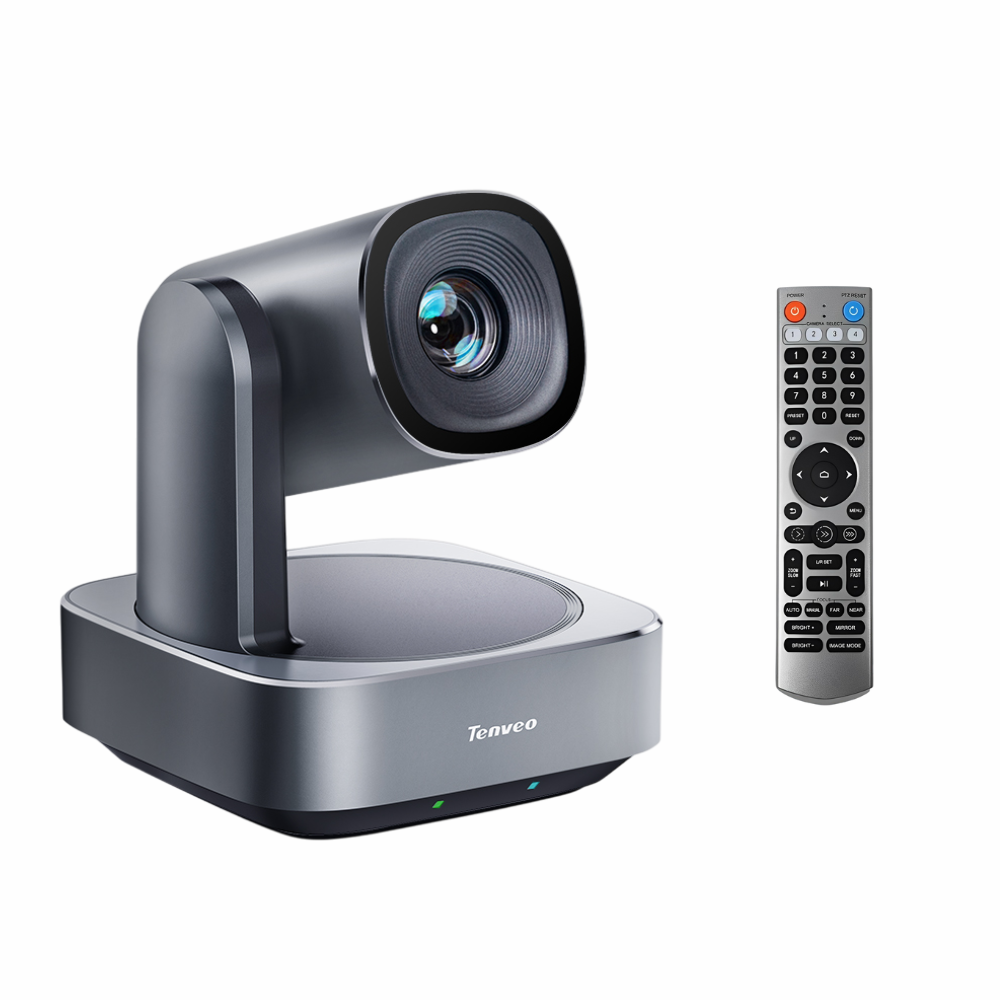

1x HD PTZ Camera, 1x DC 12V power Supply, 1x Wall Mount, 4x Mounting Screws, 1x USB to Type-C Cable, 1x Remote Control
