TP-Link Archer AX12 AX1500 Wi-Fi 6 Dual Band Wireless Next-Gen Gigabit Router with 4-High-Performance Antennas, OFDMA & MU-MIMO Technology, WPA3 WIFI Security, TP Link Tether APP Support | Network & Telecommunications Devices | TPLINK

1. Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range and coverage specifications are based upon test results under normal usage conditions. Actual wireless transmission rate and wireless coverage are not guaranteed, and will vary as a result of 1) environmental factors, including building materials, physical objects and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead and 3) client limitations, including rated performance, location, connection quality, and client condition.

2. Use of MU-MIMO, DL/UL OFDMA and 1024QAM requires clients to also support those functions.

3. Saving clients' battery power requires clients to also support the 802.11ax Wi-Fi standard. Actual power reduction may vary as a result of network conditions, client limitations, and environmental factors.

4. Latency improvement requires that the AP and all clients support OFDMA.

5. Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.

Features:

• Wi-Fi 6 Technology: Archer AX12 comes equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity and reduced network congestion.
• Next-Gen 1.5 Gbps Speeds: Archer AX12 dual-band router reaches even faster speeds up to 1.5 Gbps (1201 Mbps on 5 GHz band and 300 Mbps on 2.4 GHz band)
• Connect More Devices: Wi-Fi 6 technology communicates more data to more devices using revolutionary OFDMA and MU-MIMO technology while simultaneously reducing lag.
• More Reliable Coverage: Achieve the strongest, most reliable WiFi coverage with Archer AX12 as it focuses signal strength to your devices using Beamforming technology and four antennas.
• Increased Battery Life: Target Wake Time technology reduces your devices' power consumption to extend their battery life.
• Easy Setup: Set up your router in minutes with the powerful TP-Link Tether App.
• Backward Compatible: Archer AX12 supports all previous 802.11 standards and all WiFi devices.

Specification:

General

• Standards: Wi-Fi 6 (802.11ax)
• Wi-Fi Speeds:
  • 5 GHz: Up to 1201 Mbps
  • 2.4 GHz: Up to 300 Mbps
• Wi-Fi Range: Ideal for 2-3 bedroom houses
  • Antennas: 4× fixed high-performance
  • Beamforming: Improves signal strength towards devices

• Access Point Mode

Security

• Network Security:
  • SPI Firewall
  • Access Control
  • IP & MAC Binding
• Wi-Fi Encryption:
  • WPA3-Personal
  • WPA2-Enterprise
  • WPA/WPA2-Enterprise
• Guest Network:
  • 1× 5 GHz
  • 1× 2.4 GHz
• VPN Server: OpenVPN, PPTP

Hardware

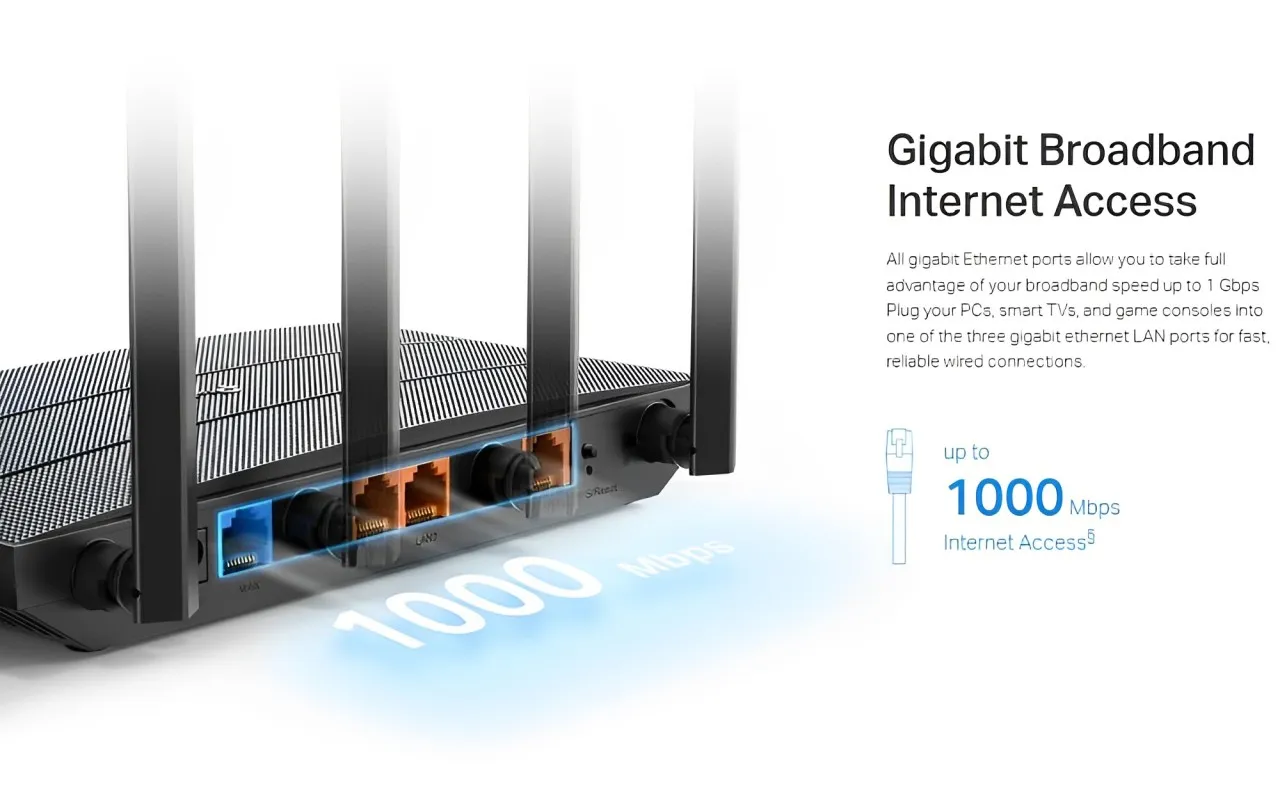

• Ports:
  • 1× Gigabit WAN Port
  • 3× Gigabit LAN Ports
• Buttons: WPS/Reset
• Power: 12 V ⎓ 1 A

Software

• Protocols: IPv4, IPv6
• Parental Controls: URL Filtering, Time Controls
• WAN Types: Dynamic IP, Static IP, PPPoE/PPTP/L2TP
• Quality of Service (QoS): By device
• Cloud Services: TP-Link ID, Auto/OTA Firmware Updates
• NAT Forwarding: Port Forwarding, UPnP, DMZ
• IPTV Support: IGMP Proxy, Snooping, Bridge, VLAN Tagging
• DHCP: Address Reservation, Client List, Server
• DDNS: TP-Link, NO-IP, DynDNS
• Management: Tether App, Web Interface

What’s in the box?
