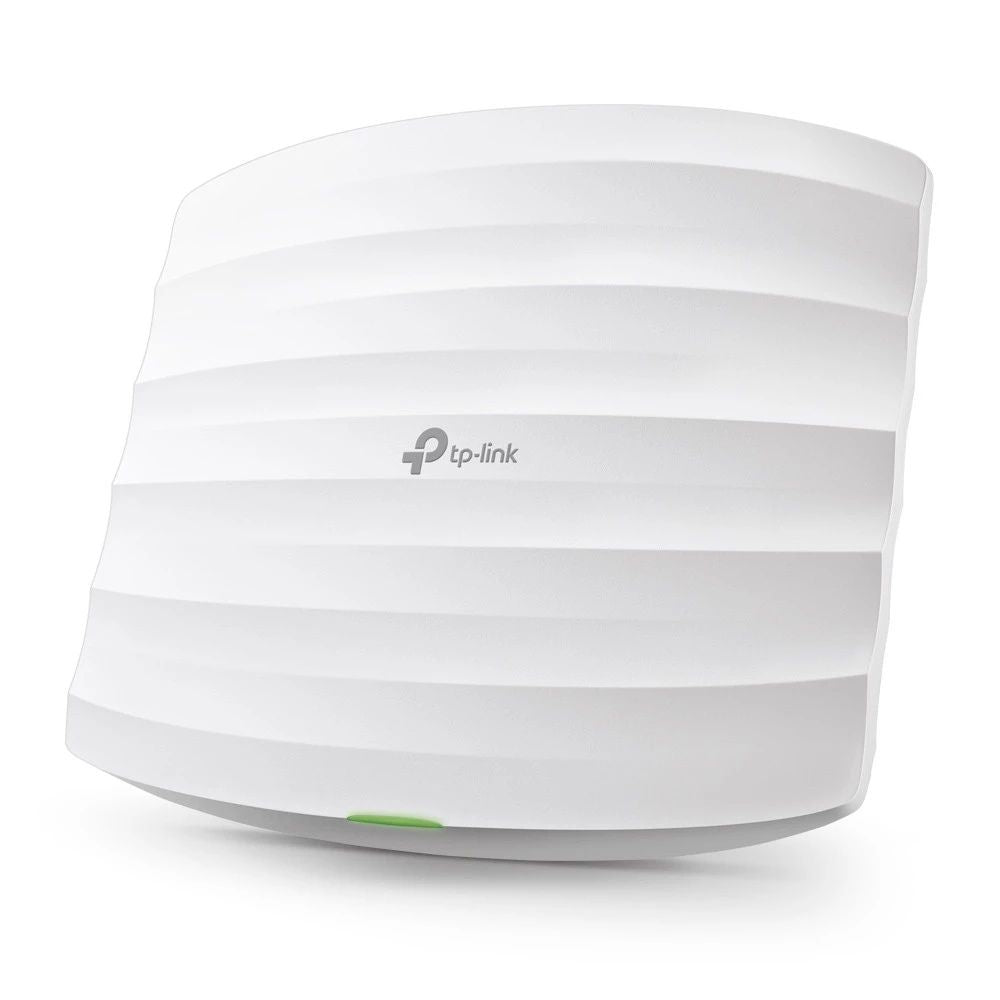

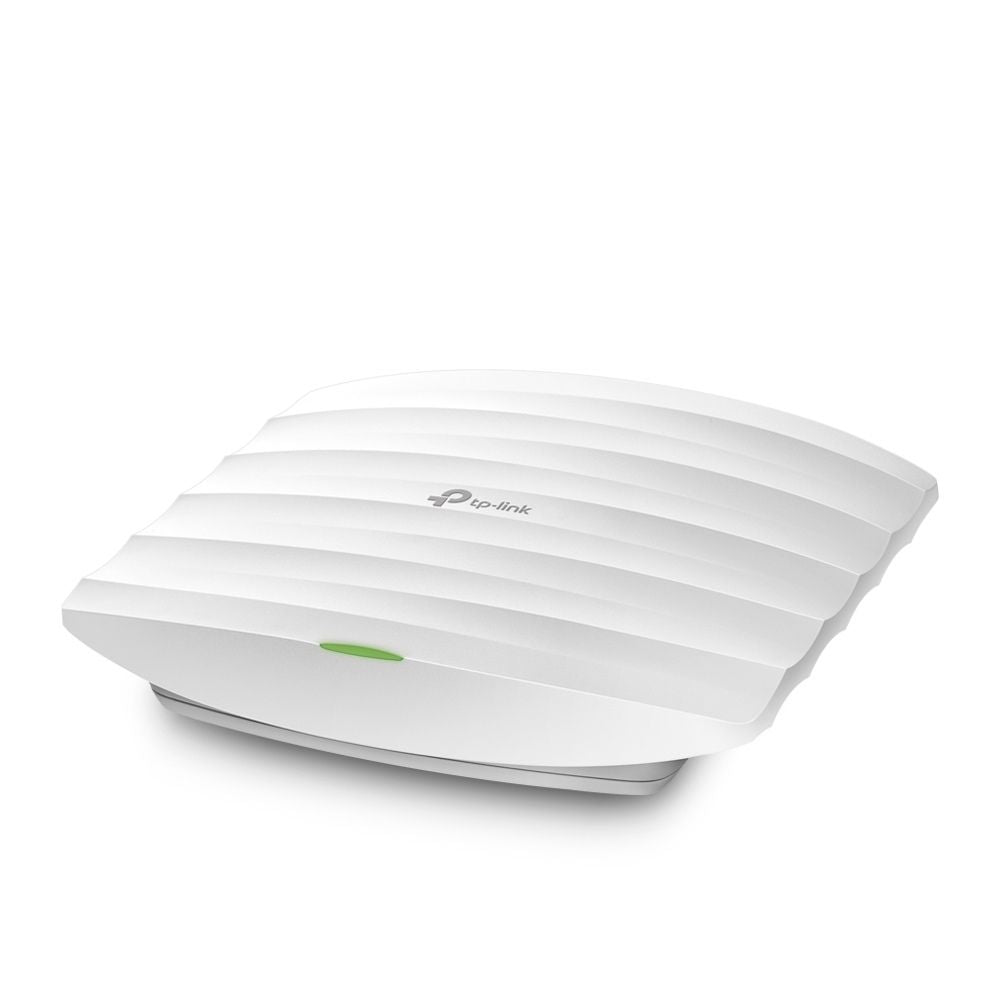

TP-Link Omada EAP245 AC1750 Wireless Dual Band Gigabit Ceiling Mount WIFI Access Point with 2.4Ghz / 5Ghz, 1750Mbps Max Speeds, Long Range Coverage, Seamless Roaming and Centralized Magement for Cloud Platform

TP-Link Omada EAP245 AC1750 Wireless Dual Band Gigabit

Ceiling Mount

This device offers dual-band Wi-Fi speeds of up to 1750 Mbps, with 450 Mbps on the 2.4 GHz band and 1300 Mbps on the 5 GHz band, making it ideal for fast and reliable wireless connections. It comes with free EAP Controller software, allowing administrators to easily manage multiple access points across large networks.

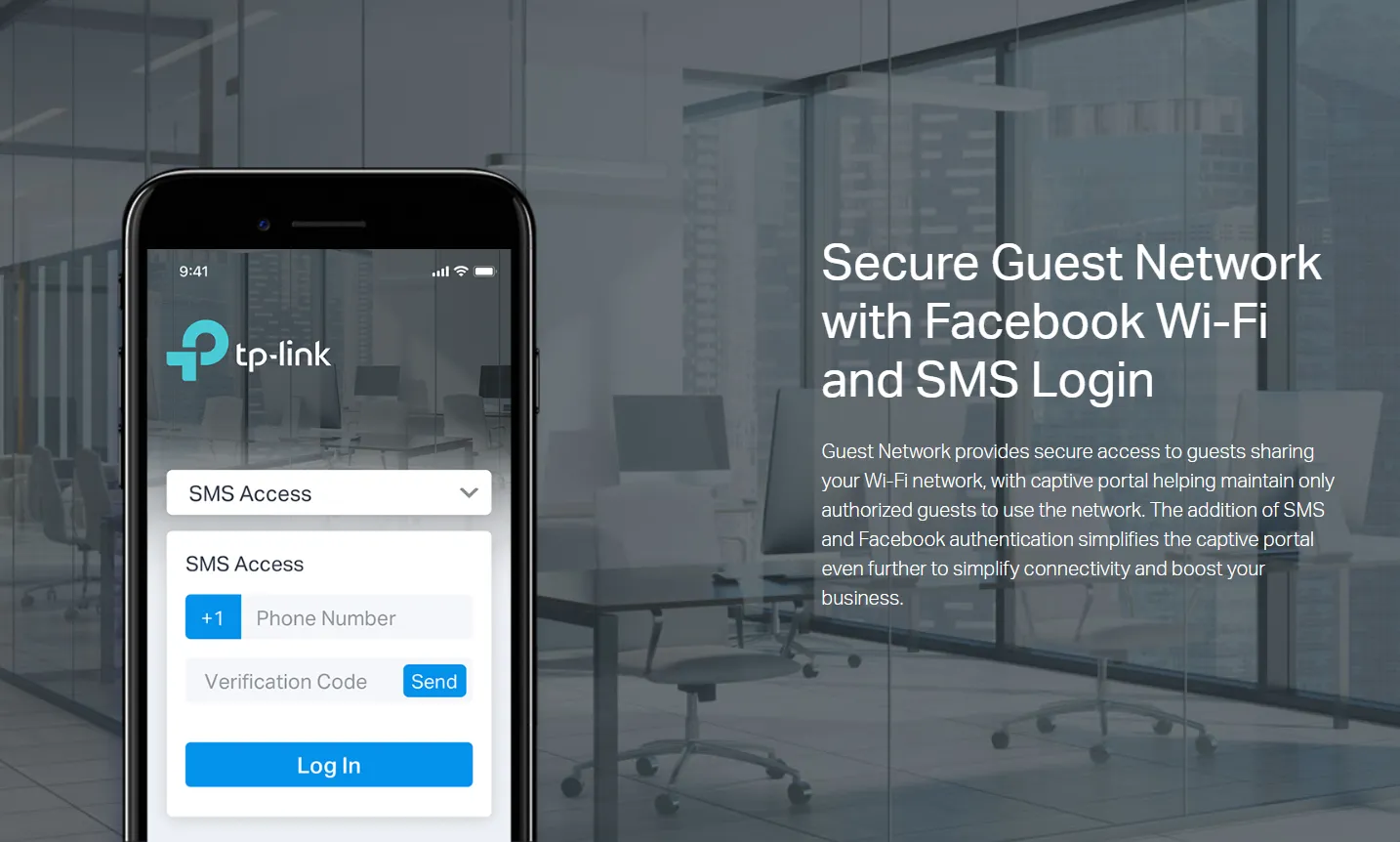

Supporting Power over Ethernet (802.3at), the device enables convenient and cost-effective installation. It also features a captive portal for guest authentication, ensuring secure access. Band Steering technology automatically directs dual-band devices to the faster 5 GHz band, while load balancing maintains smooth network performance in high-density environments. Additionally, the device supports management VLANs for improved network control.

Features:

• Wi-Fi 5 (802.11ac)
• Up to 1750Mb/s Throughput
• 2.4GHz / 5GHz (Dual Band)
• 3x 4 dBi Internal Antennas

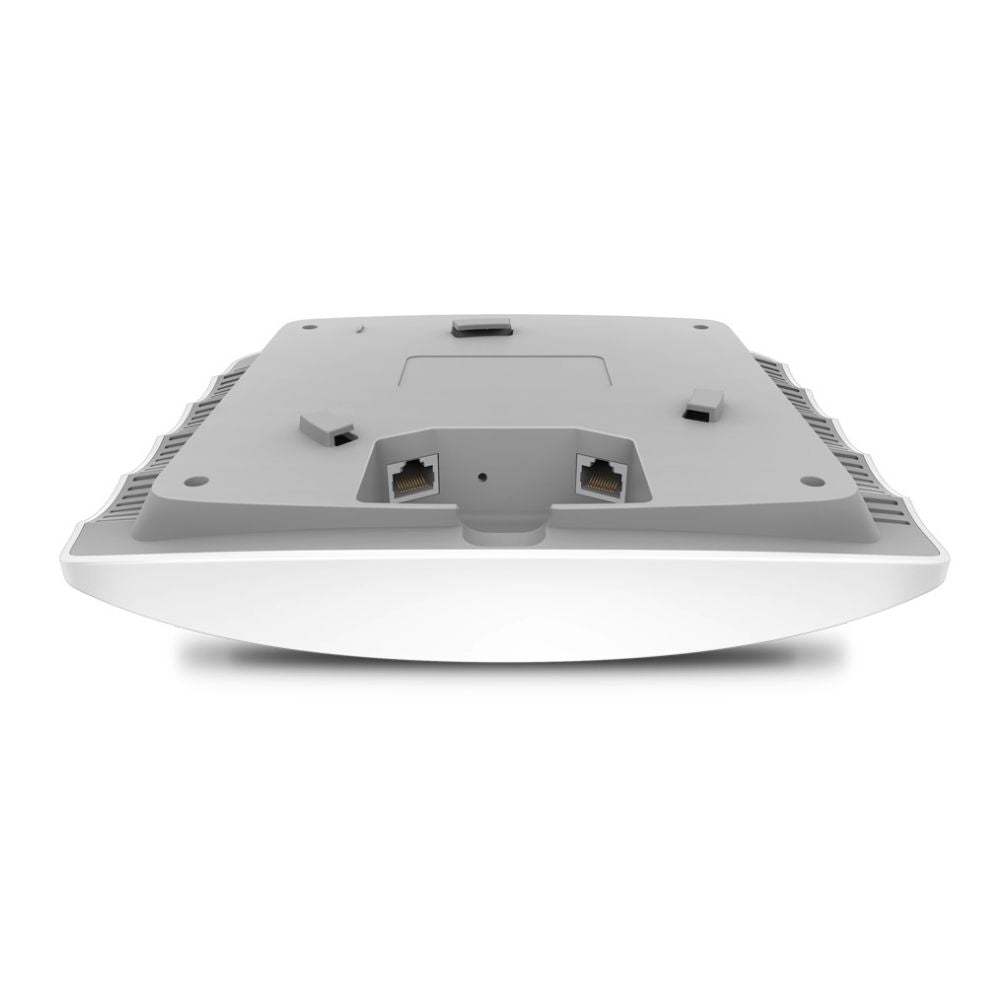

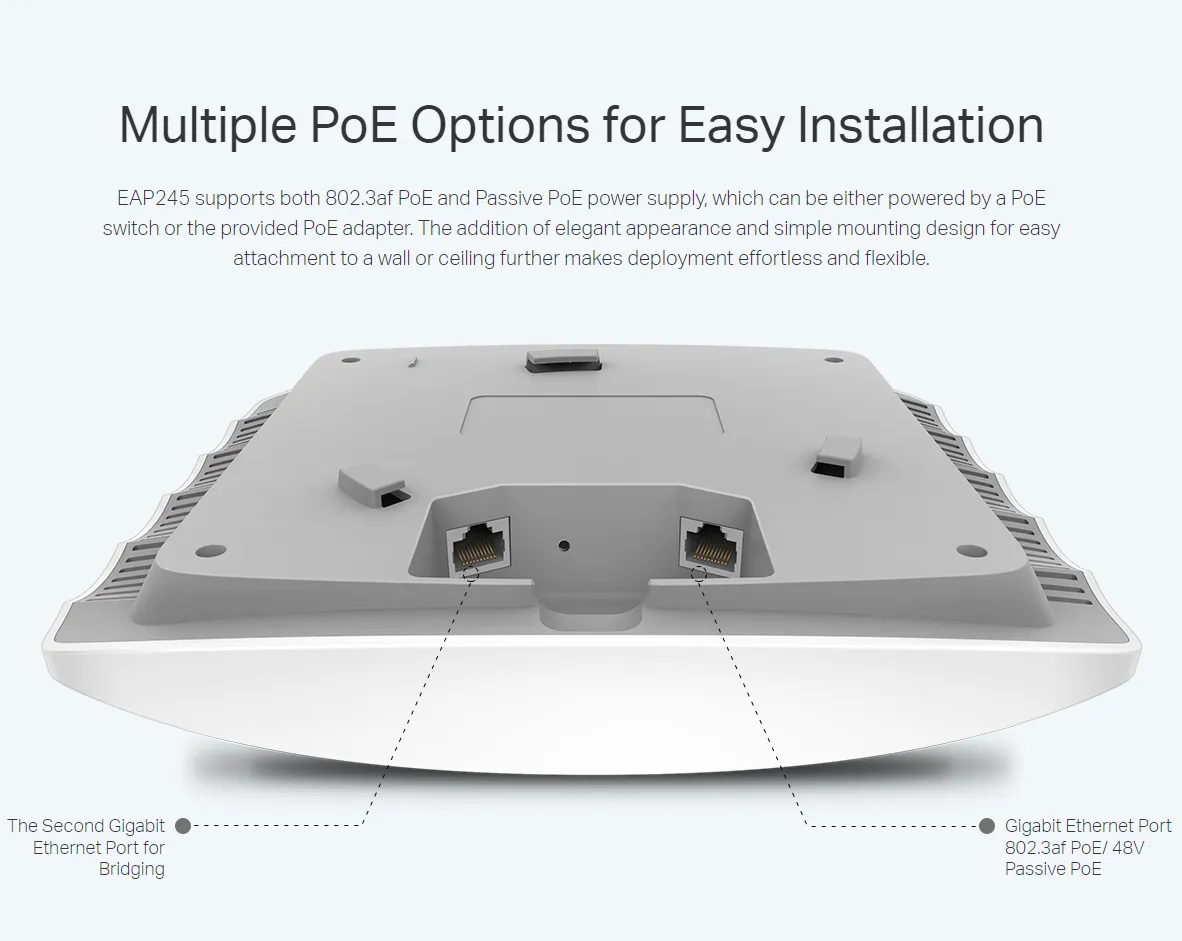

• 1x PoE-Compliant Gigabit Ethernet Port
• 1x Gigabit Ethernet Port
• Wall & Ceiling Mountable
• Includes Passive PoE Adapter

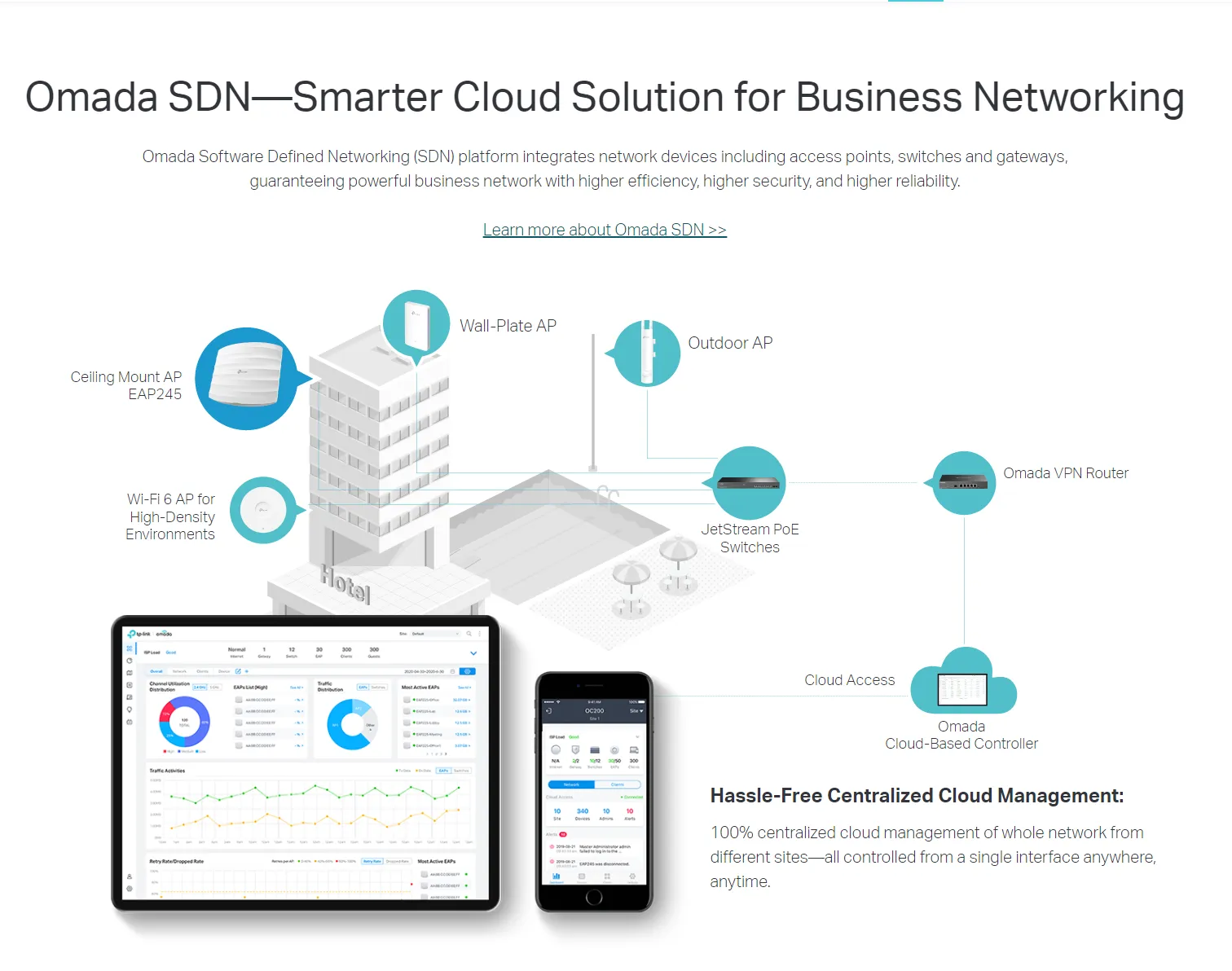

• Works with Omada Cloud Platform

Specifications:

• Brand: TP-Link
• Model: EAP245 V3
• Type: AC1750 Wireless Dual Band Gigabit Ceiling Mount Access Point

Wireless:

• Wi-Fi: Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) with MU-MIMO Support
• Number of Antennas: 3
• Antenna Gain: 4 dBi
• Transmit Power: 25 to 27 dBm
• Supported Protocols: Auto-MDIX/MDI
• Antenna Placement: Internal
• Bluetooth: No

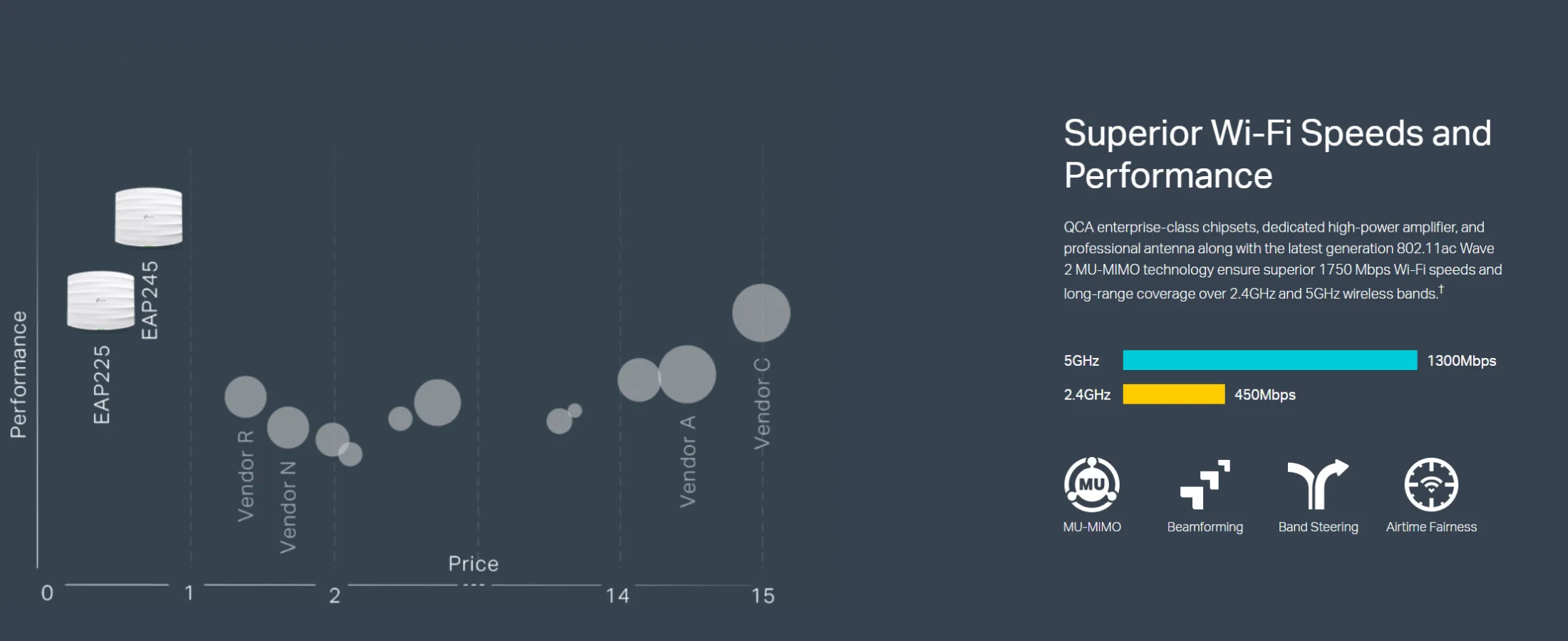

• Throughput:
• 1750 Mb/s Total
• 5 GHz: 1300 Mb/s
• 2.4 GHz: 450 Mb/s

Interface:

• Inputs/Outputs
• 1x RJ45 Gigabit Ethernet PoE (Unspecified)
• 1x RJ45 Gigabit Ethernet
• USB Sharing Support: No

Security:

• Guest Network Support: Yes
• Wireless Security: WEP, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK
• Lock Slot: No

Management:

• Operation Modes: Access Point, Bridge
• Max SSIDs Supported: 16
• Mobile App Compatible
• Yes: Android & iOS
• App Name: Omada

Hardware:

• Supported IEEE Standards: 802.11a, 802.11ac, 802.11b, 802.11g, 802.11n, 802.1x, 802.3af (PoE 15.4 W), 802.3at (PoE+ 30 W)

Electrical:

• Power Consumption: 12.3 W

General:

• Environmental Resistance: No
• Certifications: FCC, RoHS
• Operating Conditions: 32 to 104°F / 0 to 40°C at 10 to 90% Humidity
• Storage Conditions: -40 to 158°F / -40 to 70°C at 5 to 90% Humidity
• Mount Options: Wall, Ceiling
• Dimensions: 8.1 x 7.2 x 1.5" / 206 x 182 x 37 mm
