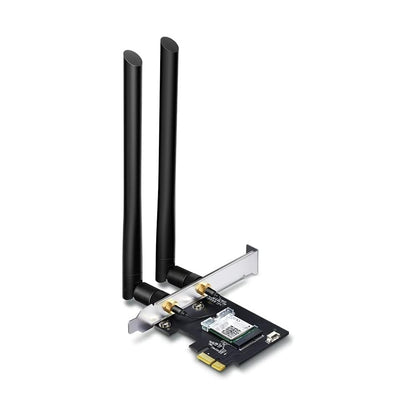

Archer T5E

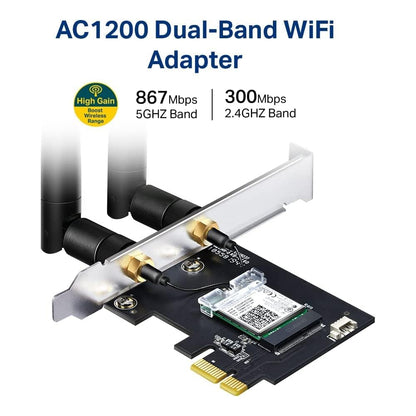

AC1200 Wi-Fi Bluetooth 4.2 PCIe Adapter
-
Ultra-Fast Speed – Make full use of your network with Wi-Fi speeds up to 1167 Mbps (867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band)
-

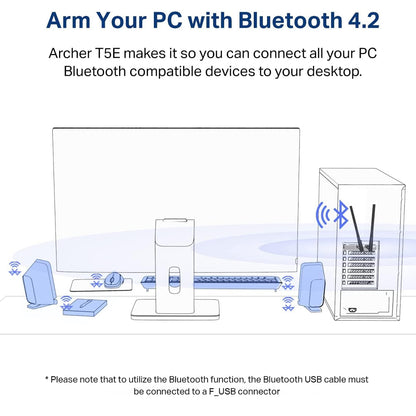

Bluetooth 4.2 – Achieve 2.5× faster speed and 10× more packet capacity than Bluetooth 4.0
-

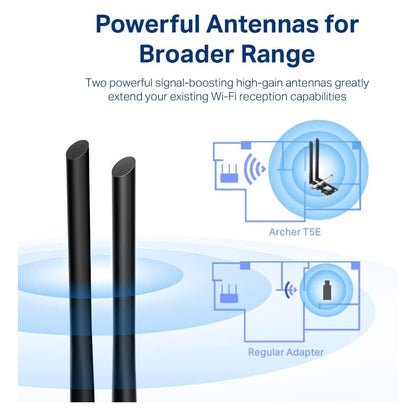

Broad Wireless Range
-
Connect to your Wi-Fi in more parts of your home with two external high-gain antennas ensuring greater coverage and enhanced stability
-

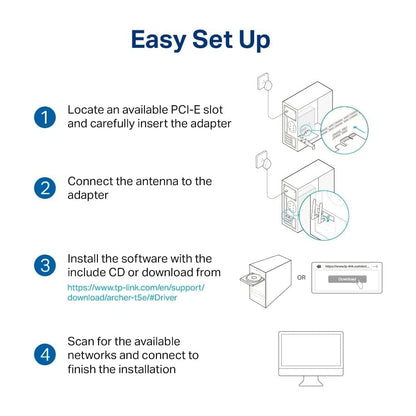

Easy Installation – Plug the adapter into an available PCI-E slot to upgrade your desktop
Features:
-
Antenna
2 Detachable External Antennas
-
Standards and Protocols
Bluetooth 4.2, Bluetooth 4.0
-
Wireless Standards
IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11a/n/ac 5 GHz
-
Signal Rate
11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz:
11n: Up to 300 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)
-
Reception Sensitivity
5 GHz:
11ac HT80: -59.0dBm
11n HT40: -68.5dBm
11a 54Mbps: -73.5dBm
11a 6Mbps: -91dBm
2.4 GHz:
11n HT40: -69.5dBm
11g 54Mbps: -74dBm
11b 11Mbps: -87dBm
-
Transmit Power
5 GHz: 21.5dBm(FCC) / 23dBm(CE) (EIRP)
2.4 GHz : 20.5dBm(FCC) / 20dBm(CE) (EIRP)
-
Wireless Modes
Infrastructure mode
-
Wireless Security
WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
-
Modulation Technology
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM
-
Certification
FCC, CE, RoHS
-
System Requirements
Windows 11/10/8.1/8/7 (32/64 bit)
-
Environment
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
