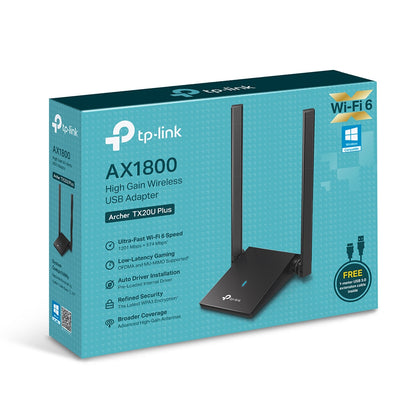

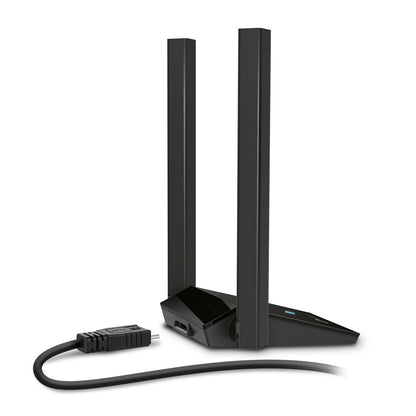

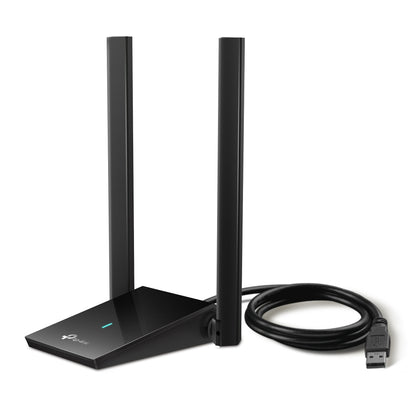

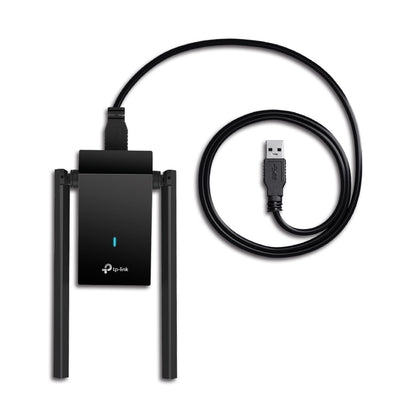

Archer TX20U Plus
AX1800 Dual Antennas High Gain Wireless USB Adapter
-
Lightning-Fast WiFi 6
Stream flawless video with 1800 Mbps wireless speeds (1201 Mbps on 5 GHz + 574 Mbps on 2.4 GHz)†
-
Flexible Dual Band
Ensure your PC has the best connection with 5 GHz and 2.4 GHz bands
-

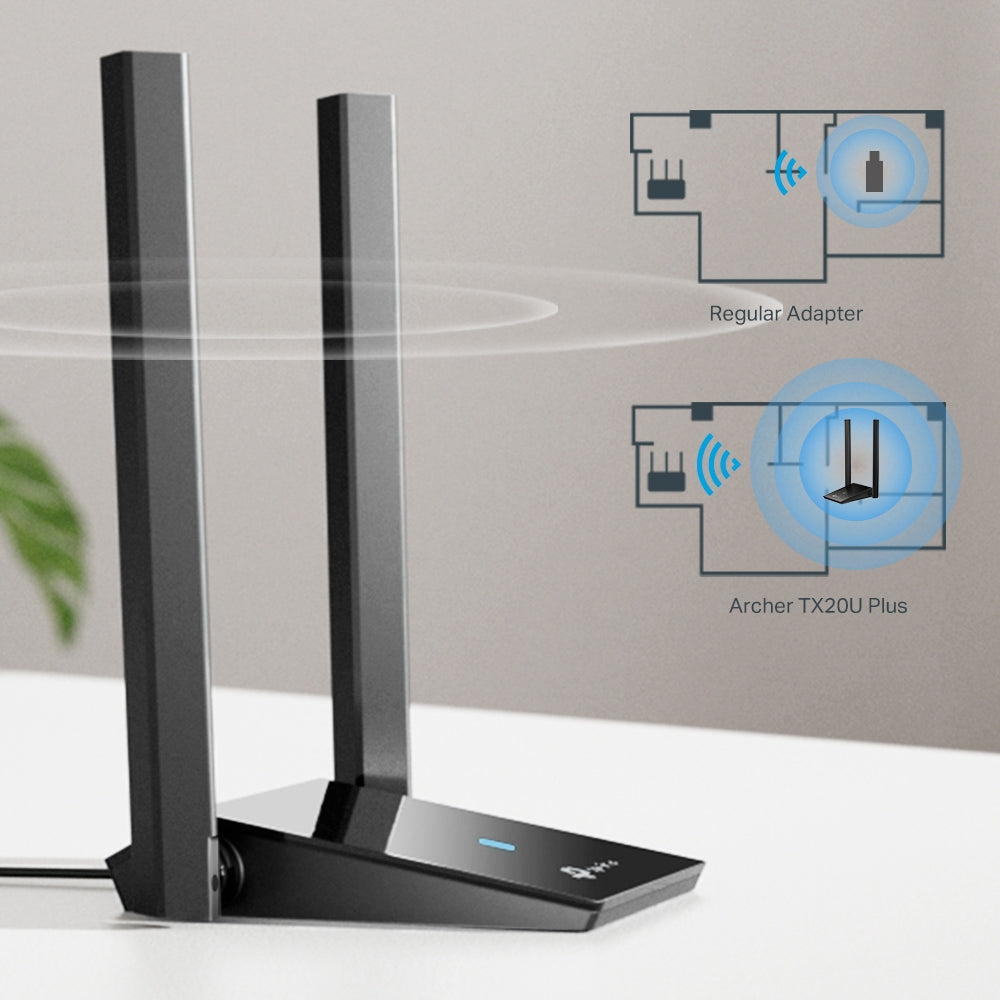

Dual High-Gain Antennas
Connect from farther away with high-quality signals and transmissions
-
MU-MIMO
Maintain high download and upload speeds even when other devices are eating up your bandwidth
-
OFDMA
Reduce your latency for impeccable conferencing and gameplay on crowded networks
-
SuperSpeed USB 3.0
Up to 10× faster transfer speeds than USB 2.0
-
Refined Security
Protect your personal data with the latest WPA3 encryption
Features:
-
Signal Rate
5 GHz:
11ax: Up to 1201 Mbps(dynamic)
11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz:
11ax: Up to 574 Mbps(dynamic)
11n: Up to 400 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)
-
Reception Sensitivity
5 GHz:
11ax HE80 MCS0: -90 dBm
11ax HE80 MCS11: -59 dBm
11a 54Mbps: -77 dBm
11ac VHT80 MCS0: -92dBm
11ac VHT80 MCS9: -64dBm
2.4 GHz:
11ax HE40 MCS0: -94 dBm
11ax HE40 MCS11: -66 dBm
11g 54Mbps: -79 dBm
11n HT40 MCS9: -74dBm
-
Transmit Power
5 GHz: 19dBm(FCC) /16dBm(CE) (EIRP)
2.4 GHz : 19dBm(FCC) / 14.5dBm(CE) (EIRP)
-
Wireless Modes
Infrastructure mode
-
Wireless Security
WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK
-
System Requirements
Supported operating systems include Windows 10, 11
