Description:

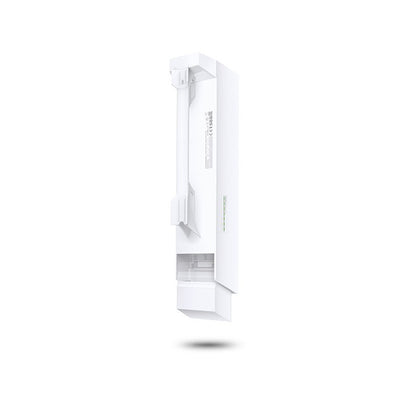

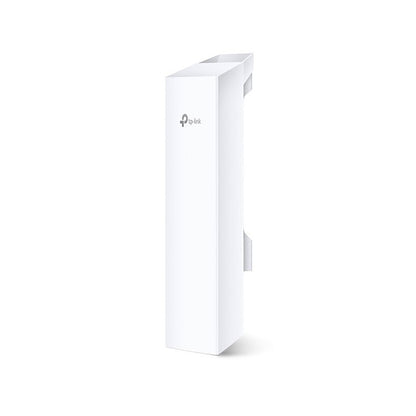

The CPE220 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE220 an ideal choice for both business and home users.
Features:
-
Built-in 12dBi 2x2 dual-polarized directional MIMO antenna
-
Adjustable transmission power from 0 to 30dBm/1000mw
-
System-level optimizations for more than 13km long range wireless transmission
-
TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
-
Centralized Management System – Pharos Control
-
AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes
-
Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely
-
Outdoor stabilized enclosure with IPX5 waterproof certification
-

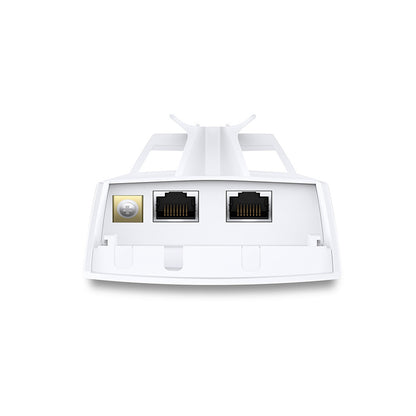

Dual Ethernet ports and grounding terminal integrated
-
6000V Lightning Protection, 15KV ESD Protection
-
Passive PoE Adapter supports up to 60 meters (200 feet) power over Ethernet deployment and allows for device reset remotely
-
Provides WEP, WPA/WPA2, WPA-PSK/WPA2-PSK data security
-
Selectable bandwidth of 5/10/20/40MHz
-
Provides Throughput Monitor, Spectrum Analyzer, Speed Test and Ping tools
-
Easy antenna alignment with wireless signal quality indicators via Web interface
