TP-Link AC1200 Wall-Mounted Wireless MU-MIMO Gigabit Dual Band Wall Plate Access Point with 867Mbps at 5GHz, 300Mbps at 2.4GHz, Uplink / Downlink RJ45 Port, PoE / PoE Passthrough, Beamforming, Omada SDN, Load Balance | EAP235 EAP230

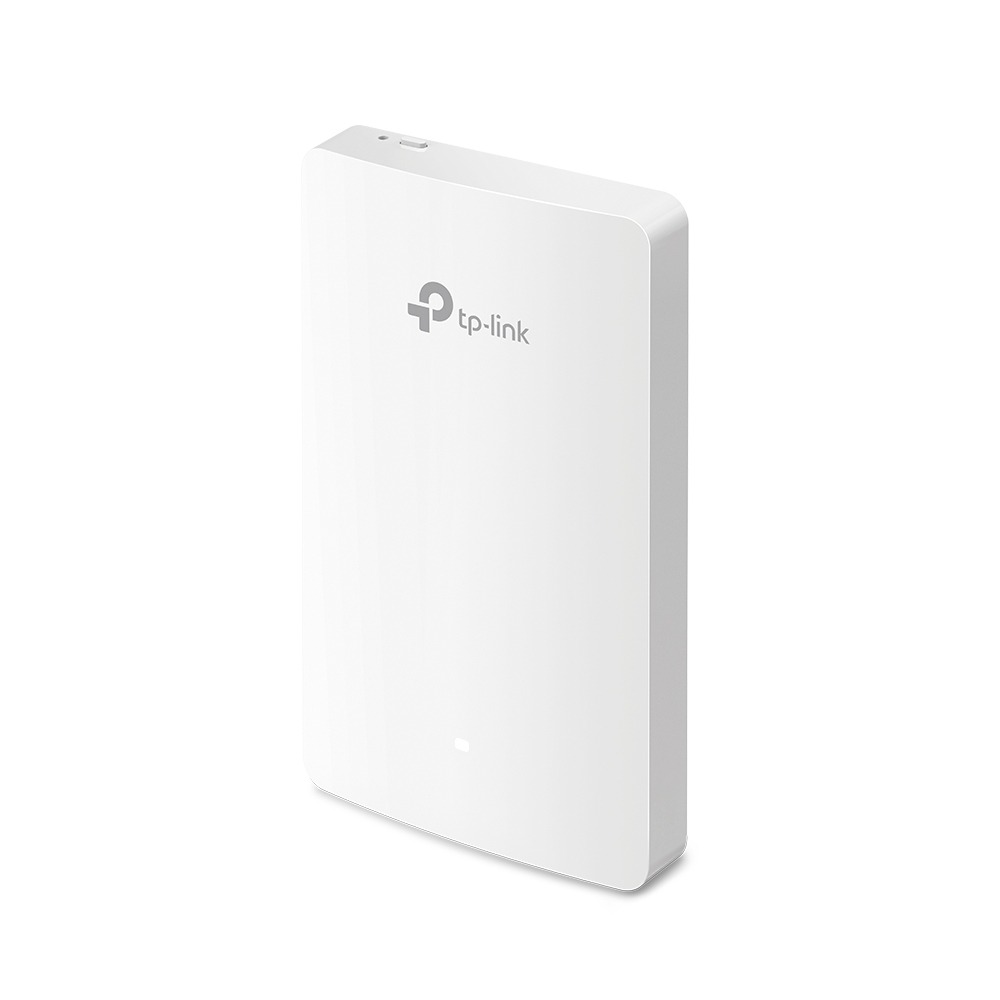

EAP235-Wall
Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point

• Omada SDN Ready: Ready for Omada SDN controller for centralized management and monitoring.
• Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds.
• Four Gigabit Ports: 4 Gigabit Ethernet ports, one uplink and three access ports. PoE pass-through is available on one of the access port providing power for desk phones, cameras or other PoE devices.
• Centralized Management: Cloud access and Omada app for mobility and easy management.
• Elegant Appearance: Ultra slimmest and conspicuous design blends the access point into the walls of hotel rooms, hospitals, offices, and dormitories.
• Easy Installation and PoE Support: Easy-mount construction, compatible with US, EU and 86mm junction boxes with PoE support.
• Customer Oriented Guest Network: Along with multiple ways of login (SMS, Facebook Wi-Fi, Voucher, and customizable captive portal) allows guest access smoothly and friendly.
• Advanced Wireless Tech: Optimize network performance with airtime fairness, band steering, and beamforming technologies.

Specifications:

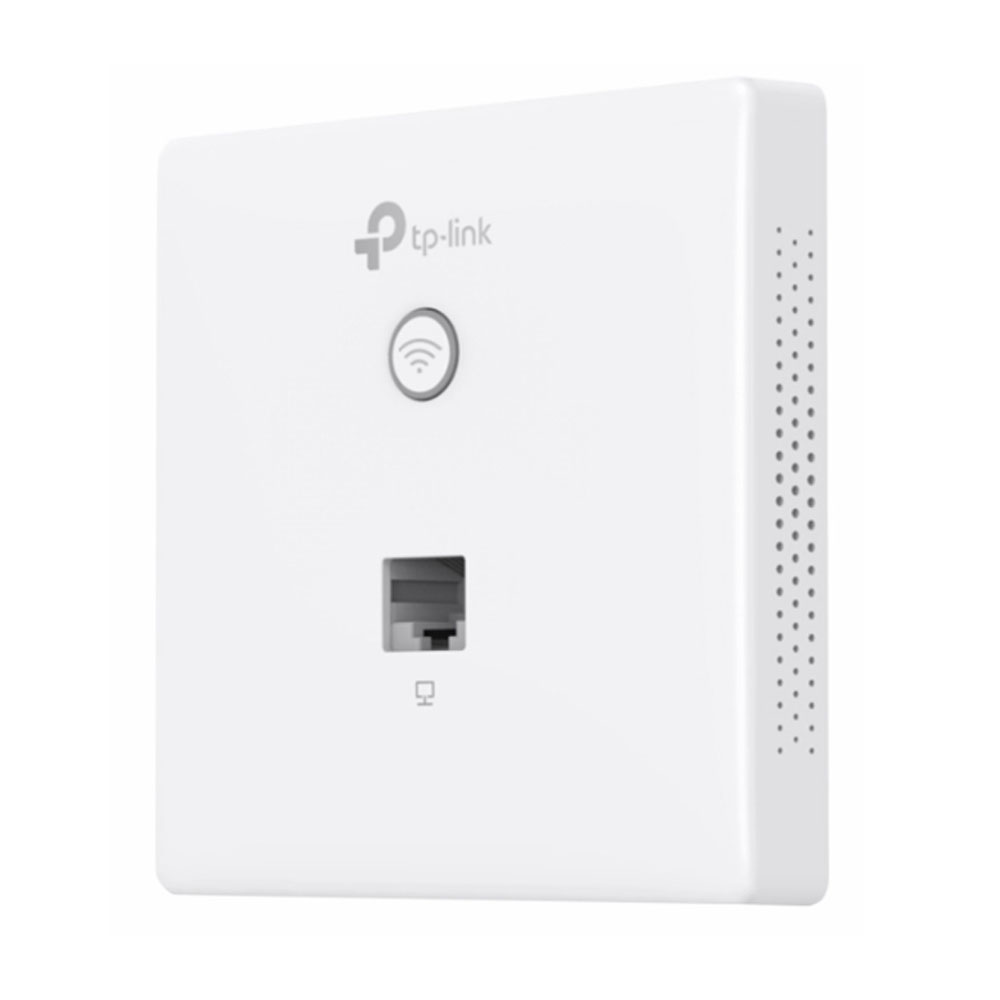

EAP230-Wall
Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point

• Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds with MU-MIMO.
• Gigabit Ports: 2 Gigabit Ethernet ports (1× uplink + 1× downlink).
  Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.
• Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
• Private Connection for Every Room: Designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories.
• Elegant Appearance: Unprecedented thin design with just 11 mm, the same size and shape as a light switch or power outlet faceplate to fit perfectly in any room.
• Easy Installation and PoE Support: Easy-mount construction, compatible with 86 mm & EU standard junction box, and 802.3af/at PoE support.
• Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

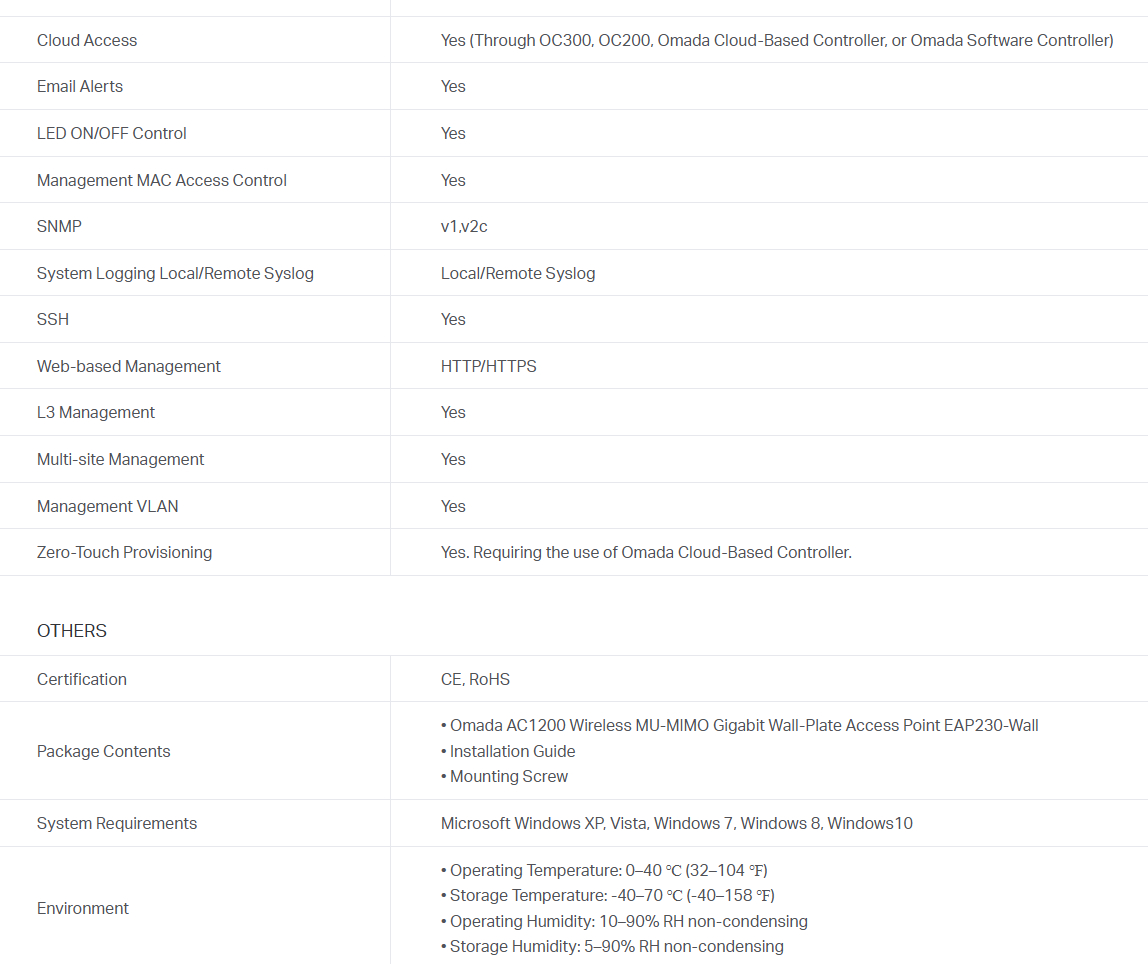

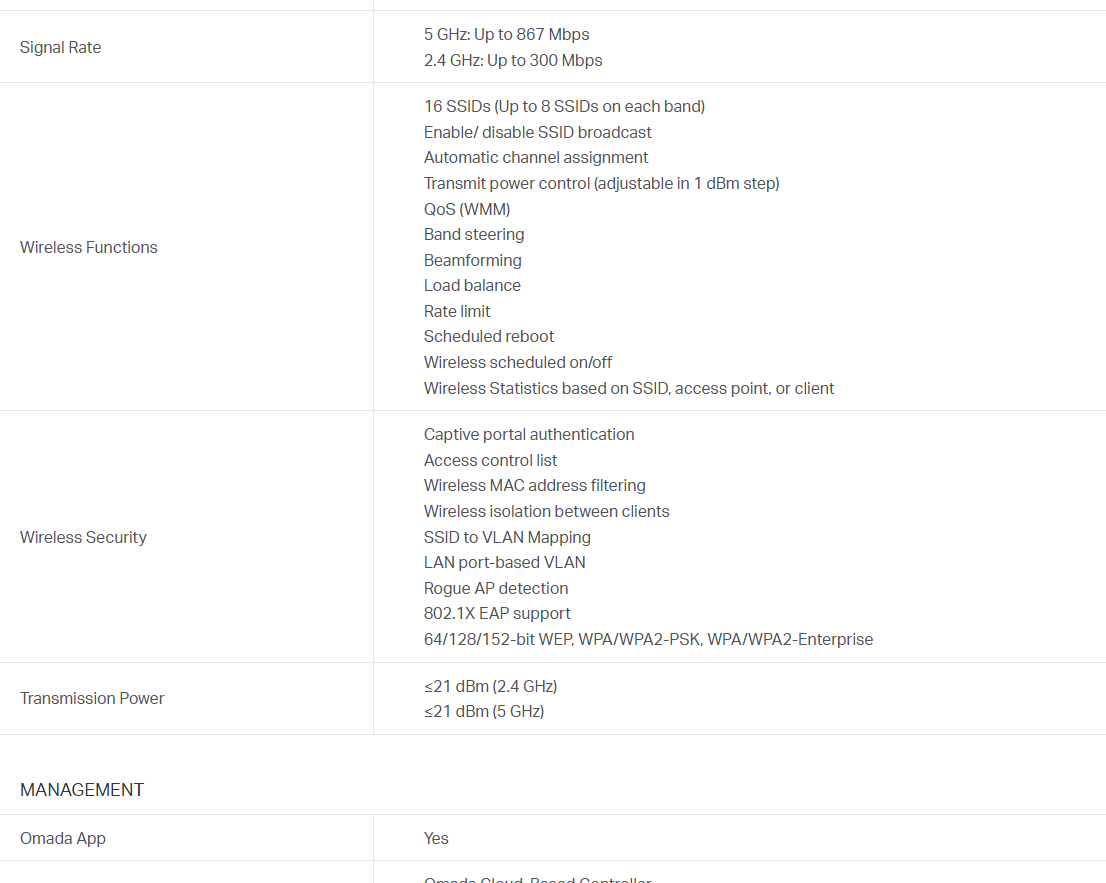

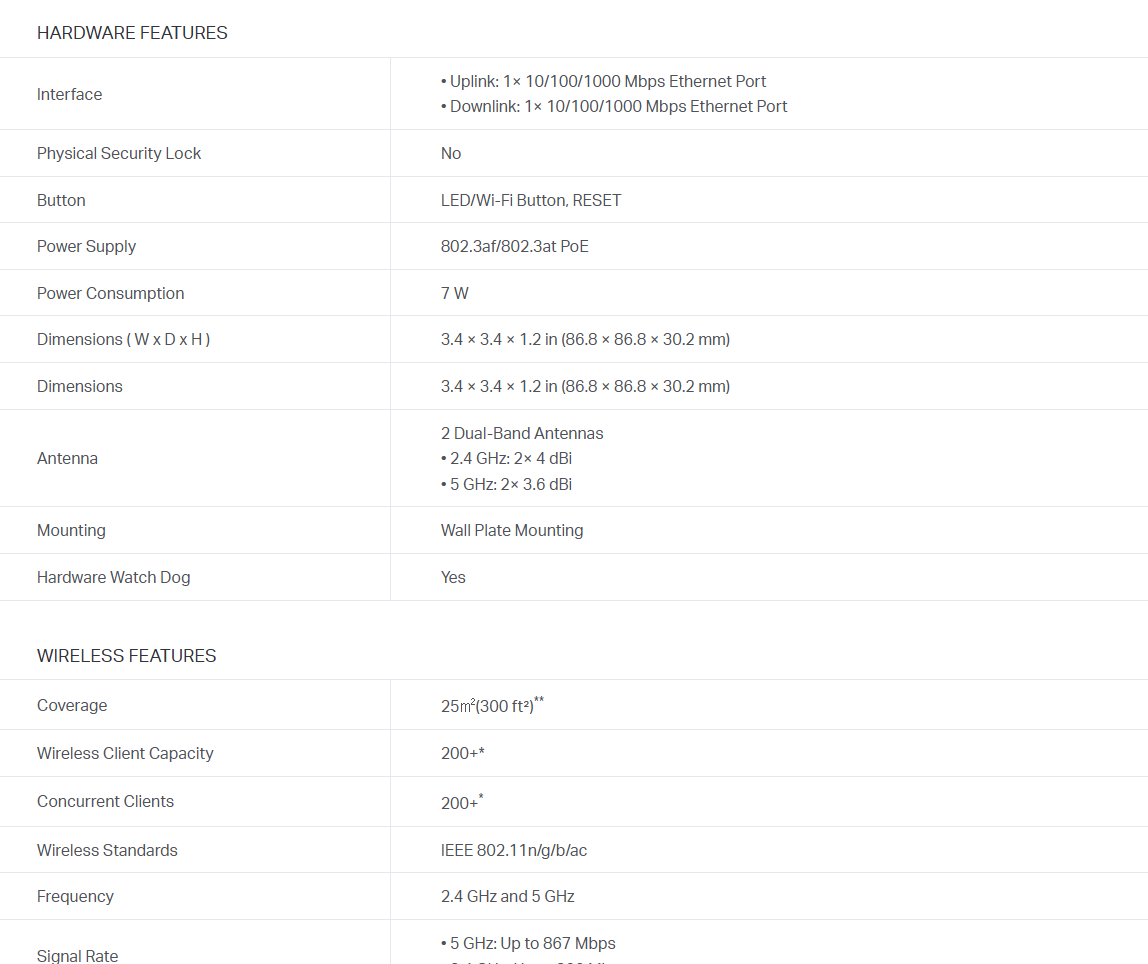

Specifications:
