Description:
-
10/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
-

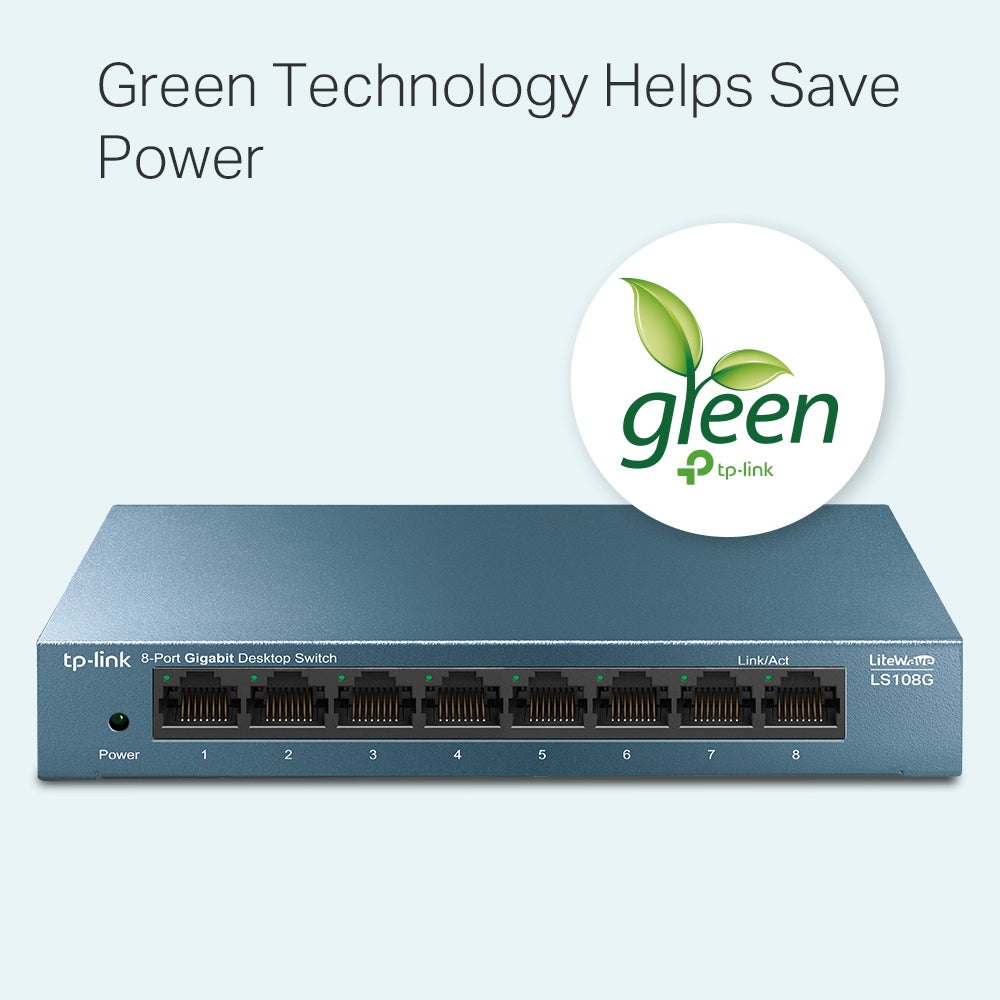

Green Ethernet technology saves power
-
IEEE 802.3X flow control provides reliable data transfer
-

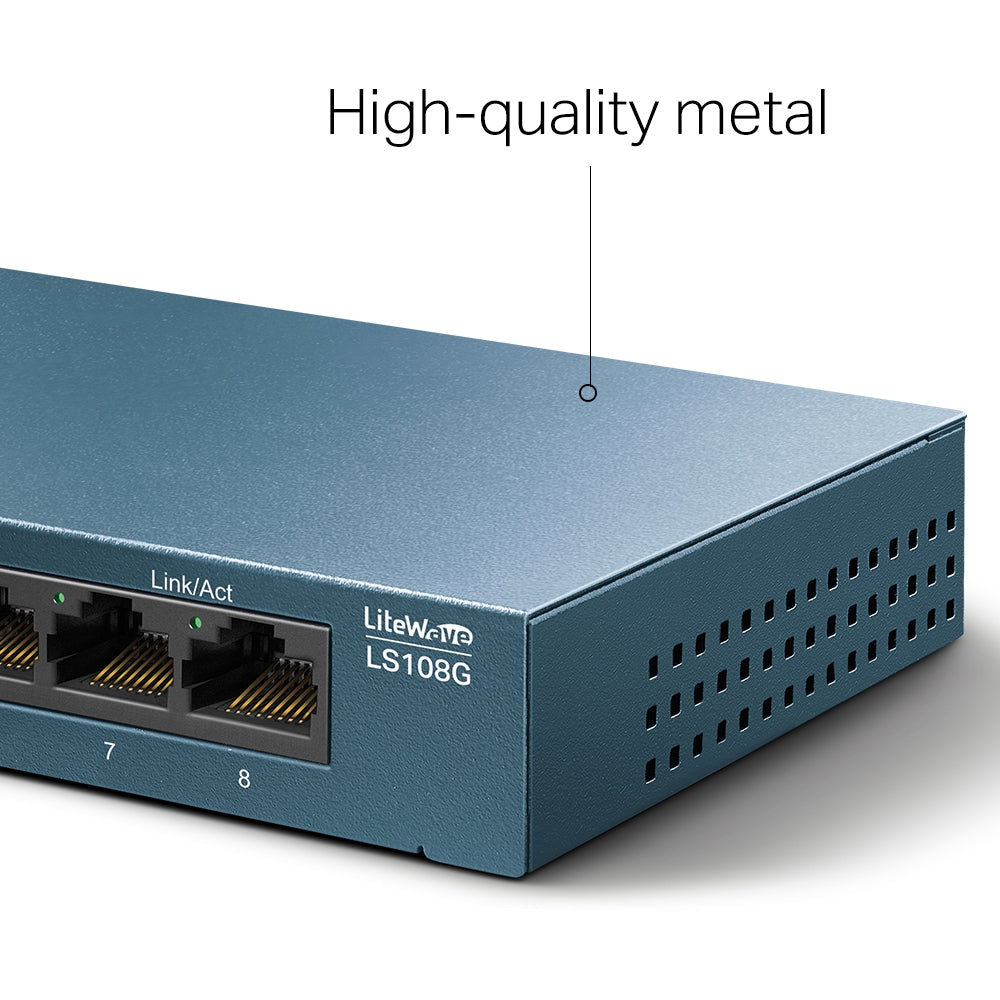

Steel housing, desktop or wall-mounting design
-
Support 802.1p/DSCP QoS function
-
Plug and play, no configuration needed
Features:
-
802.1p / DSCP QoS
-
MAC Address Learning
-
Auto-Negotiation Ports
-
Auto MDI/MDIX Ports
-
Fanl-ess Design ensures quiet operation
Specifications:
- Brand: TP-Link
- Model(s): LS108G
- Standards and Protocols: IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p
- Interface: 8 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
- Max Heat Dissipation: 12.617 Btu/hr
- Packet Forwarding Rate: 11.9 Mpps
- MAC Address Table: 4K
- Packet Buffer Memory: 1.5 Mb
- Jumbo Frame: 16 KB
- Fan Quantity: Fan-less

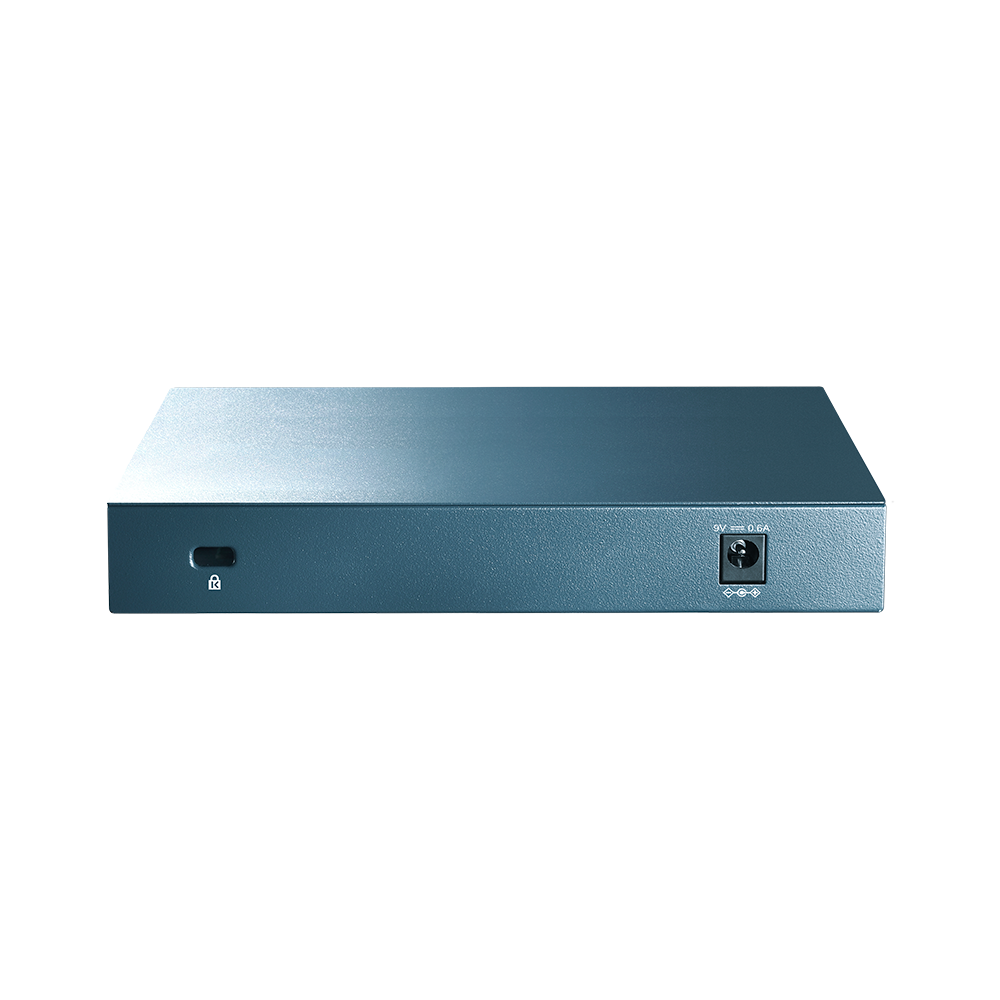

- External Power Adapter: V1, V3: 9VDC / 0.6A - V2: 5VDC / 0.6A
- LED Indicator: System Power / Link/Act indicators per port built into each RJ-45 port
- Max Power Consumption: 3.7W(220V/50Hz)
- Max Heat Dissipation: 12.617 Btu/hr
- Green Technology
- 802.3X Flow Control
- 802.1P/DSCP QoS
- Transfer Method: Store and Forward
What's in the Box:
8-Port 10/100/1000Mbps Desktop Switch • Power Adapter • Installation Guide
