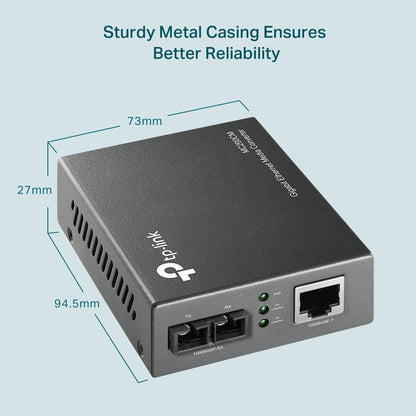

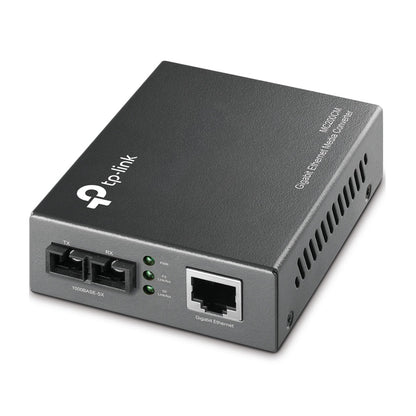

MC200CM
Gigabit Multi-Mode Media Converter
The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data.
Features:
-
10/100/1000 Mbps RJ45 to 1000 Mbps Multi-mode SC Fiber Converter
-

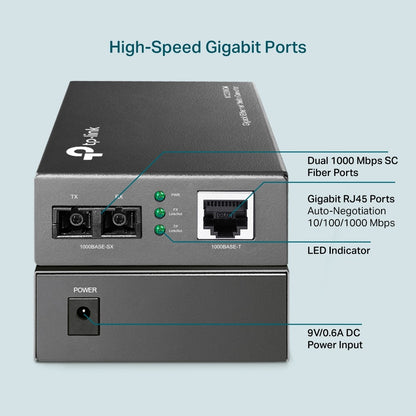

PORT: 1× Gigabit SC/UPC Port, 1× Gigabit RJ45 Port (Auto MDI/MDIX)
-
SPEC: Full-duplex, Up to 550 m, Chassis TL-MC1400 Rack-mountable
-

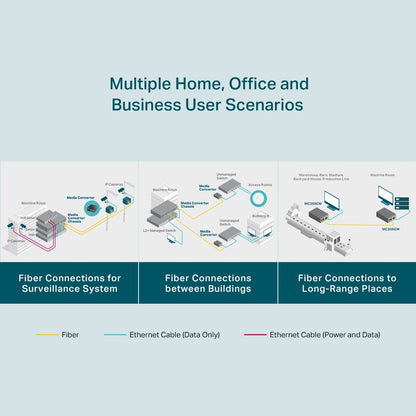

Connects Fiber Lines with Copper Lines
-
1 x 100M SC/UPC Port
-
1 x 10/100M RJ45 Port
-
Extends Fiber Distance up to 1800'
-

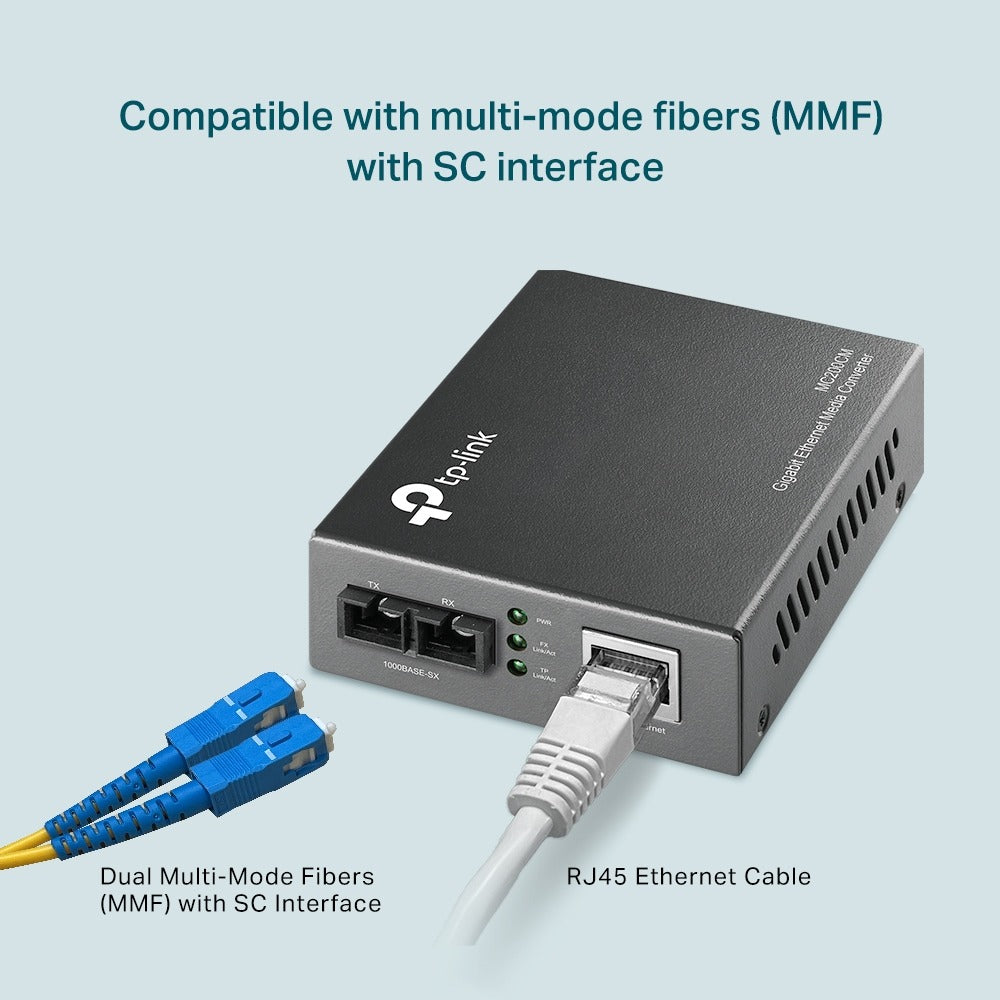

Multi-Mode Fiber
-
IEEE 802.3i, 802.3u, 802.3ab, 802.3z
-
850nm Wave Length
