TP-Link Omada EAP115-Bridge Kit 5GHz 300 Mbpss Long-Range Indoor/Outdoor Wifi Wireles Bridge

₱6,390.00
₱6,390.00 ₱8,627.00
Sale Sold out
Tax included. Shipping calculated at checkout.
View Product Details

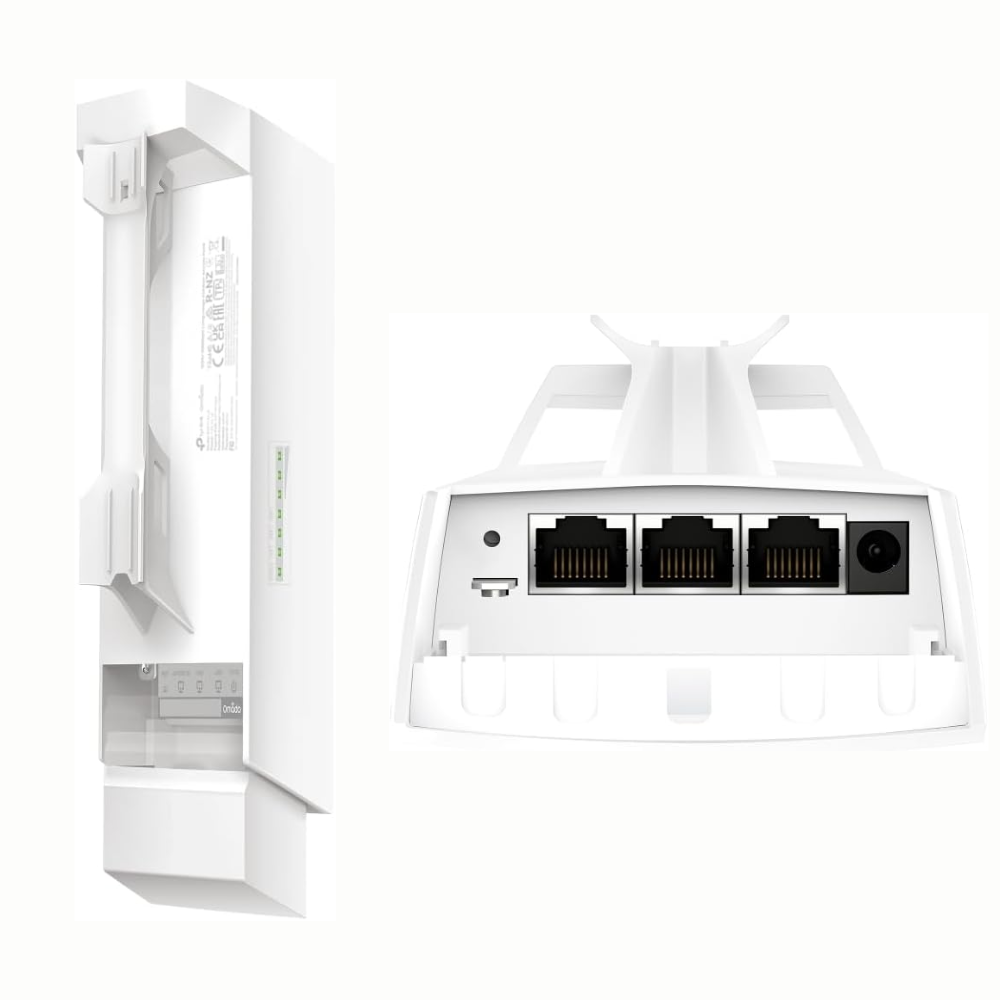

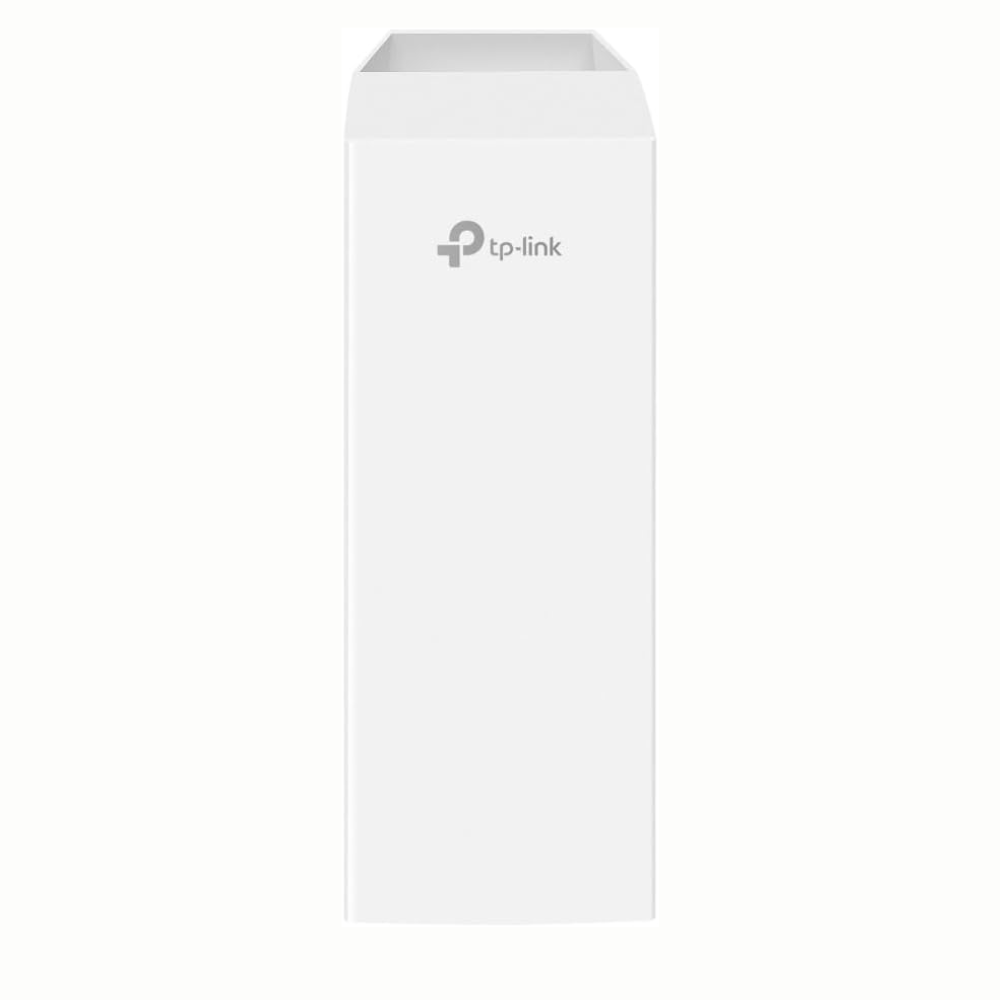

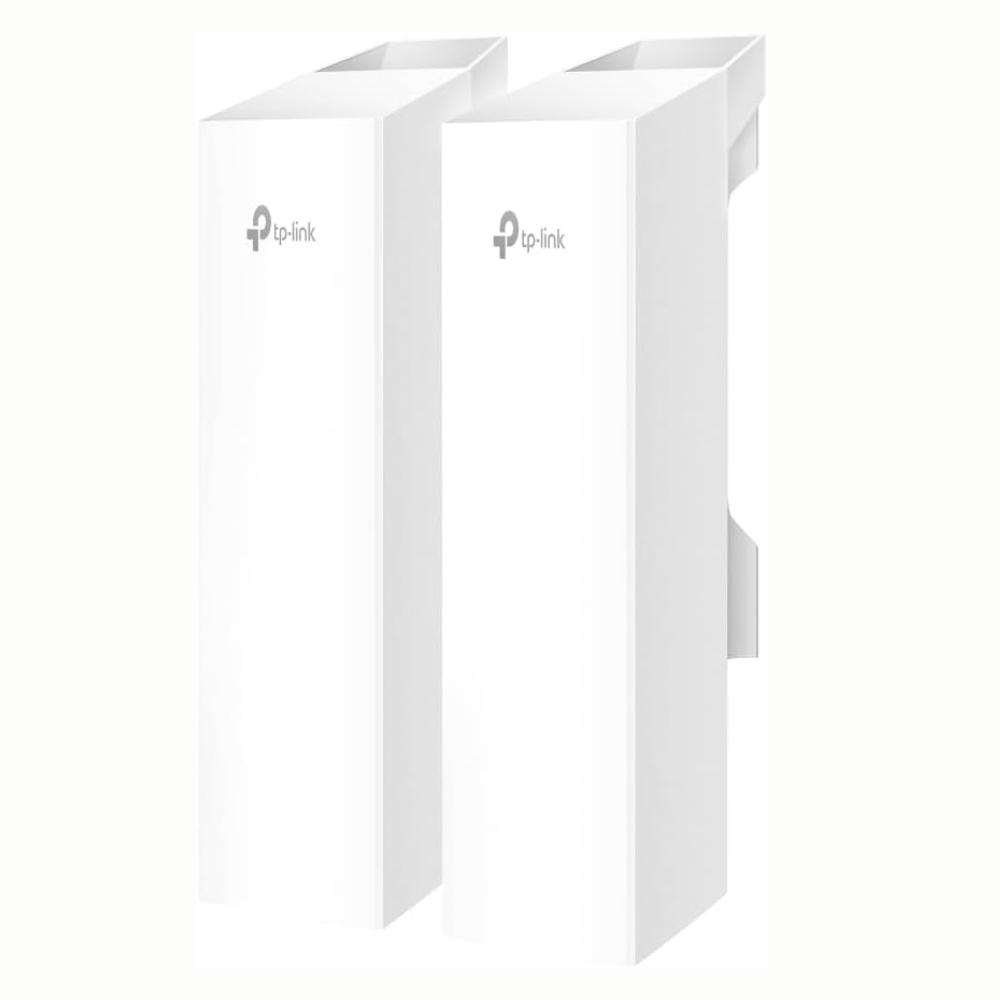

TP-LINK EAP115-BRIDGE KIT

Overview

Link your remote camera and access point installations with your main network using this TP-Link Omada EAP115 Wireless 5 GHz Outdoor Network Bridge Kit. This kit includes two weatherproof Wi-Fi 4 (802.11n) bridge modules that have a range of up to 3.1 miles.

Supporting Point-to-Point (PtP) installations, this pole mountable kit supports up to 300 Mb/s transfers over the 5 GHz band. Your devices may be connected through the three 10/100 Mb/s Ethernet ports. The included passive PoE adapters allow you to transfer power and data over a single cable. Configure and manage your devices from almost anywhere using the Omada app or web interface.

Key Features

  • 2 x Bridge Modules
  • Wi-Fi 4 (802.11n)
  • Up to 300 Mb/s Data Throughput
  • Up to 3.1-Mile Range
  • 5 GHz Single Band
  • 70° Beamwidth
  • 3 x 10/100 Mb/s Ethernet Ports
  • IP65 Rated Weatherproof
  • Pole Mountable
  • Includes Passive PoE Adapters
  • "Supports 802.11n Wi-Fi with speeds up to 300 Mbps on the 5 GHz band.
  • Ideal for long-range wireless transmission up to 5 km.
  • Auto-pairing and agile LEDs for efficient deployment.
  • 10/100 Mbps Ethernet ports for more high-speed IP camera connections.
  • Supports Omada SDN for remote and centralized management.
  • IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability.
  • Supports Passive PoE for flexible deployment "

Specification

HARDWARE FEATURES

  • Interface: 3x 10/100 Mbps Ethernet Ports*6
  • Button: Reset
  • Power Supply: 12V DC / 24V Passive PoE (Passive PoE adapter included.)
  • Power Consumption: 6.5W
  • Dimensions ( W x D x H ): 3.1 x 2.4 x 8.8 in (79 × 60 × 224 mm)

Antenna Type

  • Internal 2×2 Dual-polarized directional MIMO antennas
  • 5 GHz: 11.0 dBi
  • Horizontal:35°, Vertical: 35°
  • Weatherproof Enclosure: IP65
  • Mounting: Pole mounting (Accessories included)

WIRELESS FEATURES

  • Coverage: 5000m(16400ft)5
  • Wireless Standards: IEEE 802.11 a/b/g/n
  • Frequency: 5 GHz
  • Signal Rate: 5 GHz: Up to 300 Mbps

Wireless Functions

  • Mesh*4
  • Load Balance
  • Beamforming
  • Airtime Fairness
  • Multiple SSIDs:8
  • Wireless Statistics
  • Wireless Schedule
  • Reboot Schedule
  • RADIUS Accounting
  • MAC Authentication
  • Static IP/Dynamic IP

Wireless Security

VLAN

  • Access Control
  • Rogue AP Detection
  • Captive Portal Authentication*4
  • Maximum number of MAC Filter: 4,000
  • WPA-Personal/Enterprise, WPA2-Personal/Enterprise

Transmission Power

CE:

  • <23dBm (5 GHz, band 1/2, EIRP);
  • <30dBm (5 GHz band3, EIRP);

FCC:

  • <22dBm (5 GHz band1/4)

MANAGEMENT

  • Omada App: Yes
  • Restore & Backup: Yes
  • Firmware update via Web: Yes
  • NTP: Yes
  • Centralized Management
  • Omada Hardware Controller (OC300)
  • Omada Hardware Controller (OC200)
  • Omada Software Controller
  • Omada Cloud-Based Controller
  • Cloud Access: Yes. Require the use of OC300, OC200, the
  • Omada Software Controller, or Omada Cloud-Based Controller.
  • LED ON/OFF Control: Yes
  • Management MAC Access Control: Yes
  • SNMP: v1, v2c, v3
  • SSH: Yes
  • Web-based Management: Yes
