Description:
-
5× 10/100/1000 Mbps RJ45 ports
-

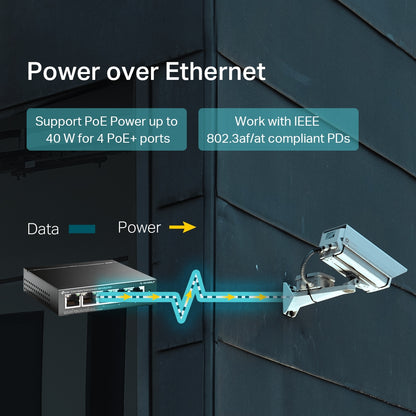

With four PoE+ ports, transfers data and power on one single cable
-
Works with IEEE 802.3af/at compliant PDs
-
802.1p/DSCP QoS enable smooth latency-sensitive traffic
-
Supports PoE Power up to 30 W for each PoE port
-
Supports PoE Power up to 40 W for all PoE ports*
-

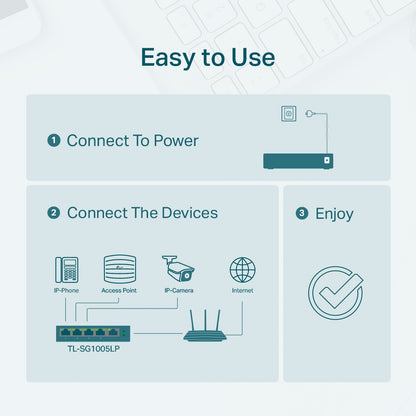

Plug and play, no configuration and installation required
Specifications:
- Brand: TP-Link
- Model(s): TL-SG1005LP
- Interface
- 5× 10/100/1000Mbps RJ45 Ports
- AUTO Negotiation
- AUTO MDI/MDIX
- Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- Fan Quantity: Fanless
- External Power Supply: External Power Adapter (Output: 53.5 VDC / 0.81 A)
- Packet Forwarding Rate: 7.44 Mpps
- PoE Ports (RJ45)
- Standard: 802.3 af/at compliant
- PoE Ports: Ports 1–4
- Power Supply: 40 W
- Mac Address Table: 2K
- Jumbo Frame: 16 KB
- Switching Capacity: 10 Gbps
- Dimensions ( W x D x H ): 3.9×3.9×1.0 in (99.8×98×25 mm)
- Max Power Consumption
- 4.12 W (220/50 Hz. no PD connected)
- 47.5 W (220/50 Hz. with 40 W PD connected)
- Max Heat Dissipation
- 14.05 BTU/h (no PD connected)
- 161.98 BTU/h (with 40 W PD connected)
- Compatible With IEEE 802.3af/at Compliant PDs
- Mac Address Auto-Learning And Auto-Aging
- IEEE 802.3x Flow Control
- 802.1p/DSCP QoS
- IGMP Snooping
- Transfer Method: Store-And-Forward
What's in the Box:
5-Port Gigabit Desktop Switch • Power Adapter • Installation Guide
