Description:
-

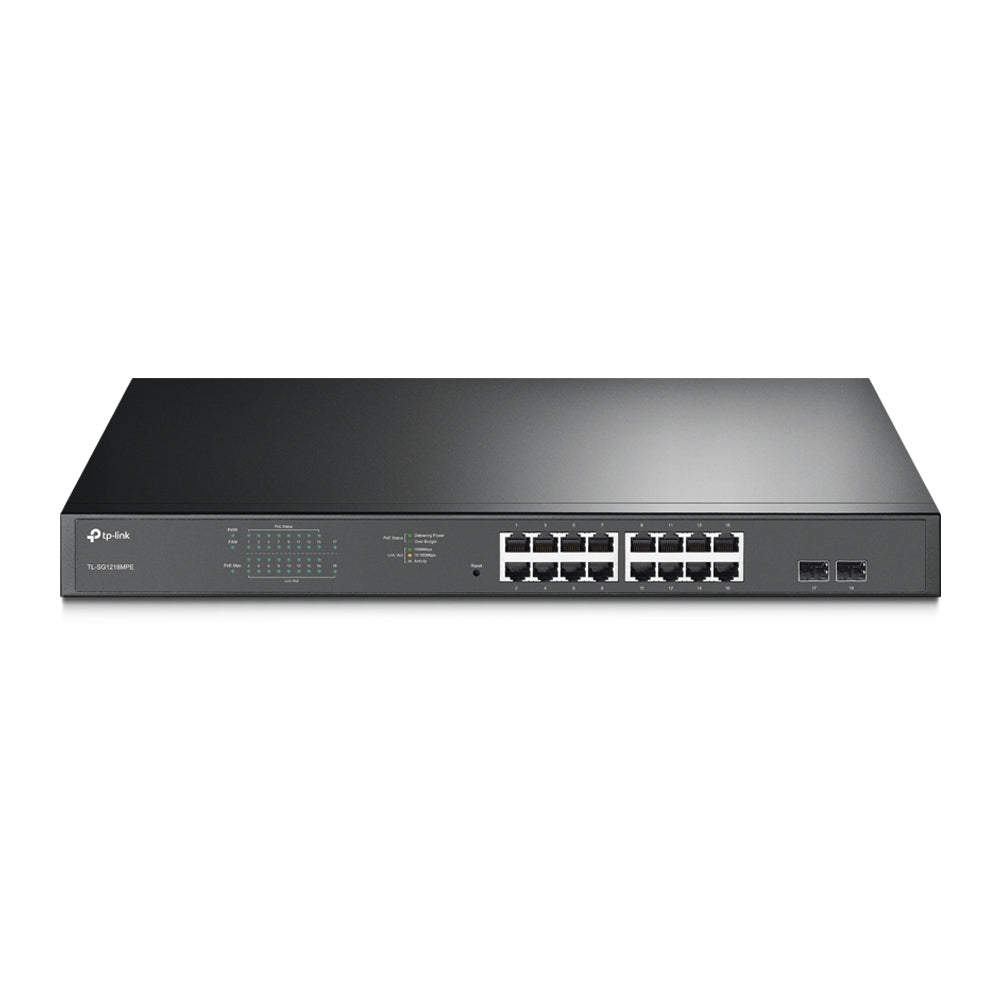

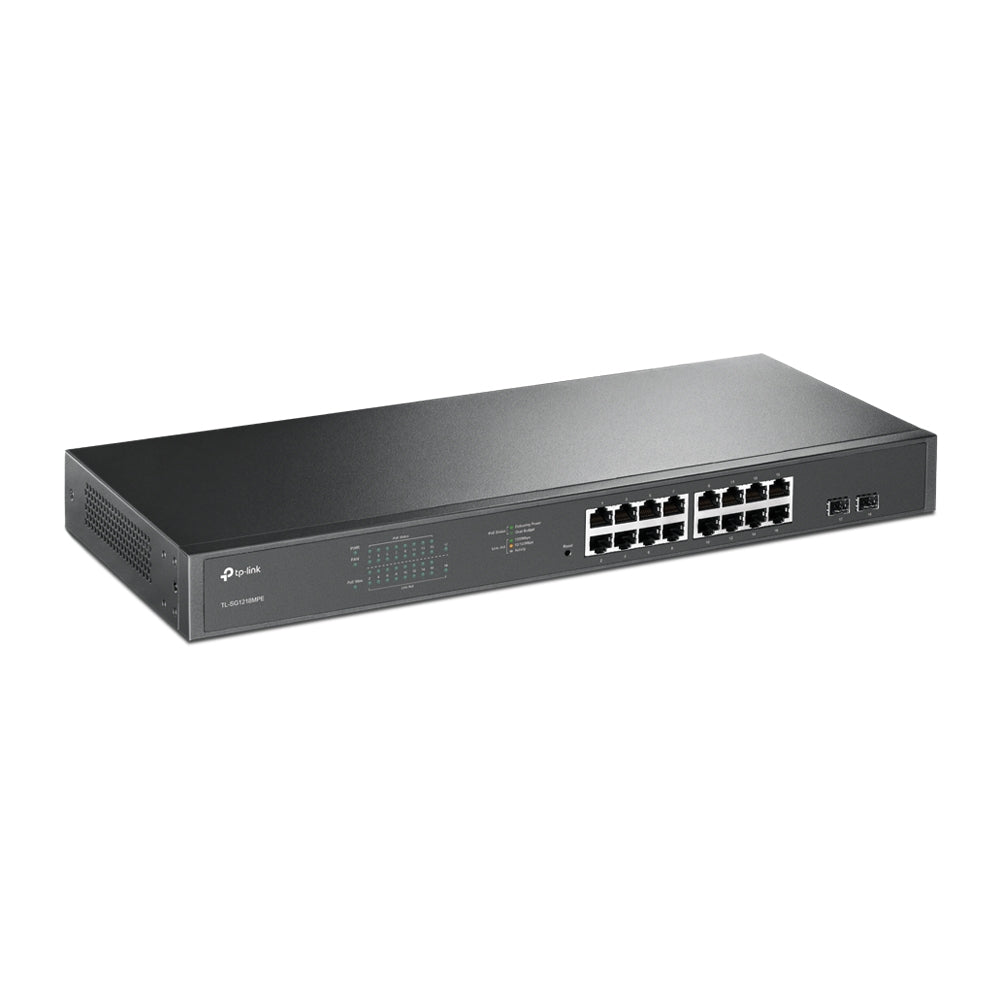

16 10/100/1000Mbps RJ45 PoE+ Ports Switch with 2 SFP Slots
-
PoE power budget is up to 192W, making it ideal for small to medium business surveillance systems
-
Port Priority is able to guarantee the quality of sensitive application like video monitor
-

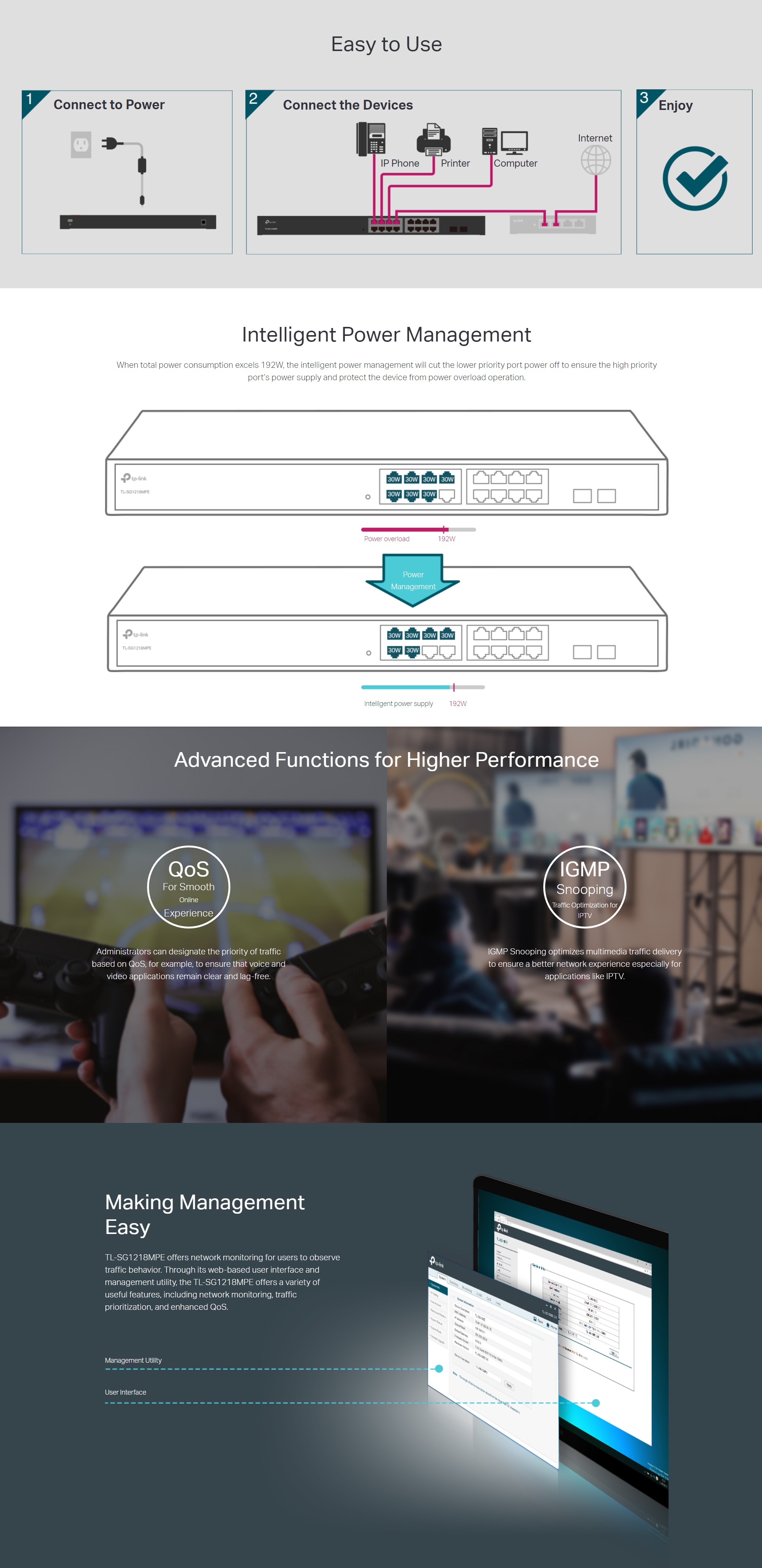

Intelligent power management can protect the switch from overload
-
QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV.
Other Details:
-
Quality of ServiceS
-
Support Port-based 802.1p/DSCP priority
-
Support 4 priority queues
-
Rate Limit
-
Storm Control
L2 Features:
-
IGMP Snooping V1/V2/V3
-
Static Link Aggregation
-
Port Mirroring
-
Cable Diagnostics
-
Loop Prevention
VLAN:
-
Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)
-
MTU/Port/Tag VLAN
Management:
-
Web-based GUI
-
Easy Smart Configuration Utility
Transmission Method:
-
Store-And-Forward
Specifications:
- Brand: TP-Link
- Model(s): TL-SG1218MPE
- Standards and Protocols
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
- IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
- Switching Capacity: 36 Gbps
- Packet Forwarding Rate: 23.8 Mbps
- MAC Address Table: 8K
- Packet Buffer Memory: 4.1 Mbit
- Jumbo Frame: 9 KB
- Interface / Ports: 16 10/100/1000 Mbps RJ45 Ports / (Auto Negotiation/Auto MDI/MDIX) / 2 Gigabit SFP Ports
- Fan Quantity: 2 Fans
- Mounting: Rack Mountable
What's in the Box:
- JetStream 16-Port Gigabit Easy Smart PoE+ Switch
- Power Cord
- Installation Guide
- Resource CD
- Rackmount Kit
- Rubber Feet
