Key Features
- 2MP Full HD Video with 1920 × 1080 resolution
- 24-Hour Full-Color Surveillance with LightPro Night Vision
- Human & Vehicle Classification for more accurate detection and alerts
- Smart Detection including intrusion, line-crossing, region entry/exit and motion detection
- 4-Channel PoE+ NVR with Plug & Play camera connection and power over Ethernet
- H.265+ Video Compression to reduce bandwidth and storage requirements
- Built-In Microphones on C320 and C420 for audio recording
- Remote Monitoring via VIGI App, Web UI and VIGI VMS
Specifications
- Brand: TP-Link
- Model: VIGI KIT-3 2MP-44
- Product Type: 4-Channel IP CCTV Surveillance Kit

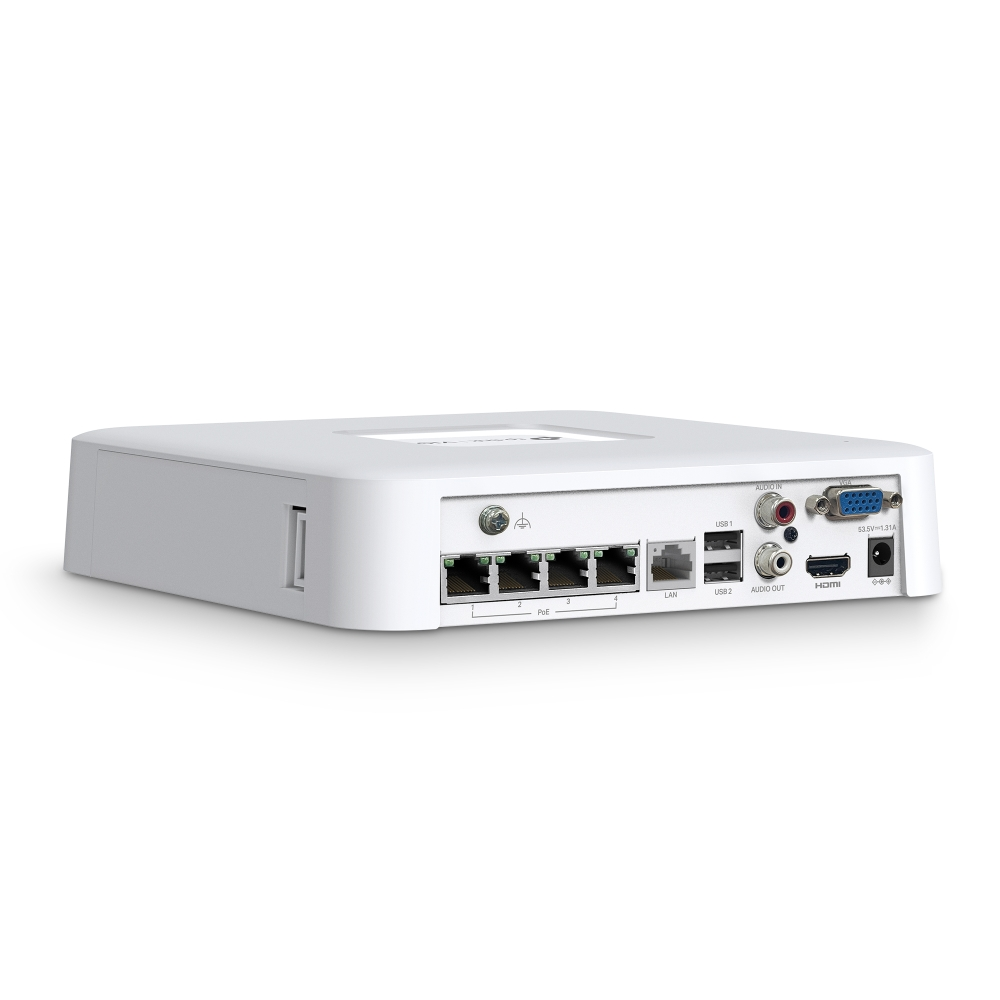

VIGI NVR1104H-4P
- Channels: 4-Channel IP Video Input
- Video Resolution: Up to 8MP per camera; 4K HDMI Output
- PoE: 4× 10/100Mbps PoE+ Ports; 53W Total PoE Budget
- Storage: 1× SATA HDD, up to 10TB
- Video Compression: H.265+, H.265, H.264+, H.264
- Network: 1× 10/100Mbps RJ45
- Playback: Up to 4 Channels Simultaneous Playback
- USB: 2× USB 2.0 Ports
- Compatibility: ONVIF; VIGI IP Cameras
- Dimensions: 200.3 × 200.3 × 43 mm

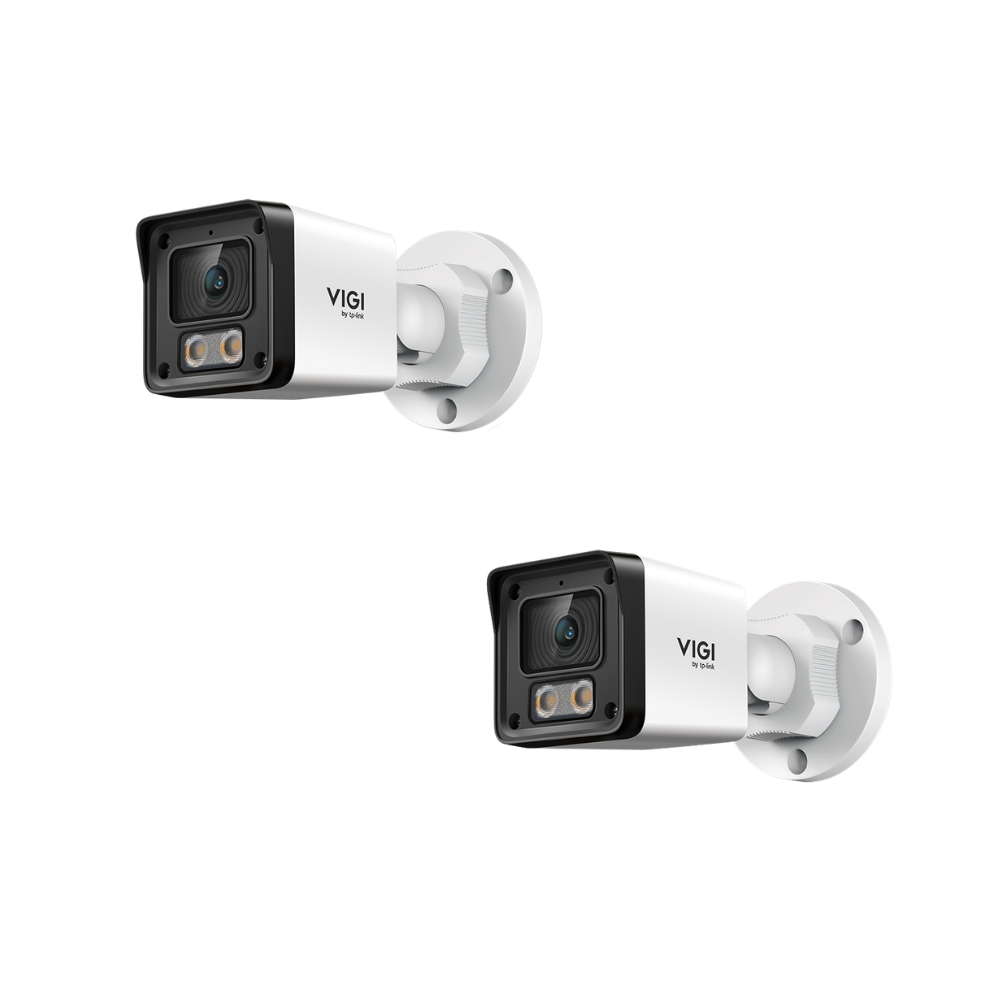

EasyCam C320
- Camera Type: Full-Color Bullet Network Camera
- Image Sensor: 1/3" Progressive Scan CMOS
- Resolution: 2MP (1920 × 1080)
- Lens: 2.8mm
- Aperture: F2.0
- Field of View: 98.8° (H), 53.5° (V), 117° (D)
- Night Vision: LightPro Full-Color, IR & White LEDs up to 30m
- Minimum Illumination: Color: 0.01 Lux, 0 Lux with IR/White Light
- Video Compression: H.265+, H.265, H.264+, H.264
- Audio: Built-In Microphone
- Network Interface: 1× RJ45 10/100Mbps Self-Adaptive Ethernet Port with PoE
- Power Supply: PoE: 802.3af, class 0, Max. 7.1 W
- Weather Protection: IP67 Weatherproof
- Dimensions: 141 × 74 × 74 mm

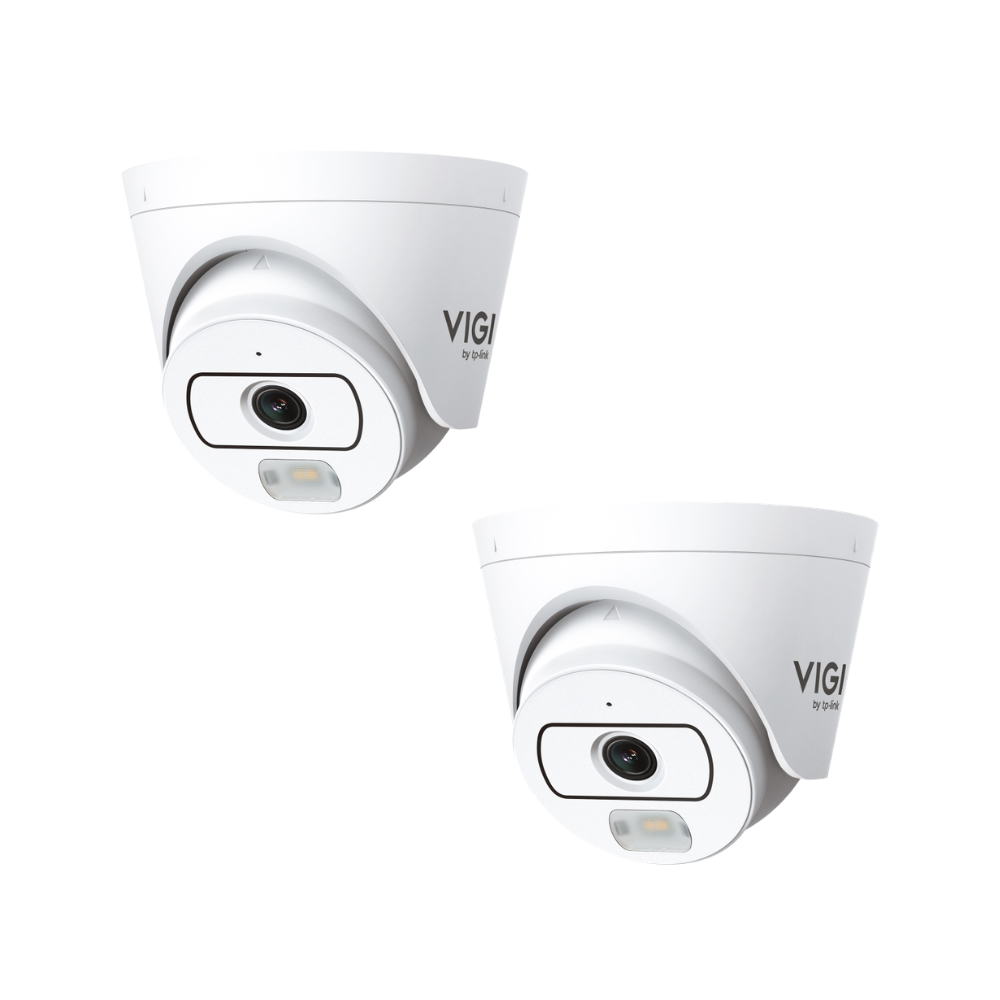

EasyCam C420
- Model: VIGI EasyCam C420
- Camera Type: Full-Color Turret Network Camera
- Image Sensor: 1/3" Progressive Scan CMOS
- Resolution: 2MP (1920 × 1080)
- Lens: Fixed 2.8mm
- Aperture: F2.0
- Field of View: 2.8mm: 98.8° (H), 53.5° (V), 117.0° (D)
- Night Vision: LightPro Full-Color, IR & White LEDs up to 30m
- Minimum Illumination: 0.01 Lux; 0 Lux with IR/White light
- Video Compression: H.265+, H.265, H.264+, H.264
- Audio: Built-In Microphone
- Network Interface: 1× RJ45 10/100Mbps Self-Adaptive Ethernet Port with PoE
- Power Supply: PoE: 802.3af, class 0, Max. 7.1 W
- Dimensions: Ø 107.9 × 79.8 mm

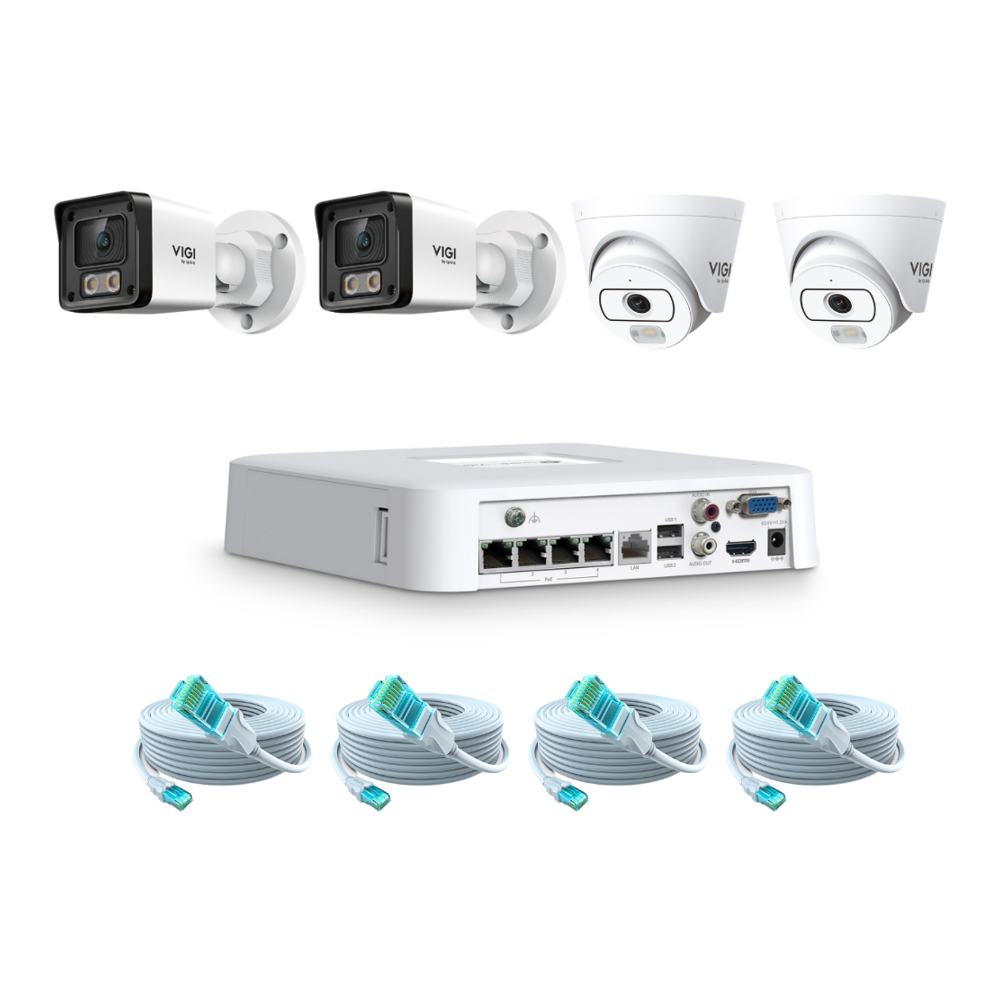

What's in the box?
- 1x VIGI NVR1104H-4P
- 2x EasyCam C320
- 2x EasyCam C420

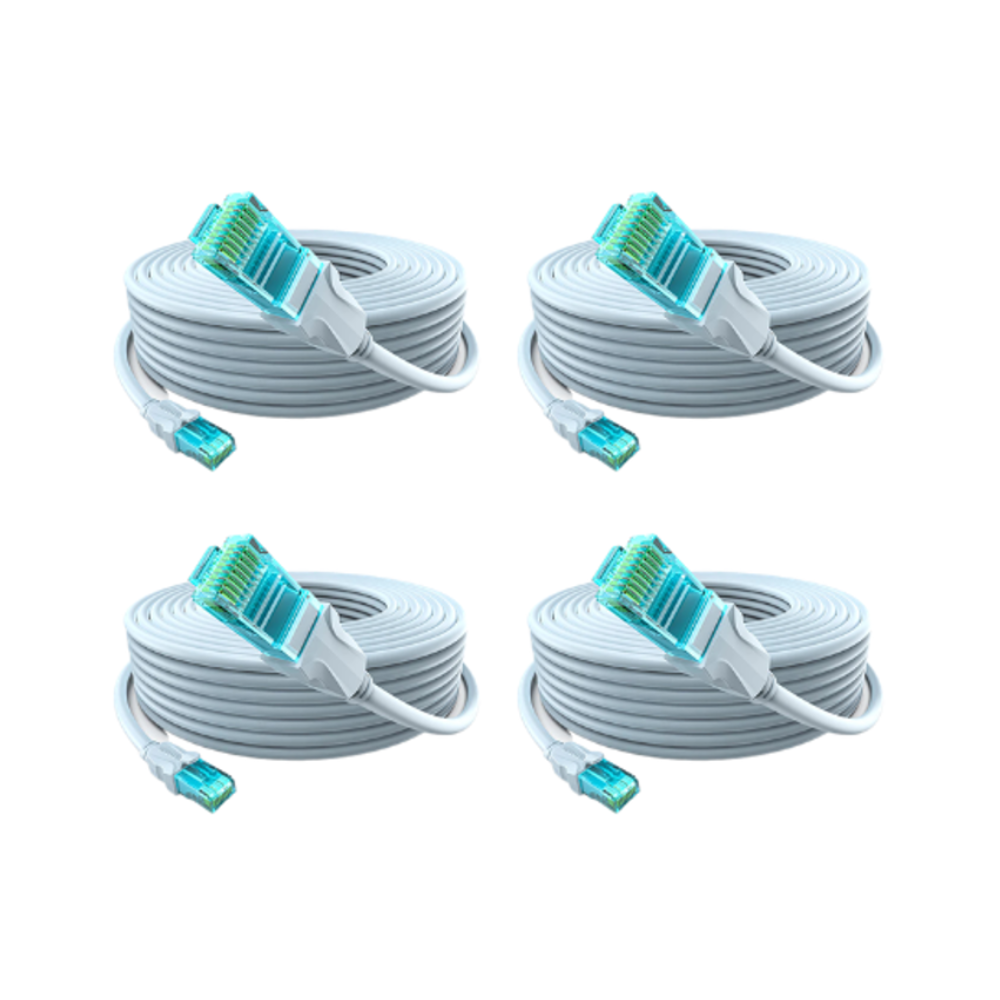

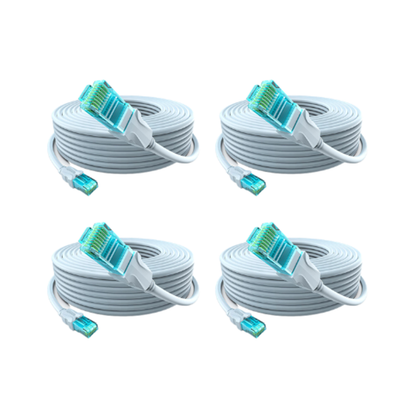

- 4x CAT5E LAN CABLE 20M
- 1x Instruction Manual
