UGREEN 1080P 60Hz HDMI to VGA Adapter Converter with Audio and Micro USB Port for TV, PC, Laptops, Projectors | 40233

UGREEN HDMI to VGA Adapter Converter with Audio Overview

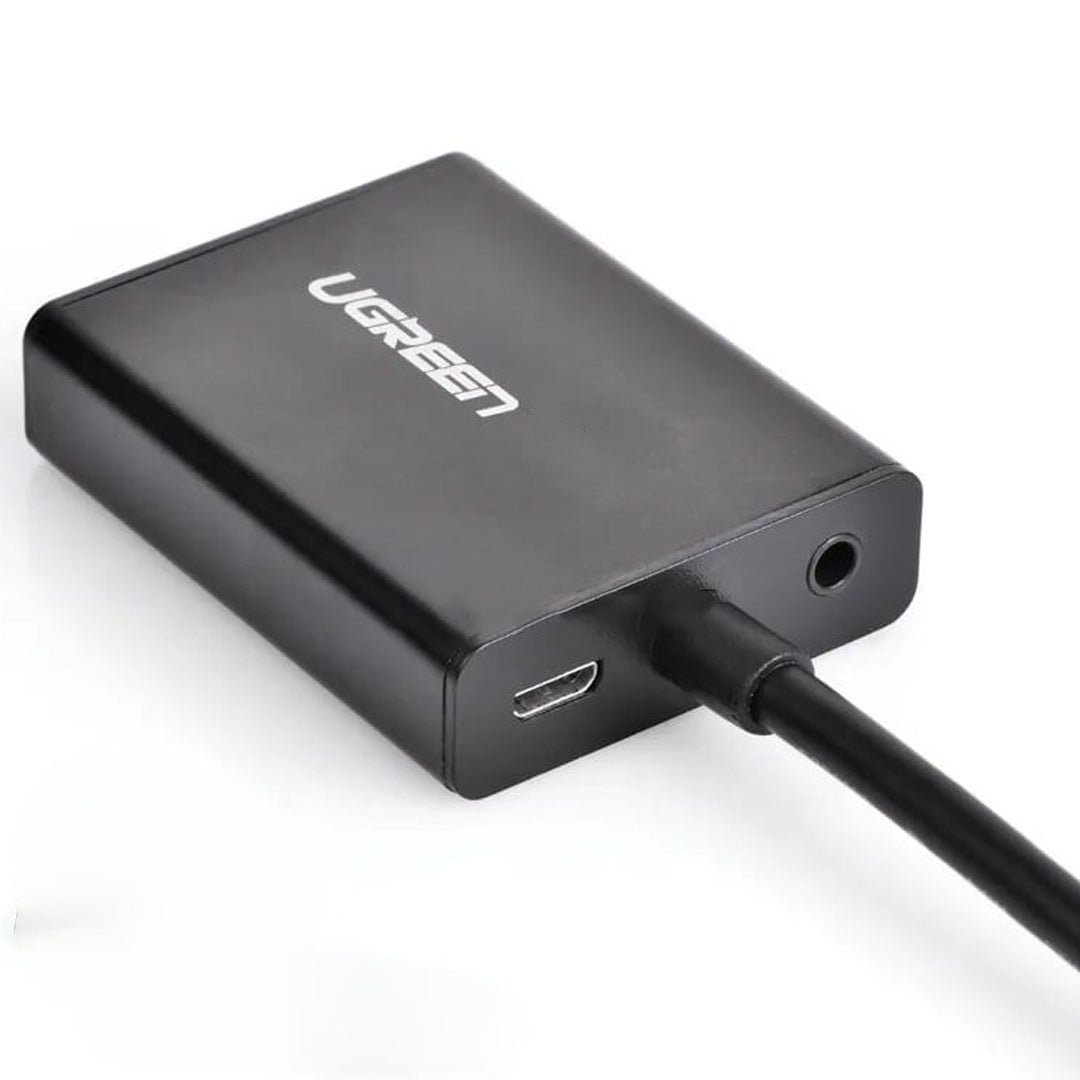

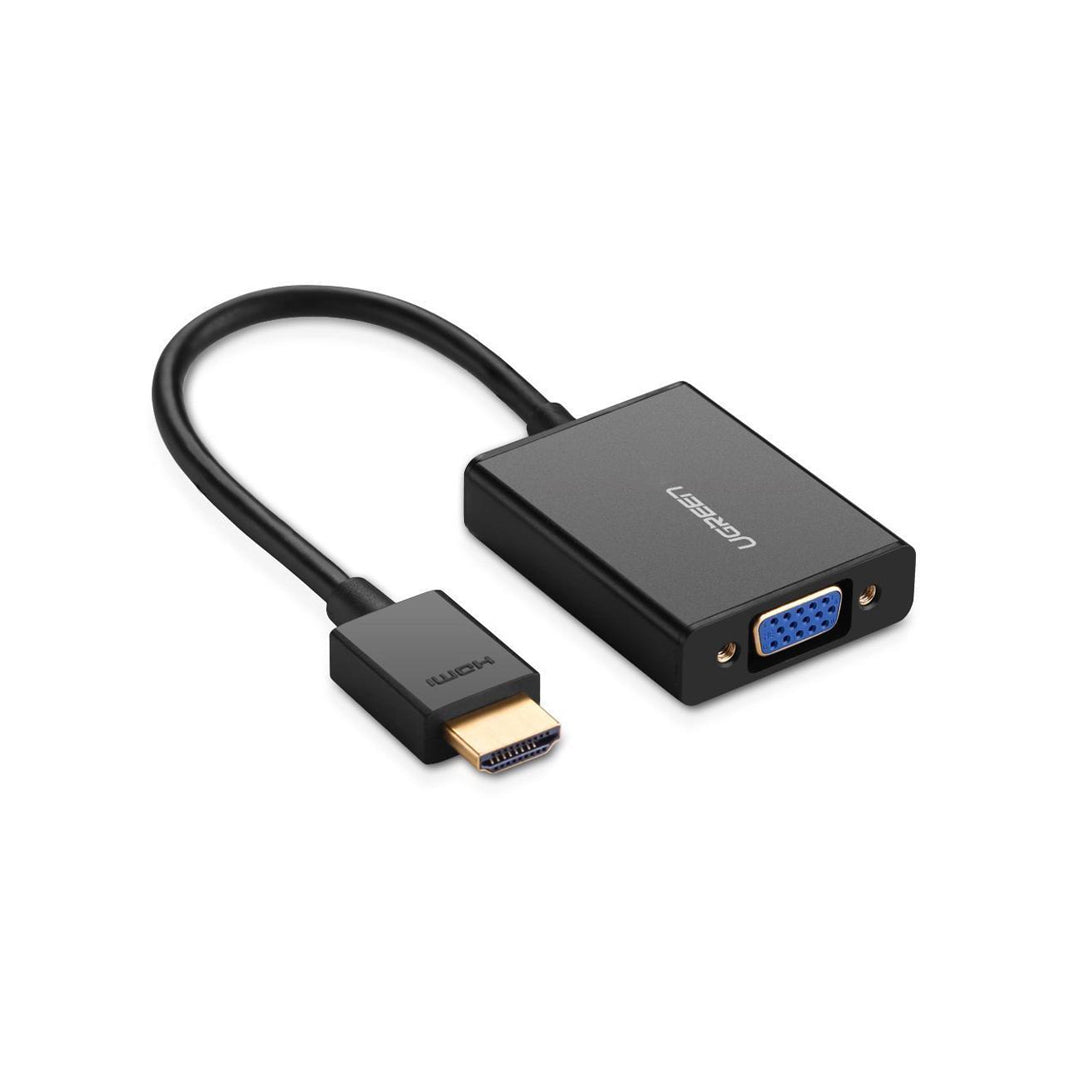

This portable active HDMI to VGA adapter connects your new NoteBook, Laptop, Macbook, Chromebook, Rasberry Pi with HDMI interface to projector, Display, LCD, TV & Monitor with VGA interface for big screen viewing. A VGA male to male cable (sold separately) is required. With built-in chipset, converts HDMI digital signal to VGA analog signal. It is not bi-directional, only transfers signal from HDMI source devices to VGA displays or monitors. Premium aluminum case, with better heat dissipation and anti-interference. Support Video output in
VGA: 1920*1080@60Hz (Max). VGA can only process Video signal, but this adapter additionally provids with a 3.5 mm line-out jack. Let you connect this adapter to your TV or external speakers through a 3.5 mm jack audio cable (sold separately). A separate micro USB cable is included and optional for power, which optimizing its compatibility with more devices, for example, MacBook Mini in 2014, Apple TV, Rasberry Pi, Smart Android TV Box and other devices with low-power output HDMI port. Compatible with Apple TV, PC, Laptop, Ultrabook, Rasberry Pi, Chromebook, Macbook, Roku streaming media player, Smart TV Box and other devices with HDMI interface. HDCP compliant, it does NOT support HDCP copyrighted content such as PS3, PS4, Blue-ray discs. Description HDMI to VGA Converter enables you to connect your new NoteBook, Laptop, Apple TV, Chromebook, Rasberry Pi, HD DV with HDMI interface to projector, LCD, TV & Monitor with VGA interface for big screen viewing. It support resolution up to 1920x1080 @60Hz, and provids with a 3.5 mm audio line-out jack, which allows you to enjoy audio and video simultaneously.

When the source devices could not offer enough power, then you could connect a micro USB cable for additional power, Like Mac Mini in 2014, Android Smart TV Box etc. Specification

1.Input interface: HDMI Male/ Micro USB

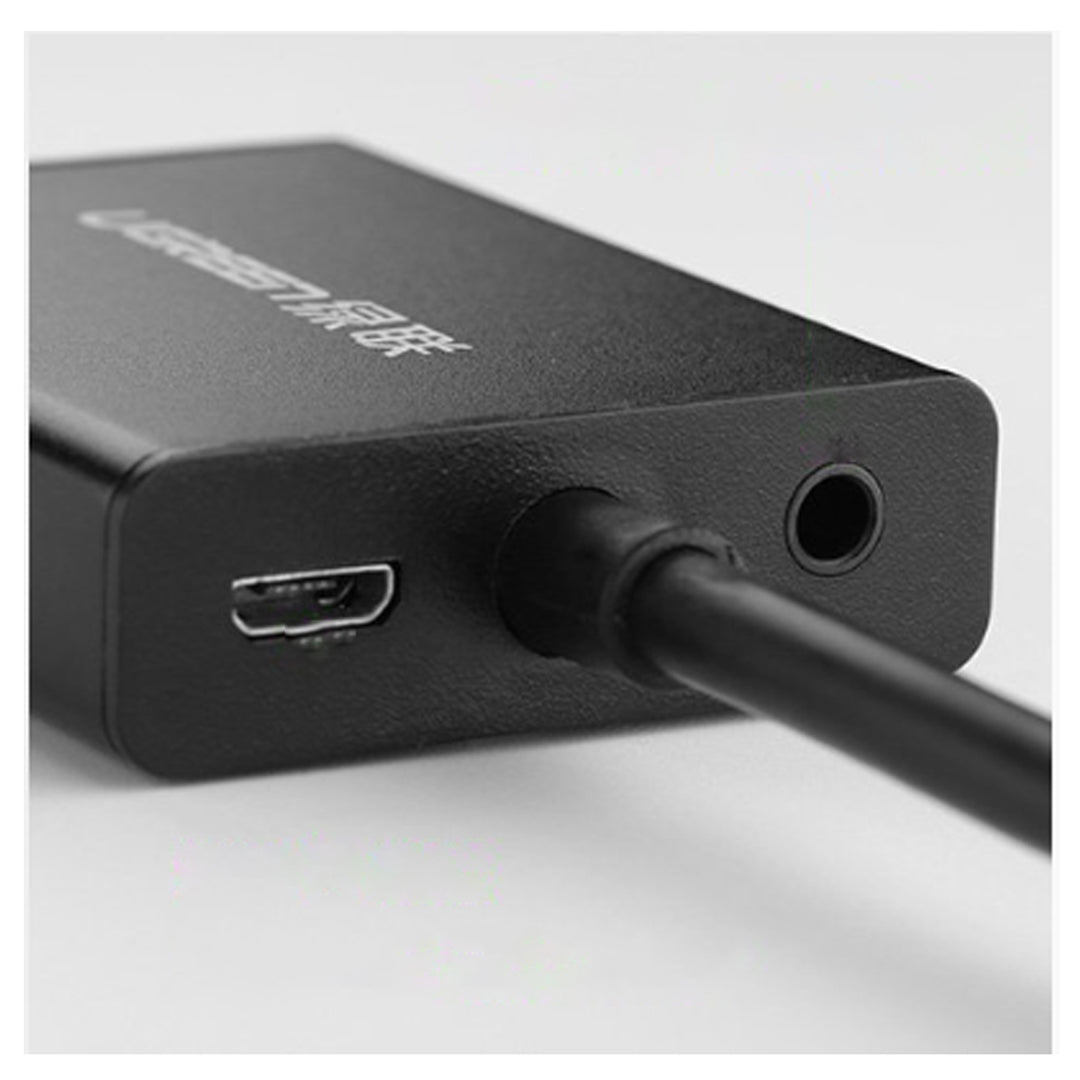

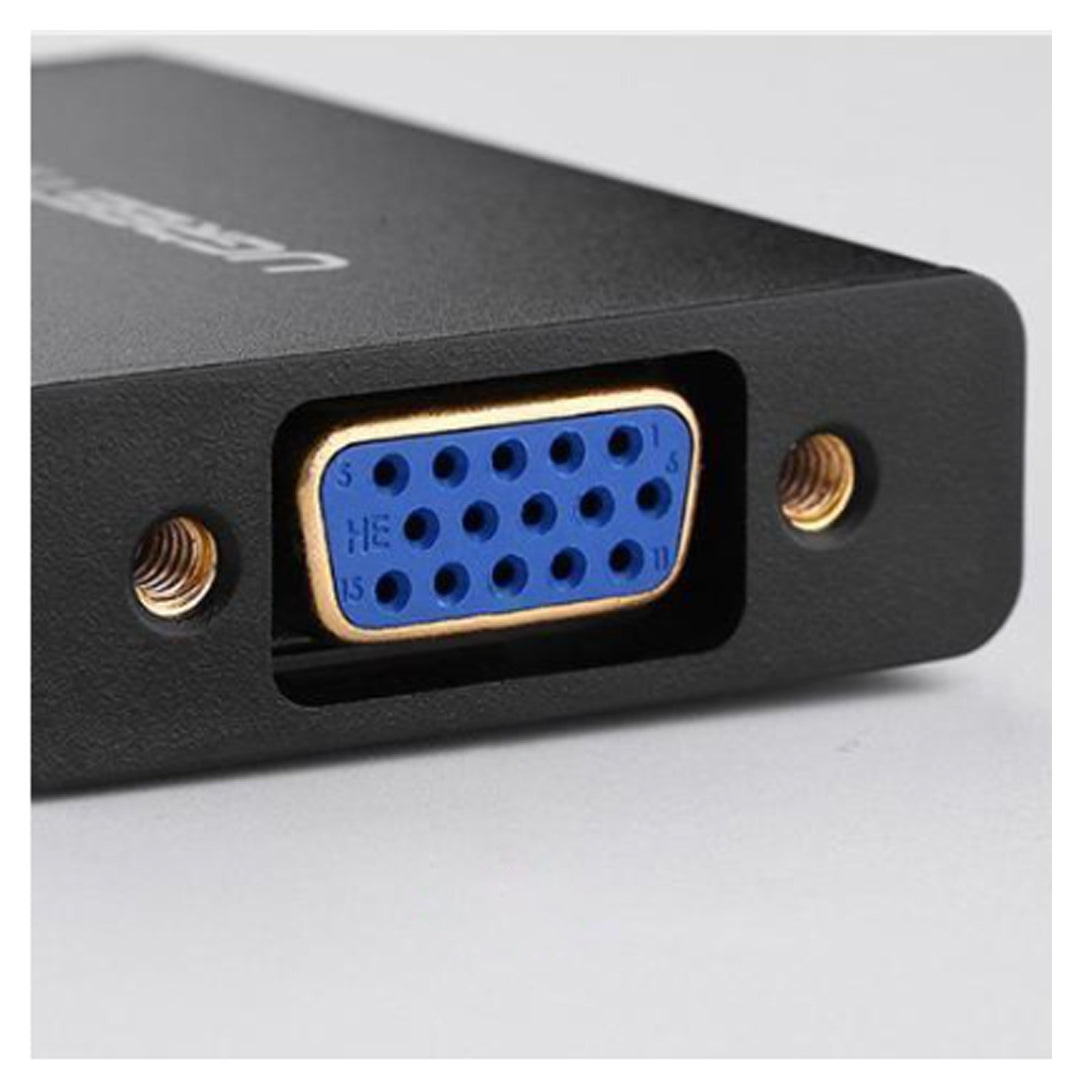

2.Output interface: VGA Female, 3.5 mm audio
3. Support Video output in VGA: 1920*1080@60Hz (Max)
4. Additonal power from Micro USB connector
5. Cable Length: 16cm

HDMI input resolution support: 576i, 480p, 576p, 720p, 1080i, 1080p
VGA output resolution support: 800X600, 1024X768, 1280X720, 1280X768, 1280X800, 1280X1024, 1360X768, 1600X1200, 1920X1080 Note 1. This adapter is not bi-directional, and can only support signal from HDMI source devices to VGA displays. For VGA source device to HDMI converters, please check item VGA to
HDMI converter (ASIN: B00QUWEBXE & B00QUWEC06). 2. The micro USB cables included is required for MacBook Pro with Retina Display, Apple TV, Smart TV Box, Raspberry Pi, devices with low-power output HDMI port. You can connect this micro USB cable to power adapter or USB port on your PC for additonal power.
3. For Raspberry Pi, you may need to revise the config. txt and reboot. Package Contents HDMI to VGA with Audio Converter x 1



Specifications

• Brand: UGREEN
• Model: 40233
• Type: Active HDMI to VGA Adapter Converter with Audio and Micro USB Converter Premium Aluminum Case for Apple TV, PC, Laptop, Ultrabook, Raspberry Pi, Chromebook, Support 1920x1080 60Hz
• Color: Black
• Length: < 1"
• Connector: Number 2
• Terminal Gender: Male to Female
• Shielding: Yes

• Conductor Copper: Conductor
• Cable Length: 16 cm
• Connect From: 1 x HDMI

• Connect To: 1 x VGA

• UGREEN HDMI to VGA with Audio Converter
• Micro USB cab
