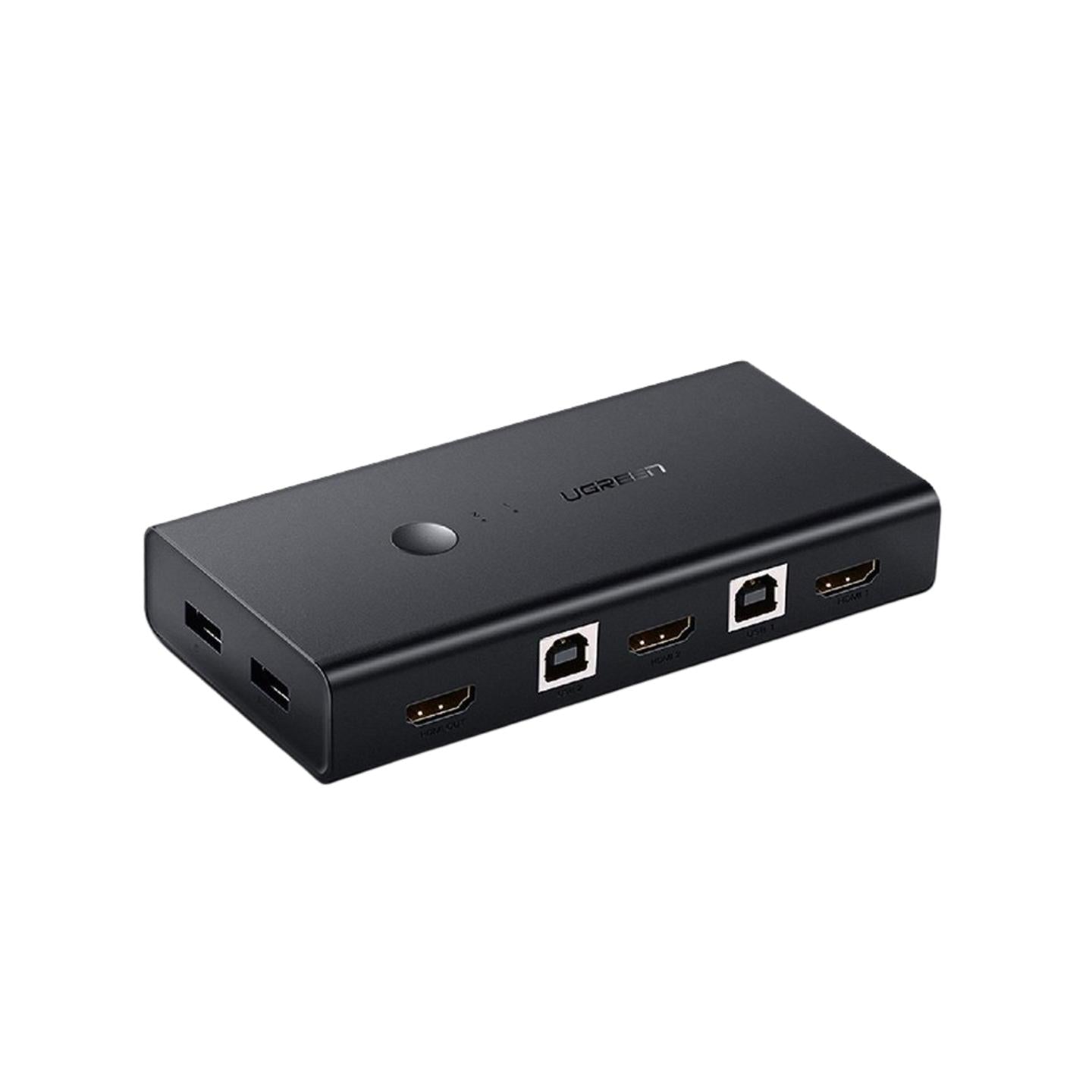

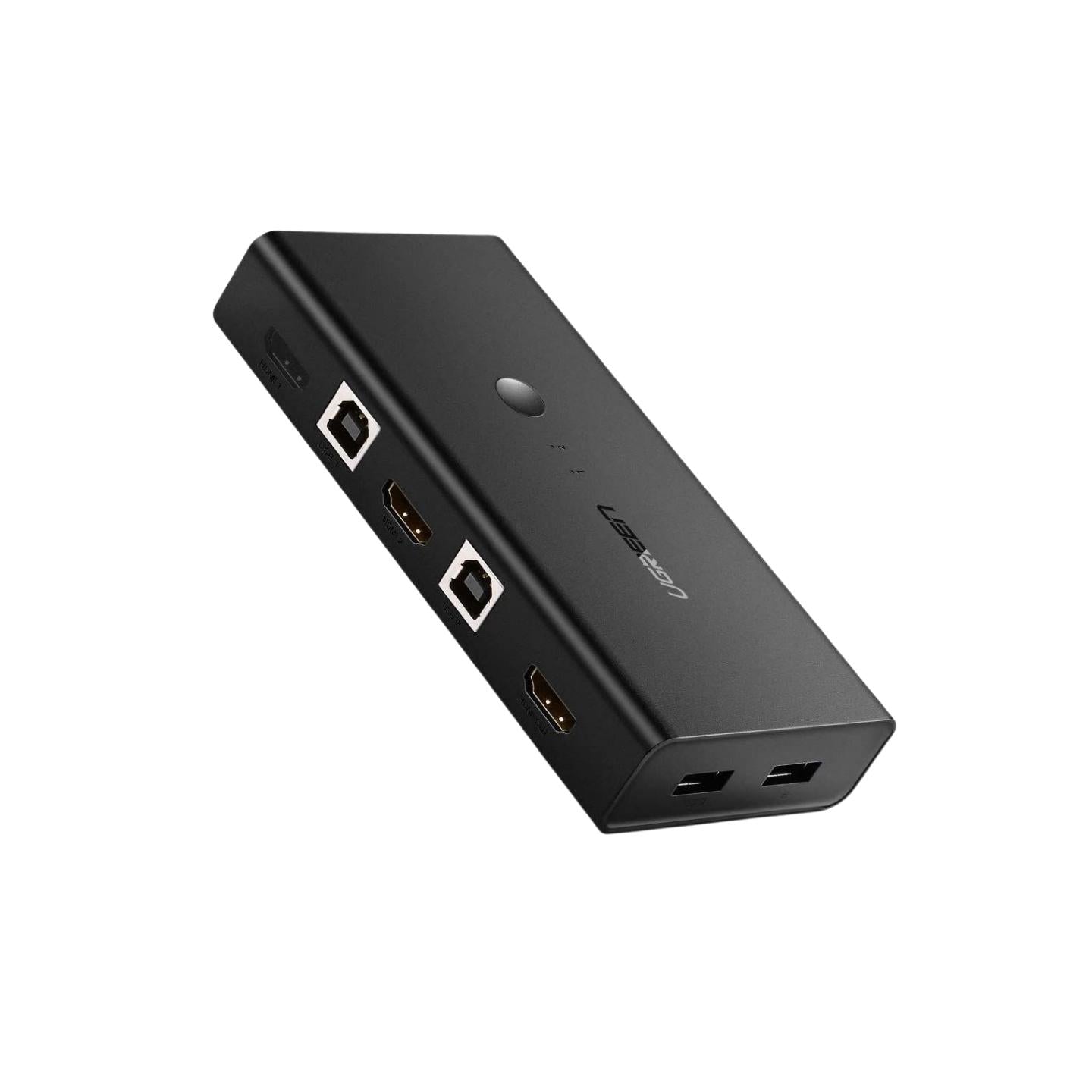

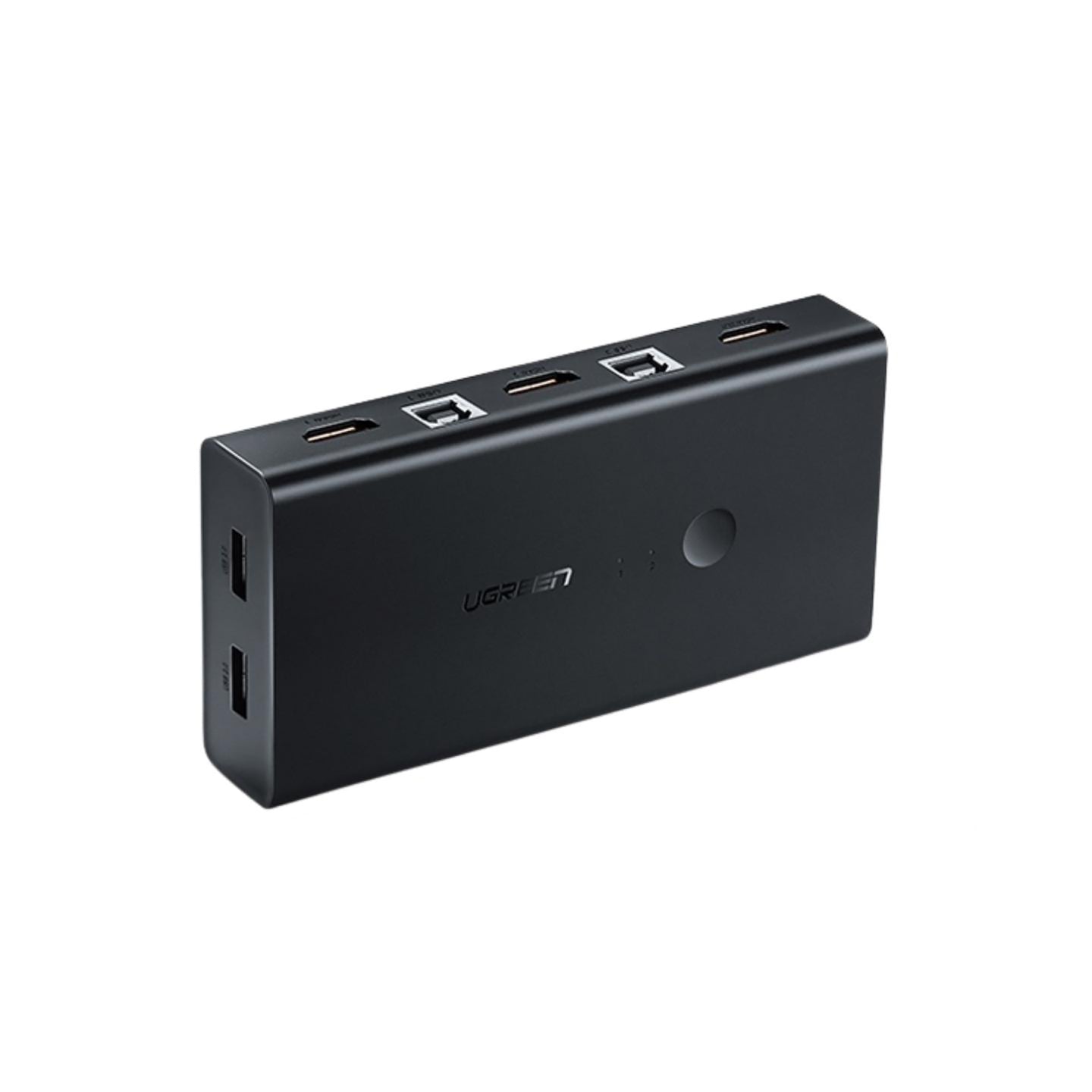

2-Port HDMI KVM Switch: The UGREEN KVM switch lets you control 2 computers with just the 4K display and a set of controls (mouse and keyboard). It's a great expansion for workstations, office, or anywhere between computers.
4-Port USB Hub: This USB HDMI switch box comes with 4 USB ports, allowing you to connect a keyboard and mouse set, along with two high-speed 480Mbps USB 2.0 ports.
High Definition Video Output: The HDMI KVM switch supports high definition images and supports a maximum resolution of up to 4K @ 30Hz, compatible with 1080P @ 60Hz. The adapter supports video and audio at the same time.
Plug and Play: no need for power supply or software. The HDMI KVM switch has a buzzer alert function, and there is a quick tone after each hotkey switch. You can also turn off the beep by pressing the hotkey. To use the keyboard hotkey switch, the keyboard must be connected to the USB 1.1 Type-A ports.
How to Use the HDMI USB KVM Switch
1. Connect HDMI IN1 and USB IN1 to PC1 at the same time;
2. Connect HDMI IN2 and USB IN2 to PC2 at the same time;
3. Connect HDMI Output to HDMI monitor/TV/display;
4. Connect USB keyboard and mouse to USB 1.1 A ports;
5. Connect printer, U disk or other USB devices to USB 2.0 A ports for faster data exchange;
6. Press the manual switch button to switch between the two computers.
