USB TYPE-C to 3.5MM Hi-Res DAC Amplifier
Overview:

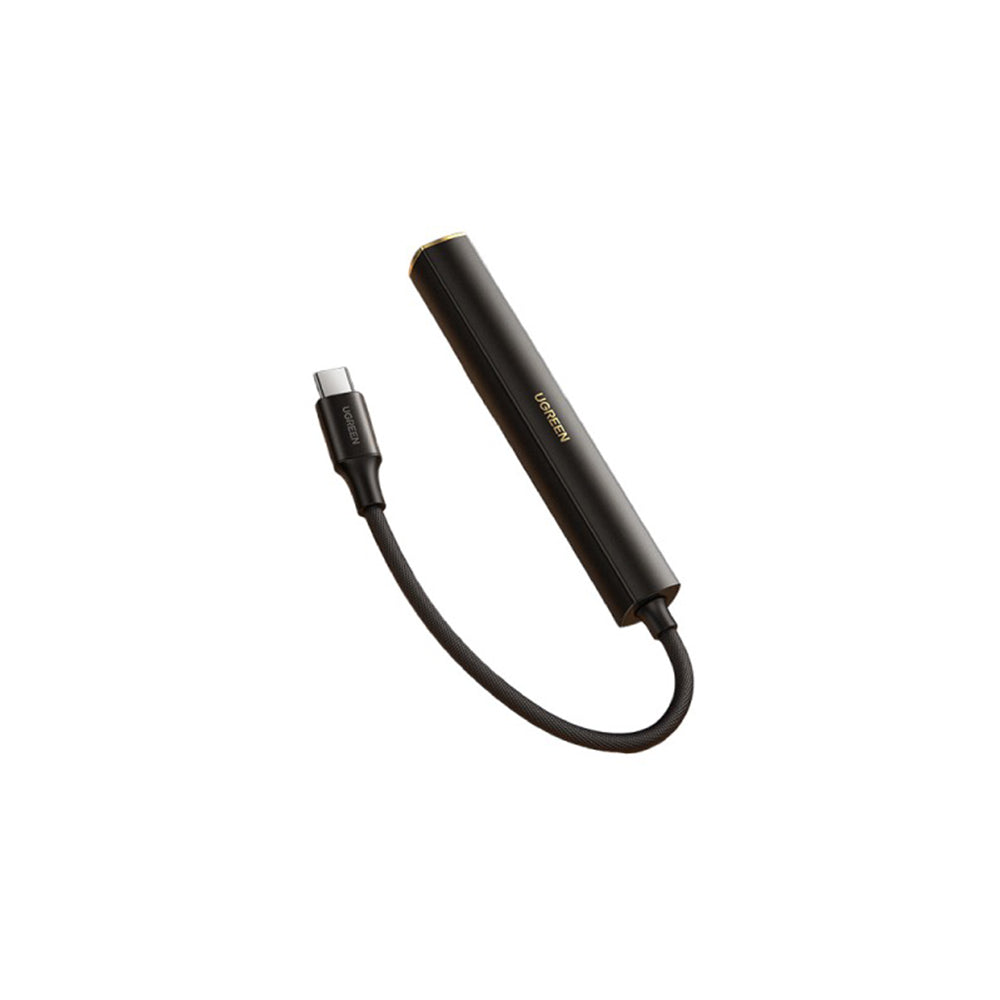

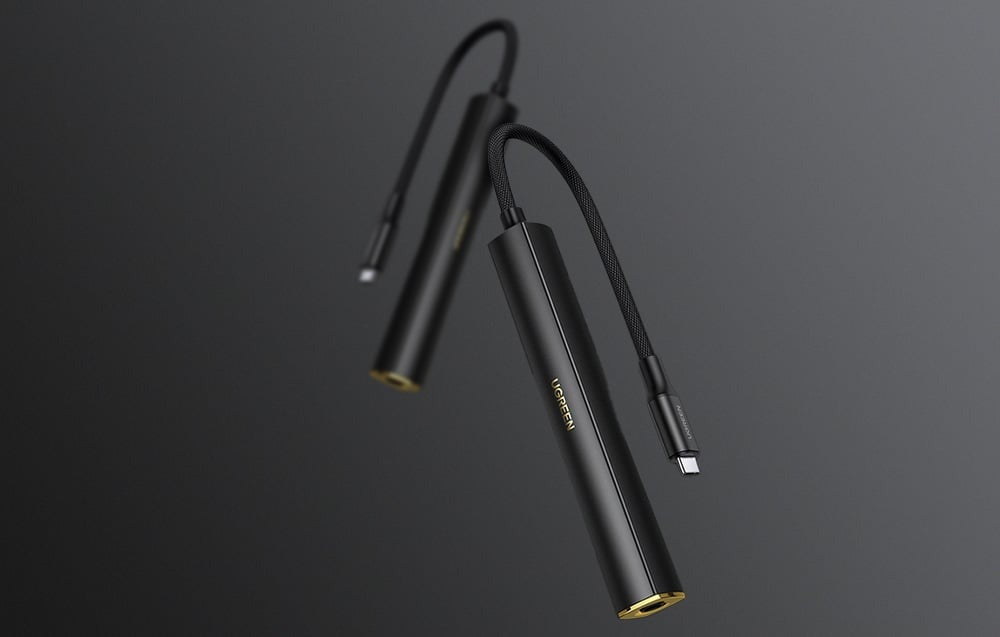

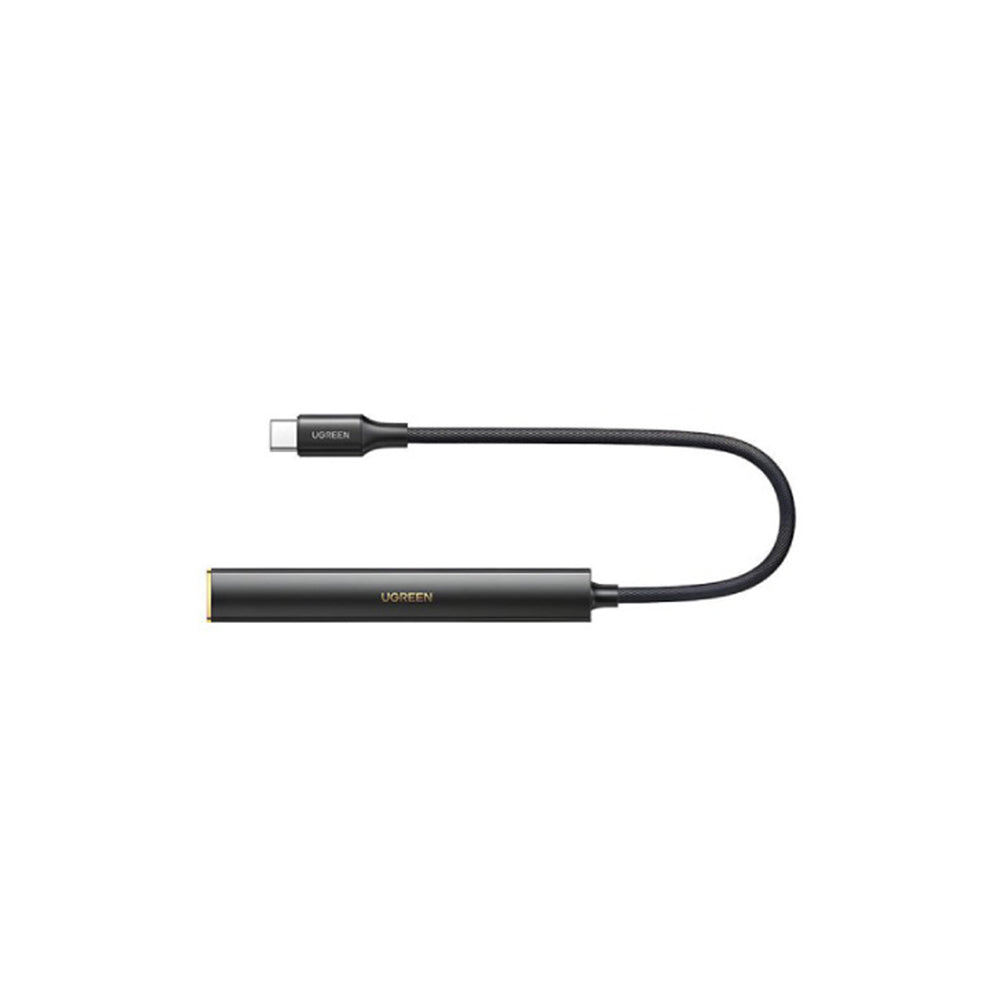

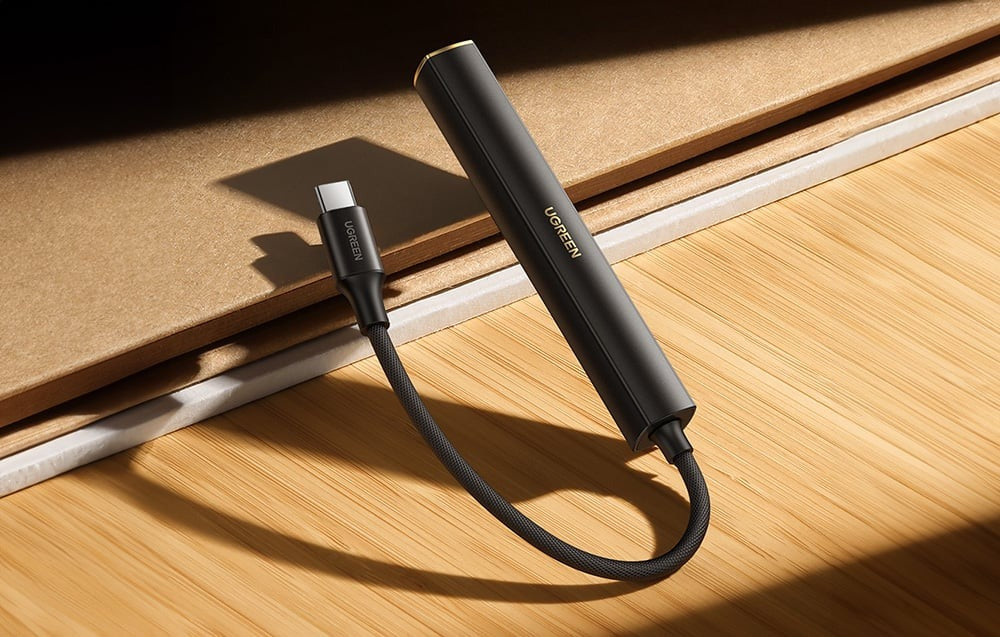

Ugreen 90217 Epicsound U1 DAC Amplifier
Discover a new dimension of listening to music with the UGREEN CM545 audio adapter. This Type-C to 3.5mm jack DAC adapter offers exceptional sound quality, adapting to a variety of audio formats. Its intuitive backlight system that changes colors depending on the transmitted audio format not only facilitates identification, but also adds aesthetic charm. Lightweight and compact, the CM545 is the perfect solution for music lovers who value exceptional quality and functionality.
ES9381A Pro sound chip – clarity and precision
Equipped with the advanced ES9381A Pro sound chip, the CM545 adapter ensures high sound clarity. This device ensures that every note and sound is reproduced with the highest accuracy, allowing you to fully immerse yourself in the music.
Hi-Res certified – the standard for audiophiles
Being Hi-Res certified means that the CM545 adapter meets rigorous audio quality standards. Thanks to this, you can be sure that every song you listen to is reproduced with the highest possible fidelity, which is especially important for audiophiles and professionals.
PCM/DSD/MQA audio decoding – versatility in playback
The CM545 adapter supports a wide range of audio decoding formats, including PCM, DSD and MQA. This means it is compatible with many types of audio files and is able to deliver exceptional sound quality regardless of the source format.
Adaptive output load 16Ω – 600Ω – universality and compatibility
With adaptive output loading from 16Ω to 600Ω, the CM545 adapter is compatible with a wide range of devices, from headphones to advanced audio systems. This provides flexibility of use and ensures that the adapter will work with most headphones and speakers available on the market.
Advanced technical parameters – the highest quality in every aspect
The CM545 adapter boasts impressive technical specifications such as 32bit 384KHz audio sampling rate, total harmonic distortion plus noise <-100dB, dynamic range >100dB and frequency response 20Hz-40KHz. These features demonstrate its ability to reproduce sound with extraordinary accuracy and detail.
Specifications:
- Model: CM545
- Audio Chip: ES9281A Pro
- Sampling Rate: Up to 32bit 384kHz
- Codec: PCM/DSD/MQA
- Output Level: <2 Vrms RL=100kΩ
- Frequency Response: 20Hz-40khz
- Dynamic Range: >118dB RL=100kΩ
- THD+N: <-100dB
- Output Impedence: 16Ω-600Ω auto-negotiation
- Compatible System: Windwos, macOS, Android, IpadOS
Inclusion:
- 1x DAC Amplifier
