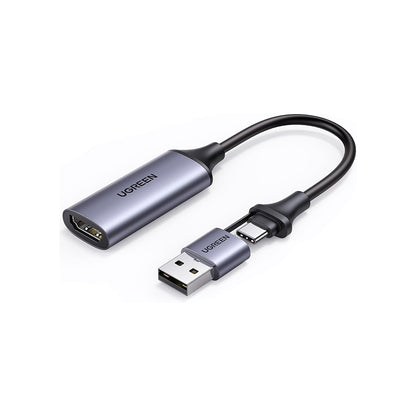

USB A / C to HDMI Video Capture Card
Overview
4K Full HD Video Capture Card: UGREEN HDMI Capture Card supports input max resolution up to 4K@60Hz, output max resolution up to 1080P@30Hz, and is based on the USB 2.0 high-speed transmission port. This product is connected to audio and video signal sources, such as cameras, and camcorders through the HDMI interface, and transmits it to a device with a USB or type C interface for the recording. Great for you to record videos & audio clearly at any time for storage to view in the future.

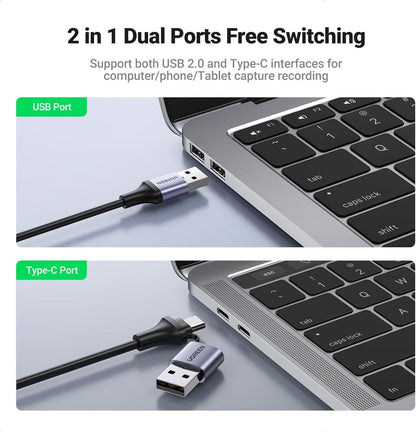

Dual Interface Apply to both Phone and Computer: With USB-A & USB-C dual interface design, this capture card for streaming can compatible with most current laptops, tablets, mobile phones, cameras, webcams and other devices. No need to carry adapters with different interfaces, compact and portable.
Plug and Play, Driver-free: No driver required and no external power supply, just connect and start high-definition reproduction of videos. Aluminum-alloy shell, make sure a longer use life. This 4k capture card weighs only 19.9g, making it light and portable.
HDMI Low Latency Screen Share: With Smart Chip, this HDMI video capture transmission rate is up to 480Mbps, low latency, and no caton. Real-time recording and collection of important meetings or courses for easy review. The latest design of the 4K capture card allows you to enjoy ultra-low latency during live gaming or video recording, avoiding freezing and blue screens.
Wide Compatibility: This HDMI capture card is compatible with Windows 8.1/10, Linux, and Android. The USB capture card is suitable for live streaming, recording, editing, and transferring video in high resolution on OBS, XSplit, Potplayer, QuickTime Player, USB Camera Viewer, and more. NOTE: It does not support the iOS 16.0 below. This product does not support capture and recording if the signal source is HDCP encryption protocol.
Follow the steps below to exclude:
1) Check the abnormality of the signal source end and try to directly connect the signal source and display device without using this item.
2) Turn on the computer's camera function and select the device with the name "USB Video" when adding a camera. If it can be displayed normally, it means that this product is normal.
3) Check whether the acquisition software settings are normal, and reopen the software to try.
4) Please use popular software such as OBS and Potplayer to see if it is normal and check the software compatibility.
Important Note
1. It does NOT support IOS mobile phones, because there is no corresponding acquisition software. Also Does Not support the use of devices with HDCP signals. iPad does not support the iOS 16.0 below.
2. When the computer prompts "The video format is abnormal, please press the reset button", you need to poke the reset hole on the product with a hard object, and the screen will display normally.
3. The item supports the use of multiple devices on the same computer simultaneously, but the smoothness depends on the computer's performance, and there may be a carton.
4. There is no requirement for video capture software, commonly used OBS Studio, XSplit, Potplayer, QuickTimePlayer, and other software can be used.
5. PS4 and PS5 support this capture card when HDCP is turned off.
Specifications:
- Brand: Ugreen
- Input: 1x HDMI Female
- Output: 1x USB-C / USB-A Male
- Input Resolution: Max 4K@^0Hz and backward compatible
- Output Resolution: 1080P@30Hz
- USB Standsard: theoreticak transfer speed of USB 2.0 480Mbos
- Sampling Rate: 24bit/48Khz
- Compatible Systems: Windows 8.1/10, MacOS/Linux/Android 5.0 and higher
- Compatible Softwares: OBS Studio/XSplit/PotPlayer/QuickTime Player, etc
Inclusions:
- 1x USB Video Capture Card
