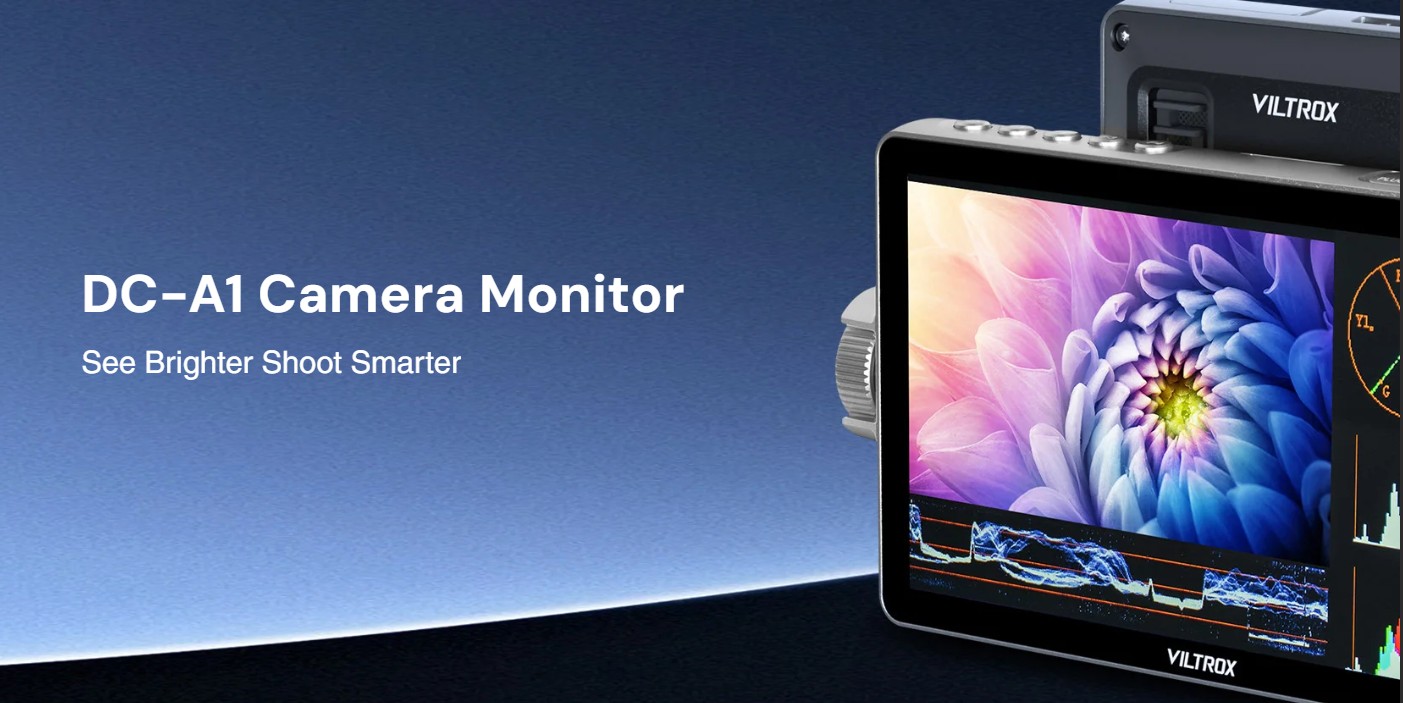

Features
● Compact 7" On-Camera Monitor

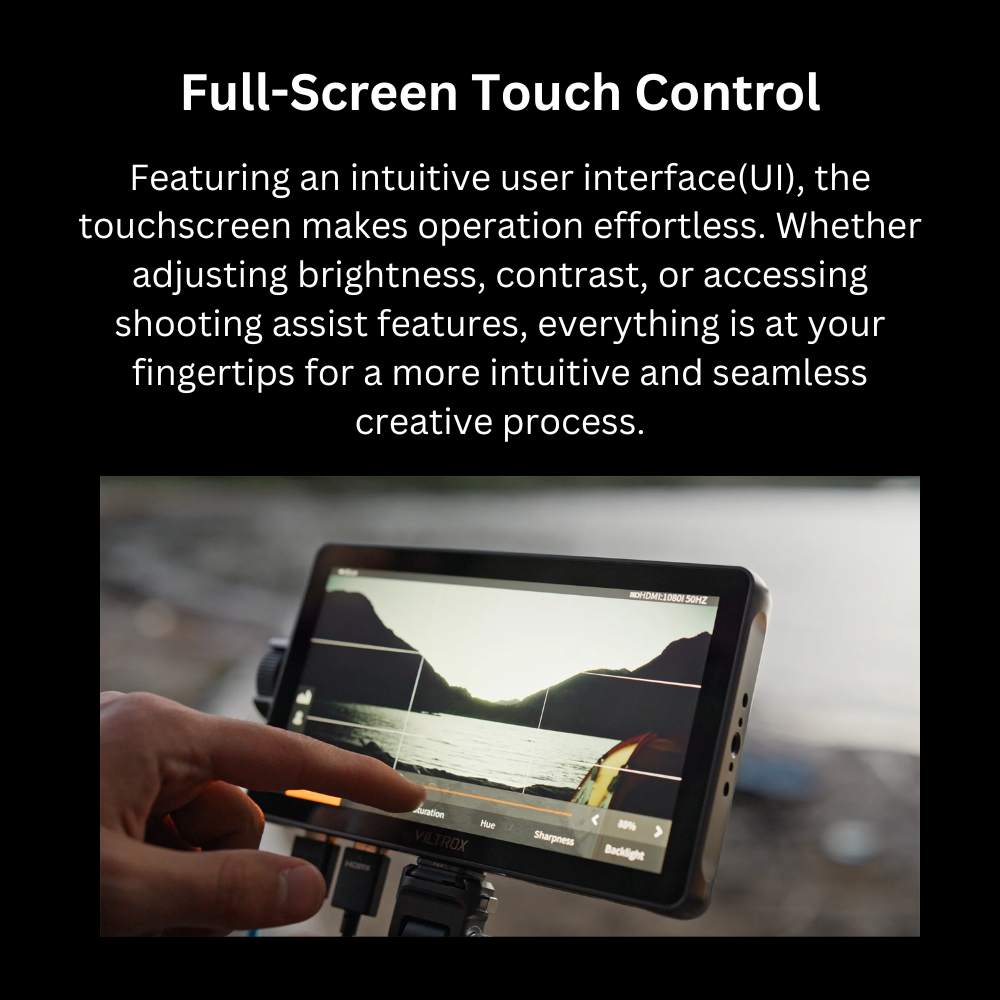

● 1920 x 1080 Touchscreen Display

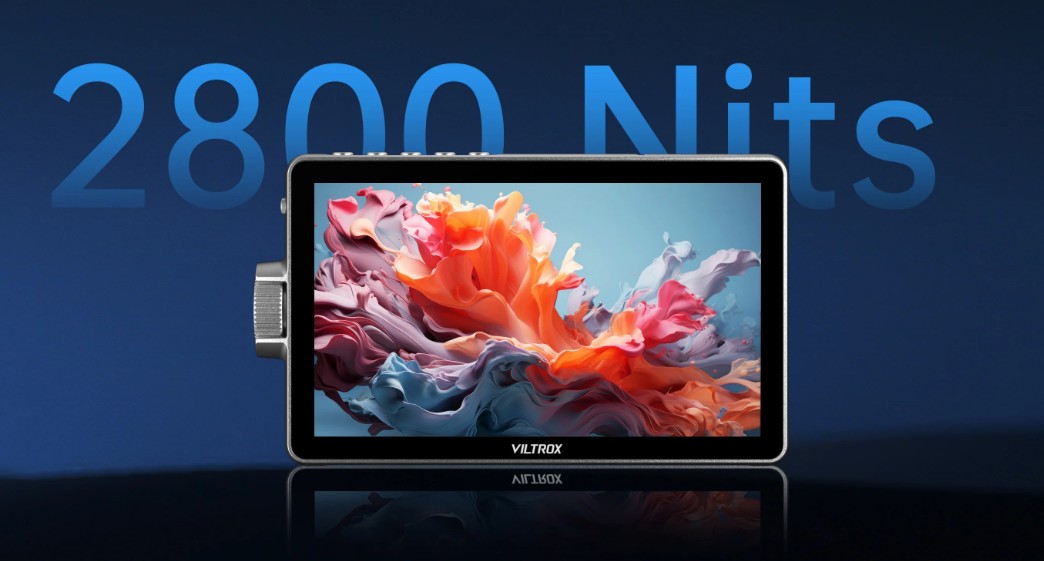

● 2800 cd/m² Brightness, 3D LUTs
● 1 x HDMI 2.0 Input, 1 x HDMI 2.0 Output
● Built-In Image Management Tools
● Up to DCI/UHD 4K60 Input and Loop Output
● L-Series Battery Plate, USB-C DC Input
● Built-In + Custom 3D LUTs via USB-A
● Includes Sun Hood, HDMI Cable
● Includes Shoe Mount Adapter
Crystal-Clear Transmission
● Supports up to 4K 60Hz signal input/loop out
● The DC-A1 offers 4K resolution at 60Hz, delivering lossless, high-definition signal transmission for a crystal-clear, smooth monitoring experience. Ideal for professional film crews, it meets the demanding standards of high-quality production.

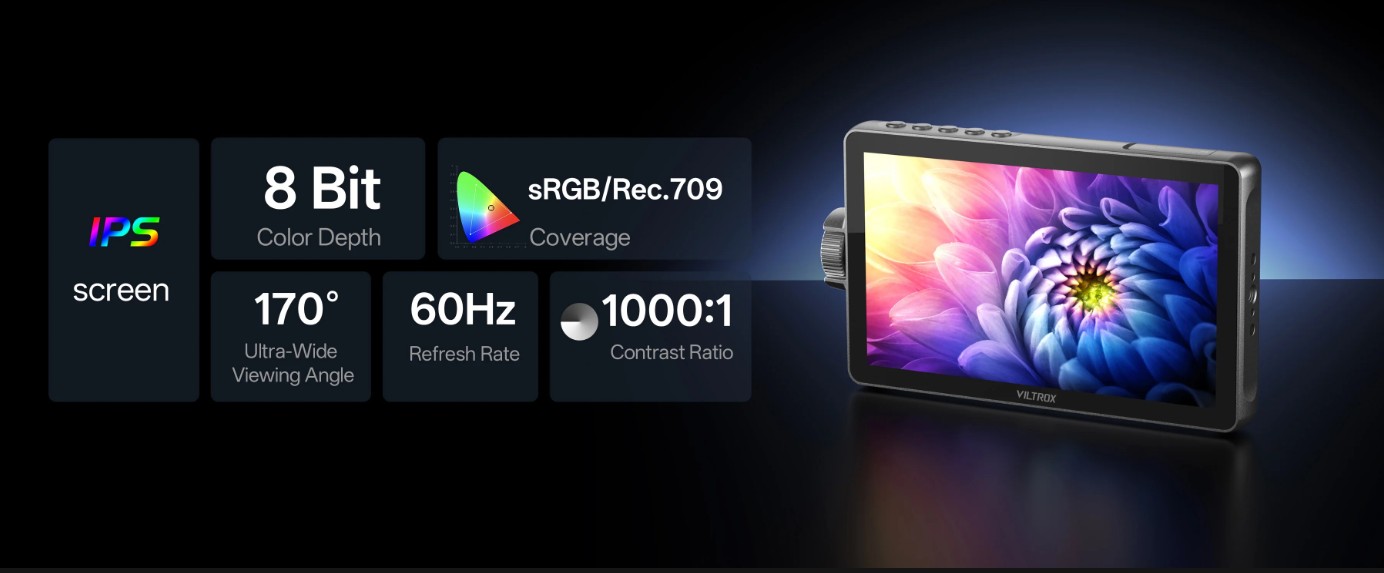

Precision in Full HD
● Sharp and accurate visuals with true Full HD resolution. The 1080P IPS screen delivers consistent clarity and detail from every angle. Even under harsh outdoor light, colors remain vivid and true to life.

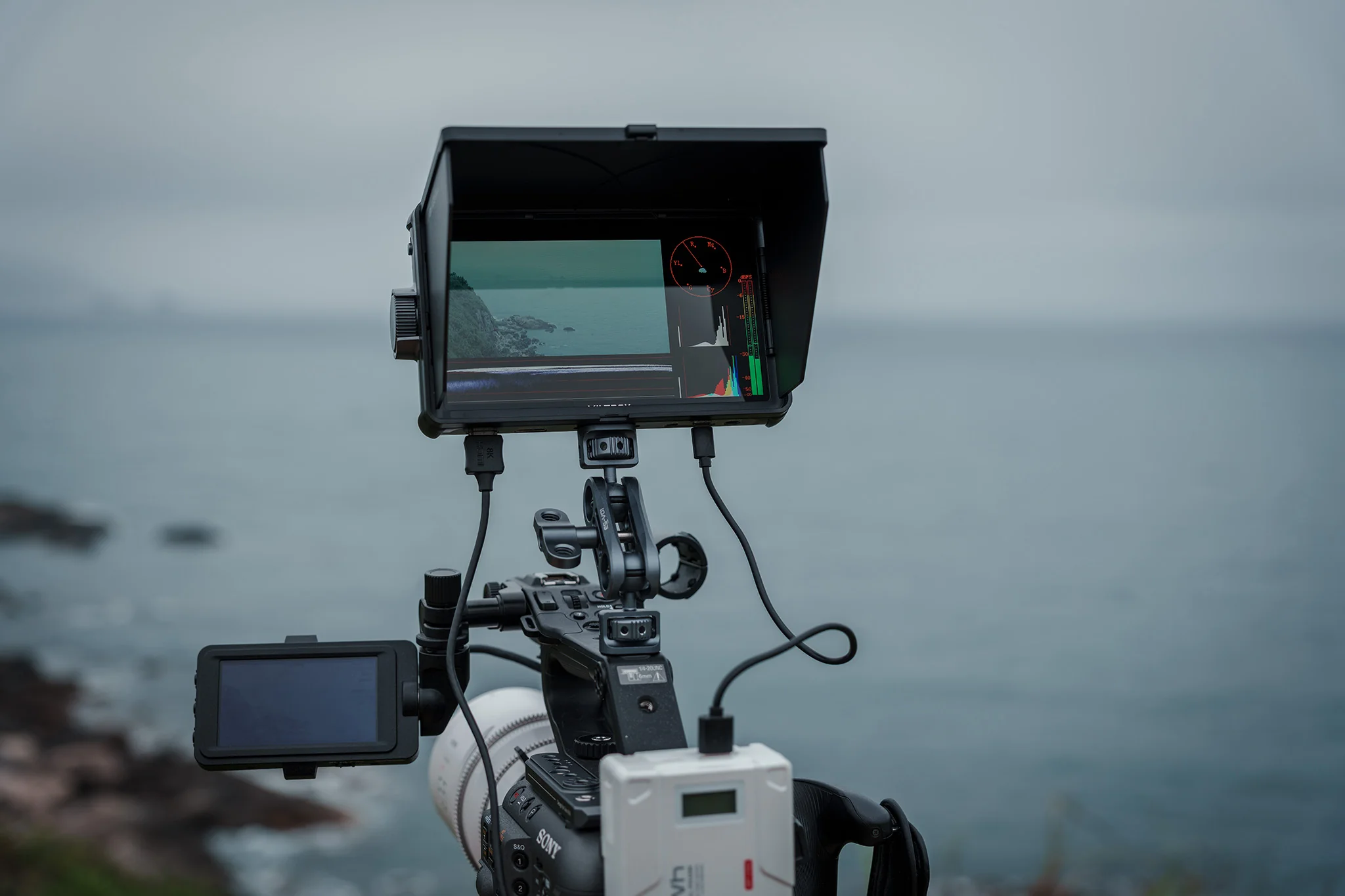

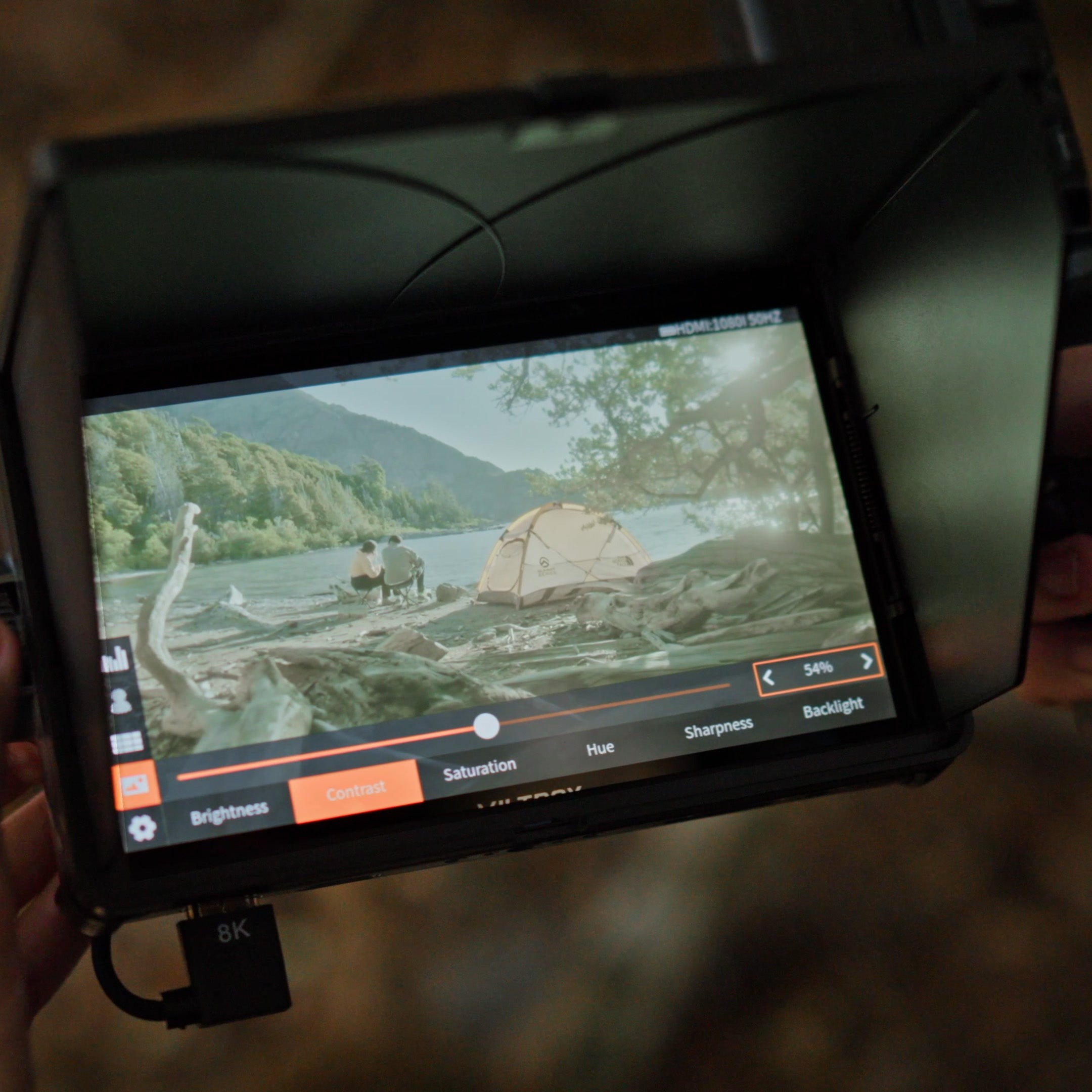

Quick-Release Sun Hood
● Snap-on design blocks glare in seconds, ensuring clear viewing under strong light. Folds flat for compact storage, while offering full-edge protection to guard your screen from scratches and extend durability.

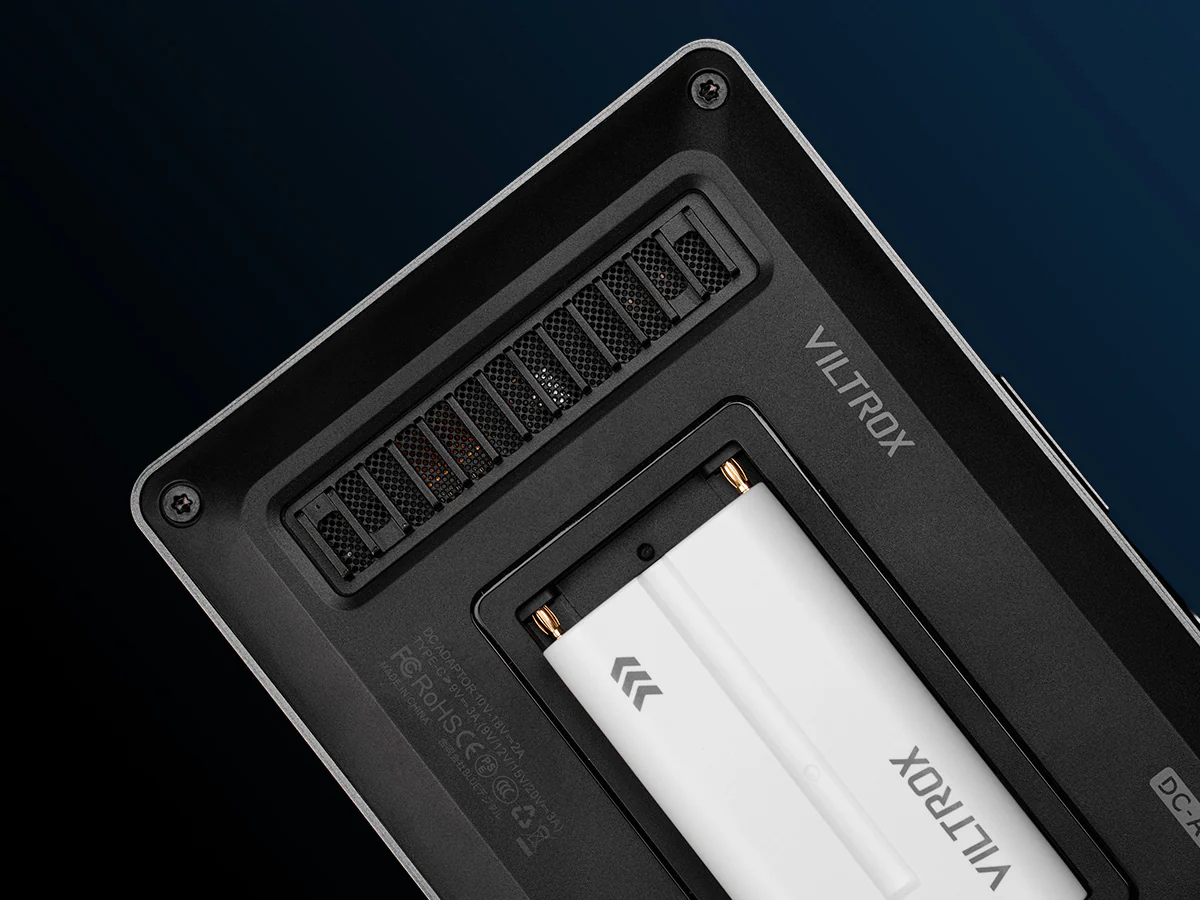

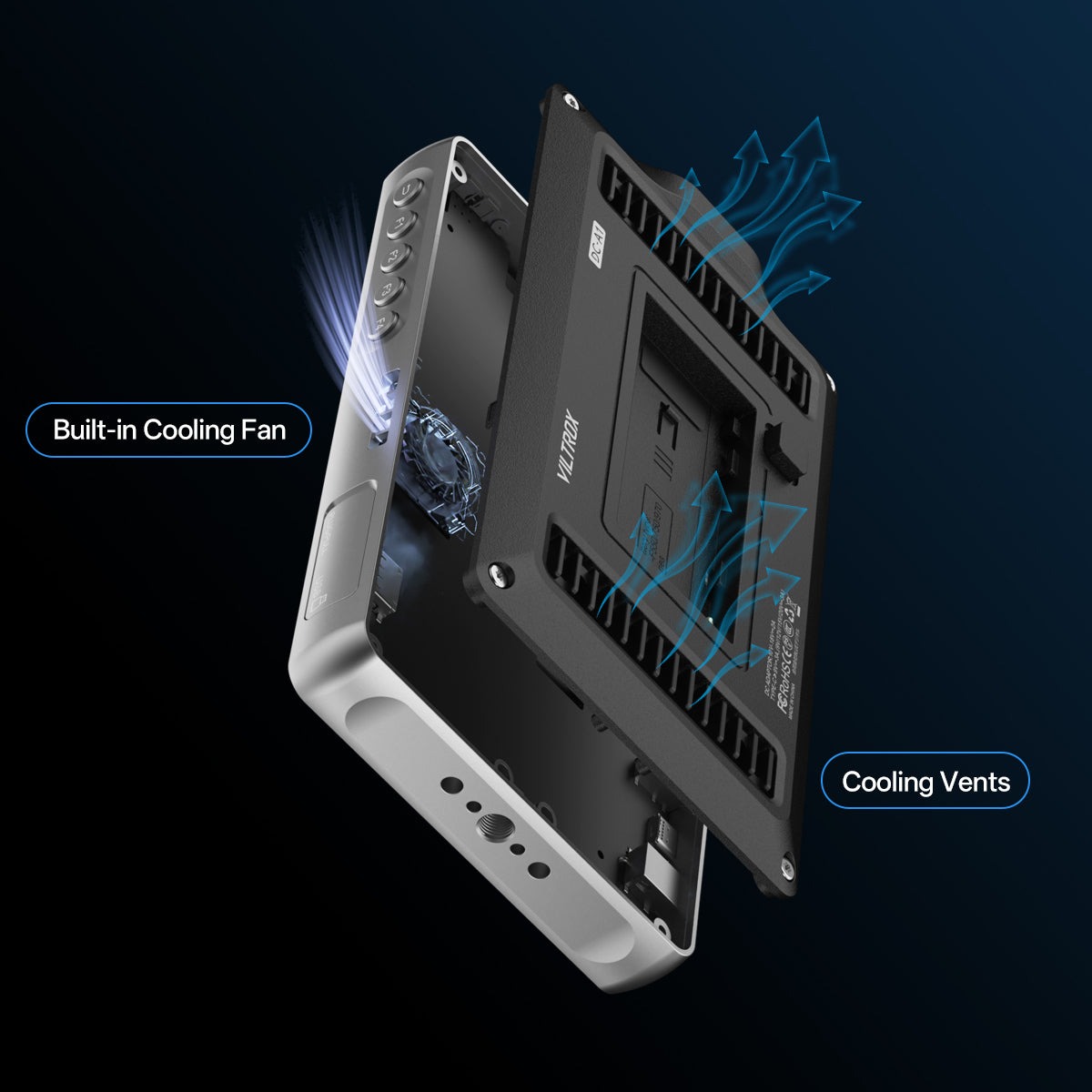

Intelligent Temperature Control
Stay Cool, Stay Productive
● Equipped with an ultra-silent cooling fan and in coordination with the built-in temperature sensor, the fan speed automatically adjusts according to the body temperature of the device, ensuring stable operation even during long hours of continuous work.

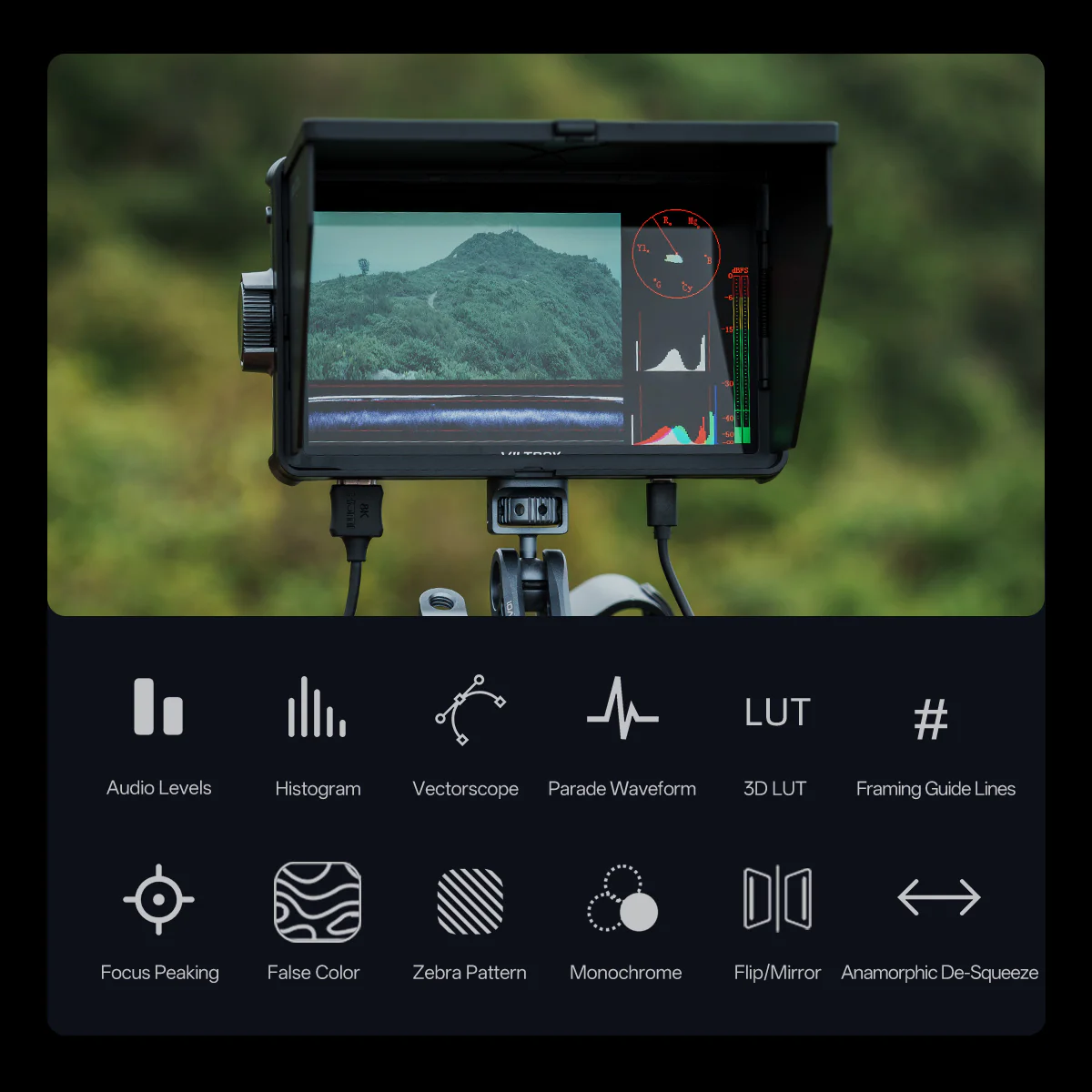

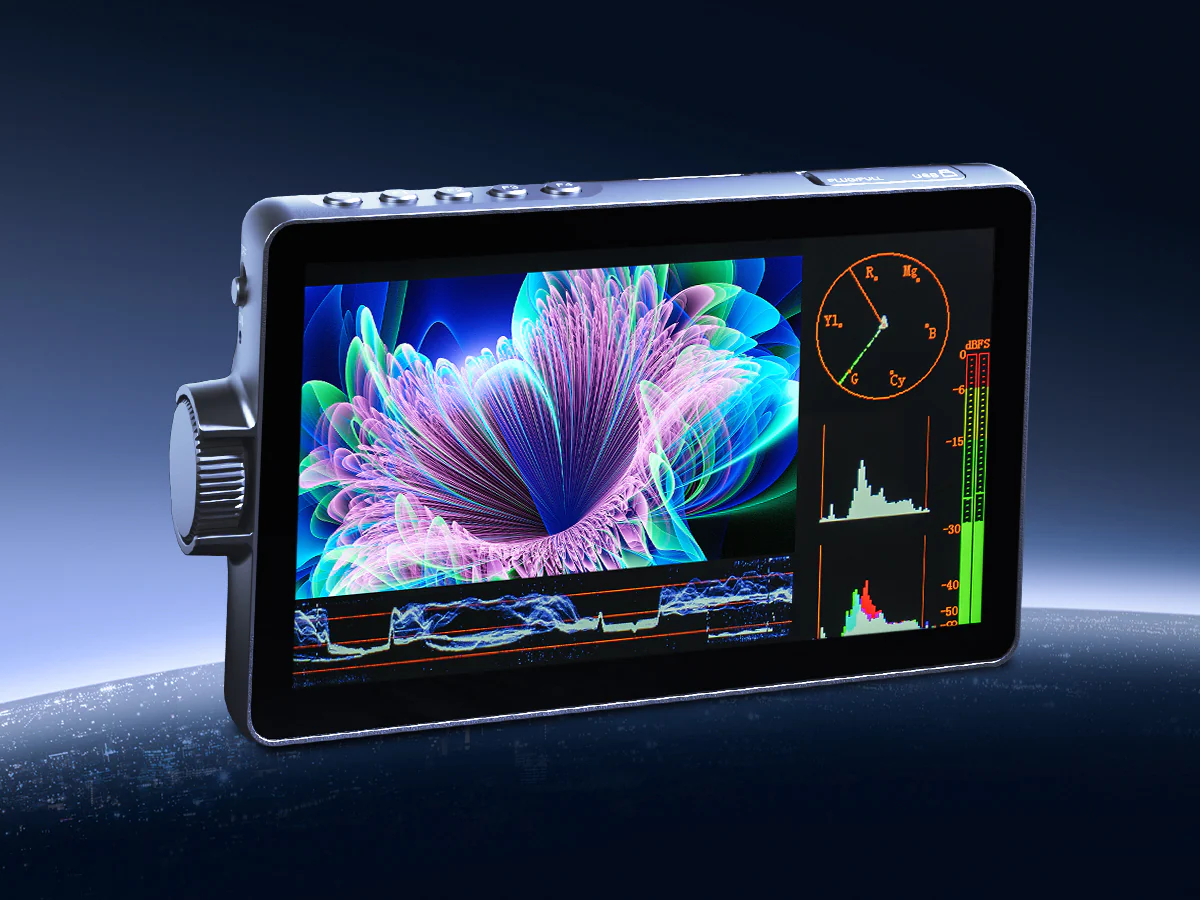

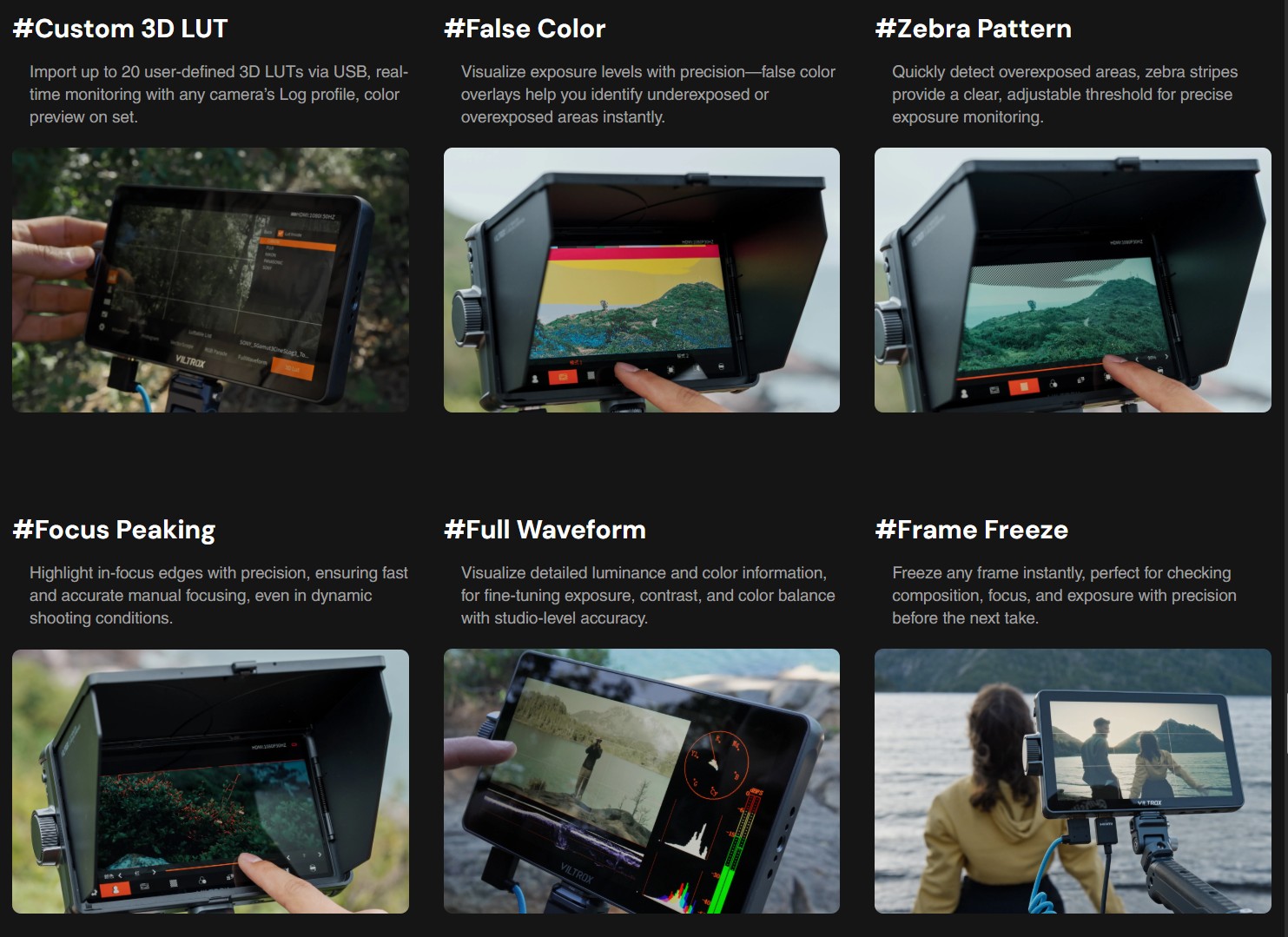

Comprehensive Professional Monitoring Tools
● Equipped with an extensive suite of professional assist features including histogram, false color, parade waveform, peaking, vectorscope, de-squeeze, LUT table, and more—everything you need for precise visual control in one screen.

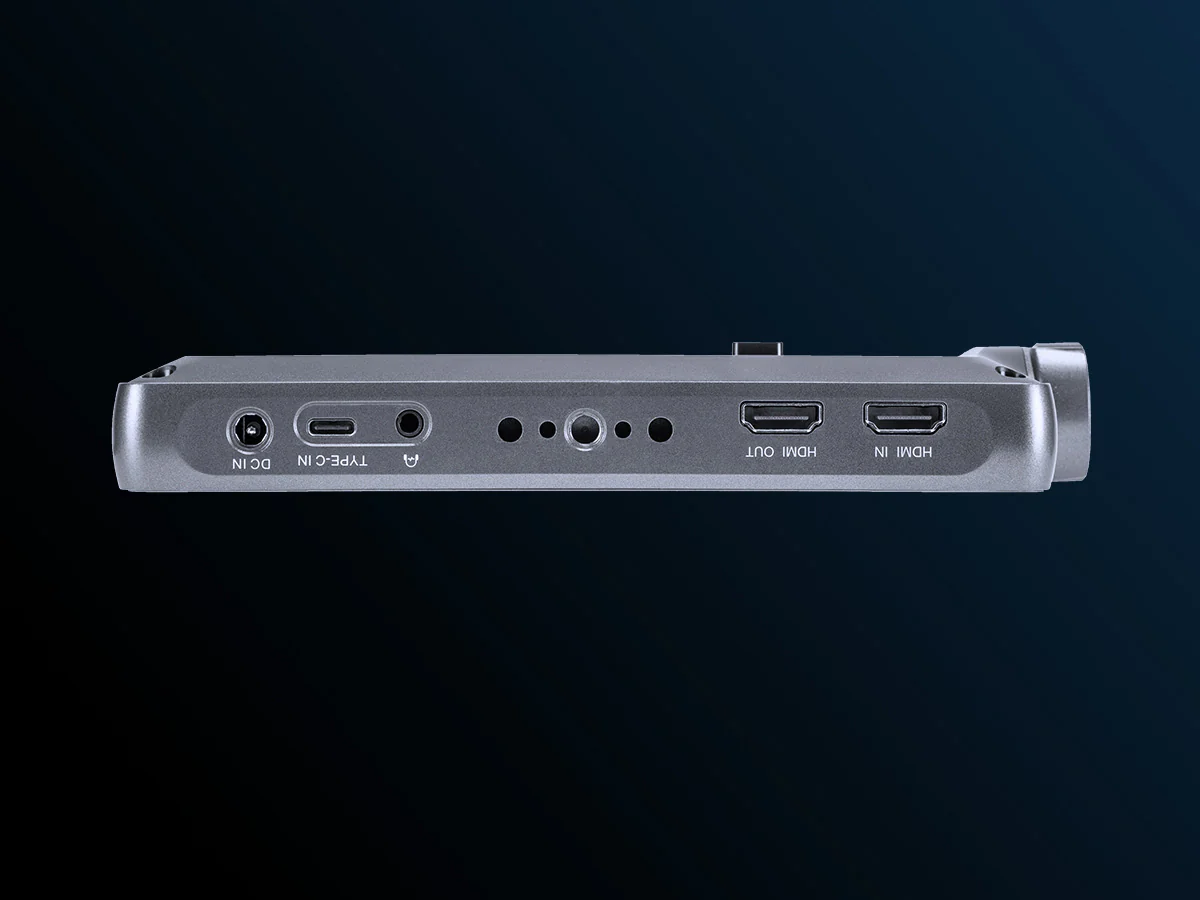

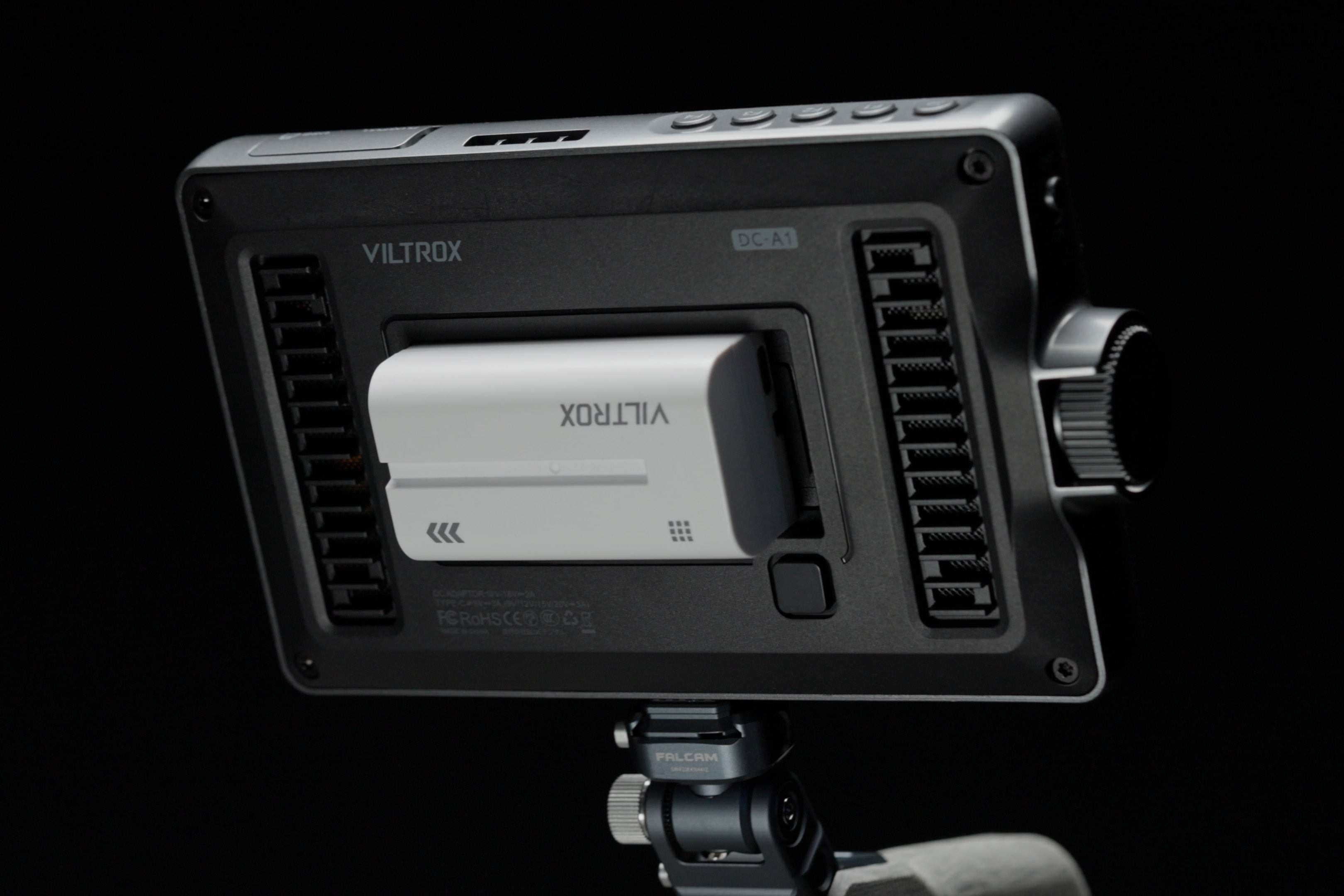

Versatile Power Options
Long-Lasting Battery Life, Shoot Without Limits
● Supports NP-F series batteries, DC IN (DC power supply), and Type-C power ensuring reliable, long-lasting performance for shoots that go the distance.
Specification
● Display Screen: 7-Inch IPS Touch Screen
● Resolution: 1920 X 1080
● Aspect Ratio: 16:9
● Contrast: 1000:1
● Refresh Rate: 60Hz
● Screen Brightness: 2800cd/m²
● Viewing Angle: 170º
● Pixel Density: 316PPI
● Color Gamut: SRGB
● Color Depth: 8Bit

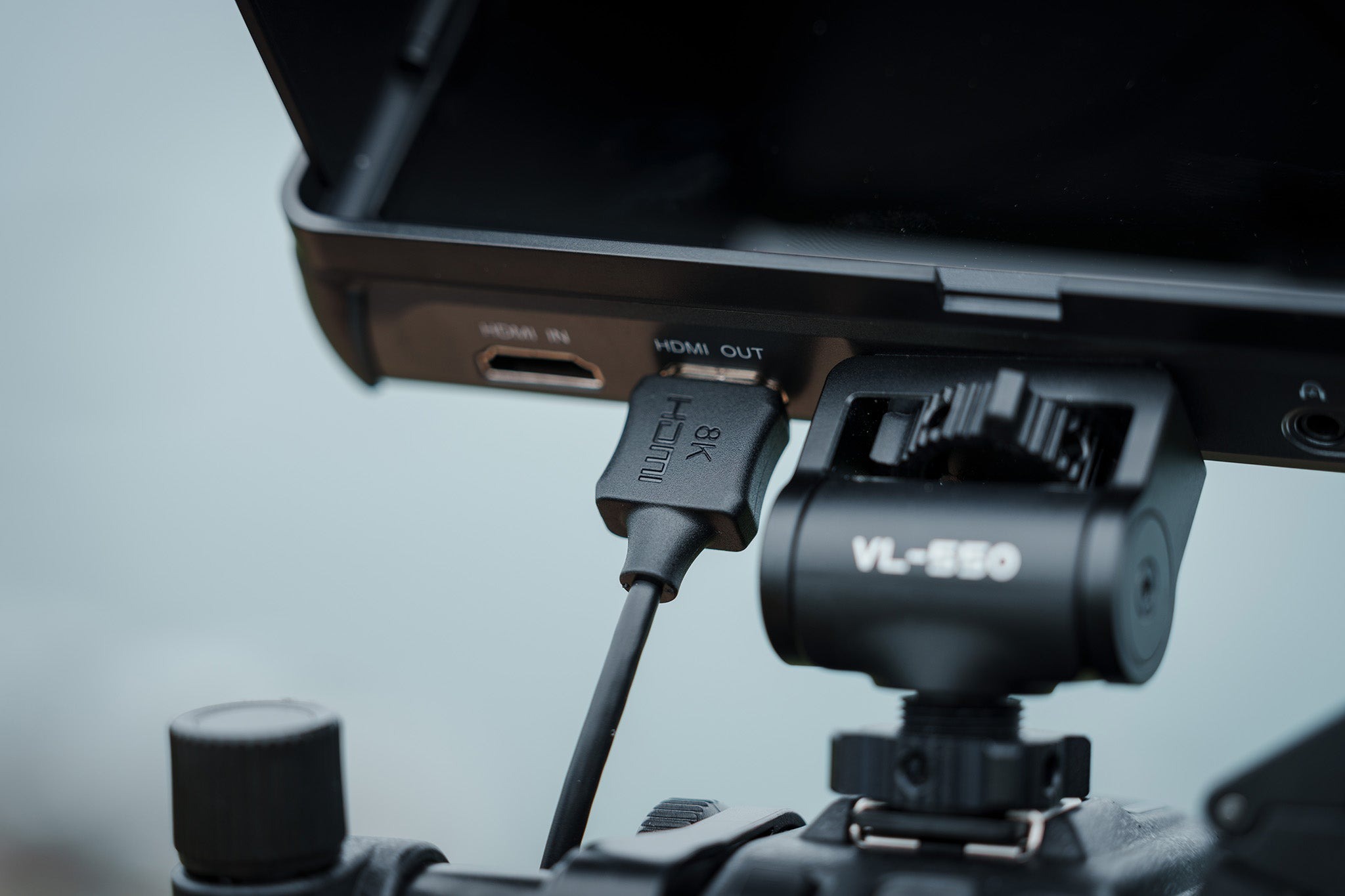

● Input Interface: HDMI 2.0 IN
● Output Interface: HDMI 2.0 OUT
● Cooling Fan: Yes
● Weight: ≈348g(Monitor)

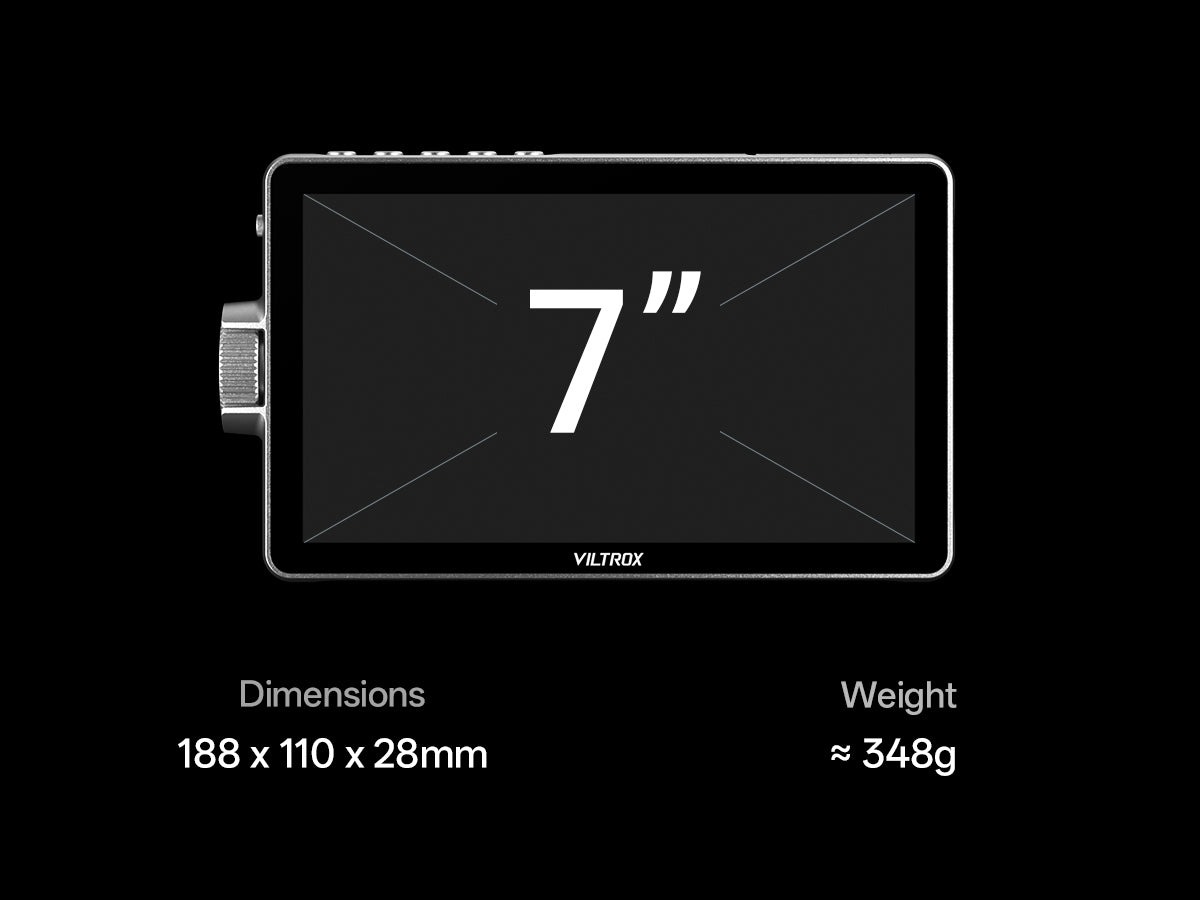

● Dimensions: 187.8 X 110.5 X 28.5mm
● USB Interface: Support of USB upgrade and 3D Lut file input
● Audio Output: Headphone jack ф3.5mm
● Power Interface: DC10V-18V=2A;Type-C≥9V=3A,(9V/12V/15V/20V=3A)
● Applicable Battery: Lithium Battery NP-F550/F750/F970
● Working Temperature: 0ºC ～ 40ºC
● Storage Temperature: -20ºC ～ 60ºC
