High-Resolution Display:

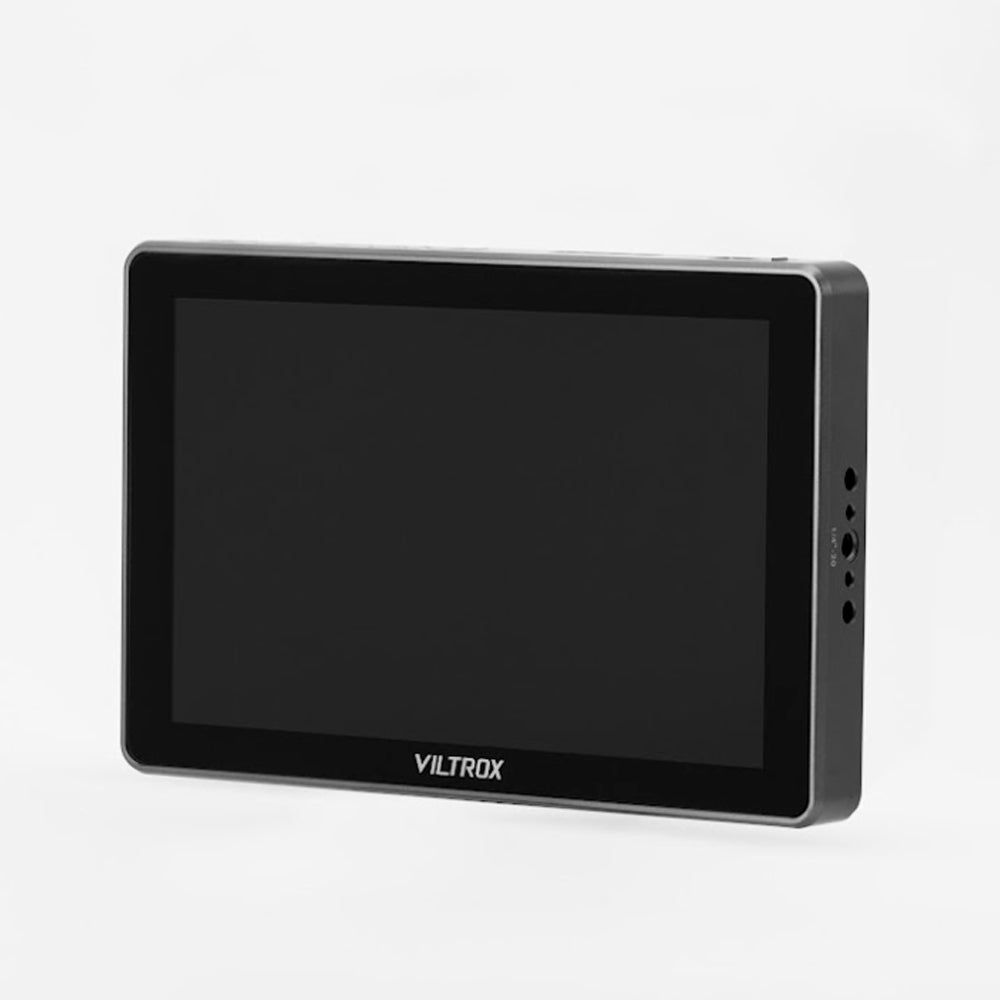

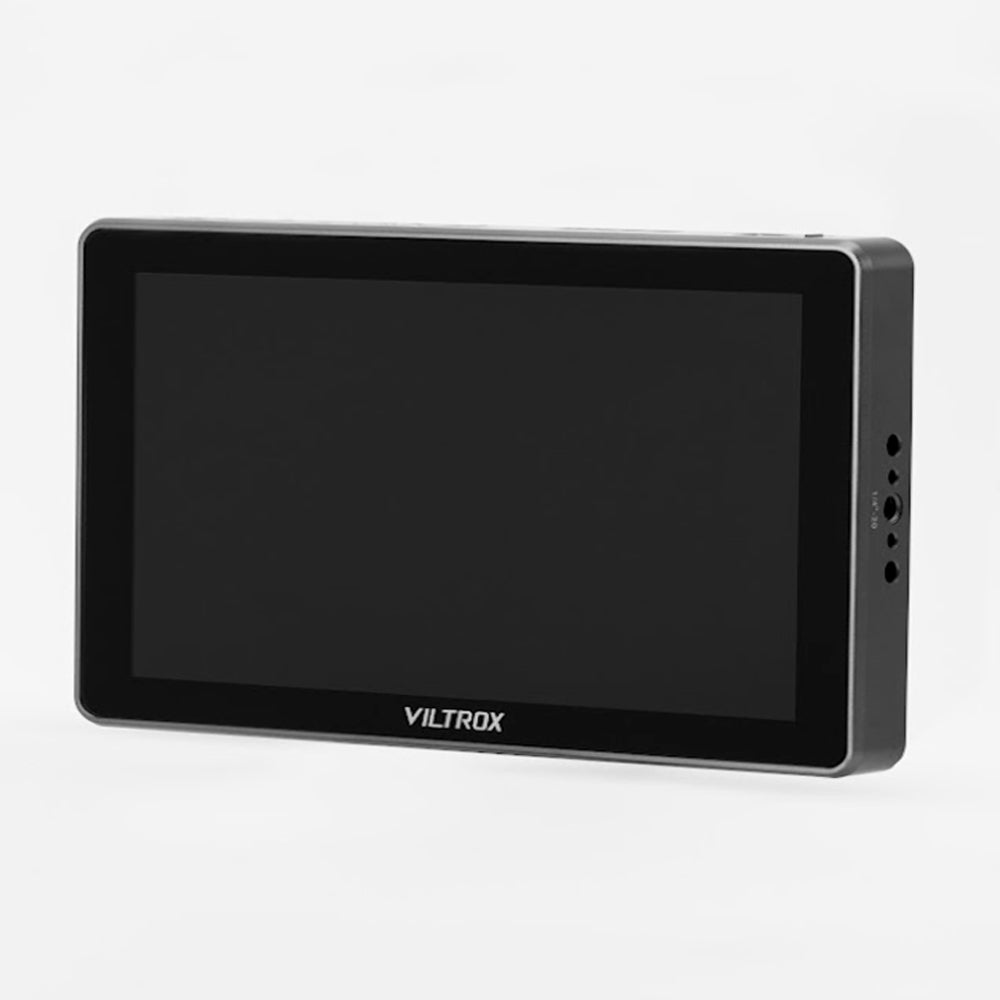

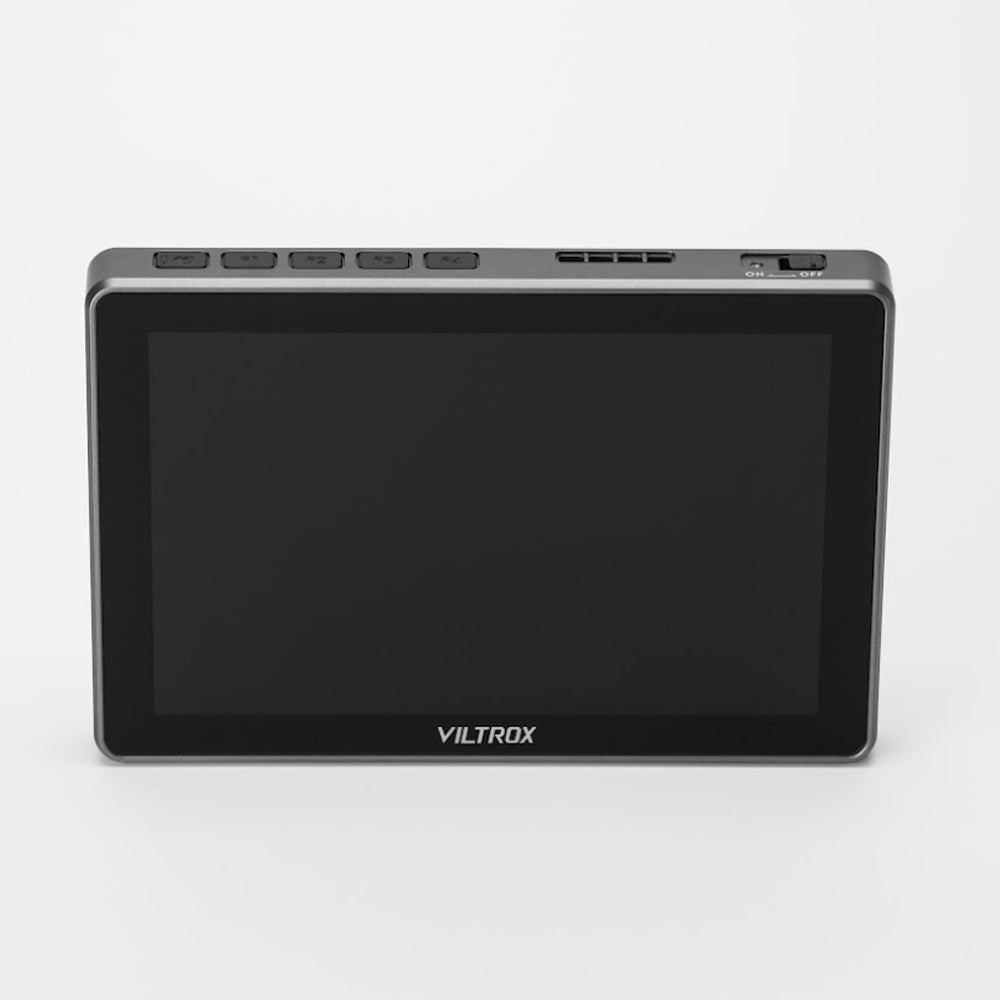

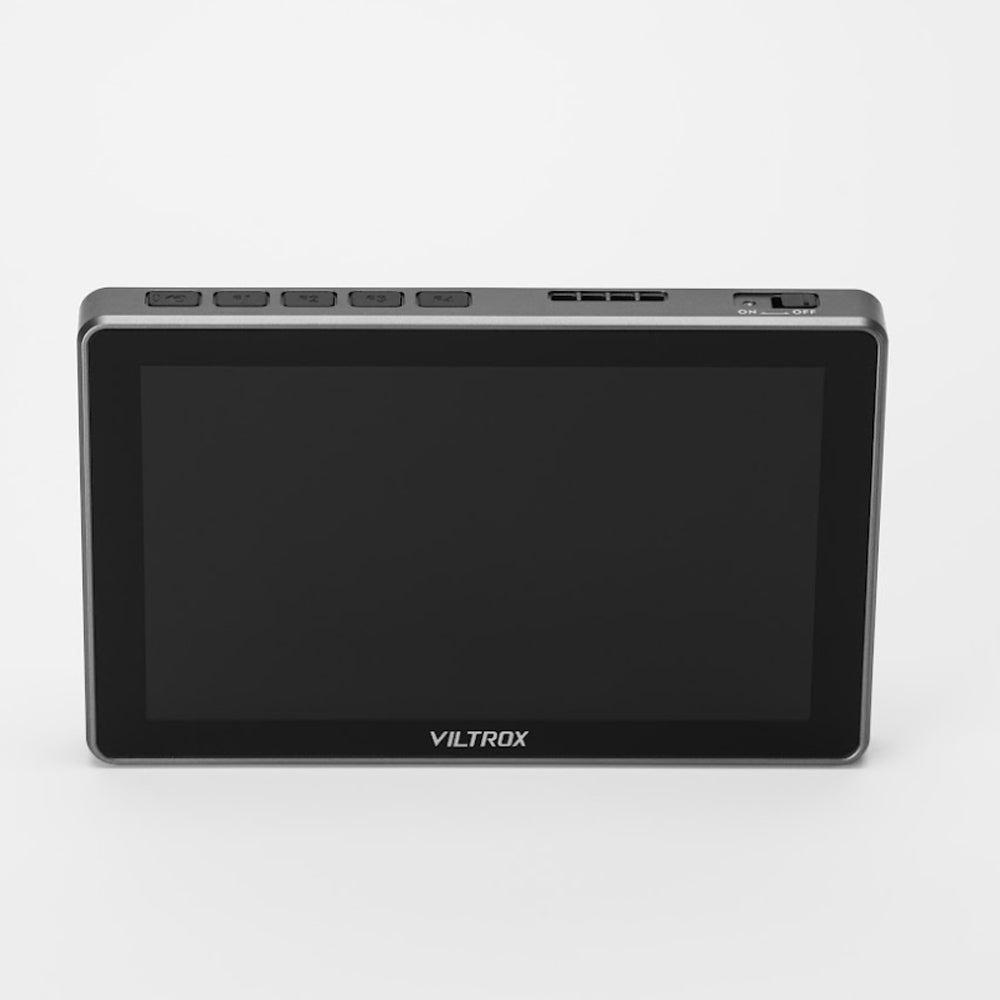

► Daylight-viewable 7"" on-camera LCD touchscreen monitor with a 1280 x 800 resolution that supports up to DCI/UHD 4K input via HDMI.
Input/Output:
► The monitor inputs up to DCI/UHD 4K60 video via HDMI and it can output using the HDMI loop output.
► There's also a USB port to import 3D LUTs and to update firmware. You can import up to 20 custom 3D LUT files.

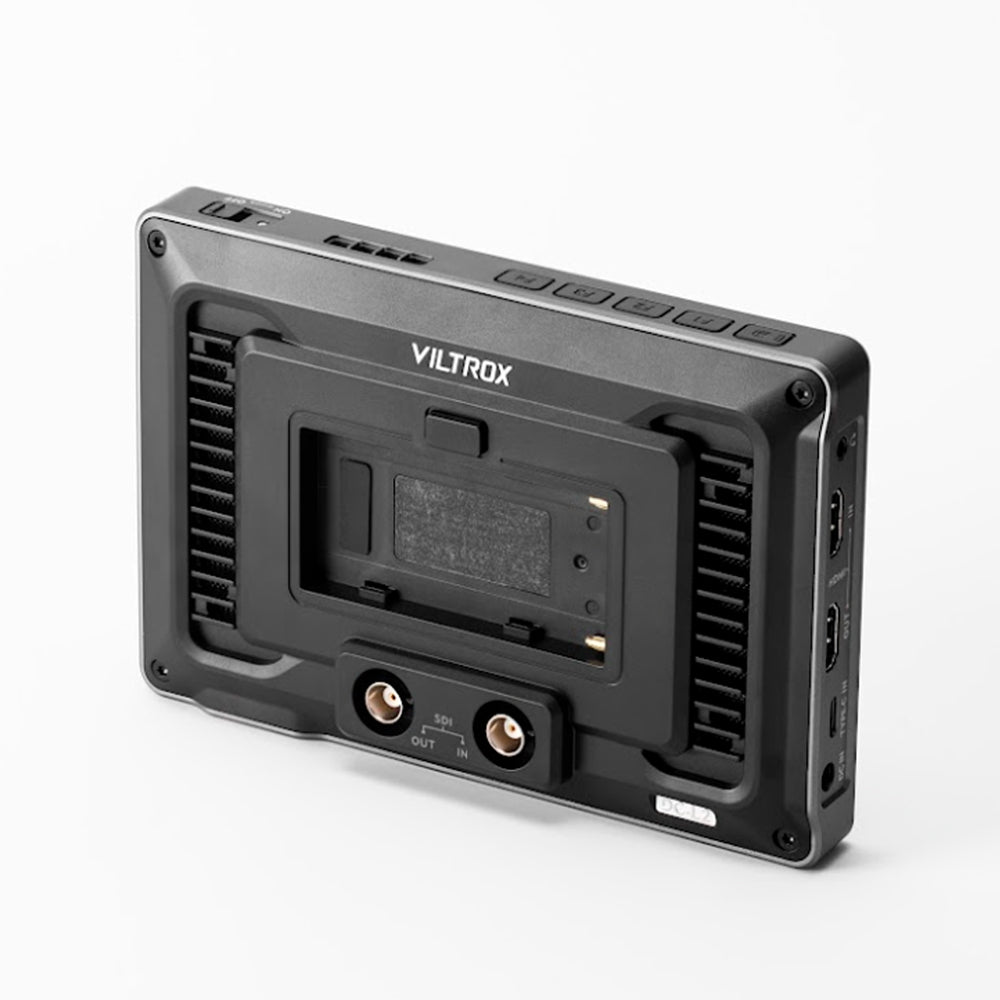

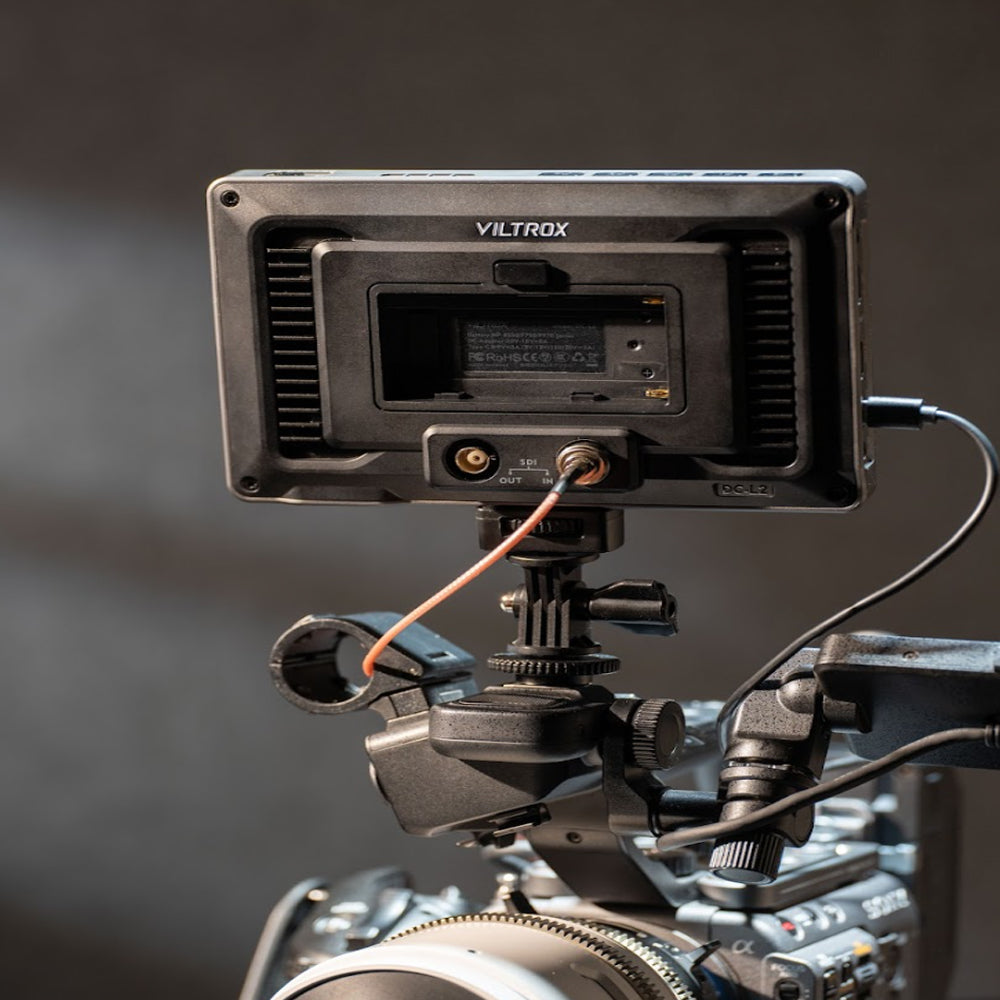

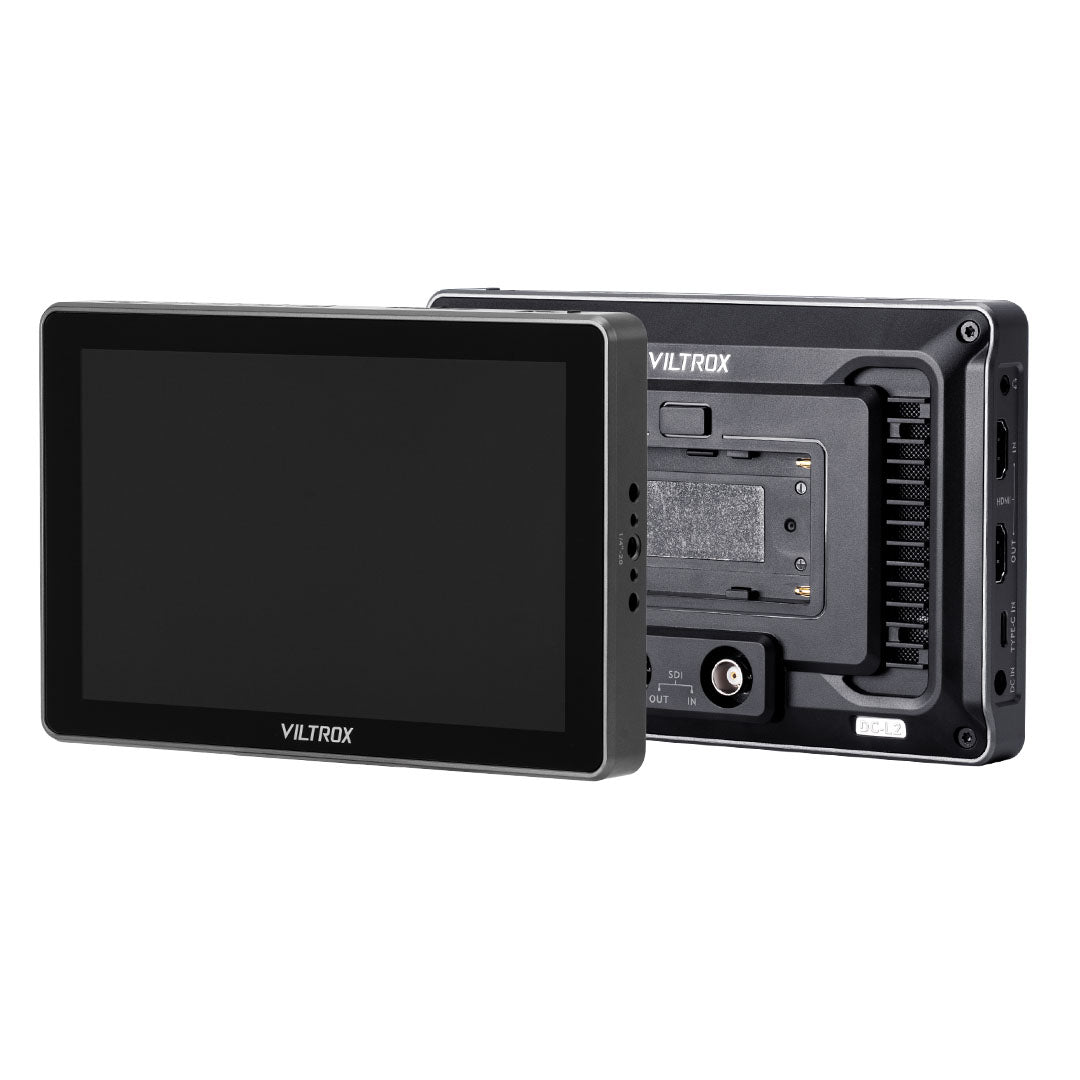

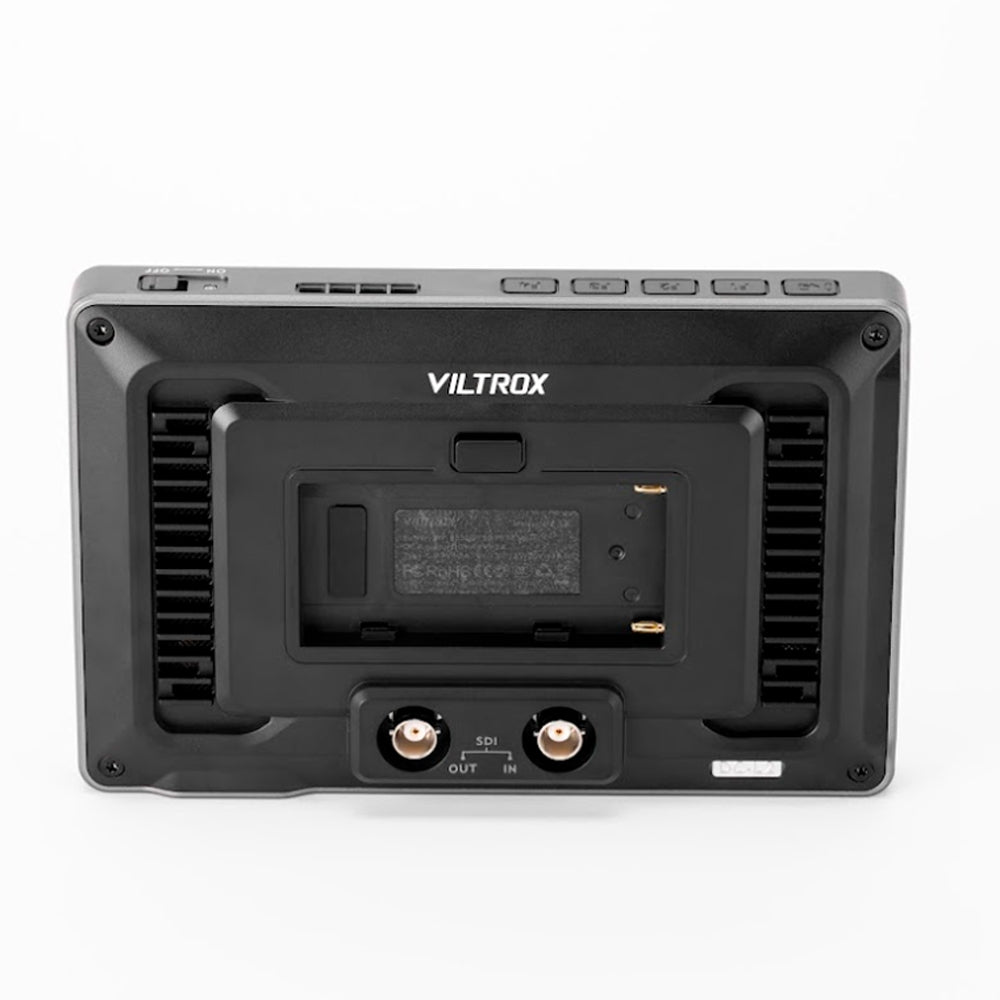

► This device features input capabilities: HDMI IN, SDI IN (DC-L2); and output functionalities: HDMI OUT, SDI OUT (DC-L2), facilitating connections to other monitors or devices on-site and satisfying the extended display needs of various enthusiasts.
Image Tools:

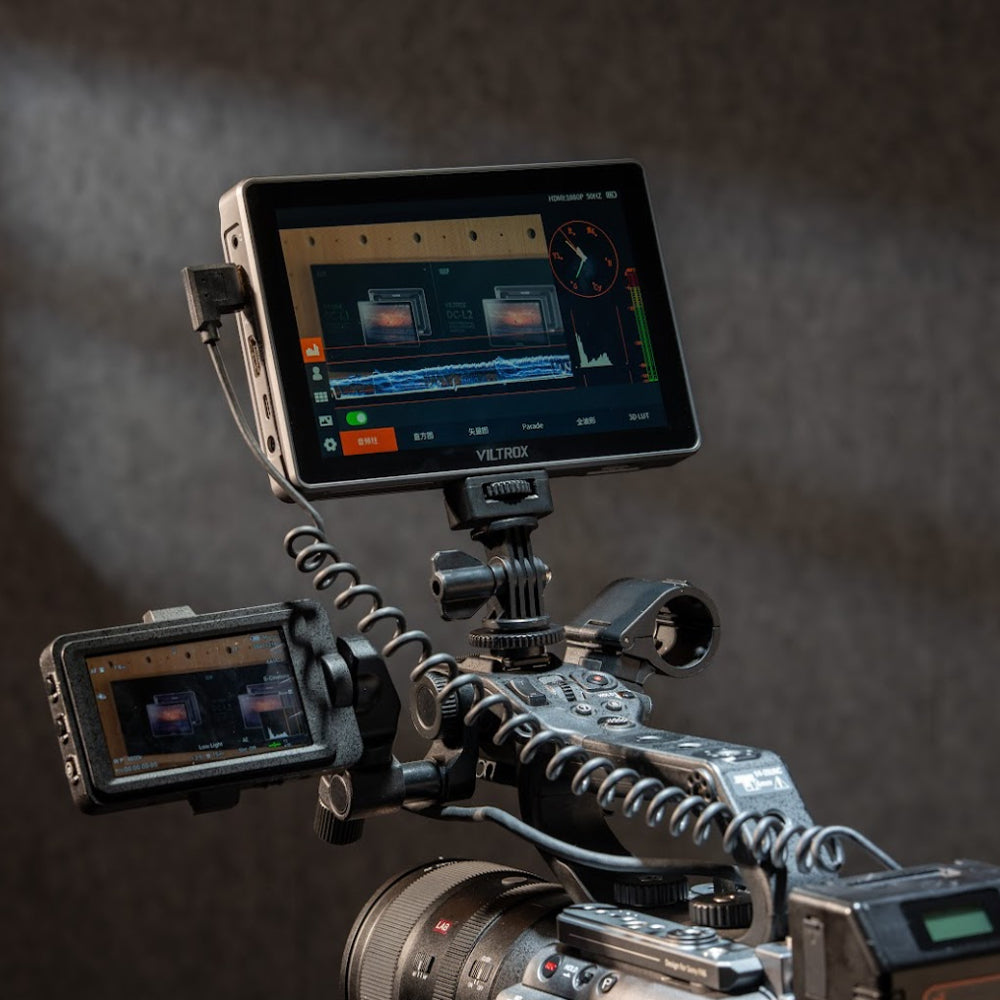

► The monitor features numerous built-in image tools that assist in managing your image, including focus, brightness histogram, false color, screen focus, anamorphic de-squeeze, and more.
Power Options:
► The monitor powers using an L-series-type battery or via a separately available USB-C or DC barrel power supply.

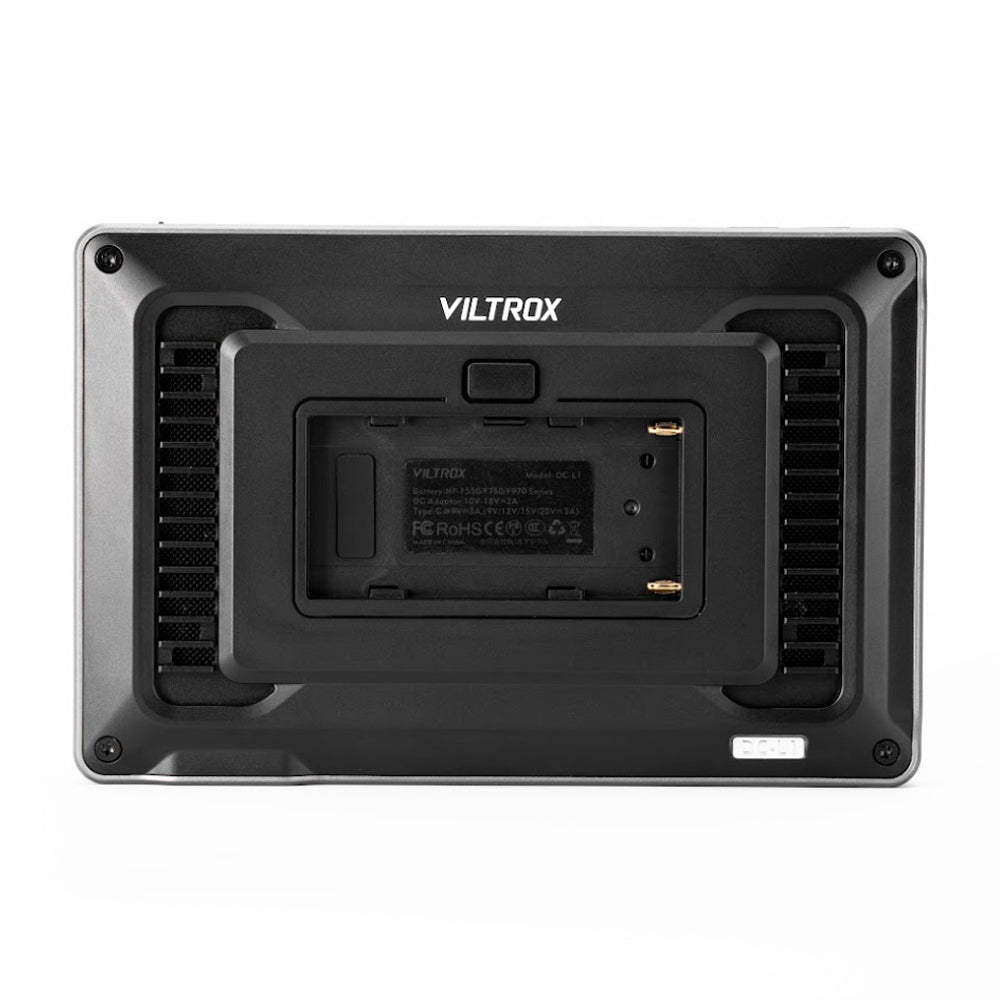

► Supported L-series battery types include NP-F550, F750, and F970.
Built-In Gyroscope:
► A built-in gyroscope provides auto-detection of whether your screen is flipped up or down, and it will flip the image accordingly, making switching camera positions easy.
Mounting Options:

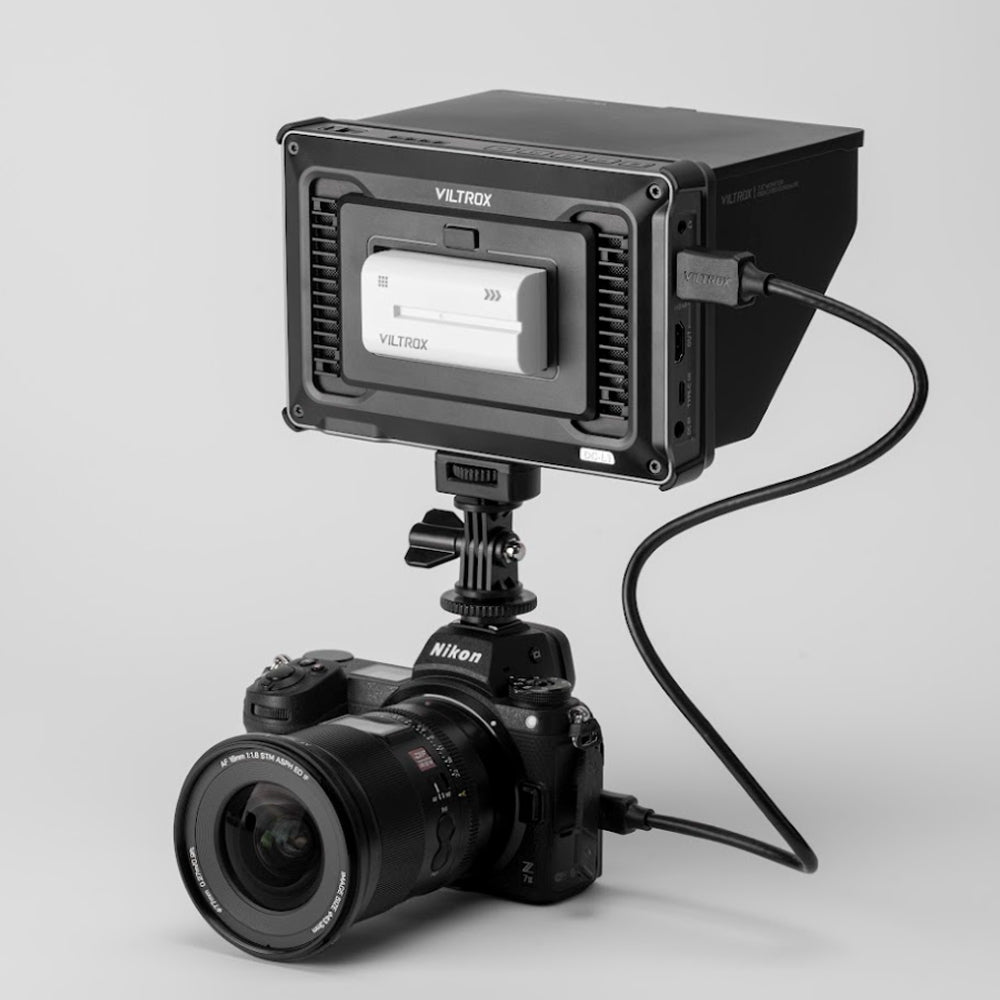

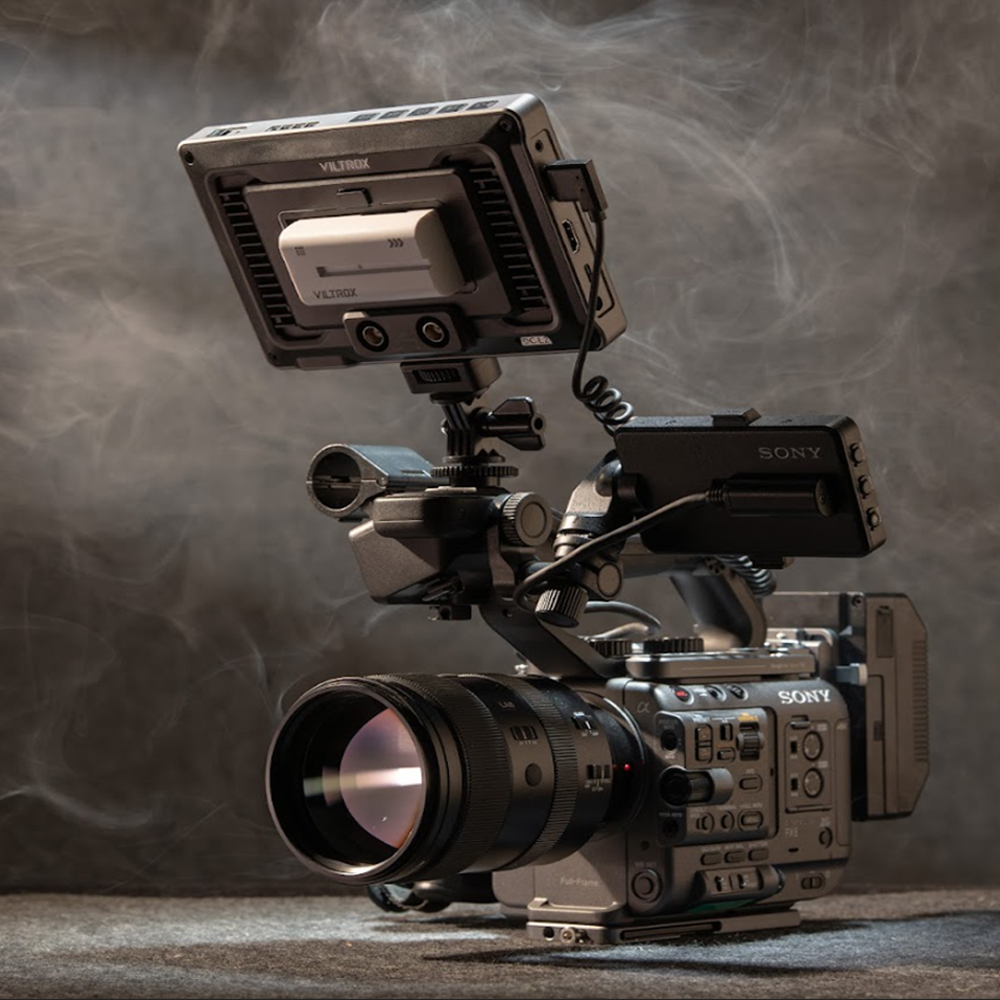

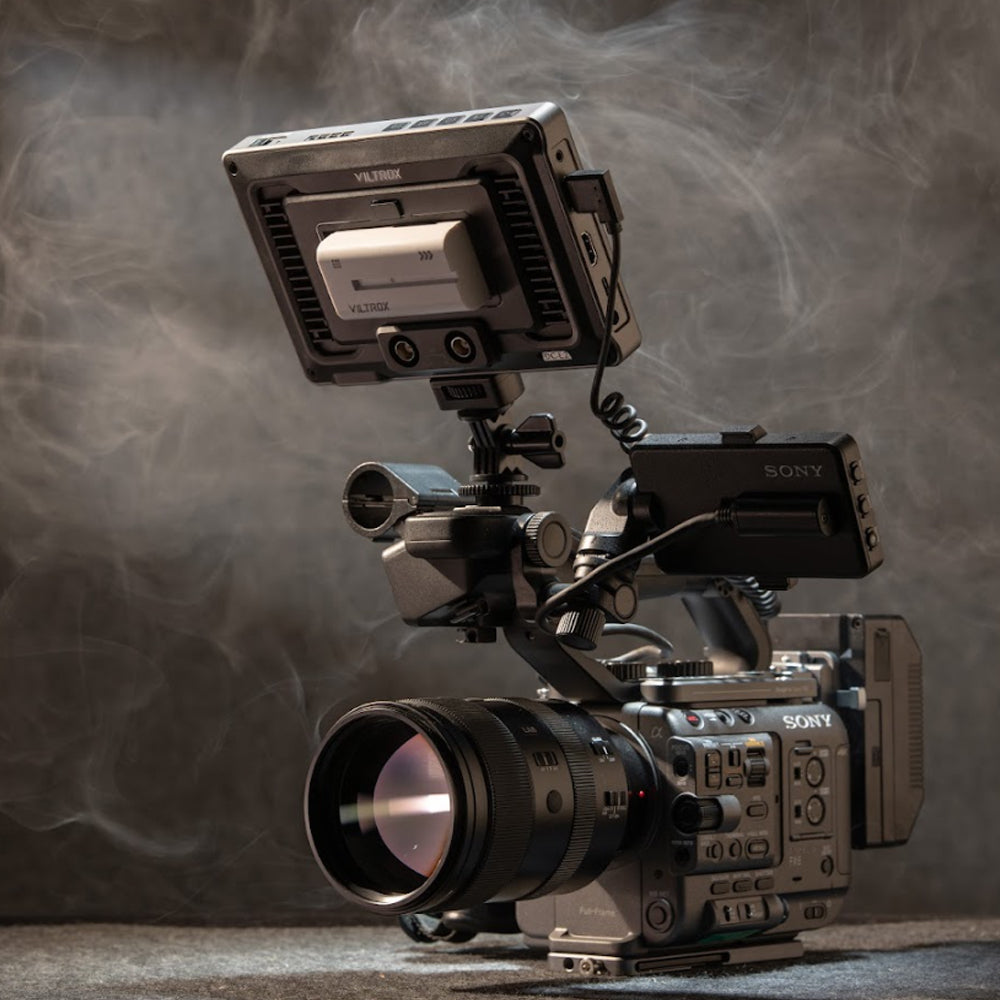

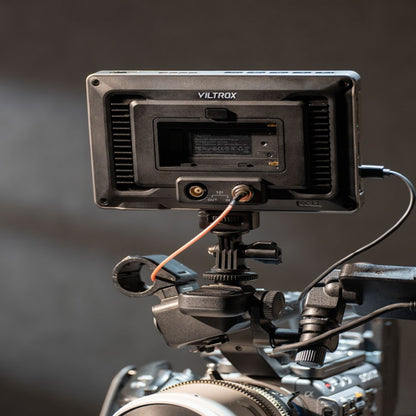

► There are 1/4""-20 threads on one side and on the bottom that allow you to mount the monitor onto a cage, directly on a camera, or utilize various accessories such as the included shoe adapter mount or an optional magic arm or tilt mount.
Accessories:

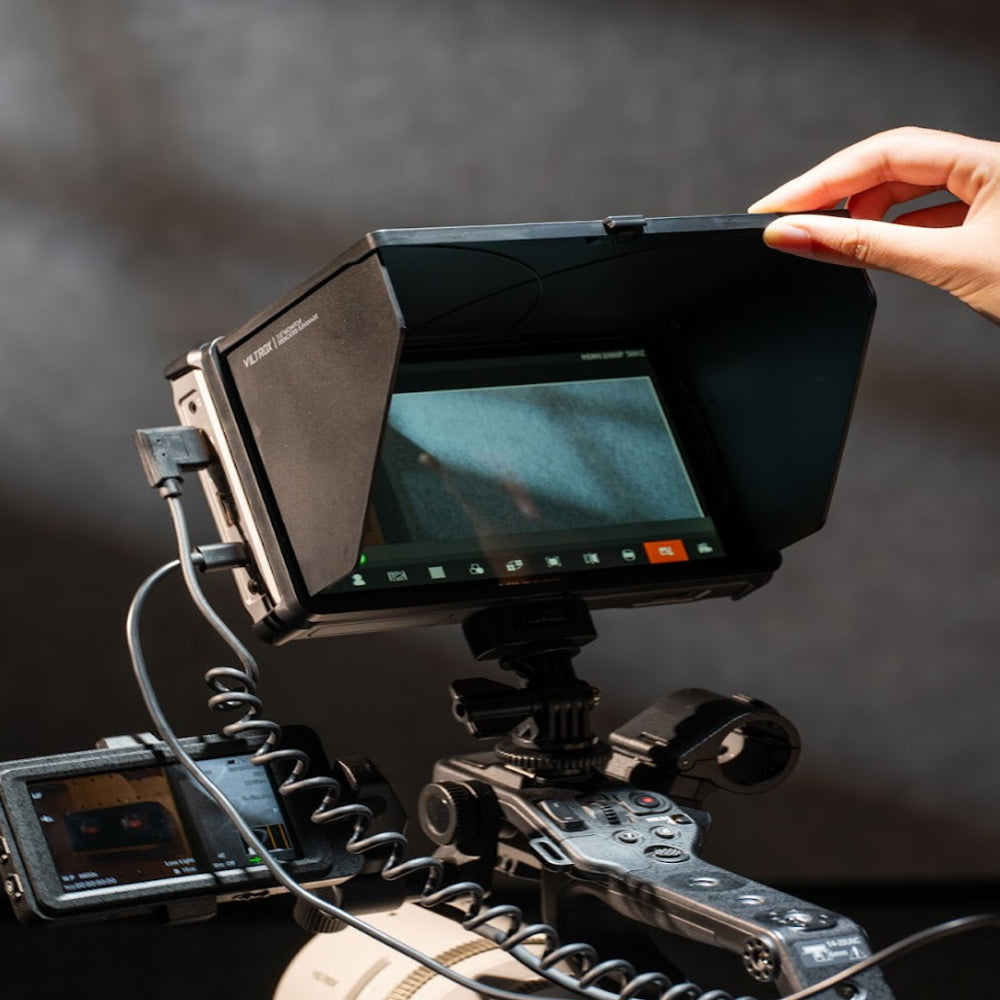

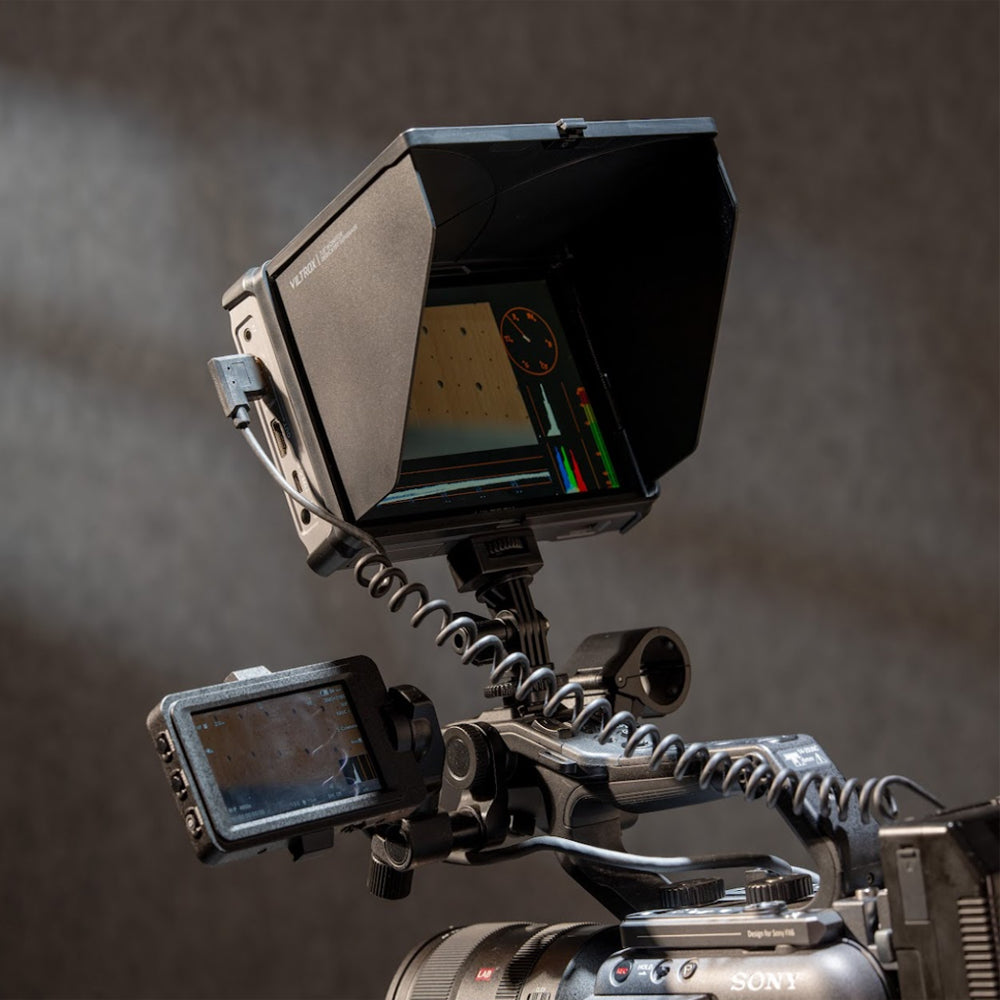

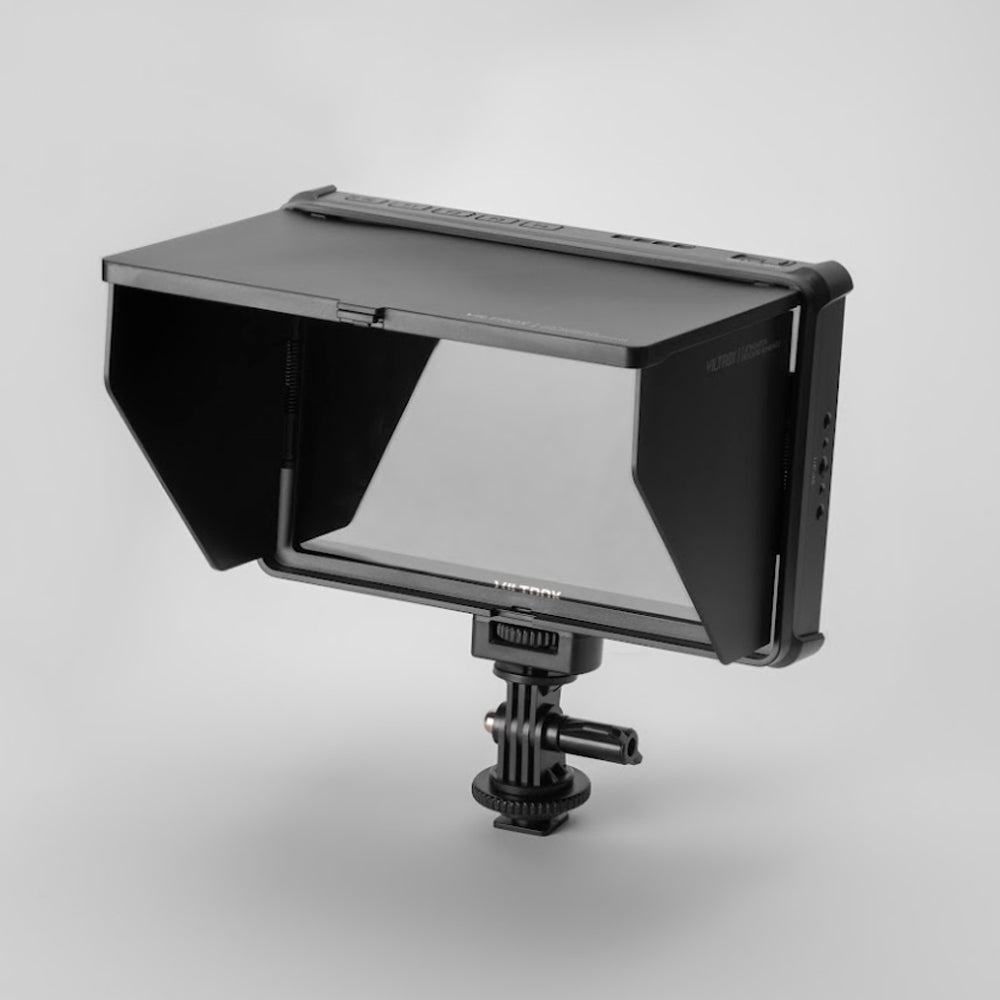

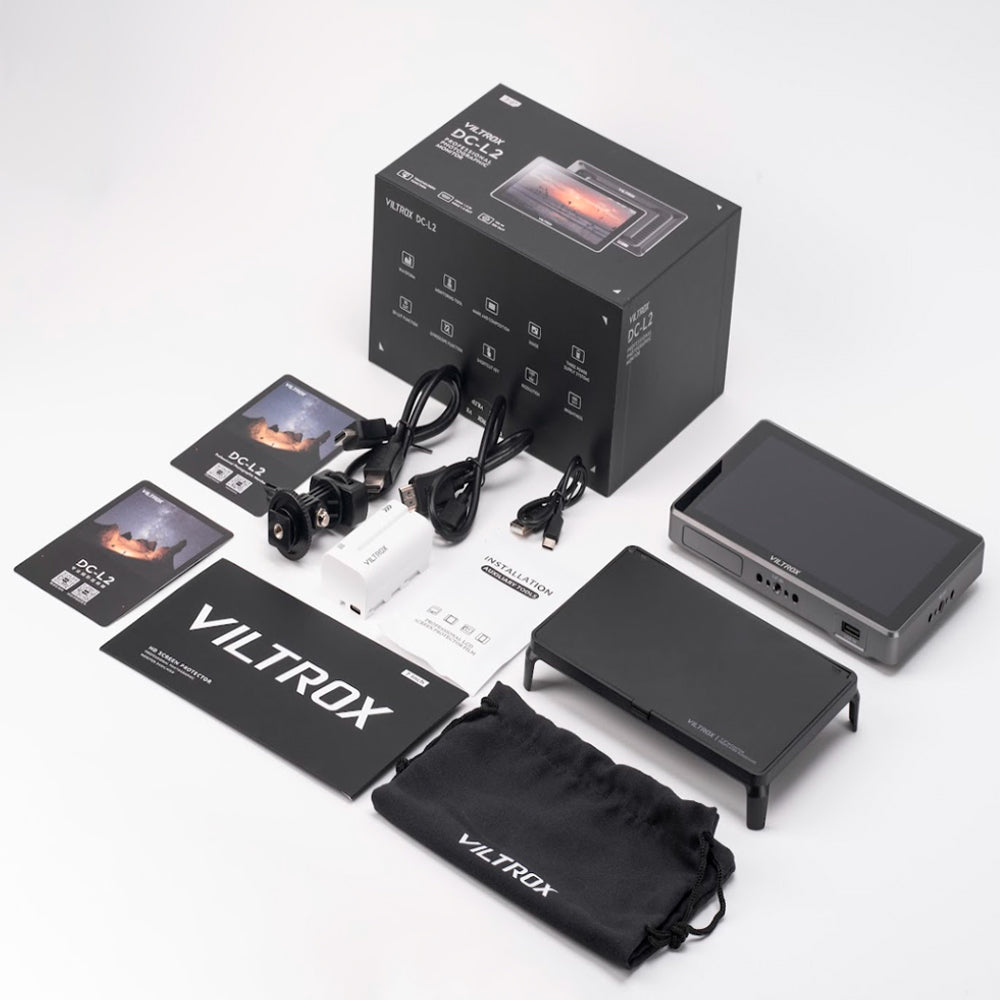

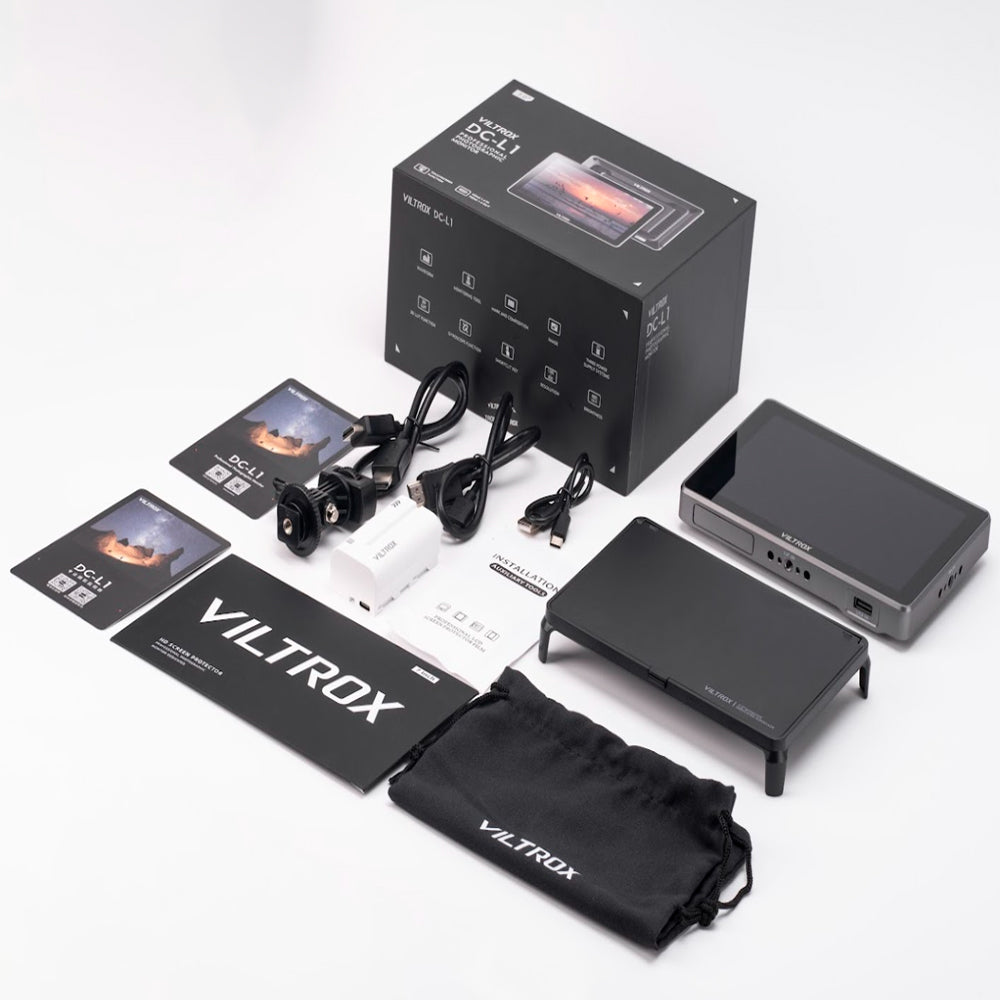

► Includes a sun hood, an L-series battery, a shoe adapter mount, a soft storage pouch, a screen protector, a USB-A to USB-C cable, an HDMI type A to HDMI type A cable, and an HDMI type A to mini-HDMI cable.
Specifications:
• Brand: Viltrox
• Model: DC-L1 / DC-L2
• Display Screen: 7-inch IPS Touch Screen
• Resolution: 1280x800
• Aspect Ratio: 16:10
• Contrast: 1000:1
• Refresh Rate: 60Hz
• Screen Brightness: 600cd/m²
• Viewing Angle: 170°
• Pixel Density: 215PPI
• Color Gamut: SRGB
• Color Depth: 8Bit
• Input Interface: HDMI 1.4 IN
• Output Interface: HDMI 1.4 OUT
• Input Interface (DC-L2): HDMI 1.4 IN / SDI IN
• Output Interface (DC-L2): HDMI 1.4 OUT / SDI OUT
• Weight: ≈367g
• Dimensions: 178.7x119.7x28mm
• USB Interface: Support of USB upgrade and 3D Lut file input
• Audio Output: Headphone Jack Φ3.5mm
• Power Interface: DC 10V-18V=2A; Type-C≥9V=3A,(9V/12V/15V/20V=3A)
• Applicable Battery: Lithium Battery NP-F550/F750/F970
