SKU:WINTACT WT63B

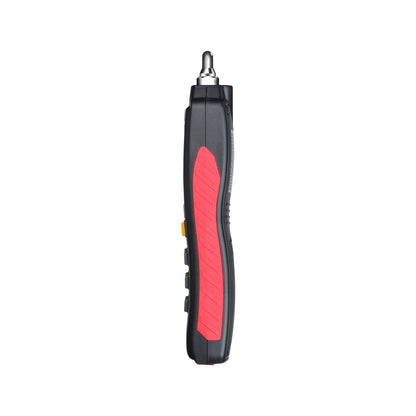

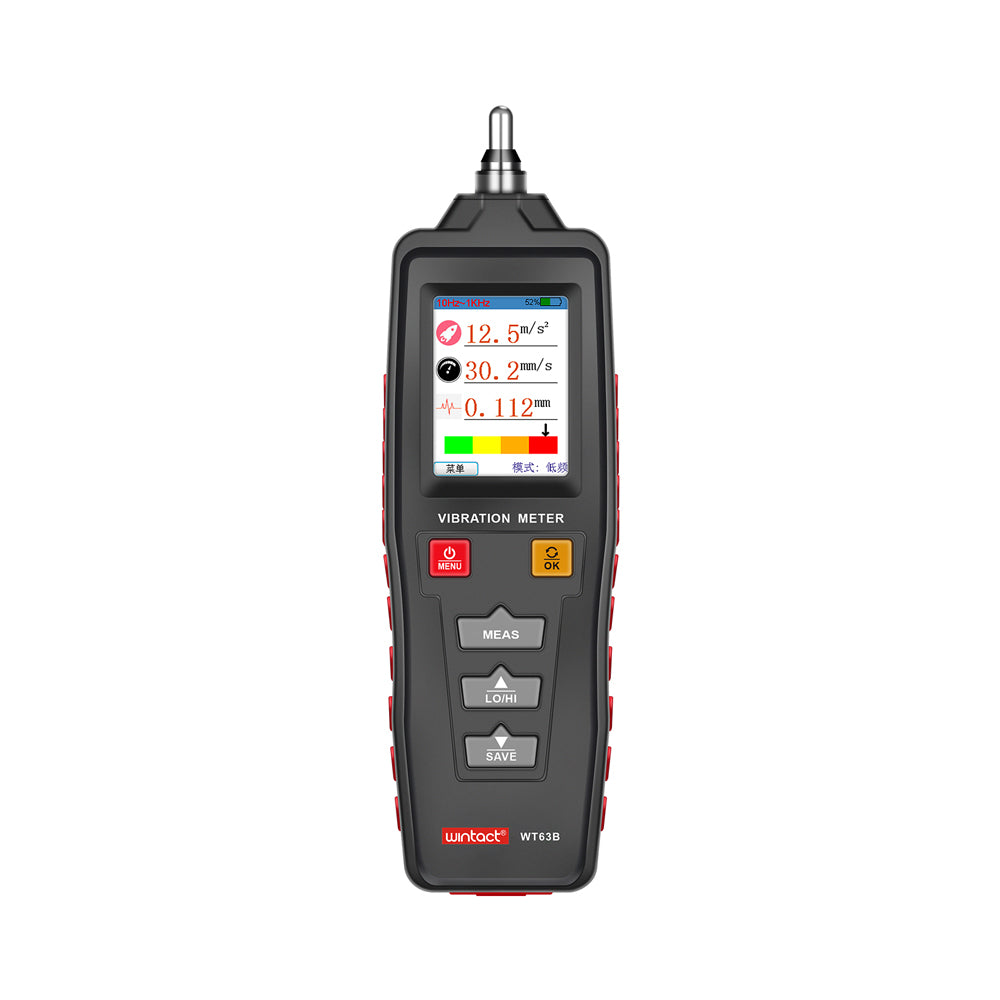

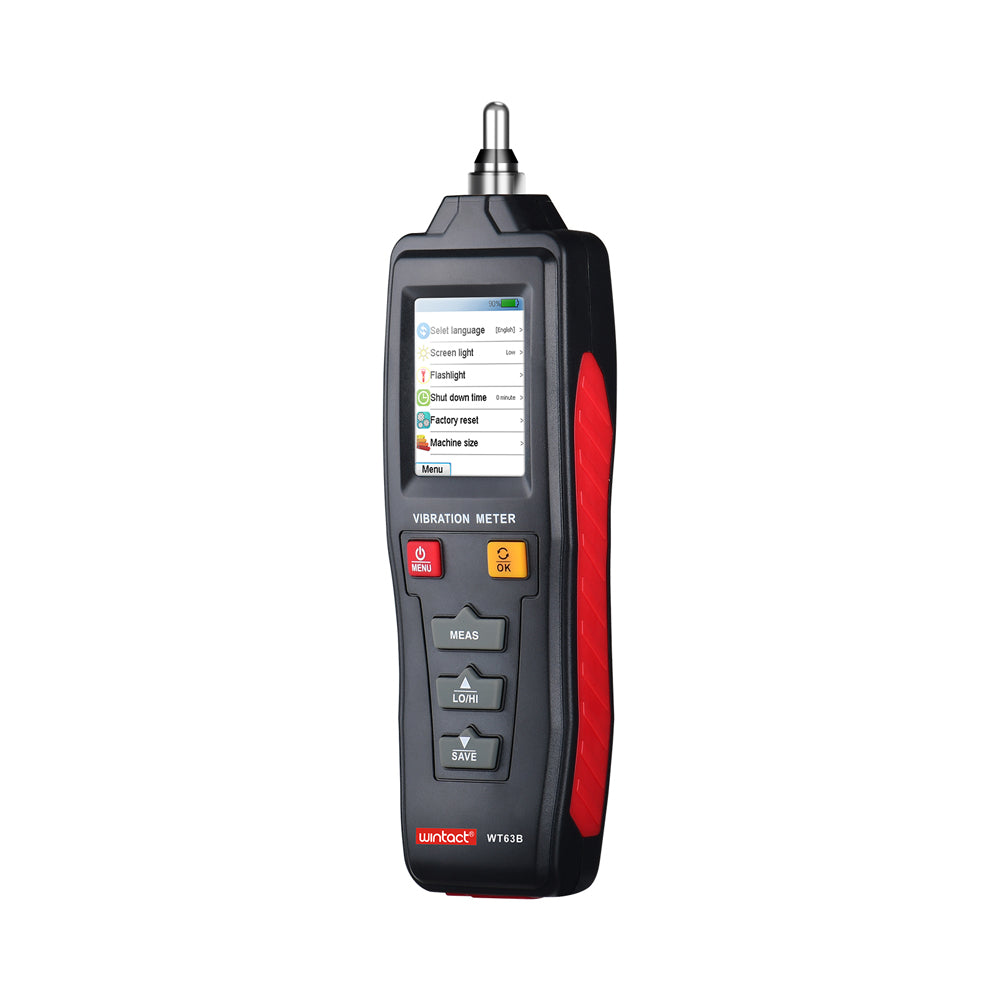

Wintact by Benetech WT63B Digital Vibration Meter (Battery Included) with 1KHz ~ 15KHz (HI) / 20KHz ~ 1KHz (LO) Frequency Acceleration, Data Logging, Colored LCD Display, Flashlight

₱6,800.00
₱6,800.00 ₱9,524.00
Sale Sold out
Tax included. Shipping calculated at checkout.
View Product Details
Description:

This product is based on piezoelectric effect of artificially polarized ceramics. It is suitable for conventional vibration measurement of mechanical equipment, especially for rotating and reciprocating machinery. It can measure vibration displacement, velocity and acceleration, and is widely used in fields like machinery manufacturing, electric metallurgy and general aerospace.

Features:

  • Full display.
  • Screen flipping.
  • Switch acceleration measurement between high and low frequency:
  • high frequency (1KHz~10KHz) /low frequency (20Hz~1KHz) Curve display.
  • Store and view files.
  • Power indicator.
  • Double measurement button.
  • Flashlight.
  • Screen brightness.
  • Select Chinese/English.
  • Shutdown time setting; Machinery grade.


Specifications:

Technical parameters: Technical indicators
Vibration acquisition: Piezoelectric ceramic accelerometer (shear type)

Measurement range:
Acceleration:0.1~199.9m/s2
Velocity:0.1~199.9mm/s
Displacement:0.001~1.999mm

Measurement accuracy:
Vibration displacement:0.01~0.02mm,
≤±10%. ≥0.02mm,≤±5%

Vibration velocity:0~2.0mm/s,
≤±10%.≥2.0mm/s,≤±5%

Vibration acceleration:0~2.0m/s2,
≤±10%.≥2.0m/s2,≤±5%

Frequency range of acceleration measurement:
High frequency Low frequency :1KHz~15KHz (HI)
Low frequency:20Hz~1KHz ( LO)

Frequency range of speed measurement:
20Hz~1KHz (LO)
Frequency range of displacement measurement:
20Hz~1KHz (LO)


LCD display: color display
Shuffle interval of data display: 1 second
Maximum groups of data storage: 7 groups
Power supply: 1.5V AAA battery*2
Temperature range for operation: 0~40℃
Humidity range for operation: 30~90%RH
