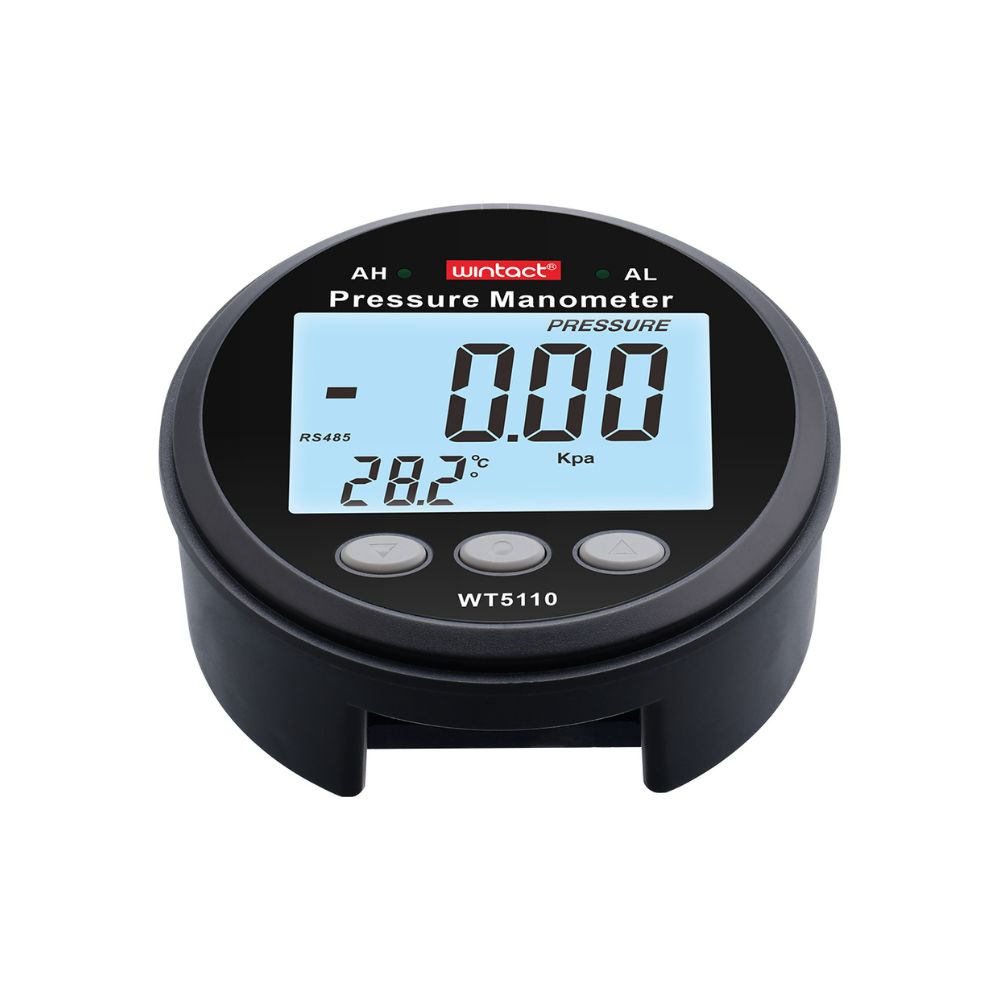

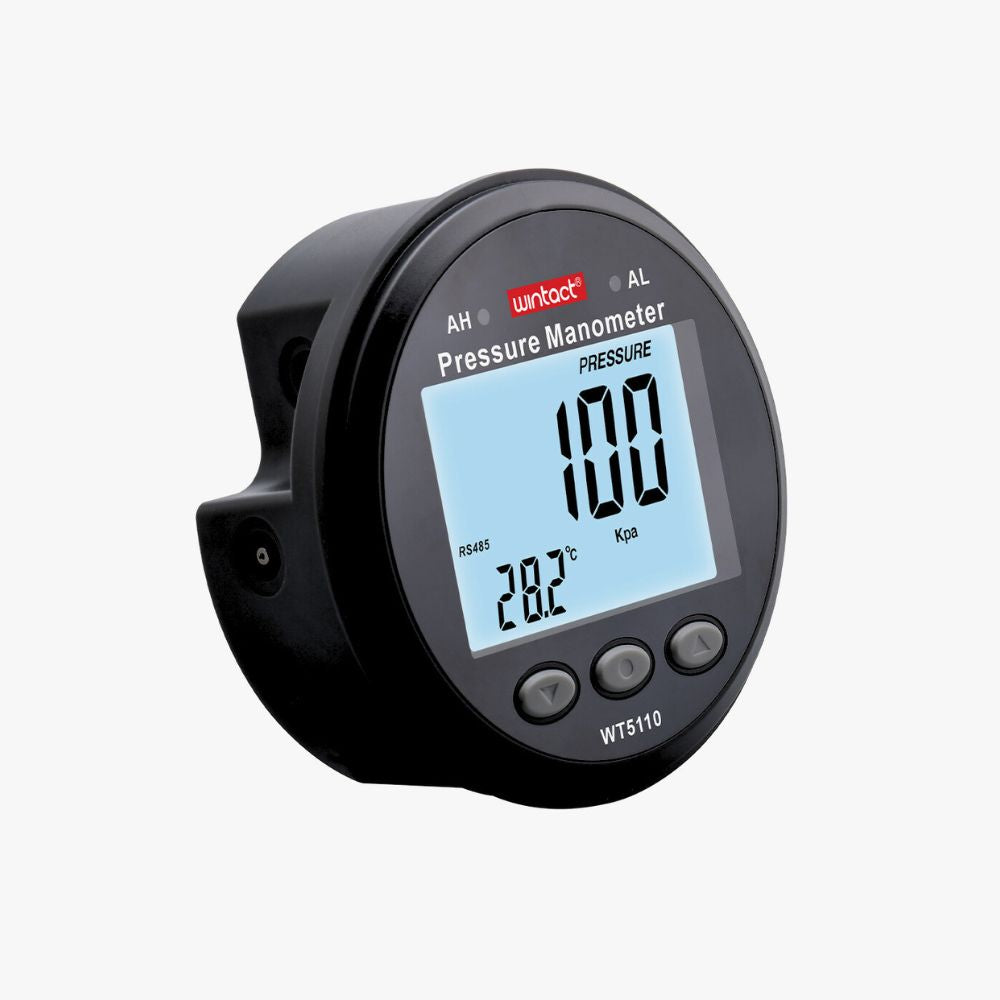

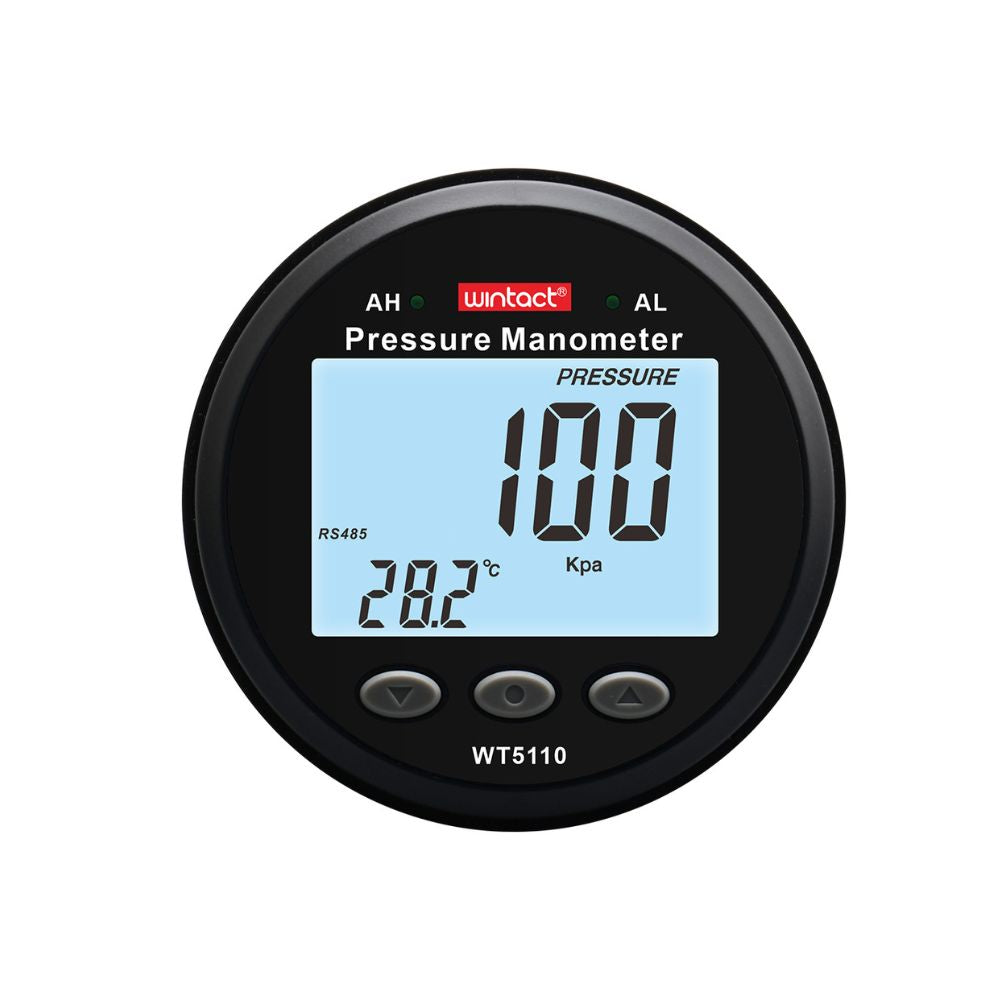

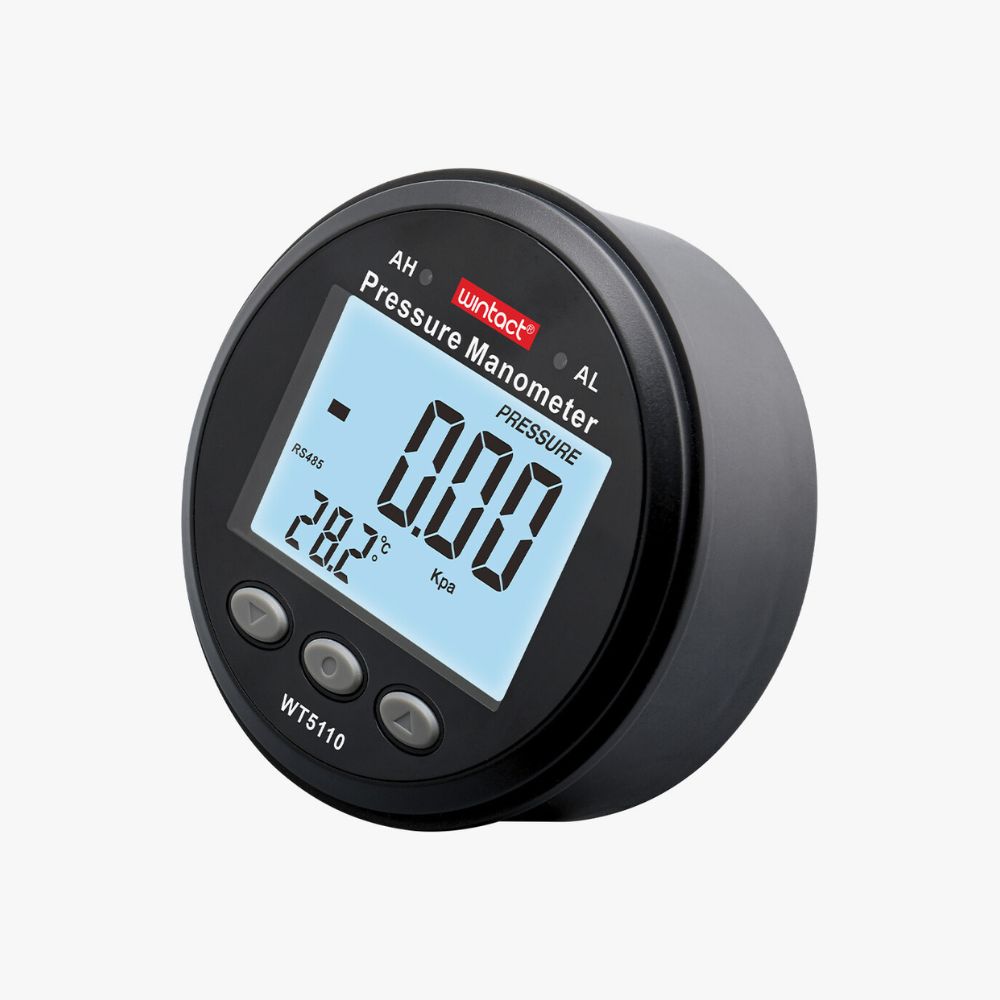

The WINTACT WT5110-5KPA is a digital pressure manometer designed for precise pressure measurements. It features a measurement range of ±5 kPa and supports multiple units, including bar, psi, and mmHg. This device is suitable for non-corrosive and non-ionic gases, such as air or dry gases.
Key Features include:
High Precision: Ensures accurate readings, ideal for industrial, HVAC, and laboratory applications.
Multiple Units: Easily switch between measurement units to suit various tasks.
Temperature Compensation: Operates reliably within -5°C to 50°C.
Overload Protection: Withstands up to 3 times the full-scale pressure and burst protection up to 5 times.
Its compact and portable design makes it user-friendly for professionals needing reliable pressure monitoring on the go.
Specifications
-
Measuring range ±5KPA
-
Accuracy: ±0.3%FS~±2%FS
-
Working temperature range: -10~60°C, accuracy: ±2°C
-
Working humidity range: 10%~60%RH
-
Temperature compensation range: -5~50°C
-
Instrument power: about 90mW
-
Power supply: 9V 6F22 battery
-
Weight: 238.8g
-
Instrument size: φ119.2*47.9mm
Features
-
Brand Wintact Model WT5110-5KPA
-
Low battery indication
-
with backlight
-
Measurement units bar、mbar、Kpa、kgf/cm²、mmHg、cmH2O、Ozf/in²、psi、inHg、inH2O、ftH2O、pa
-
Connection RS485 communication
-
Overvalue alarm
-
Max/Min/Avg value measurement
-
Zero adjustment and data correction
-
High/Low pressure alarm value setting
-
Buzzer switch setting
-
Differential pressure mode
-
Manual shutdown
What’s in the box?
- 1x WT5110-5KPA Pressure Manometer
- 1x 9V Battery
- 3x Screw
- 1x Tube Hose
