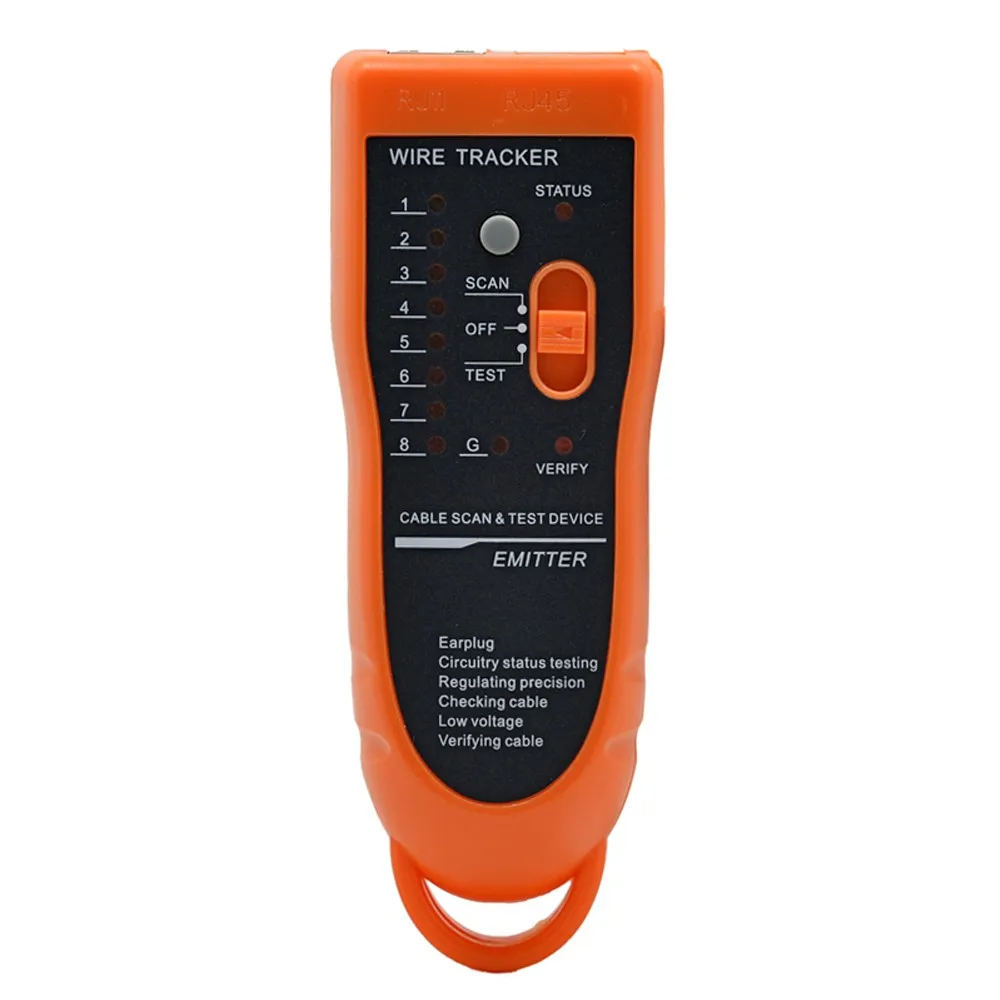

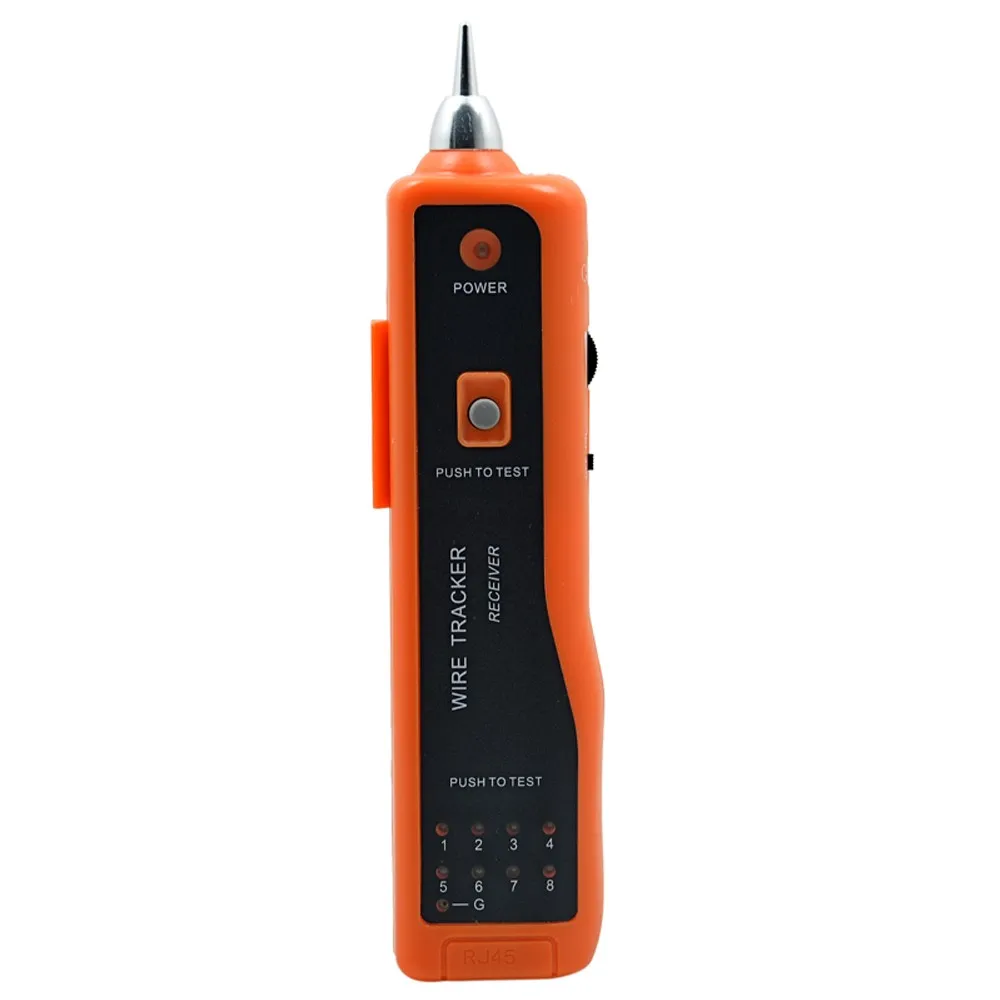

Eagletech XQ350 Network Cable Tester and Tracker with Alarm

  • ₱999.00


Description:

1. Cable Tester for UTP STP RJ45 RJ11;
2. Automatic efficient scan for the miss wiring, disorder cable, open and short circuit;
3. TEL BNC test available(Adapter needed);
4. Remotely test cable up to 1000 ft in length ( remote kit included );
5. Protective power switch for low power consumption;
6. High-quality protective case provides more secure protection;
7. Judge continuity of the cables or wires;
8. Track the cables or wires, and diagnose the breakpoint;
9. Receiver the tone signal on the cables or wires (telephone line);
10. Identify the state in the working telephone line (clear ring, busy);
11. Send a single solid tone or a dual alternating tone to the object cables or wires.

Features:

  • Streamlined design and easy to carry
  • Comes with earphones usable in a noisy situation
  • Flexible and versatile interface
  • Sensitive and adjustable volume control

Specification:

Working current:

  • Emiter: 10mA Receiver: 30mA
  • Signal transfe mode: Digital signal
  • Signal output level: 8Vp-p
  • Signal transfer distance: 3Km

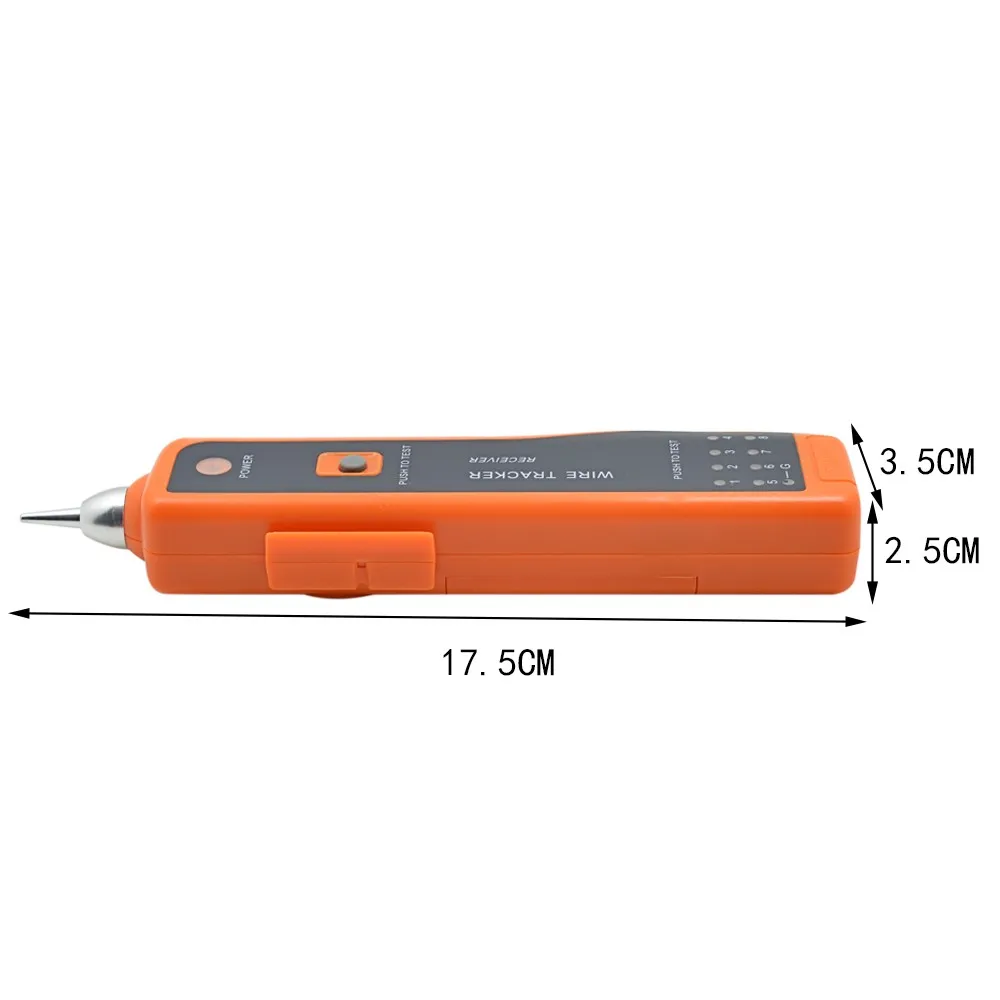

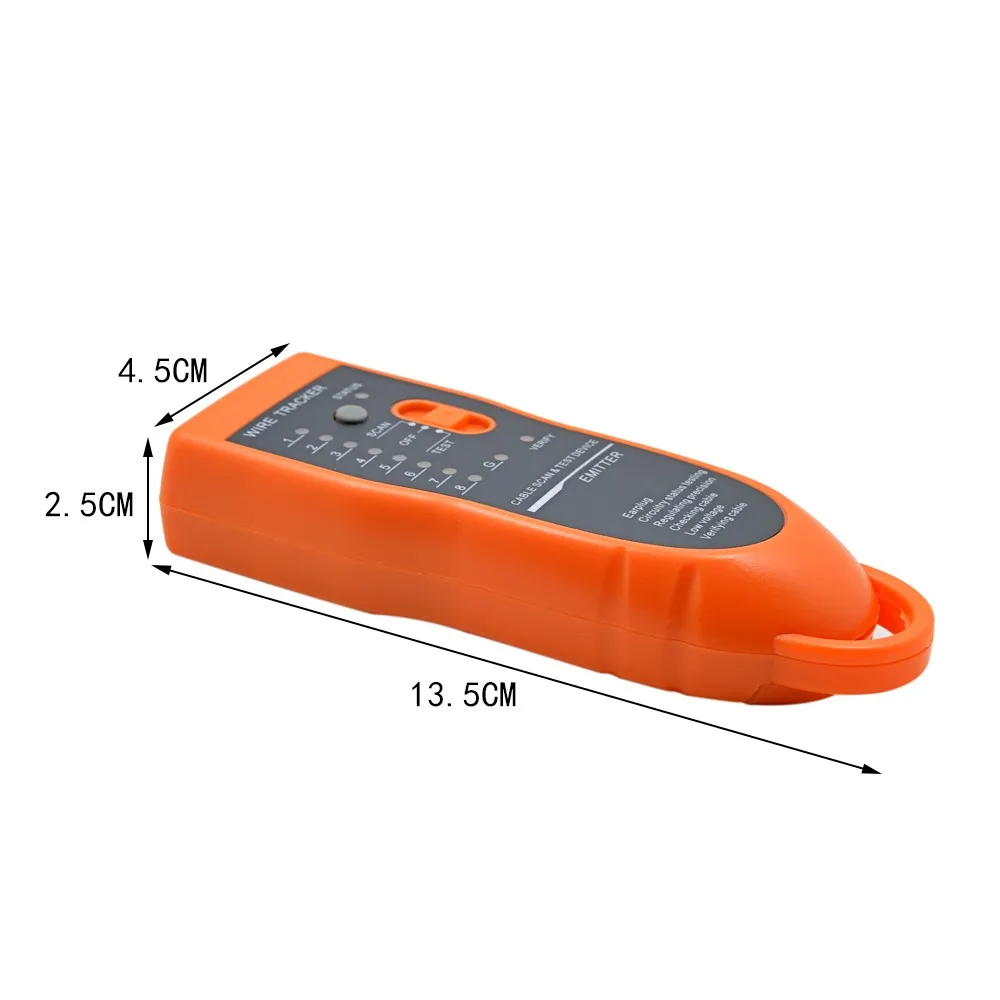

  • Dimension:Transmitter: 126x49x34mm Reveiver:175x42x25mm
  • Power: by 2 x DC 9V Battery( not included)

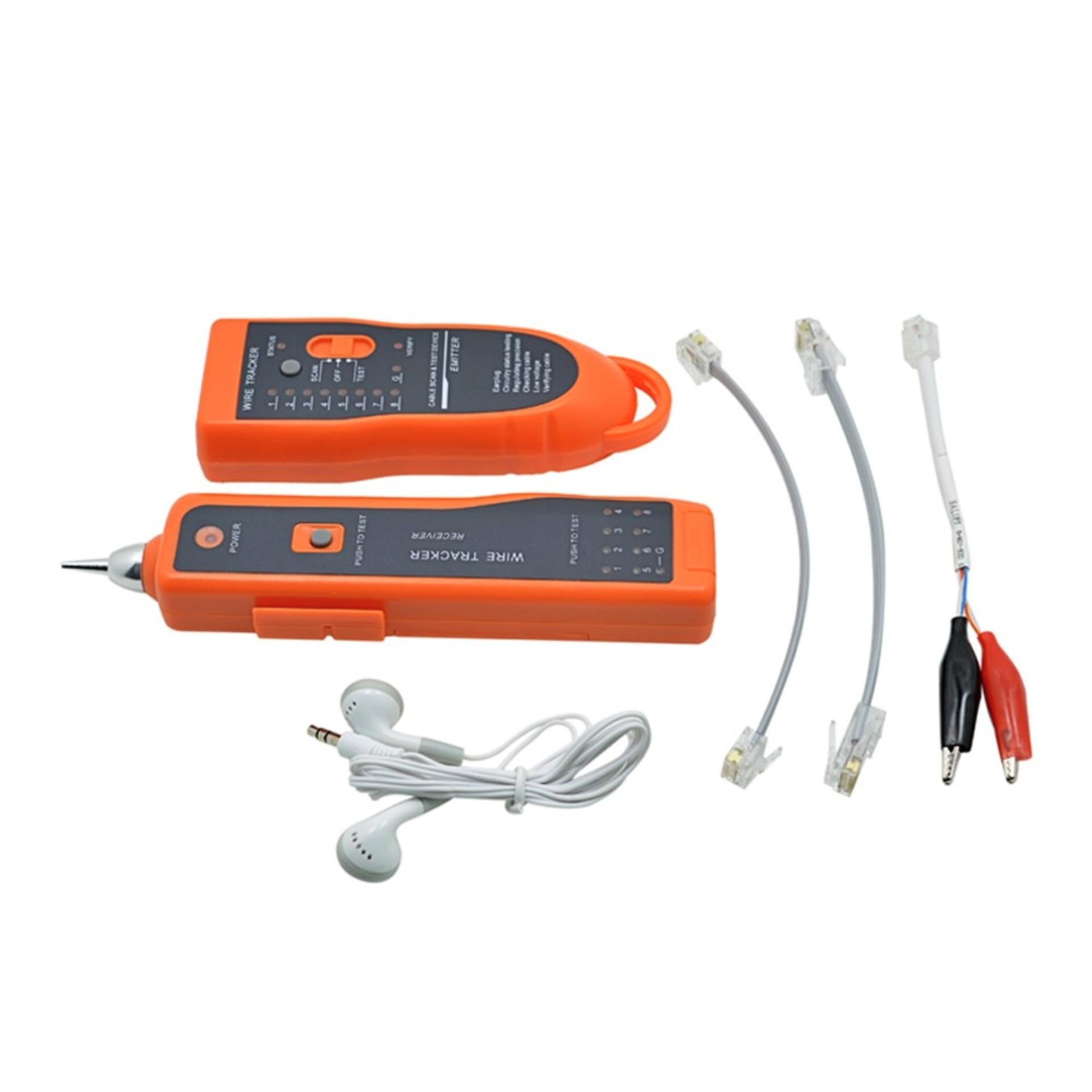

Package List:

  • 1 x Cable Emitter
  • 1 x Cable Receiver
  • 1 x RJ11 Cable
  • 1 x RJ45 Cable
  • 1 x Earphone
  • 1 x Cable with Crocodile Clamp
  • 1 x User Manual
