Description:
1. Cable Tester for UTP STP RJ45 RJ11;
2. Automatic efficient scan for the miss wiring, disorder cable, open and short circuit;
3. TEL BNC test available(Adapter needed);
4. Remotely test cable up to 1000 ft in length ( remote kit included );
5. Protective power switch for low power consumption;
6. High-quality protective case provides more secure protection;
7. Judge continuity of the cables or wires;
8. Track the cables or wires, and diagnose the breakpoint;
9. Receiver the tone signal on the cables or wires (telephone line);
10. Identify the state in the working telephone line (clear ring, busy);
11. Send a single solid tone or a dual alternating tone to the object cables or wires.
Features:
- Streamlined design and easy to carry
- Comes with earphones usable in a noisy situation
- Flexible and versatile interface
- Sensitive and adjustable volume control
Specification:
Working current:
- Emiter: 10mA Receiver: 30mA
- Signal transfe mode: Digital signal
- Signal output level: 8Vp-p
- Signal transfer distance: 3Km
- Dimension:Transmitter: 126x49x34mm Reveiver:175x42x25mm
- Power: by 2 x DC 9V Battery( not included)

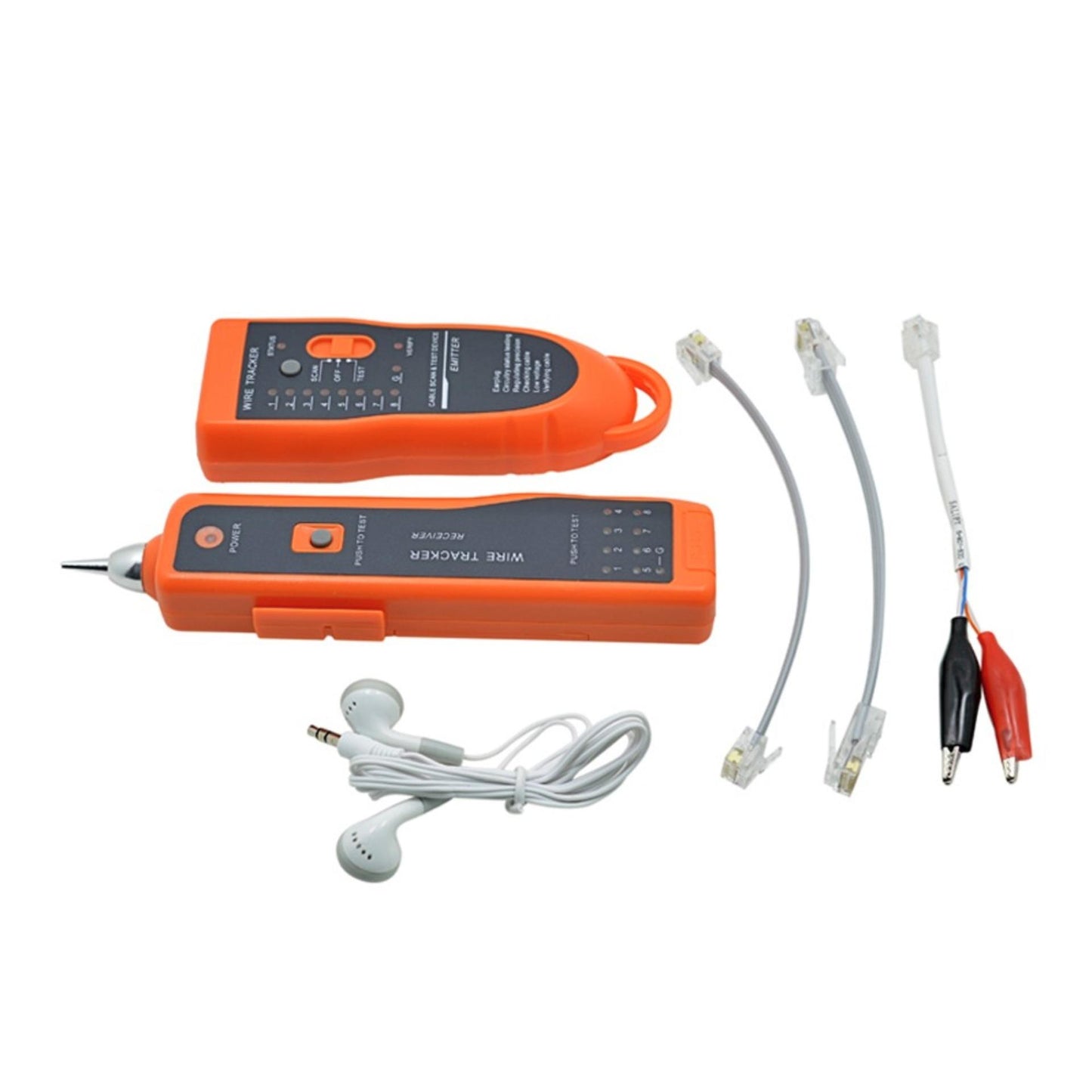

Package List:
- 1 x Cable Emitter
- 1 x Cable Receiver
- 1 x RJ11 Cable
- 1 x RJ45 Cable
- 1 x Earphone
- 1 x Cable with Crocodile Clamp
- 1 x User Manual
