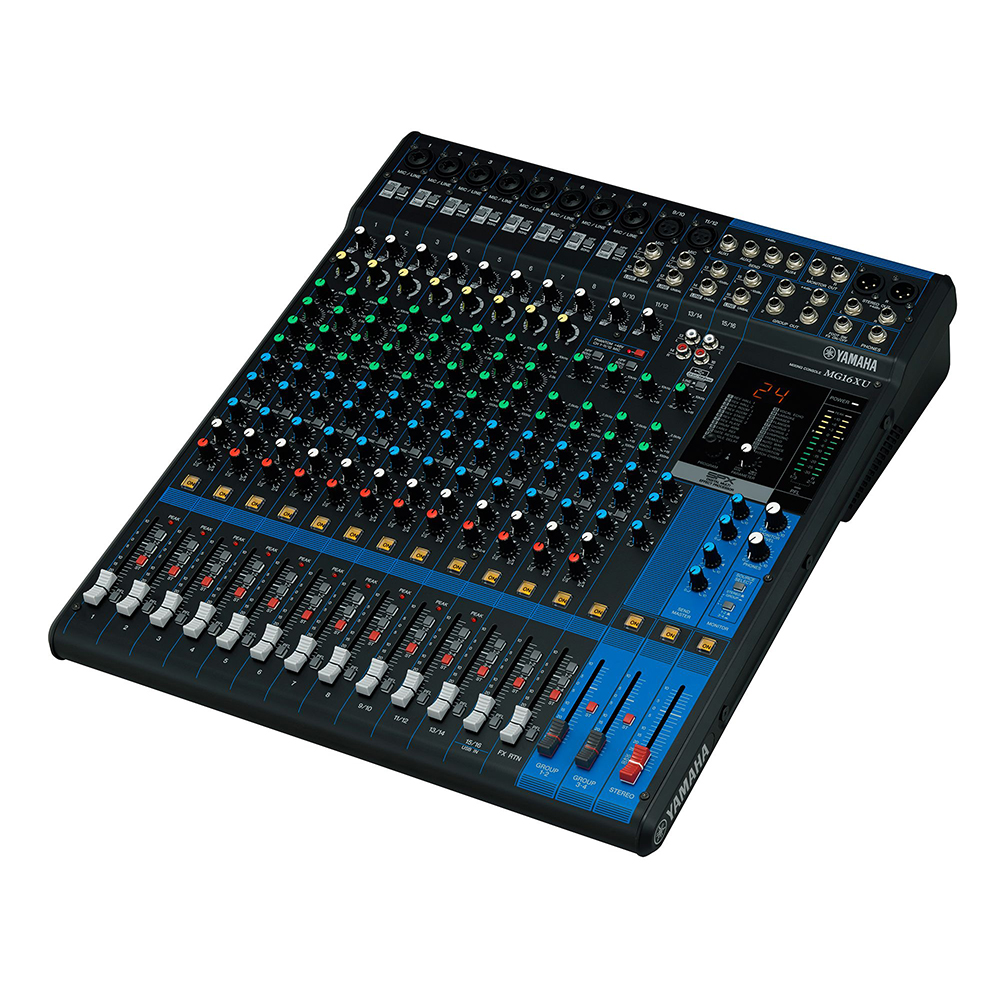

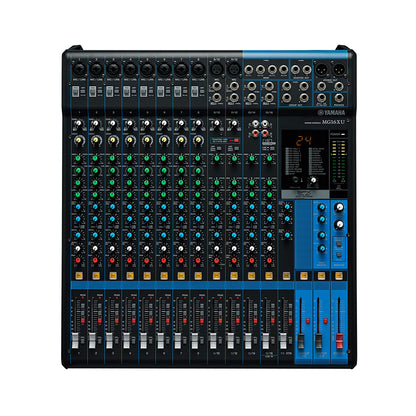

MG16XU
16-Channel Audio Mixing Console
Overview:
● The Yamaha MG16XU 16-Channel Audio Mixer crystal clear D-PRE preamps will squeeze every drop of tone from your mics, with natural-sounding bass and smooth highs. Featuring onboard digital effects, switchable phantom power, a pad switch, one-knob compressors, EQ, plenty of I/O, and LED metering.
●For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class.
Features:
-
Model: MG16XU
-
16-Channel Mixing Console
-
+48V phantom power
-
XLR balanced outputs
-
4 AUX (incl. FX)
-
Metal chassis
-
1-Knob compressors
-
Power Consumption: 30 Watts
-
PAD switch on mono inputs
-
Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo)
-
4 GROUP Buses + 1 Stereo Bus
-
“D-PRE” mic preamps with an inverted Darlington circuit
-
High-grade effects: SPX with 24 programs
-
24-bit/192kHz 2in/2out USB Audio functions
-
Includes Cubase Al DAW software download version
-
Internal universal power supply for world-wide use
-
Rack Mount Kit Included
1-knob Compressors
● Compression plays an essential role in just about any recording or sound reinforcement environment by altering the level of dynamics of an audio signal when you need livelier guitars, punchier bass lines, a tighter snare, or a cleaner vocal sound. However, it can take countless hours to master the complexities of even the most basic outboard compression units and use them effectively.
Switchable Phantom Power & PAD Switch
● With phantom power, MG Series consoles allow you to take full advantage of the greater frequency response and high sound quality of condenser microphones. The input channel with PAD switch accepts MIC to line level of inputs, PAD Switch attenuates high input signals that often accompany mic'ed instruments during performance, avoiding the clipping that can seriously affect your mix.
AUX / Effect Sends / Group
● MG Series mixers feature AUX sends for expanding your sound reinforcement or recording setup, allowing you accommodate additional effects, output to external recording devices, or feed a monitoring system.
Built-in SPX Digital Effects
● The MG X / XU models feature Yamaha’s acclaimed SPX digital multi-effect processor, offering a comprehensive suite of 24 editable digital effects perfect for enhancing your mix, whether adding depth to a speaking engagement or breathing new color and atmosphere into a live band performance. In particular, the high-quality reverb and delay expand the spatial quality of the sound with remarkable realism and naturalness.
Metal Chassis

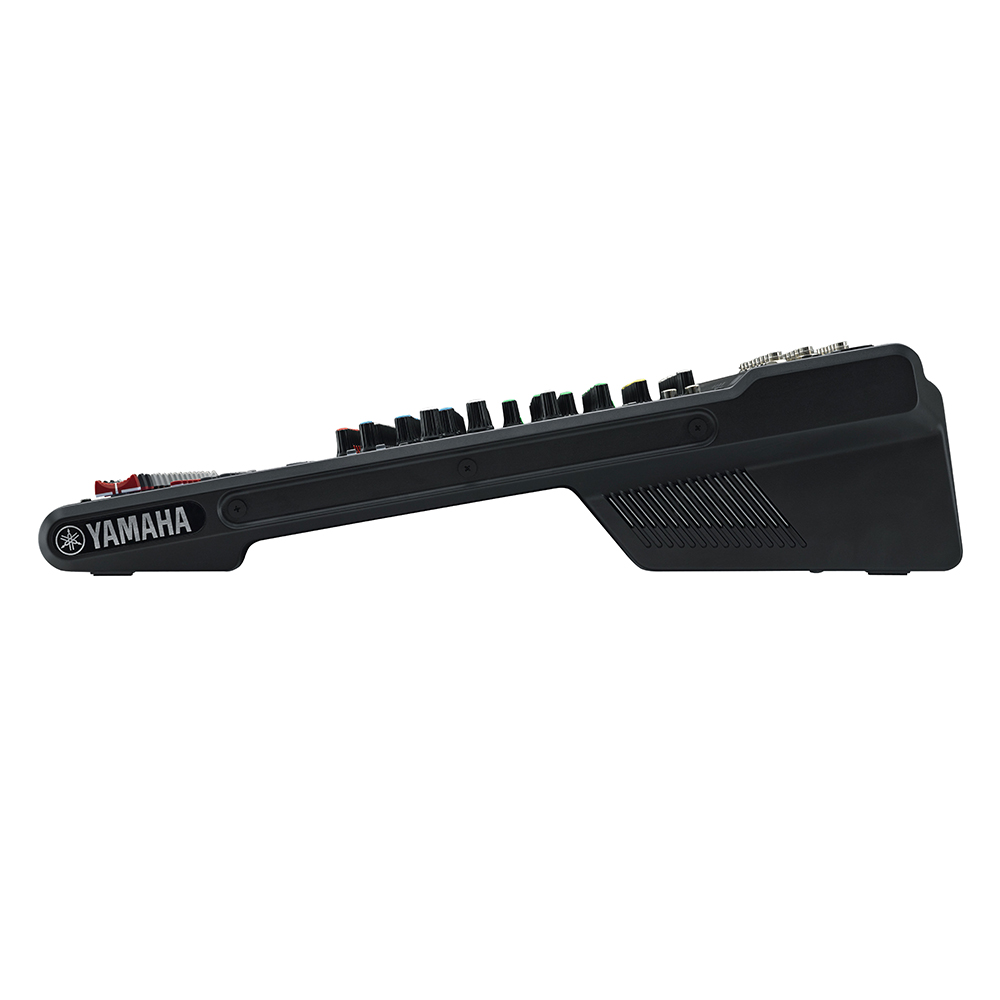

● Built to last, MG Series mixers feature a rugged, impact-resistant, powder-coated metal chassis, offering an unrivalled level of durability. With a sleek design contoured for optimal convection cooling, the internal layout separates the power supply from the analog circuitry for superior noise reduction, and further extends the life of the components inside. To further ensure reliable performance, knob control placement above the surface of the chassis diverts any impact or pressure on the knobs to the chassis itself and not the circuit board or components underneath.
XLR connector
● The main stereo outputs feature XLR type connectors that lock to prevent accidental disconnection. Rugged and dependable, these professional connectors ensure providing stable signal transmission even in the most demanding environments.
24-bit /192kHz 2-in/2-out USB Audio Interface Function
●MG Series mixing consoles feature flexible digital connectivity for quick and easy high resolution playback of digital content. Simply connect to your PC via USB. The USB protocol uses asynchronous data transfer. Audio data is transferred based on highly precise audio clock signal from the MG, for high quality recording and playback.
