YC ONION MHDB120 B, YC ONION MHDB100 B, YC ONION MHDB80 B, YC ONION MHDB60 B
Overview

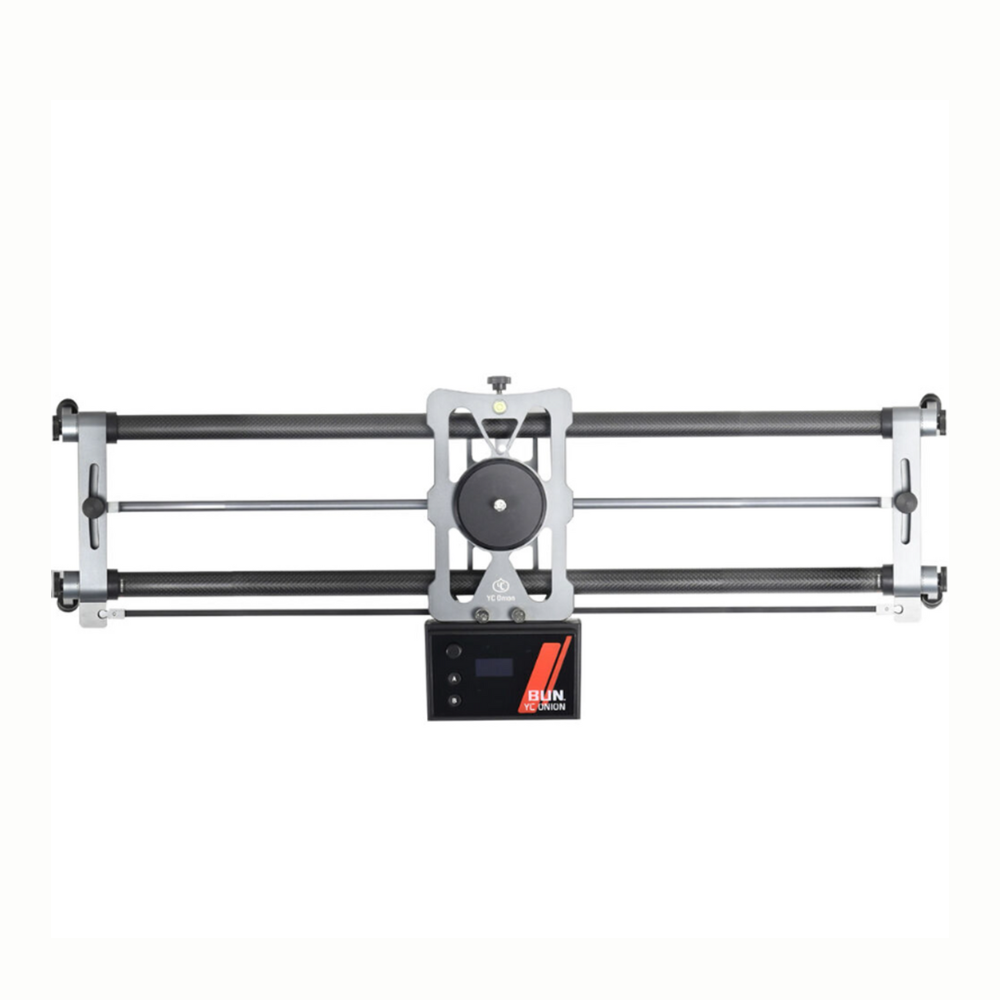

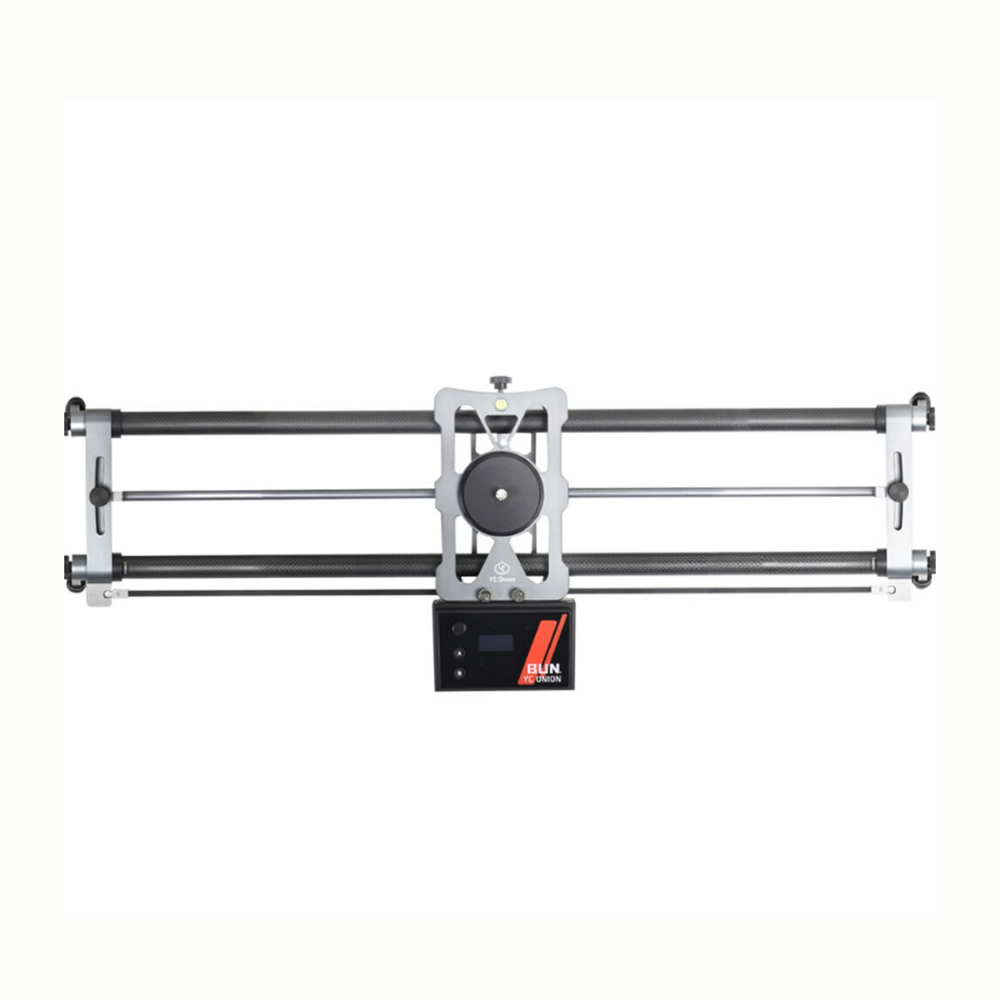

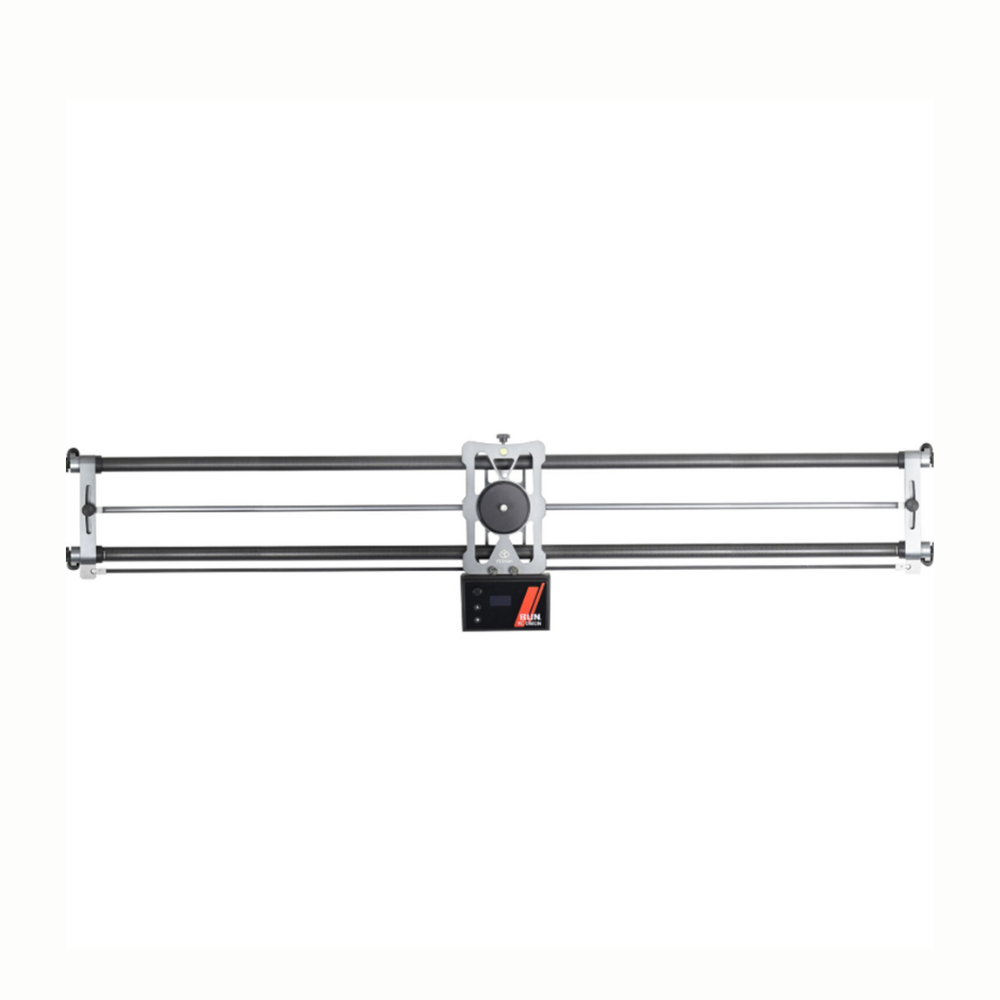

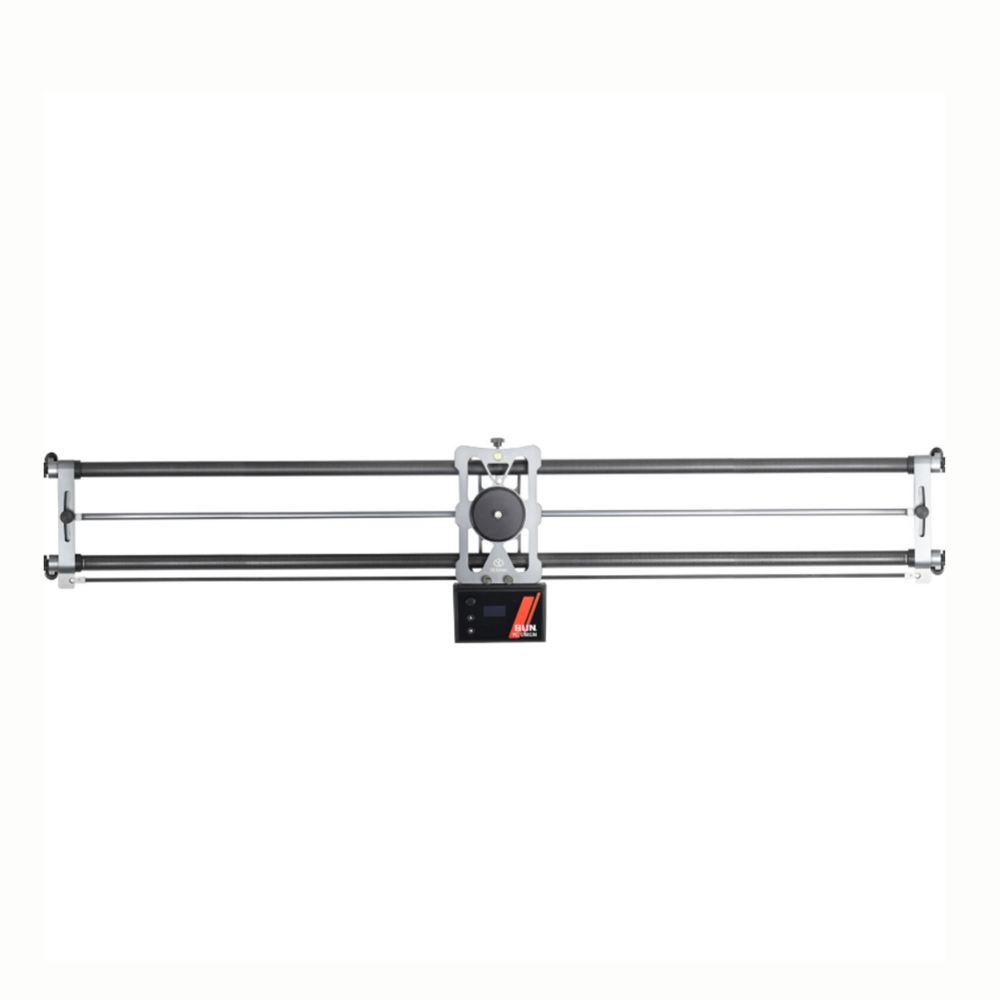

The 47" YC Onion Hot Dog Bun Motorized Slider includes a motor that attaches to the slider carriage to motorize your slides with smooth, consistent motion. Using an iOS/Android companion app, you can assign A and B start and end travel points in both video and time-lapse modes. Settings such as speed and back and forth loop motion are also assignable. In time-lapse mode, you can adjust the frame rate, the number of photos, interval time, exposure, damping, and other parameters. The motor also has onboard buttons for setting A and B start and end points directly without an app. The motor attaches to the slider carriage with included screws, and a belt attaches to the motor and to the two ends of the slider by quick release clip mounts. You can also remove the motor and belt and use the slider fully manually.
The motor can also be paired with select DJI and Zhiyun-Tech gimbals, and simultaneous motion settings can be assigned for the slider and the gimbal from the same YC Onion app to achieve 4-axis motion control. To pair the DJI Ronin-S or RS 2, an optional YC Onion Interlink module is additionally required. There are separate ones available for these two gimbals, and they sandwich in between the gimbal and the slider. But Zhiyun gimbals can be paired directly, without any add-on module required. The following Zhiyun gimbals are directly compatible: WEEBILL LAB, WEEBILL-S, CRANE 3 LAB, CRANE 3S, CRANE 2S, CRANE 2, and CRANE-M2. The WEEBILL-2 is expected to be compatible in the near future as well.
Time-lapse capture can be achieved with the slider placed horizontally or slanted on a tripod. The motor supports up to 44 lb horizontally, up to 31 lb when inclined at 45° on a tripod, and up to 14 lb when mounted fully vertically.
The slider carriage features a 3/8"-16 screw, supporting compatible tripod heads and ball heads (as well as the optional Interlink module). On the bottom of the slider are 1/4"-20 and 3/8"-16 threads for mounting the slider on a tripod.
Key Features
- Attachable Motor with Controls & LCD
- Can Be Used Manually with Motor Removed
- DJI/Zhiyun Gimbal Pairing
- iOS/Android App Slider/Gimbal Settings
- Time-Lapse Settings: A/B, Loop & More
- 44 lb Horizontal/14 lb Vertical Payload
- 2.5mm Shutter Control Port
- A/B Travel Points Memory
- Carbon Fiber Rods, Aluminum Construction
- Battery & Power Bank Support
Key Specs
- Sliding System: Motorized Slider
- Load Capacity
- 44 lb / 20 kg (Horizontal)
- 31.5 lb / 14.3 kg (Inclined)
- 14 lb / 6.4 kg (Vertical)
- Wireless: Bluetooth
- Head Mount Type: 3/8"-16 Male
- Built-In Stand/Feet: Adjustable /
- Curved: No
- Bubble Level: Yes
Control
- Remote: Mobile App
- Wireless: Bluetooth
- Inputs/Outputs
- 1x 2.5 mm
- 1x USB-C
- Power Source: DC Input or External Battery: 1Sony L-Series / NP-F
- Power Supply: Sony F970, F750, F550 Battery
Mounting
- Head Mount Type: 3/8"-16 Male
- Tripod Leg / Stand Mounting
- 1/4"-20 Female Thread
- 3/8"-16 Female Thread
Physical
- Dimensions: L: 47.2" / L: 120 cm
- Display: Yes
- Material: Aluminum Body with Carbon Fiber Rail
Run Time:
- Sony F970: 11 Hours
- Sony F750: 8 Hours
- Sony F550: 4 Hours
- 10000mAh powerbank: 15 Hours
