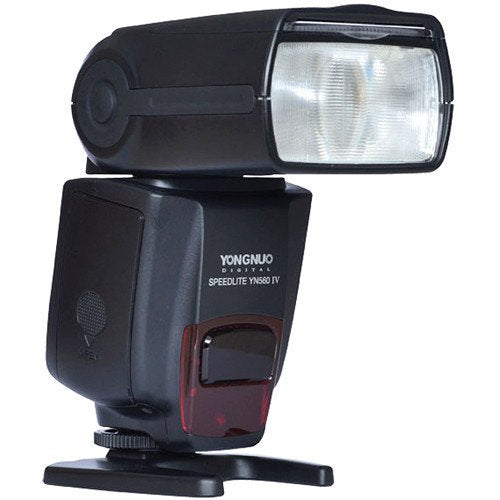

Overview:
- Features 3 groups and 16 channels for wireless operation
- Can receive a wireless signal from YN560-IV, YN560-TX, RF-603 (I/II), and RF-602
- Metal hot shoe for standard on-camera triggering
- Large LCD screen for viewing settings and making adjustments
- Socket for SF-18C or SF-17C external power pack
- Audible flash ready indicators offer different sounds based on flash status
- 100-1500 flashes from one set of batteries
- Automatically saves your current settings
- Built-in bounce card
- The color temperature of 5600K
- Eight levels of flash output from 1/1 to 1/128 with 29 individual settings
- Optical triggering range of 66-82' indoors or 33-49' outdoors
Key Features:
- 2.4 GHz Transceiver with 328' Range
- Guide Number: 190' at ISO 100 and 105mm
- Zoom Range: 24-105mm (18mm with Panel)
- Output Range: 1/1 to 1/128
- Tilts -7 to 90° & Rotates 270°
- Optical Slave Functionality
- Recycle Time: Three Seconds
- Multi-Mode for Firing Series of Flashes
- PC Sync and HV Power Ports
- Runs on Four AA Batteries
Specifications
Flash Head
- Guide Number: 190.29' / 58 m at ISO 100 (105 mm Position)
- Coverage: Full-Frame 24 to 105 mm, 18 mm (with Wide-Angle Adapter)
- Bounce Head: -7 to +90°
- Swivel Head: 270°
- Flash Duration: 1/200 to 1/20000 Second
- Recycle Time: Approx. 3 Seconds
- Secondary Illumination: None
Exposure Control
- Exposure Control: Manual
- Flash Modes: None
- Power Range: 1/1 to 1/128 (Manual)
Wireless
- Wireless Operation: Radio (Manual) Up to 328.08' / 100 m, Optical Pulse (Manual) Up to 82' / 24.99 m
- Wireless Channels: 16
- Wireless Groups: 3
- Remote Timing Modes: Instant Sync, Skip Preflash
Power
- Internal Power: 4 x AA (Alkaline, NiMH)
- External Power Pack Compatible: Yes
General
- Mount: Shoe
- Off-Camera Terminal: PC
- Dimensions (W x H x D): 2.4 x 7.5 x 3.1" / 60 x 190 x 78 mm
