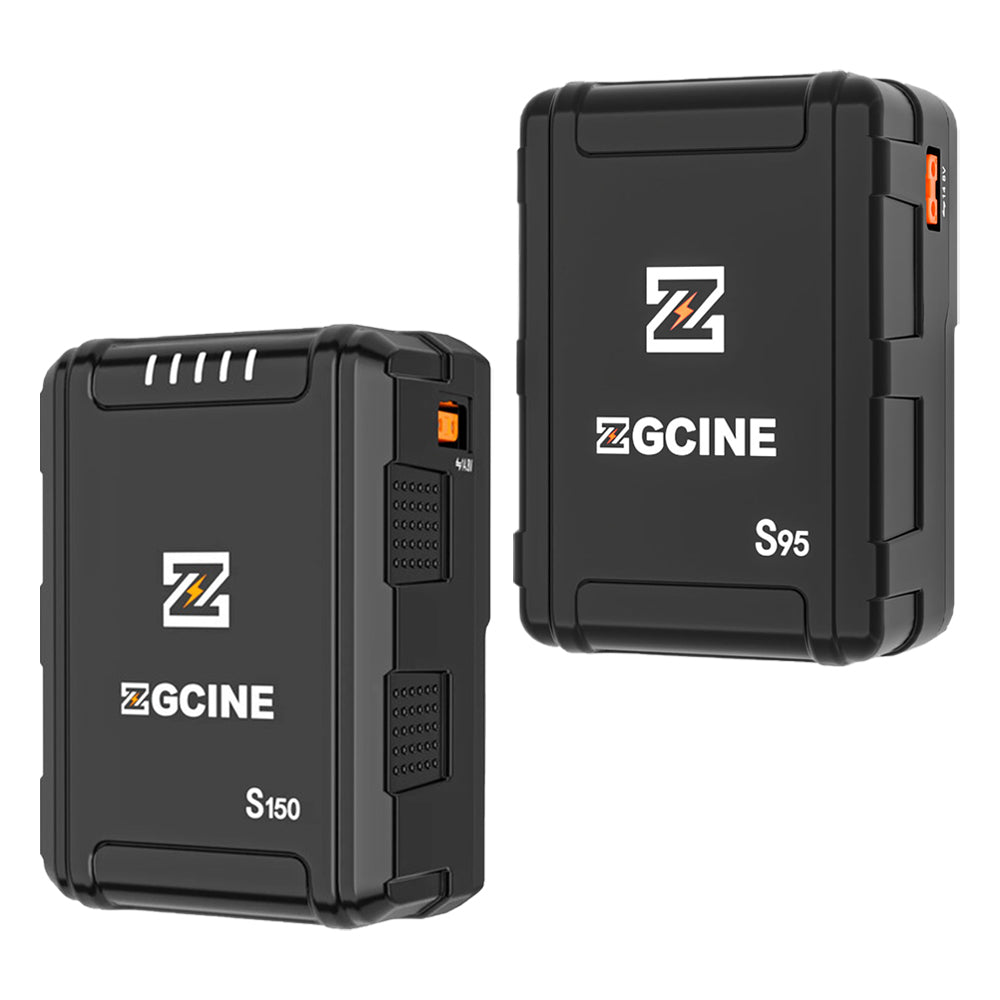

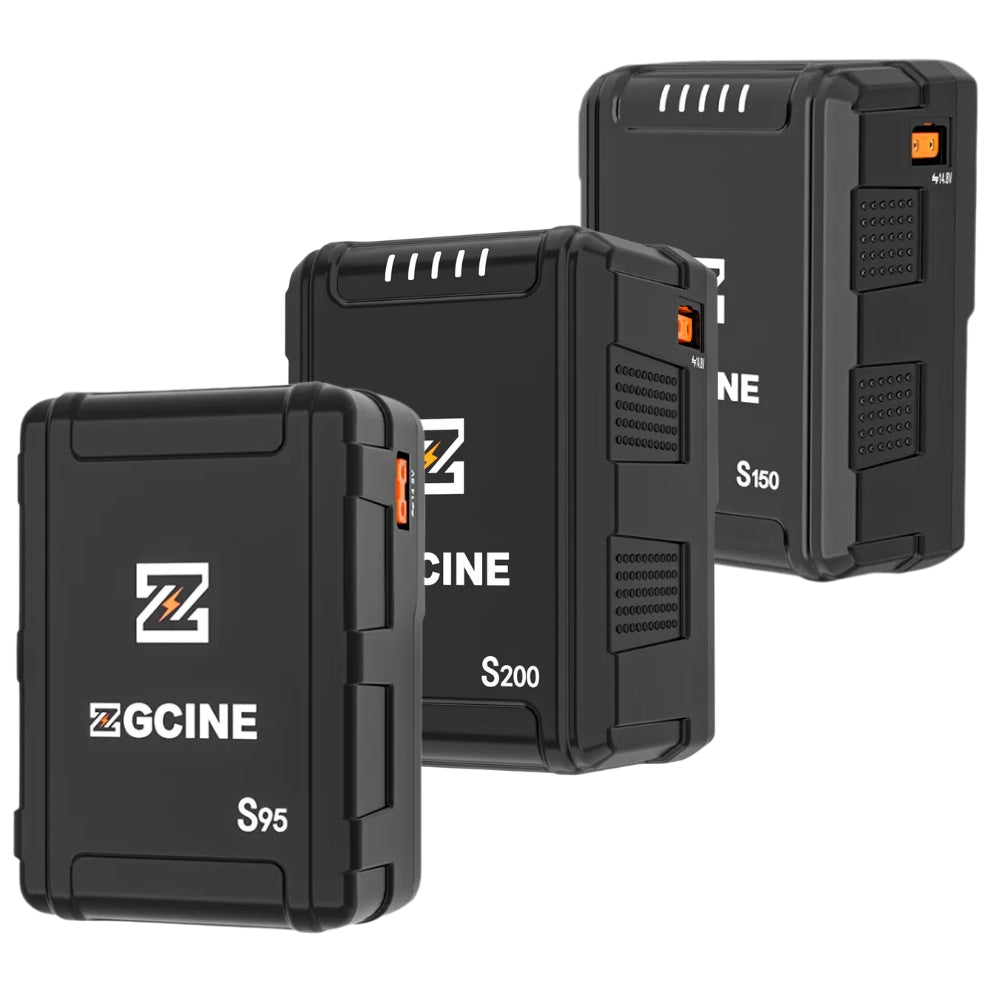

ZG-S150 / ZG-S95
V-Mount Batteries

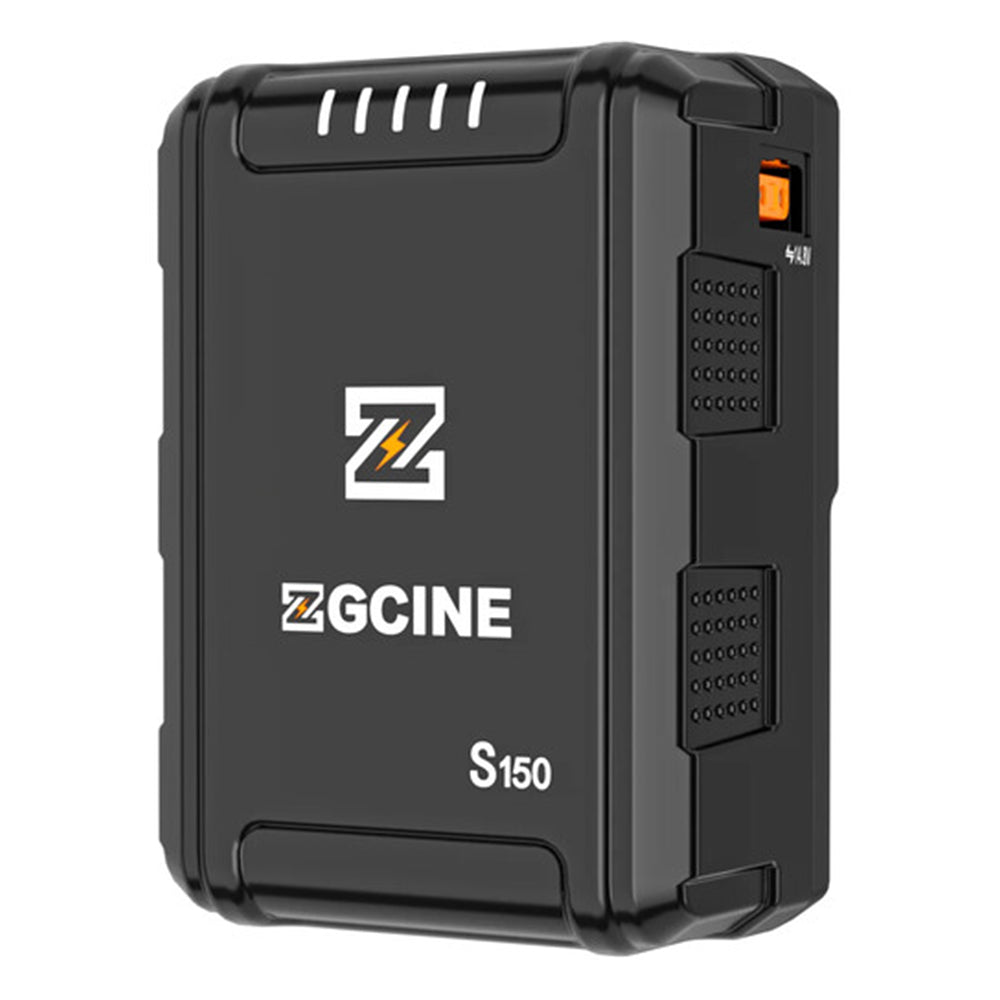

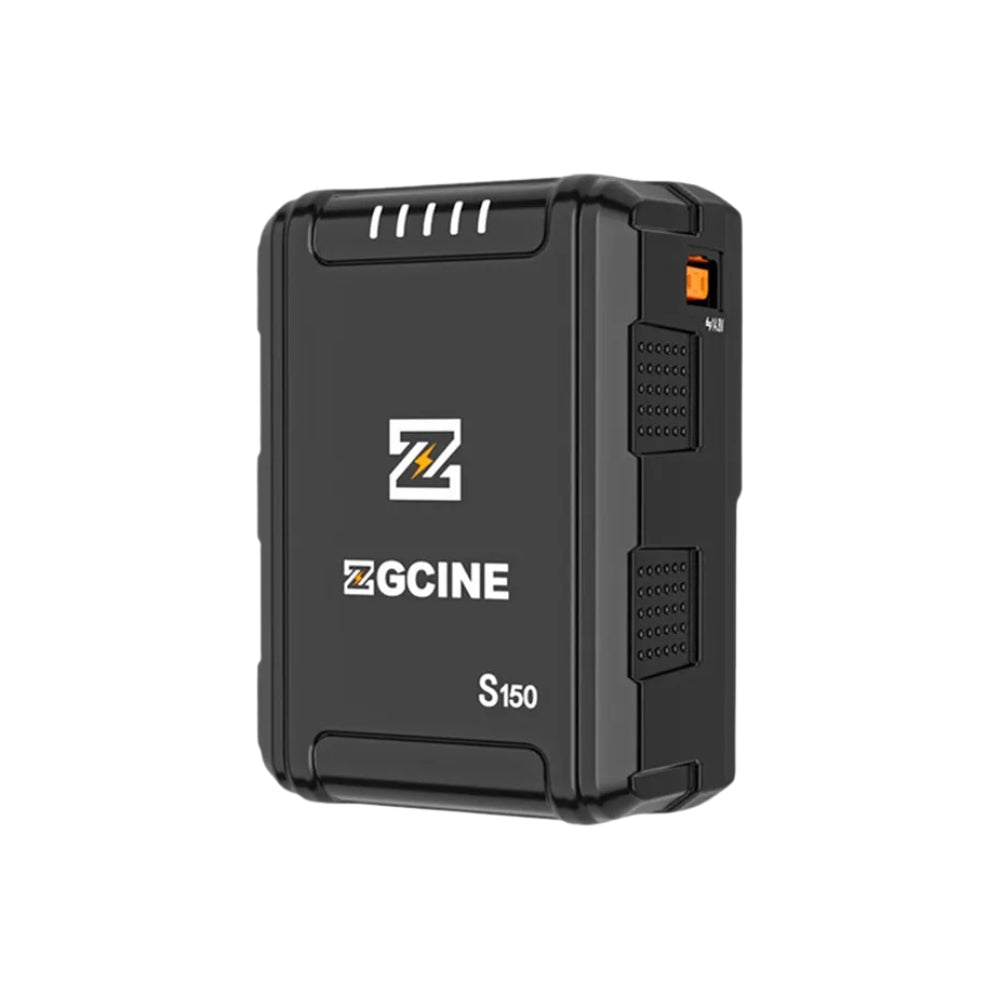

ZG-S150
The ZG-S150 is a high-capacity (133Wh) lithium-ion V-Mount battery engineered for powerful, versatile performance. It offers dual USB-C PD ports (input/output, up to 20 V/3.25 A for fast charging), two D-Tap/BP I/O ports (14.8 V/13 A), plus dedicated barrel outputs at 8.4 V/3 A and 12 V/3 A, all enhanced by a clear five-level LED power indicator for precise monitoring. Thanks to USB-C PD charging capability, it can recharge in approximately 2.5 hours with a 100W charger, making it an efficient companion for demanding workflows.

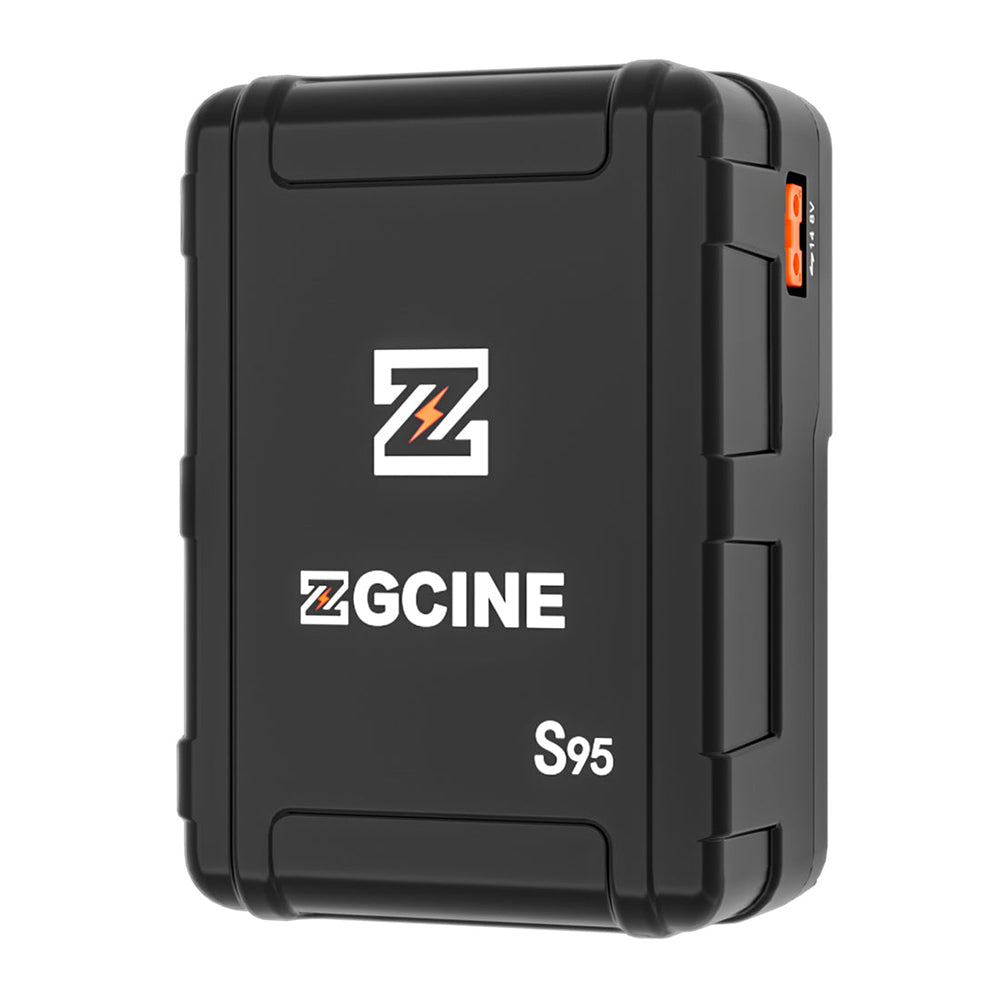

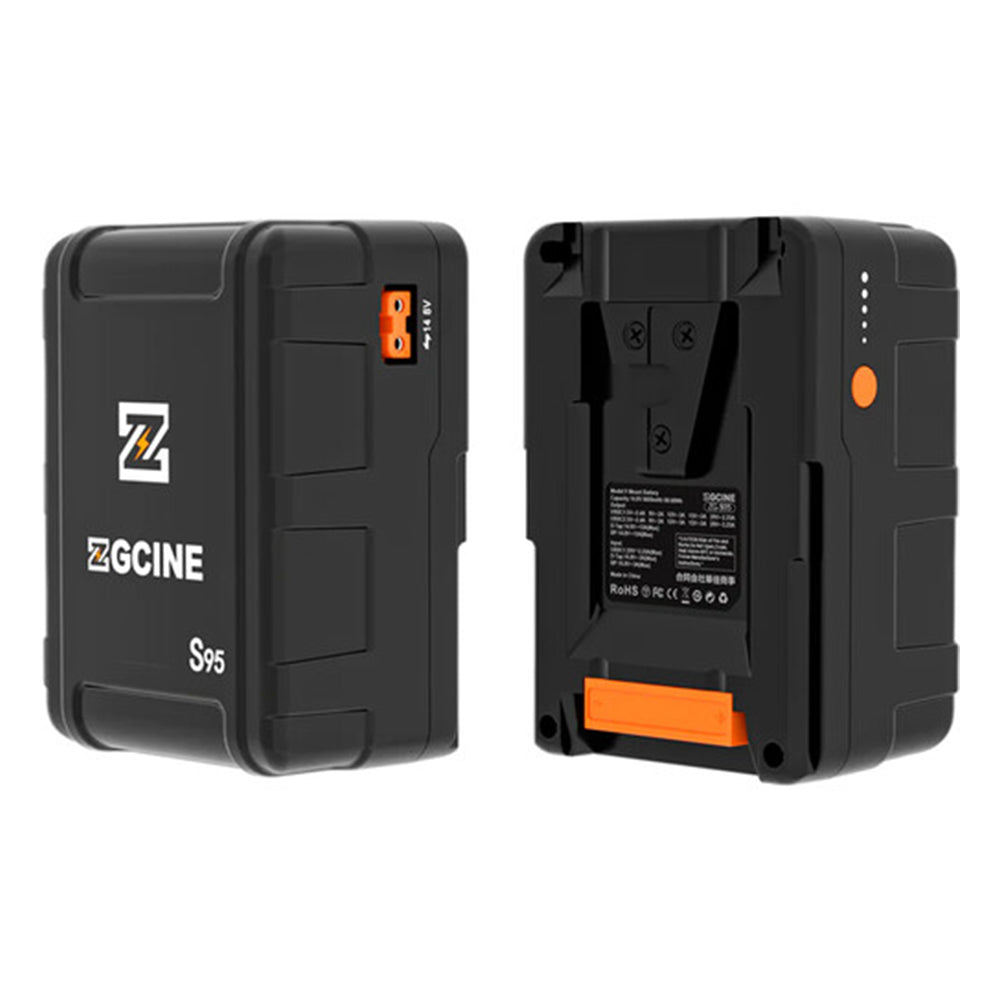

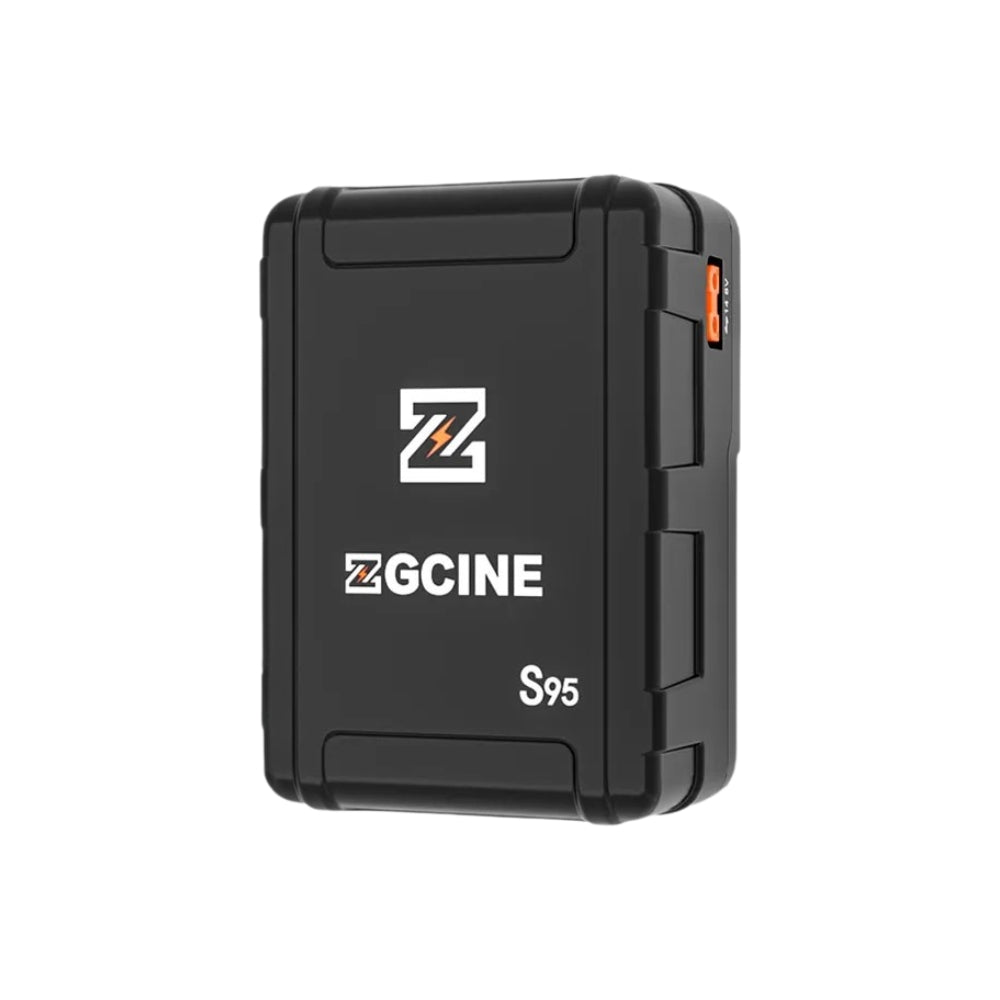

ZG-S95

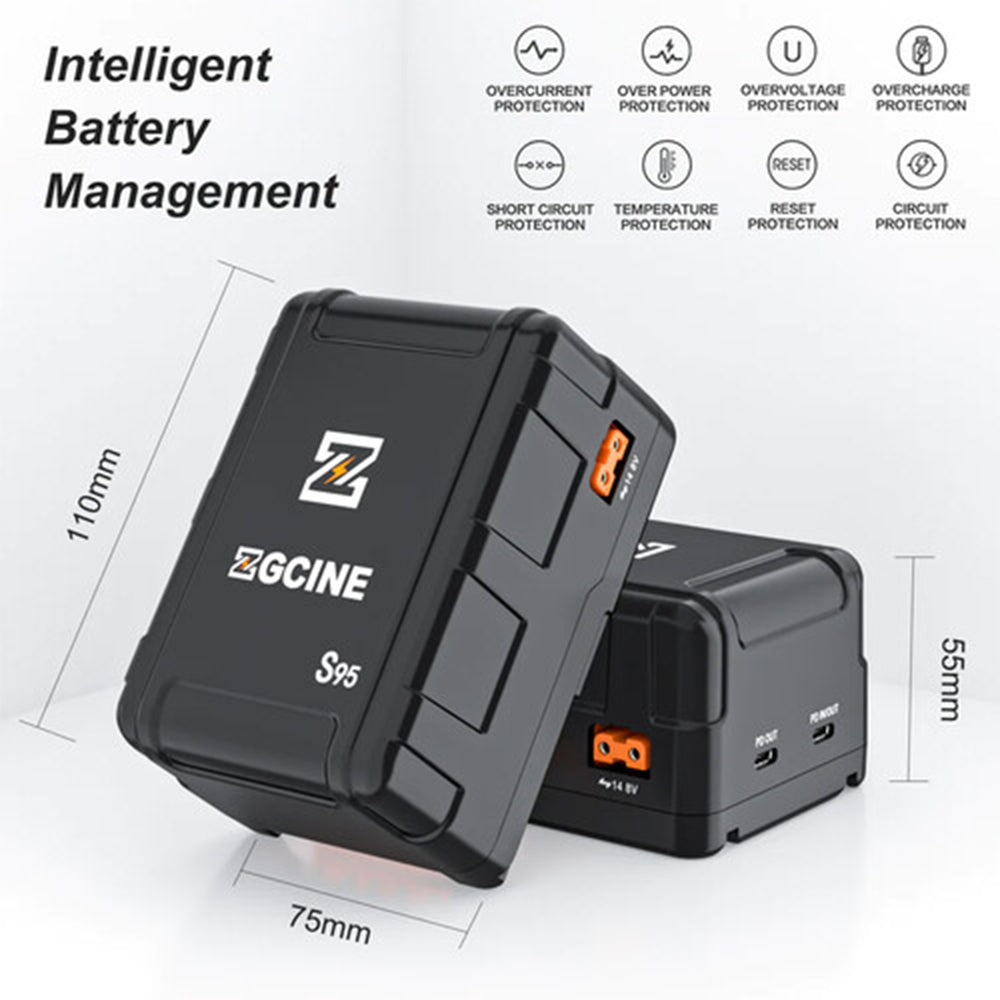

The ZG-S95 delivers a lightweight (98.7 Wh) and compact power solution, ideal for gimbals, drones, and mobile setups. It features dual USB-C PD ports for both charging and output (up to 20 V/2.5 A), and a D-Tap/BP port that supports both charging (16.8 V/3 A) and output (14.8 V/12 A). With built-in circuit protections and a five-level LED status display, it balances safety and functionality.
Specifications:
Brand: ZGCINE
Model: ZG-S150 / ZG-S95
Mount / Series Type: V-Mount
Chemistry: Lithium-Ion
Battery Capacity: 133.2Wh / 98.68Wh
Output Voltage: 14.8 VDC

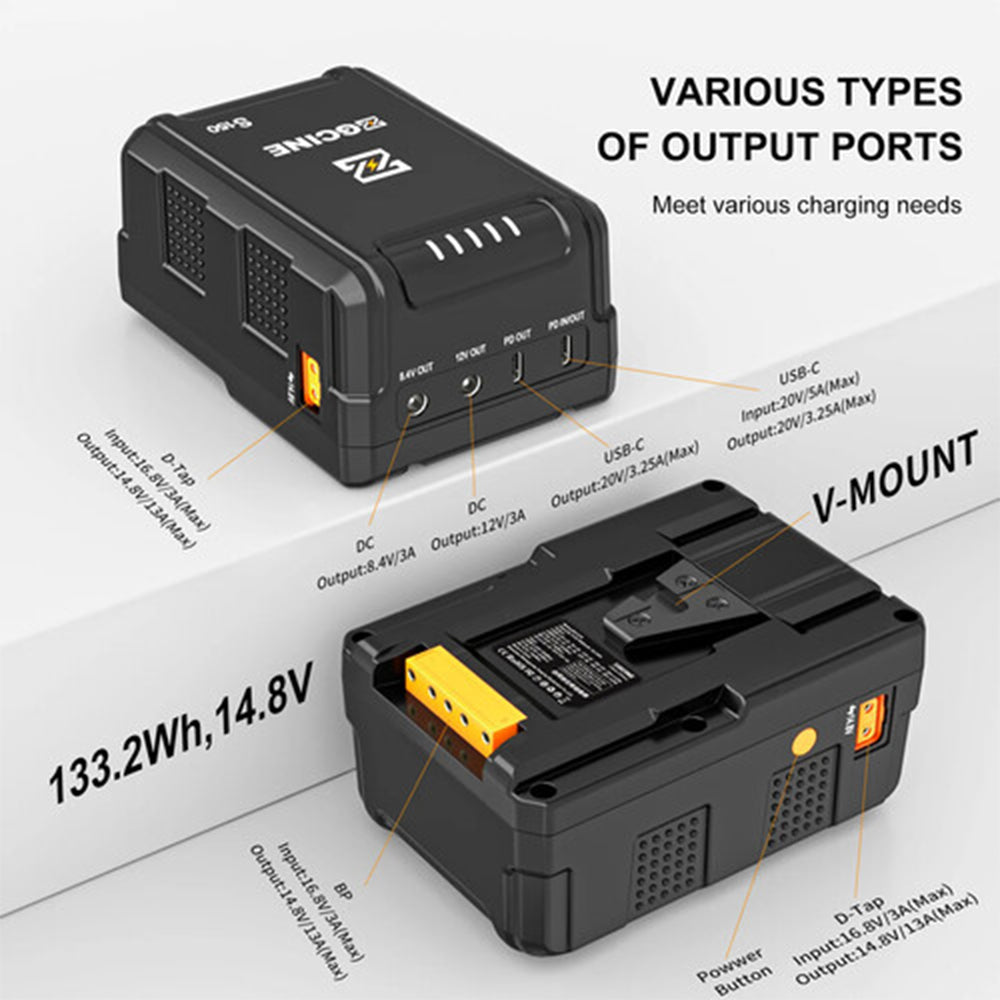

Accessory I/O (ZG-S150):
- 2x D-Tap / P-Tap Input/Output 14.8V / 13A
- 1x Barrel 2.5mm Output 8.4 / 3A
- 1x Barrel 2.5mm Output 12V / 3A
- 1x USB-C Output 5V / 3A, 9V / 3A, 12V / 3A, 15V / 3A, 20V / 3.25A
- 1x USB-C Input/Output 15V / 3A, 20V / 3.25A
Accessory I/O (ZG-S95):
- 1x D-Tap / P-Tap Input/Output 16.8V, 3A Input | 14.8V, 12A Output Regulated
- 1x USB-C Output 5V, 2A | 9V, 1.8A | 12V, 2A | 15V 2,2A | 20V, 2.5A Regulated
- 1x USB-C Input/Output 5V, 2A | 9V, 1.8A | 12V, 2A | 15V 2,2A | 20V, 2.5A Regulated
USB Output:
- 5V, 2A
- 9V, 1.8A
- 12V, 2A
- 15V, 2.2A
- 20V, 2.5A
Charging Voltage: 16.8 VDC
What's in the box:
ZG-S150
1x S150 V-Mount Battery (133.2Wh)
1x USB-C to USB-C Cable
1x Manual
Service Card
ZG-S95
1x S95 V-Mount Battery (94.72Wh)
1x USB-C to USB-C Cable
1x Manual
Service Card
