Features

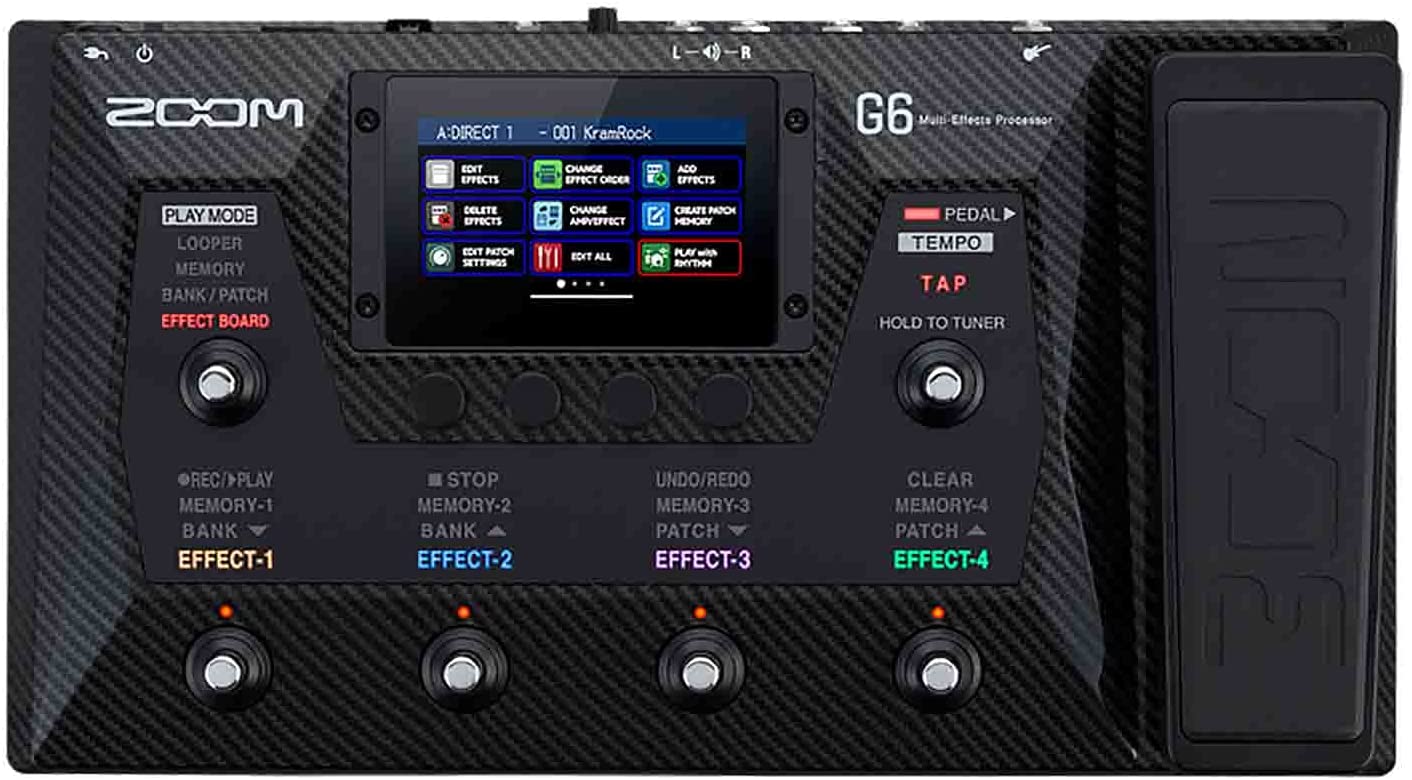

- Guitar multi-effect processor with app-based touch screen interface
- Zoom Amp models that combine the tonal qualities of classic amps
- Original distortion and modulation effects
- 22 cabinet emulations; With 70 preloaded impulse response, more than 100 slots for user IR.
- Integrated pedal with 6 foot switches and volume and expression pedal
- Ultimate Zoom FX processor technology with custom amp modeling
- 4.3˝ color LCD touch-screen interface
- Chain up to 9 effects or 7 effects + amp emulation
- IR load function for speaker cabinet simulation
- New Play Mode Footswitch provides instant access to different play modes

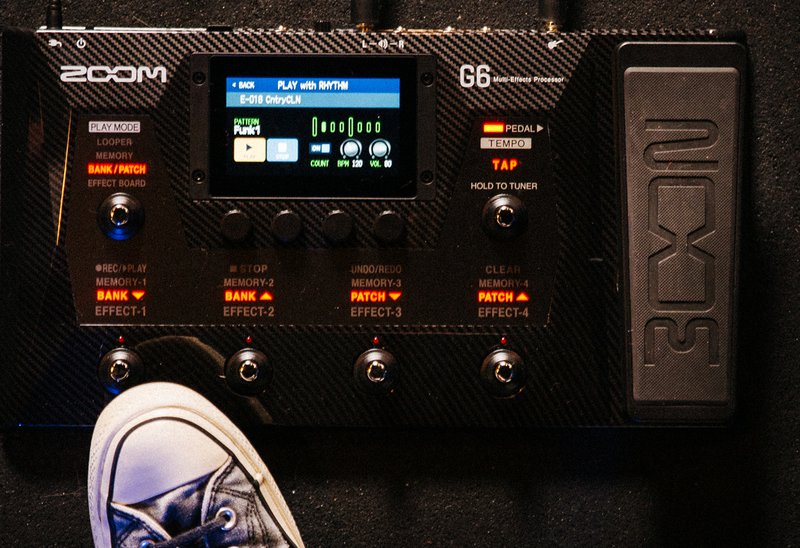

- 68 rhythm patterns

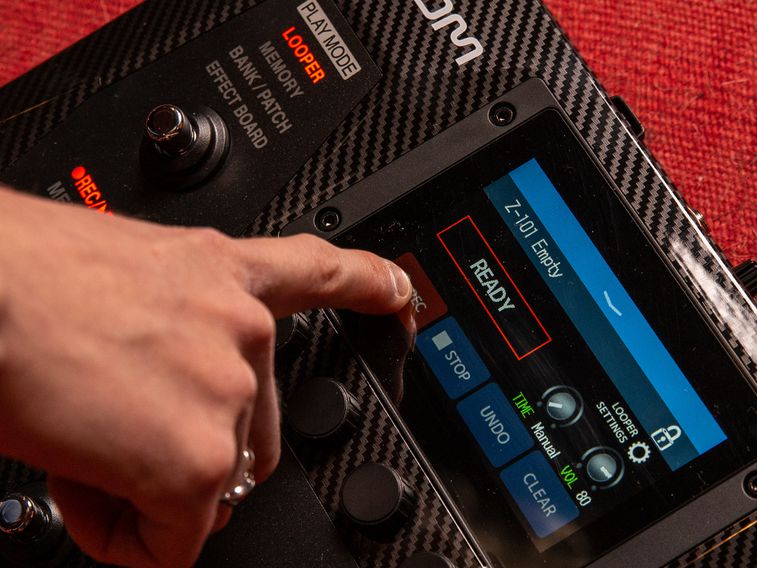

- Looper with loop time up to 2 hours with SD card installed
- Built-in USB audio interface (2-in / 2-out)
- Compatible with Zoom Guitar Lab
- Wireless control via optional Bluetooth adapter (BTA-1) with Handy Guitar Lab app (iOS)
Specifications:
- MAXIMUM NUMBER OF SIMULTANEOUS EFFECTS: 9 effects or 7 effects + Amp
- USER PATCHES: 240
- SAMPLING FREQUENCY: 44.1 kHz
- A/D CONVERSION: 24-bit 128x oversampling
- D/A CONVERSION: 24-bit 128x oversampling
- SIGNAL PROCESSING: 32-bit
- FREQUENCY CHARACTERISTICS: 20 Hz - 20kHz (+0.5 db/-0.5 dB) (10Ωk load)
- DISPLAY: 4.3" TFT color LCD (480x272)
INPUT:
- Standard mono phone jack
- Rated input level: -20 dBu
- Input impedance (line): 500 Ωk
- RETURN - Standard mono phone jack
- Rated input level: -20 dBu
- Input impedance (line): 1 ΩM
- AUX IN - Stereo mini jack
- Rated input level: -10 dBu
- Input impedance (line): 10 Ωk
OUTPUTS
- OUTPUT R: Standard mono phone jack
- Maximum output level: +11.4 dBu (when output impedance 10 Ωk or higher)
- OUTPUT L/MONO (PHONES) Standard stereo phone jack
- Maximum output level: +11.4 dBu (when output impedance 10 Ωk or higher)
- Headphones 24 mW + 24 mW (at 32 load)
- SEND Standard stereo phone jack
- Maximum output level: +11.4 dBu (when output impedance 10 Ωk or higher)
