Key Features
-
Live/Location Recording & Podcasting
-
Swappable X/Y Stereo Mic Capsule
-
4 x XLR-1/4" Mic/Line Inputs with Pads
-
Fast, User-Friendly Operability
-
Records in WAV up to 96 kHz
-
3.5mm Line & Headphone Outputs
-
Onboard Compressor & Low-Cut Filter
-
Powered via Batteries, AC, or USB
-
Supports SDXC Cards up to 128GB
-
Stereo Safety Track Recording

Portable Recorder
-
Number of Tracks
-
WAV: 6
-
MP3: 2
-
Maximum Sampling Rate: 96 kHz / 24-Bit
-

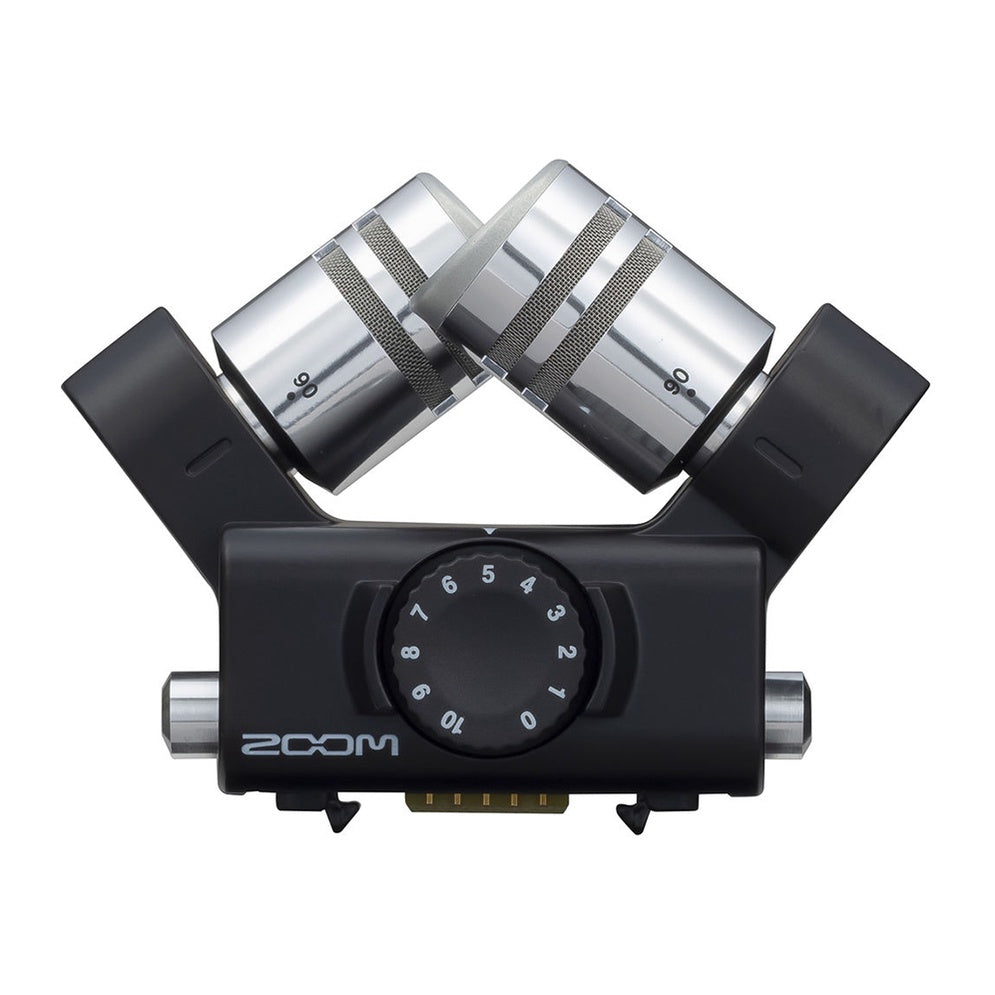

Microphone: Interchangeable Cardioid Condenser Stereo Pair, X/Y Configuration
-
Built-In Speaker: Yes, 400 mW Mono
-
Display: 2" / 5.08 cm Color LCD (Backlit)
-
Memory Card Support:
-
SD (16 MB to 2 GB)
-
SDHC (4 to 32 GB)
-
SDXC (64 to 128 GB)
-
Internal Storage: None

Recording
-
Audio File Formats: BWF, MP3, WAV
-
Sample Rates
-
WAV: 44.1 / 48 / 96 kHz
-
MP3: 44.1 kHz
-
Bit Depth: 16 / 24-Bit
-
Bit Rates: 48 to 320 kb/s
-
Signal Processing & FX: Compressor, Limiter, Low-Cut Filter, Pitch Control
-
Timecode Support: No

Recording Time
-
WAV 44.1 kHz/16-Bit: 1 Hr 34 Mins per GB (Stereo)
-
MP3 128 kb/s: 17 Hrs 21.5 Mins per GB (Stereo)

Connectivity
Analog I/O
-
4 x Combo XLR-1/4" TRS Female Balanced/Unbalanced Line/Mic Input
-
1 x 1/8" / 3.5 mm TRS Female Unbalanced Line/Mic Input
-
1 x 1/8" / 3.5 mm TRS Female Unbalanced Line Output
-
1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output
-
Digital I/O: None
-
Phantom Power: +12 / 24 / 48 V (Selectable on Individual Inputs)
-
Plug-In Power: Yes, 2.5 V
-
Host Connection: 1 x Mini-USB (2.0)

Performance
-
Gain/Trim Range
-
X/Y Mic Capsule: Up to +46.5 dB
-
1/8" Inputs: Up to +46.5 dB
-
Mic/Line Inputs: Up to +55.5 dB
-
Max Input Level
-
Inputs: +22 dBu (Pad On)
-
Max Output Level
-
Line Outputs: -10 dBu
-
Headphone Output Power: 20 mW per Channel into 32 Ohms

Impedance
-
1/8" / 3.5 mm Inputs: 2 Kilohms
-
Mic/Line Inputs: 1.8 Kilohms
-
EIN: ≤-120 dBu
-
Microphone Sensitivity: -41 dB/Pa (X/Y)
-
Microphone Max SPL: 136 dB SPL (X/Y)

Power
-
Power Options: Battery, USB Bus Power, AC/DC Power Adapter
-
Battery Type: 4 x AA (Not Included)
-
Approximate Battery Life
-
WAV 44.1 kHz/16-Bit: 21 Hours (Alkaline, 2 Channels)
-
WAV 96 kHz/24-Bit: 9.75 Hours (Alkaline, All Channels)
-
AC/DC Power Adapter: 5 VDC at 1 A (Not Included)

Physical
-
Mounting Options: 1/4"-20 Female

Dimensions:
-
3.1 x 1.9 x 6" / 77.8 x 47.8 x 152.8 mm (Recorder)
-
3.1 x 1.8 x 2.4" / 78.9 x 45.2 x 60.2 mm (X/Y Mic)

Weight:
-
9.9 oz / 280 g (Recorder)
-
4.6 oz / 130 g (X/Y Mic)
