FEELWORLD S10 10.1" IPS Touchscreen 12G-SDI HDMI 2.0 Camera Field Monitor with 1200 NITs, 32 Custom 3D LUTs, HDR Monitoring, Tally Light, 16 Channel Audio Meter, Video Assist Functions, Dual NP-F Battery Plate and DC Output

Perfect 4K Monitoring

S10 is a larger size 12G-SDI monitor that FEELWORLD continues to release. It is an ideal choice for 4K on-site shooting, large-scale performances, live events, TV programs, and more.



12G-SDI High Speed Transmission

Adopting 12G-SDI single link technology and compatibility with 6G-SDI/3G-SDI/HD-SDI/SD-SDI, supporting 12Gbps per second transmission rate, better meeting the video transmission needs of high definition and high frame rate.







Professional Broadcast Quality

S10 can not only handle handle monitoring from all your SD, HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI sources, but also simultaneously loop-out high quality broadcast video images, providing you the perfect future proof monitoring solution and bringing the best quality possible and a fluid smooth viewing experience!



10-inch Full HD Screen

Clearly checking and capture every nuance

With extremely high resolution 10.1-inch IPS panel，a wider field of view and clearly present more detailed image. 1.07B color provides a richer range of colors. 160 ° wide viewing angle, support multiple members to monitor the image from all angles, facilitate team collaboration for filmmaking.



Professional CalMAN Software Calibration, DCI-P3 Cinema Color Gamut

Each monitor under goes color calibration via CALMAN professional software prior to leaving the factory,ensure color accuracy and good reproduction, and the delta E value ≤1.5 Plus, S10 also covers 95% DCI-P3 film-grade color gamut, better meet the visual experience.







Video Assist Features

• Display Tools: Histogram, Vectorscope, Waveform, False Color, HDR, Focus Assist
• Framing Tools: Aspect Ratio, Safety Frames, Center Marker, Ratio Marker, Grid, Marker Color
• Anamorphic Modes: 1.33x, 1.6x, 2.0x, and user-defined
• Other Tools: Image Flip/Freeze, Zoom, Overexposure, Check Field, Scan Mode

Screen Specifications

• Size: 10.1" IPS
• Resolution: 1920x1200 pixels
• Aspect Ratio: 16:10
• Brightness: 1200cd/m²
• Contrast Ratio: 1500:1
• Viewing Angles: 80° (L/R/U/D)

Input/Output

• Inputs: 12G-SDI, HDMI 2.0, Tally, SD Card Slot
• Outputs: 12G-SDI, 3G-SDI, HDMI 2.0
• Audio: 3.5mm Stereo Headphone

Supported Formats

• 12G-SDI/HDMI: Supports up to 4K resolution (4096x2160p @ 60fps)
• 3G-SDI: Supports 720p and 1080p formats

General Specifications

• Power: DC 7-24V, ≤25W consumption
• Temperature Range: -10°C to 60°C (operation); -30°C to 70°C (storage)
• Dimensions: 244 x 157.25 x 26.4 mm
• Weight: 795g

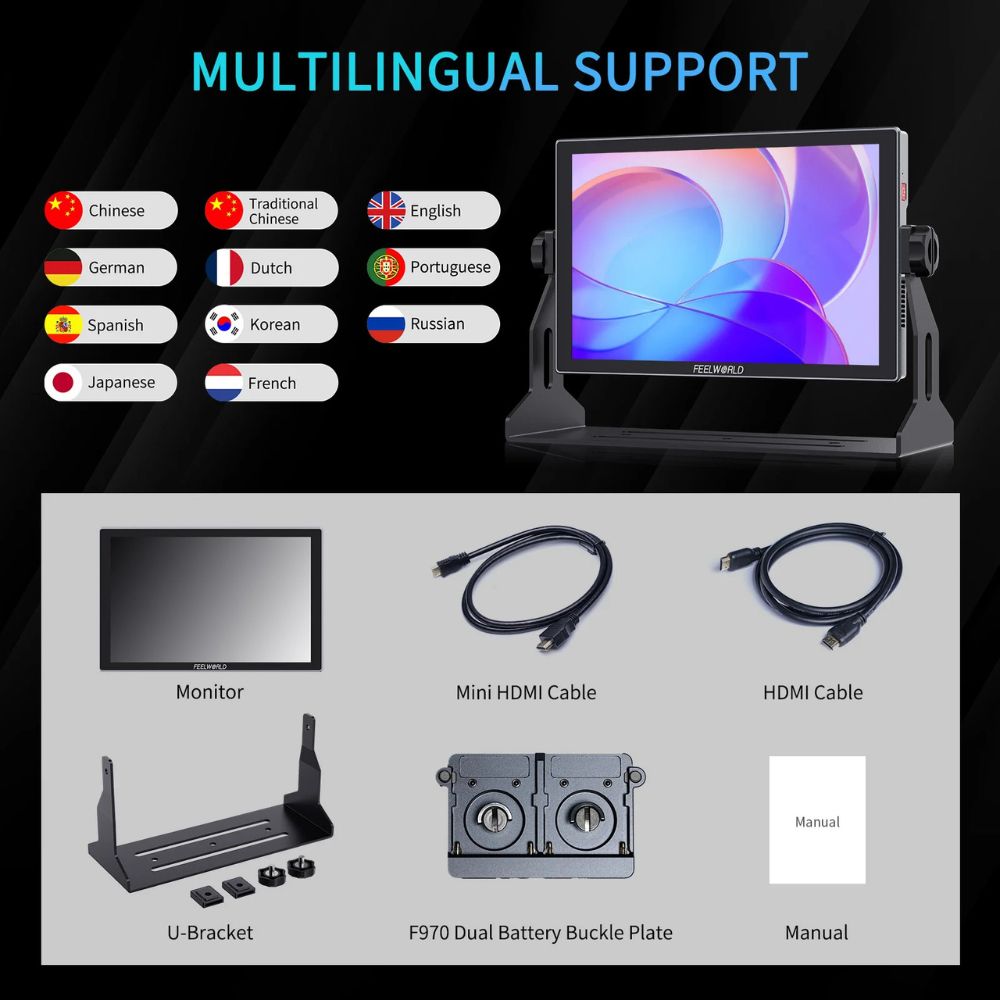

What’s in the box?
